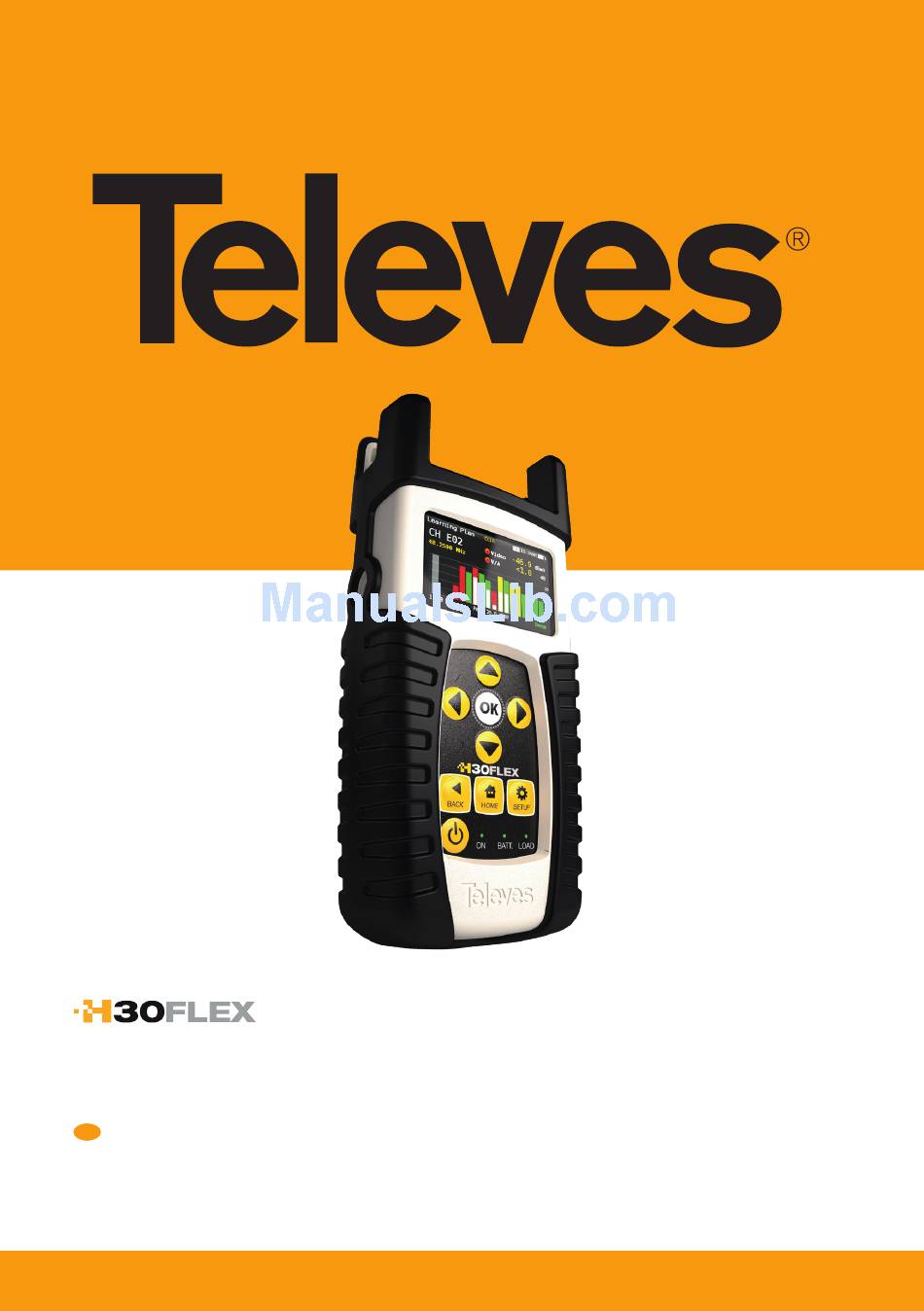

- Page 1 Refs. 593301, 593302 593303, 593304 593360 Instruction Manual Digital processing handheld DVB Meter / Analyzer w w w . t e l e v e s . c o m...
-
Page 3: Table Of Contents
Index Safety requirements ..................Symbols anda safety labels ................Overview ...................... Key Features ....................General specifications ................. Technical specifications ................Description of equipment components ............Connectors and controls ................Keyboard ....................Power Supply ....................Product Operation ..................Channel info ....................Spectrum .................... -
Page 4: Safety Requirements
- Always use caution and avoid operating this 100% Designed, Developed, and Connector / Conector: P1J or any connected equipment near uninsulated Manufactured by Televes Corporation power lines or any other hazards. 100% Designed, Developed, and Sample. Not for sale Manufactured by Televes Corporation S.N.- 09169999900011... -
Page 5: Overview

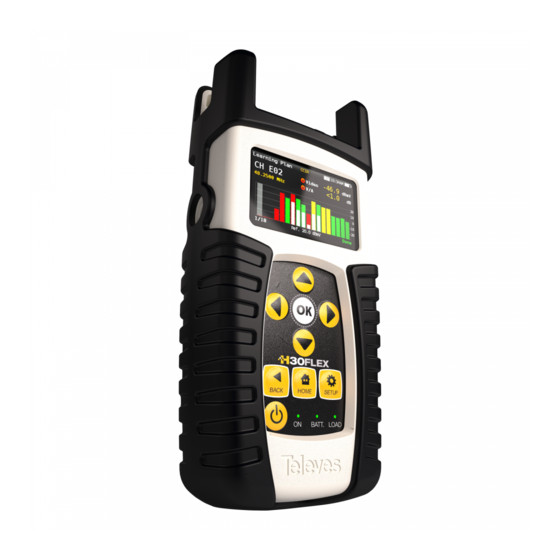

Complete portfolio Analog/Digital measurements with easy-to-read pass/fail New from Televes, a go-to meter designed with the indicators. needs of a DVB installator in mind. Quick and easy to use interface with features The H30FLEX is a light weight, rugged unit,... -
Page 6: General Specifications
Analyzer H30FLEX handheld DVB meter / General Specifications Display 2.8” TFT 400 x 240 full colour Weight 510g (12.12lb) Dimensions 175 x 100 x 52 mm / 6.9 x 3.9 x 2 in (H x W x D) Input: 100-240V~ 50-60Hz AC Adaptor Output: 12VDC, 2A Battery... -
Page 7: Technical Specifications
5, 10, 20, 50, 100, 200, 500 and Full span Up to 20dB Auto Scale 5 and 10 dB/div Constellation Auto and manual Digital Measurements (DVB-S) reference level Digital Measurements DVB-T (ref.593301, 593302, 593304 and MPEG image opc.593231) QPSK, 8PSK Modulations MPEG image Power 45-110dBuV (25-120dBuV opt.593235) Modulations... -
Page 8: Description Of Equipment Components
Analyzer H30FLEX handheld DVB meter / Description of equipment Keyboard components Connectors and controls Device On/Off button: To turn the equipment off, press and hold for approximately 3 seconds. Back button: Return to the previous menu or close a parameter entry window. 1. -
Page 9: Power Supply
Power supply From a fully discharged state, a full charge takes A DC adapter is provided to power and charge the approximately 8 hours and a 3 hour charge will meter. Plug the adapter into a properly grounded provide approximately a 75% charge. electrical supply and the power connector on the The charge management system will detect side of the unit. - Page 10 Analyzer H30FLEX handheld DVB meter / Turn the H30FLEX off Place the new battery and then connect it to the power board OFF: > 3 sec. OFF: > 3 sec. OFF: > 3 sec. OFF: > 3 sec. OFF: > 3 sec. Remove the screws from the backside OFF: >...
-
Page 11: Product Operation
DVB-S: Power, C/N, MER, CBER, VBER DVB-S2: Power, C/N, MER, LDPCBER, BCHBER DVB-T (Ref. 593301, 593302, 593304 and Opt. 593231): Power, C/N, MER, CBER, VBER DVB-T2 (Ref. 593302, 593304 and Opt. 593232): Power, C/N, Link Margin, LDPCBER, BCHBER DVB-C (Ref. -
Page 12: Spectrum
Analyzer H30FLEX handheld DVB meter / Below is a capture of a Channel Info window with a brief explanation of its features. 2. Spectrum Channel Channel Change using Real-time processing speeds ensure capture of any Frequency plan fast, intermittent plant impairments. Due to the accuracy and level of detail provided by this spectrum analyzer, the H30FLEX is the ideal tool for identifying and locating noise, interference,... -
Page 13: Mpeg
3. MPEG The H30FLEX’s MPEG feature will show the image of the selected service. 3.1. Main window - Band: Terrestrial/Satellite Below is a capture of a MPEG Info window with a - Powering: Selects the LNB powering brief explanation of its features: - DiSEqC (only satellite band): Selects DiSEqC parameter (Sat A, sat B, sat C, sat D) Selected channel... -
Page 14: Satellite Test
Analyzer H30FLEX handheld DVB meter / This gives an easy-to-understand real-time view of channel is selected and the user presses Ok button. the system, including the BER and MER values of the selected channel. - Ref. Level: Select the reference level of the bar graph - Span: Select the number of channels showed in the bar graph... -
Page 15: Learning Plan
List of measurements Selected channel with pass/fail indicators Change using 6. Learning plan Press OK to see all the measurements Analyzes the input signal to the meter and automatically detects all channels. Satellite checked This feature automatically identifies the channels as either analog or digital and performs measurements on each. -
Page 16: Constellation
Analyzer H30FLEX handheld DVB meter / Press to change Constellation options. 7. Constellation Digital video often does not show signal impairment until it is too late due to the small margin between acceptable quality and failure. Constellation diagrams are an indispensable tool to help detect the presence of noise, phase jitter, interference, and gain compression, all of which impact overall signal quality and thus reduce... -
Page 17: Setup
Selected channel Echoes graph Change using FFT mode, Guard Interval, and Cell ID - Band: Terr, Sat - Ter. Network: Aerial, Cable - Terr Plan: FCC STD, FCC RETURN, FCC IRC, FCC HRC, FCC OFFAIR, CCIR, and customers plans - Sat Plan: F68E INTEL C, 68E INTEL, 42E TURK, List of measurements with 39E HELLAS, 33E EUTEL, 28E EUTEL, 28E pass/fail indicators... -
Page 18: Driver Installation
Analyzer H30FLEX handheld DVB meter / Auto shutdown - USB Storage: Connect your H30FLEX to your computer using the USB connector and turn USB Storage ON, so you can use your H30FLEX as a storage unit. - Update firmware: See section Firmware update - Reset configuration: Resets the H30FLEX to factory settings... -
Page 19: Web Application
Web Application To change the display mode from calendar mode to list mode, just click on the corresponding button placed at the top of the left button panel: Once you have installed the corresponding driver, Download/ open a web browser in your computer (Chrome Change calendar/ remove the recommended). -
Page 20: Plans
Analyzer H30FLEX handheld DVB meter / 2. Plans You can create a new channel plan from an existing one by clicking on the corresponding button. Or In this window, you can see all the channel plans you can start from scratch, by clicking on the “New of your H30FLEX. -
Page 21: Scr
Unfold to see the list with the The first thing that you must do is download the you want to upload channel plans corresponding update file from the web of Televes and save it in to your meter to the area your computer. -
Page 22: Firmware Update
1.- The first thing that you must do is download the This message appears when the meter is con- update file from the web of Televes and save it in nected to an external power source that does your computer. -
Page 23: Maintenance
Repair service Do not return the unit without first contacting Televes Technical Support. If the unit needs to be returned, Televes will Maintenance arrange for free shipping. The unit will need to be appropriately packed for shipping. In compliance with IATA Regulations, when using Always disconnect the unit before cleaning. -
Page 24: Warranty
(B) Televes shall, free of charge and in its sole (G) Televes shall in no event and under no discretion, either repair, replace with a new or... - Page 25 DECLARACIÓN DE CONFORMIDAD DECLARATION OF CONFORMITY DECLARAÇÃO DE CONFORMIDADE DECLARATION DE CONFORMITE DICHIARAZIONE DI CONFORMITÀ DEKLARACJA ZGODNOŚCI KONFORMITÄTSERKLÄRUNG ΠΙΣΤΟΠΟΙΗΤΙΚΟ ΣΥΜΜΟΡΦΩΣΗΣ FÖRSÄKRAN OM ÖVERENSSTÄMMELSE ДЕКЛАРАЦИЯ СООТВЕТСТВИЯ ةقباطملا نايب www.doc.televes.com...
- Page 27 593301_593302_593303_593304_004_EN...
