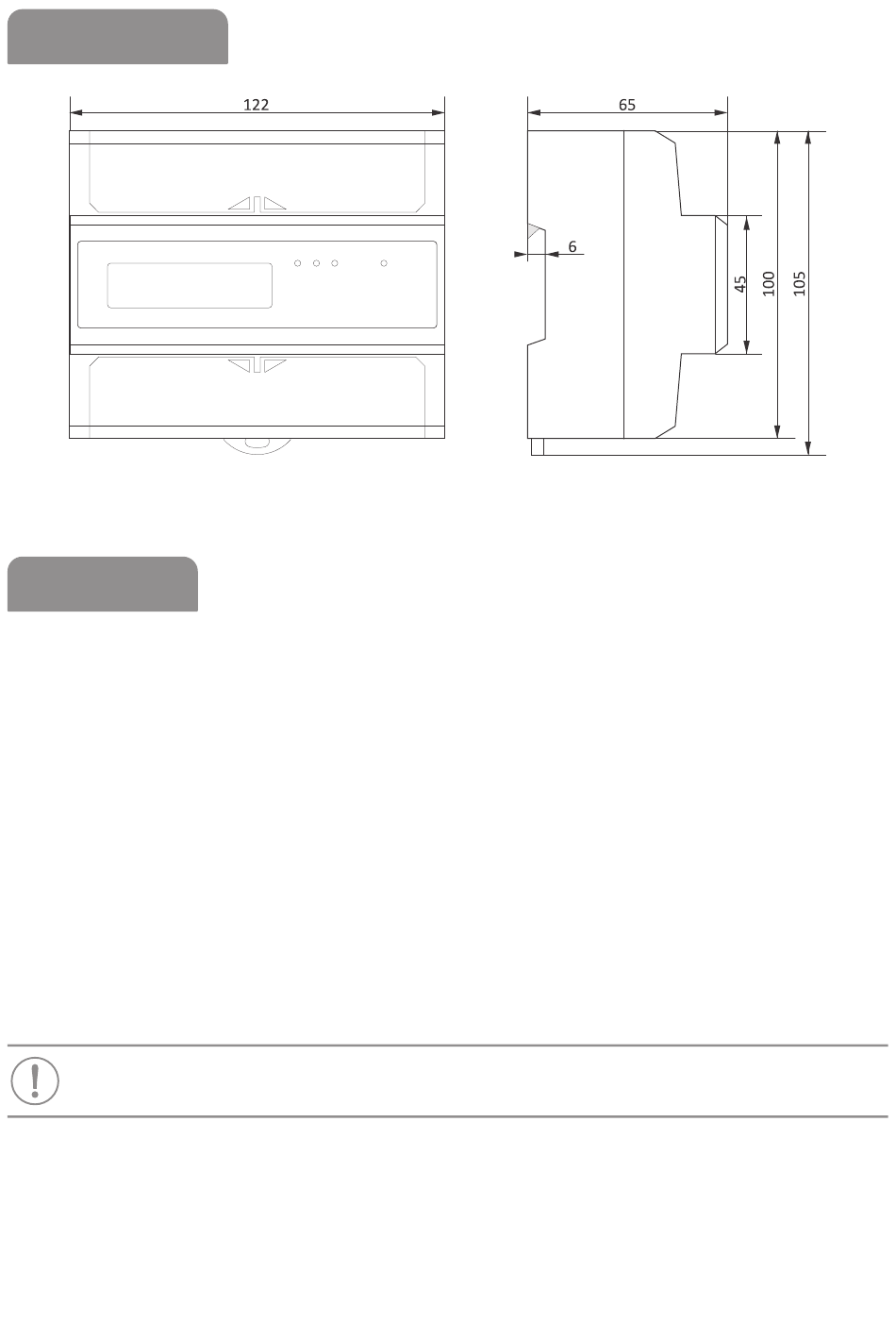

Dimensions
Mounting
1. Disconnect the power supply.
2. The indicator mounted on a rail in the distribution box.
3. Connect the power in accordance with the markings to the
terminals 1 (L1), 3 (L2), 5 (L3).
4. Connect the measured circuit or a single receiver to the termi-
nals in accordance with the markings to the terminals 2 (L1),
4 (L2), 6 (L3).
5. N-wire connect to terminal 7.
6. Additional pulse receiver connected (optional) to terminals
9(+) and 8(–).
Additional pulse receiver is not required.
7. Put the meter terminals covers.
