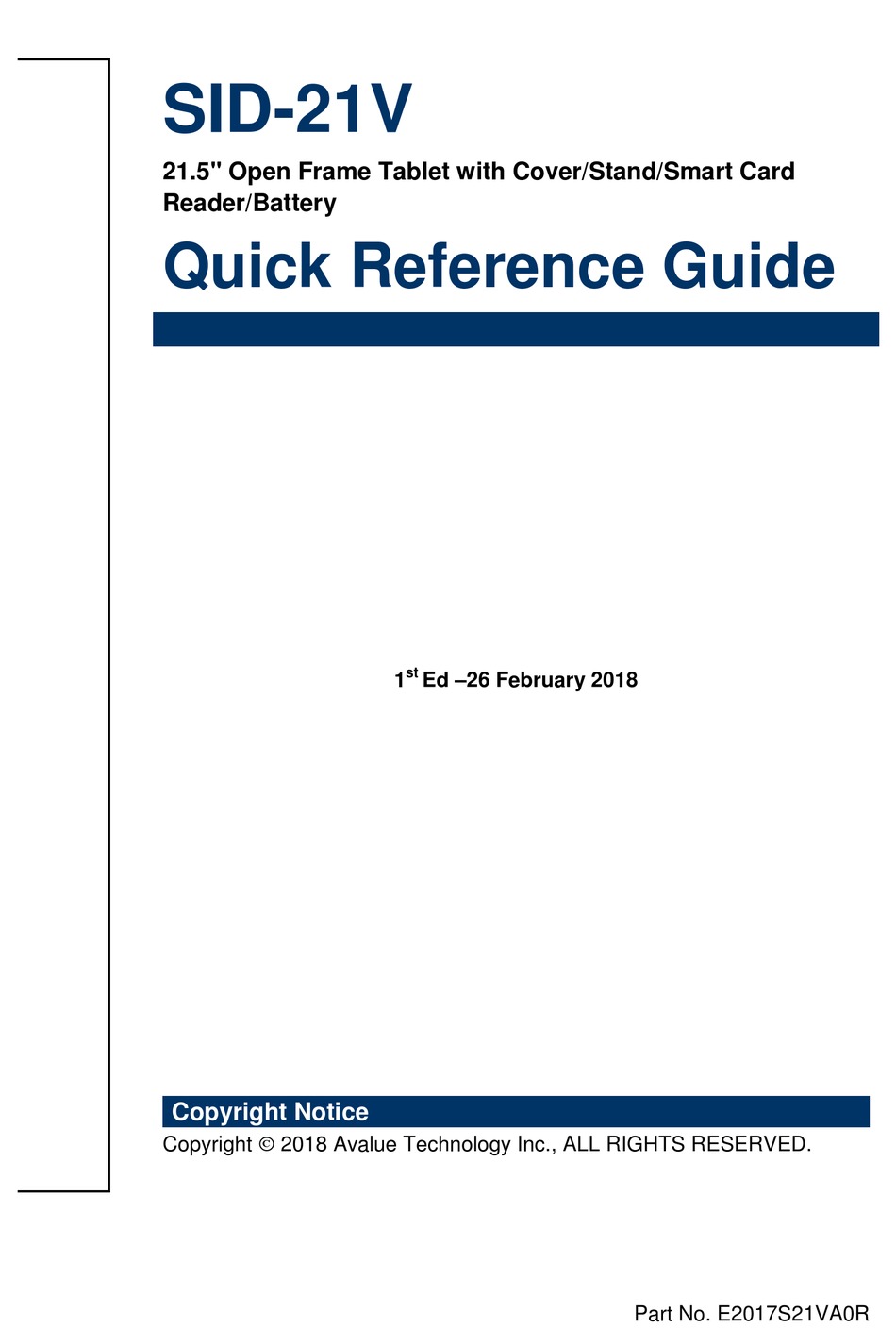

- Page 1 SID-21V 21.5" Open Frame Tablet with Cover/Stand/Smart Card Reader/Battery Quick Reference Guide Ed –26 February 2018 Copyright Notice Copyright 2018 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017S21VA0R...
- Page 2 (2) Use only shielded cables to connect I/O devices to this equipment. (3) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 SID-21V Quick Reference Guide...
- Page 3 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 4 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
-
Page 5: Table Of Contents
Preparing the USB Key ......................23 2.4.2 Rebooting to Recovery Mode ....................23 2.4.3 Applying the Update ........................23 2.4.4 Completing the Update ......................23 2.5 Mechanical Drawings ....................24 2.5.1 Battery Drawing ......................... 24 2.5.2 System Drawing ........................25 SID-21V Quick Reference Guide... -
Page 6: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x SID-21V 21.5” Panel PC with Cover/Stand/Smart Card Reader/Battery 1 x ACC-BAT-3SP1-01R ... -
Page 7: System Specifications
23 x 14 x 11” Shipping Dimension Shipping Weight 11.05kg (Including Battery) Color Black Reliability EMI Test CE, FCC class B Operating 0°C ~ 40°C Temperature Operating Humidity 0% ~ 90% relative humidity, non-condensing Storage Temperature -20°C ~ 60°C SID-21V Quick Reference Guide... - Page 8 SID-21V Note: Specifications are subject to change without notice. 8 SID-21V Quick Reference Guide...
-
Page 9: System Overview
FIG. 2B: SYSTEM BOTTOM VIEW, NO COVER 1.4.3 Battery Connectors DOCK BAT2 Connectors Label Function Note Power Button Audio line-out connector HDMI HDMI connector 4 x USB 2.0 connector RJ-45 Ethernet DC IN DC Power-In connector SID-21V Quick Reference Guide... - Page 10 SID-21V Micro SD Card Slow BAT1 Motherboard Battery connector BAT2 Auxiliary Battery Board Battery connector DOCK Optional Battery Docking connector 10 SID-21V Quick Reference Guide...
-
Page 11: Battery Specifications (Optional)
If the battery packs are subject to storage for such a long term, it is recommended to recharge the battery pack periodically, every two-months. Storage Temperature 1 Month -20~60 ºC, 85 %RH Max 3 Months -20~45 ºC, 85 %RH Max 1 Year -20~20 ºC, 85 %RH Max SID-21V Quick Reference Guide 11... -
Page 12: Battery Handing
• Keep out of the reach of children. • Never use a battery that appears to have suffered abuse. • Store in a cool, dry, and well-ventilated area. • Dispose of in accordance with local regulations. Regulations vary for different countries. 12 SID-21V Quick Reference Guide... -
Page 13: Hardware Configuration
Quick Reference Guide 2. Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw SID-21V Quick Reference Guide 13... -
Page 14: Battery Installation (Optional)
Please make sure the unit is unplugged and powered off. • Lay the unit flat, screen side down, on a smooth surface. • Locate and open the hinged Top Cover (highlighted in blue). • Once opened, locate the battery bracket. 14 SID-21V Quick Reference Guide... -
Page 15: Removing The Battery Bracket
FIG. 3B: BATTERY BRACKET REMOVAL • Remove the 4 screws (M3x5) that secure the battery bracket to the system. • Remove the bracket from the system. • Locate the battery connection board under the bracket. SID-21V Quick Reference Guide 15... -
Page 16: Integrating The Battery
• Mount the battery bracket to the system using the 4 screws we previously removed. NOTE: It may be easier to integrate the battery into the battery bracket first, then mount the bracket on the system. 16 SID-21V Quick Reference Guide... -
Page 17: Completing The Installation
• The system can now be placed upright on a flat, stable surface. • Plug in the power cord and turn the system on. Verify the battery is being recognized by the system and is charging in Settings>Battery. SID-21V Quick Reference Guide 17... -
Page 18: Cable Management
RONT EMOVING ABLE OVER • Locate the Cable Cover on the Base Stand (highlighted in blue) • Remove the 4 screws that keep the cover in place and pull the cover off of the Arm. 18 SID-21V Quick Reference Guide... -
Page 19: Removing The Base From The Arm
Locate the 3 screws that hold the Arm to the Base. There are 2 underneath the unit, and 1 along the backside of the arm. • The arm should slide out of the hole in the base NOTE: Please use caution while other cables may be routed through this hole. SID-21V Quick Reference Guide 19... -
Page 20: Routing The Cables Through The Base
Arm and the bottom base plate. The cables should run through the pass-through along the back and hug around the arm up the top of the Bases hole opening. • Mount the Arm back onto the Base using the 3 screws that were removed earlier. 20 SID-21V Quick Reference Guide... -
Page 21: Cable Routing On Bottom Cover
2.2.5 Completing the Installation • Once complete, close and lock the Bottom Cover. • Reinstall the Cable Cover on the Arm. Make sure that all of the cables are not visible and hidden properly behind the Cover. SID-21V Quick Reference Guide 21... -
Page 22: Updating The Bios
“F2” to get into the BIOS Setup Menu. Here, highlight to the following: “>Exit>Load Optimized Defaults>Yes> Exit Saving Changes” The system will now reboot again to the main Operating System with the correct BIOS revision. 22 SID-21V Quick Reference Guide... -
Page 23: Updating The Firmware
After completing the update, the system will return to the Android system recovery menu. Please select “Reboot system now” to reboot the system and get into the newly updated Android OS. Please note you may need to unplug USB disk before you reboot the system. SID-21V Quick Reference Guide 23... -
Page 24: Mechanical Drawings
SID-21V 2.5 Mechanical Drawings 2.5.1 Battery Drawing (Unit: mm) 24 SID-21V Quick Reference Guide... -
Page 25: System Drawing
Quick Reference Guide 2.5.2 System Drawing (Unit: mm) SID-21V Quick Reference Guide 25...
