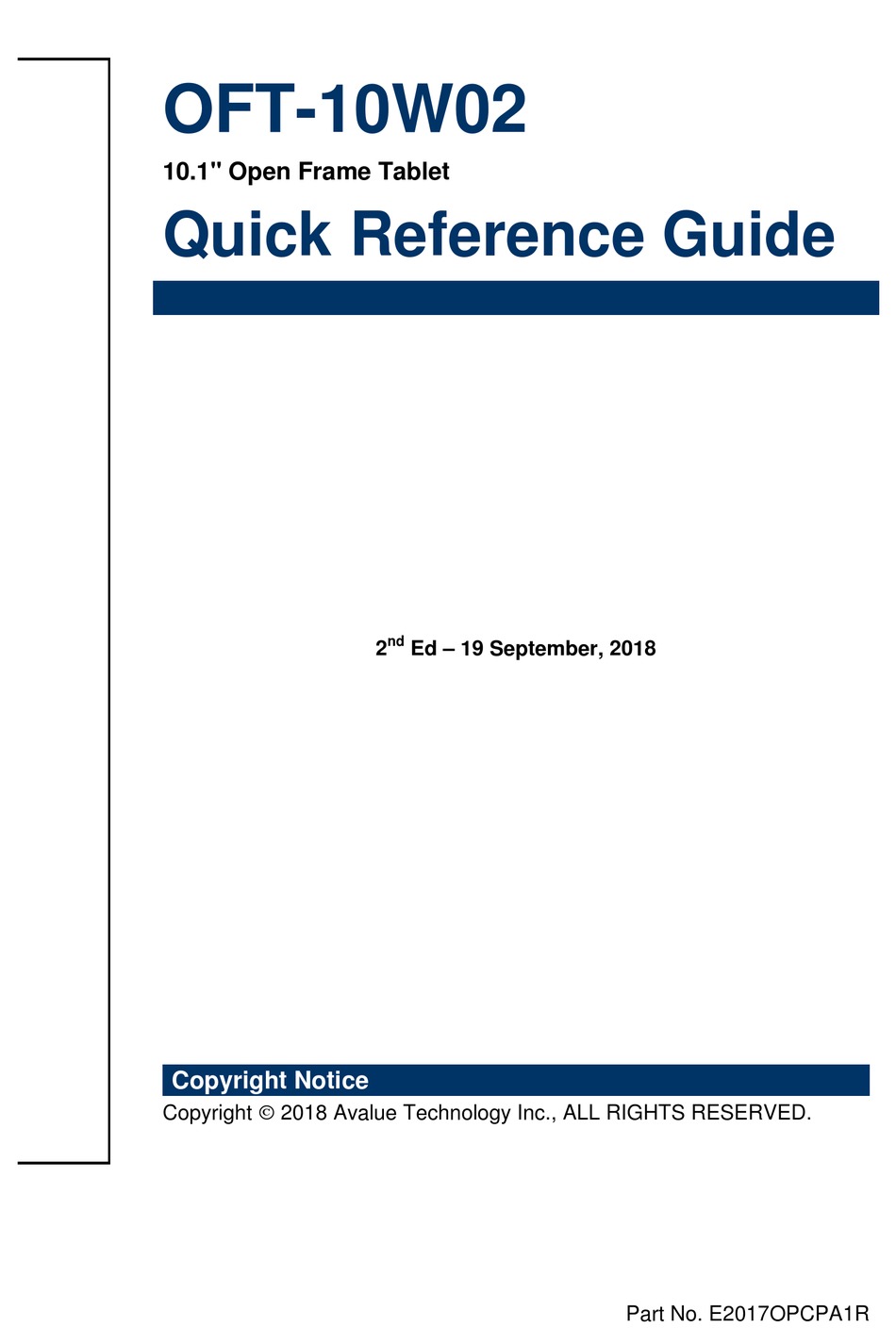

OFT-10W02
10.1" Open Frame Tablet
Quick Reference Guide
nd
Ed – 19 September, 2018
2
Copyright Notice
Copyright  2018 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017OPCPA1R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OFT-10W02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avalue Technology OFT-10W02

Summary of Contents for Avalue Technology OFT-10W02

  • Page 1 OFT-10W02 10.1" Open Frame Tablet Quick Reference Guide Ed – 19 September, 2018 Copyright Notice Copyright  2018 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017OPCPA1R...
  • Page 2 (2) Use only shielded cables to connect I/O devices to this equipment. (3) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 OFT-10W02 Quick Reference Guide...
  • Page 3 RF exposure compliance, in order to comply with RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than 20 cm. OFT-10W02 Quick Reference Guide...
  • Page 4 “CAUTION - Use a power cord that matches the voltage of the power outlet, which has been approved and complies with the safety standard of your particular country.” “WARNING – To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth.” 4 OFT-10W02 Quick Reference Guide...
  • Page 5 WLAN: DSSS, OFDM, BPSK(9/6Mbps), QPSK(18/12Mbps), DBPSK(1Mbps), DQPSK(2Mbps), CCK(11/5.5Mbps), 16-QAM(36/24Mbps), 64-QAM Modulation (72.2/54/48Mbps) Bluetooth: GFSK (1Mbps), Π/4DQPSK (2Mbps) and 8DPSK (3Mbps) Avalue Technology Address：7F, 228, Lian-cheng Road, Zhonghe Dist., New Taipei City 235, Taiwan Tel： +886-2-8226-2345 service：sales@avalue.com.tw OFT-10W02 Quick Reference Guide...

  • Page 6: Table Of Contents

    2.4.6 AMPLIFIER_L (JAMP_L) ....................... 41 2.4.7 AMPLIFIER_R (JAMP_R) ......................42 2.4.8 A-MIC connector (JAMIC1) ......................42 2.4.9 I2C connector (JSEN1) ........................43 2.4.10 DC Power-in connector (JDCIN3) ....................43 FCC ........................44 Android Rotate Setting ..................46 6 OFT-10W02 Quick Reference Guide...

  • Page 7: Getting Started

    Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x OFT-10W02 Open Frame Tablet  OFT-10W02 Quick Reference Guide...

  • Page 8: System Specifications

    1 x HDMI  Audio Port 1 x Headphone Jack  LAN Port 1 x 10/100/1000 Ethernet  Wireless LAN 1 x 400mm PIFA Antenna  Antenna Expansion Slots 1 x Micro SD slot  Mechanical 8 OFT-10W02 Quick Reference Guide...
  • Page 9 1. PSD: 0.00454G²/Hz , 1.5 Grms 2. Operation mode 3. Test Frequency : 5-500Hz 4. Test Axis : X,Y and Z axis 5. 30 minutes per each axis 6. IEC 60068-2-64 Test:Fh Mechanical Shock Bump Test  OFT-10W02 Quick Reference Guide...
  • Page 10 5. Test Axis: Z axis 6. Operation mode Operating 0°C ~ 40°C  Temperature Operating 0% ~ 90% relative humidity, non-condensing  Humidity Storage -20°C ~ 60°C  Temperature Note: Specifications are subject to change without notice. 10 OFT-10W02 Quick Reference Guide...

  • Page 11: System Overview

    Right View 1.4.2 Left View Connectors Label Function Note Audio line-out connector HDMI HDMI connector 2 x USB 2.0 connector DC power-in connector DCIN Micro SD card slot Micro USB connector Micro USB RJ-45 Ethernet OFT-10W02 Quick Reference Guide 11...

  • Page 12: System Dimensions

    OFT-10W02 1.5 System Dimensions 1.5.1 Front and Rear side (Unit: mm) 12 OFT-10W02 Quick Reference Guide...

  • Page 13: Installing Extend Brackets

    Installing Extend Brackets Step1. Locate brackets on both sides, matching the holes on the monitor. Step2. Insert and fasten 16 screws on each side of the monitor to secure Mounting brackets. Note: Brackets sold separately. OFT-10W02 Quick Reference Guide 13...

  • Page 14: Front And Rear Side (With Extend Bracket)

    OFT-10W02 1.5.3 Front and Rear side (With Extend Bracket) (Unit: mm) 14 OFT-10W02 Quick Reference Guide...

  • Page 15: Flush Mounting Concept

    Quick Reference Guide 1.6 Flush Mounting Concept OFT-10W02 Quick Reference Guide 15...

  • Page 16: Panel Mounting

    OFT-10W02 1.7 Panel Mounting (Opening dimension) (Panel thickness) (Installation surface) (Unit: mm) 16 OFT-10W02 Quick Reference Guide...
  • Page 17 Step1-1. Locate brackets on both sides, matching the holes on the monitor. Step1-2. Insert and fasten 12 screws on each side of the monitor to secure Mounting brackets. Hexagon Stud Motherboard_10W1_ASSY Item Part Name Quantity OFT-10W02 Quick Reference Guide 17...
  • Page 18 OFT-10W02 Step2. Insert and fasten 4 screws on each side of the monitor to secure Front bracket. Hexagon Stud Motherboard_10W1_ASSY Item Part Name Quantity 18 OFT-10W02 Quick Reference Guide...
  • Page 19 Quick Reference Guide Step3. Insert and fasten 8 screws to secure Bracket T/B. Bracket T/B Screw Front Bracket Item Part Name Quantity OFT-10W02 Quick Reference Guide 19...
  • Page 20 OFT-10W02 (Outside of the wall) Step4. Insert Motherboard 10” Open frame into the wall. Wall Item Part Name Quantity 20 OFT-10W02 Quick Reference Guide...
  • Page 21 Quick Reference Guide (Inside of the wall) Step5. Fasten 4 screws to secure Panel mount brackets and insert it into Bracket/TB. Panel mount Screw Panel mount Bracket Bracket T/B Item Part Name Quantity OFT-10W02 Quick Reference Guide 21...
  • Page 22 OFT-10W02 Step6. Insert and fasten 4 Panel mount screws to secure the module. Panel mount Screw Wall Item Part Name Quantity 22 OFT-10W02 Quick Reference Guide...
  • Page 23 Quick Reference Guide Step7. Paste the Decoration Plate on the Front bracket to complete installation. Decoration Plate Front Bracket Item Part Name Quantity OFT-10W02 Quick Reference Guide 23...

  • Page 24: Wall Mounting Concept

    OFT-10W02 1.8 Wall Mounting Concept 24 OFT-10W02 Quick Reference Guide...

  • Page 25: Wall Mounting

    Quick Reference Guide 1.9 Wall Mounting Size of the opening (Opening dimension) (Wall box installation dimension) (Installation surface) (Unit: mm) OFT-10W02 Quick Reference Guide 25...
  • Page 26 OFT-10W02 Screw hole location (Unit: mm) 26 OFT-10W02 Quick Reference Guide...
  • Page 27 Quick Reference Guide Step1. Fasten the screw on the wall. Wall box Item Part Name Quantity OFT-10W02 Quick Reference Guide 27...
  • Page 28 OFT-10W02 Step2. Insert and fasten 12 screws on each side of the monitor to secure brackets. Hexagon Stud Motherboard_10W1_ASSY Item Part Name Quantity 28 OFT-10W02 Quick Reference Guide...
  • Page 29 Step3-2. Fasten 4 screws on Front bracket of the monitor to secure Wall mount kit. Step3-3. Insert and fasten 4 screws to secure Bracket L/R. Bracket L/R Wall mount kit Screw Front bracket Item Part Name Quantity OFT-10W02 Quick Reference Guide 29...
  • Page 30 OFT-10W02 Step4. Insert and fasten 2 screws on Front bracket and Wall box of the monitor to secure Ground wire. Ground wire Screw Front bracket Wall box Item Part Name Quantity 30 OFT-10W02 Quick Reference Guide...
  • Page 31 Quick Reference Guide Step5. Wrap the Kensington lock (option) around the hole in the front bracket and attach the lock to the keyhole in the Wall box. Kensington lock Front bracket Wall box Item Part Name Quantity OFT-10W02 Quick Reference Guide 31...
  • Page 32 Step6-1. Insert the Ground wire and Kensington lock in the Wall box and Insert Motherboard 10” Open frame into the wall. Step6-2. Paste the Decoration Plate on the Front bracket to complete installation. PC bezel Item Part Name Quantity 32 OFT-10W02 Quick Reference Guide...

  • Page 33: Hardware Configuration

    Quick Reference Guide 2. Hardware Configuration For advanced information, please refer to: 1- Motherboard included in this manual. Note: If you need more information, please visit our website: http://www.avalue.com.tw OFT-10W02 Quick Reference Guide 33...

  • Page 34: Architecture Overview-Block Diagram

    OFT-10W02 2.1 Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of Motherboard. 34 OFT-10W02 Quick Reference Guide...

  • Page 35: Motherboard Overviews

    Quick Reference Guide 2.2 Motherboard Overviews OFT-10W02 Quick Reference Guide 35...
  • Page 36 OFT-10W02 36 OFT-10W02 Quick Reference Guide...

  • Page 37: Motherboard Connector List

    Micro USB connector JDIO1 General purpose I/O connector JCAM1 USB connector J485-1 RS-485 connector J232-1 RS-232 connector JTB1 Touch button board connector JAMP_L AMPLIFIER_L JAMP_R AMPLIFIER_R JAMIC1 A-MIC connector JECDB EC Debug connector JDB1 Debug connector OFT-10W02 Quick Reference Guide 37...
  • Page 38 Warning: Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions." Attention: Risque d'explosion si la batterie est remplacée par un type incorrect. Jetez les piles usagées selon les instructions. 38 OFT-10W02 Quick Reference Guide...

  • Page 39: Motherboard Connectors Settings

    PWRBTN_3V BU_BR+_3V BU_BR-_3V BU7_3V LED_GREEN_con LED_ORANGE_con 2.4.2 General purpose I/O connector (JDIO1) Signal PIN PIN Signal DIO_GP20 DIO_GP10 DIO_GP21 DIO_GP11 DIO_GP22 DIO_GP12 DIO_GP23 DIO_GP13 DIO_GP24 DIO_GP14 DIO_GP25 DIO_GP15 DIO_GP26 DIO_GP16 DIO_GP27 DIO_GP17 I2C_2_SDA_5V I2C_2_SCL_5V +V5S_DIO OFT-10W02 Quick Reference Guide 39...

  • Page 40: Rs-232 Connector (J232-1)

    OFT-10W02 2.4.3 RS-232 connector (J232-1) Signal DEBUG_TXD DEBUG_RXD DEBUG_RTS# DEBUG_CTS# 2.4.4 RS-485 connector (J485-1) Signal 485_422TX1- 485_422TX1+ +5V_DEV 40 OFT-10W02 Quick Reference Guide...

  • Page 41: Usb Connector (Jcam1)

    Quick Reference Guide 2.4.5 USB connector (JCAM1) Signal +5V_CAM USB20_N2_R USB20_P2_R 2.4.6 AMPLIFIER_L (JAMP_L) Signal SPKL_P SPKL_M OFT-10W02 Quick Reference Guide 41...

  • Page 42: Amplifier_R (Jamp_R)

    OFT-10W02 2.4.7 AMPLIFIER_R (JAMP_R) Signal SPKR_P SPKR_M 2.4.8 A-MIC connector (JAMIC1) Signal IN2P IN2N 42 OFT-10W02 Quick Reference Guide...

  • Page 43: I2C Connector (Jsen1)

    Quick Reference Guide 2.4.9 I2C connector (JSEN1) Signal SENSOR_INT_R I2C1_SCL_SENSOR I2C1_SDA_SENSOR +3.3VA_SENSOR 2.4.10 DC Power-in connector (JDCIN3) Signal +19V_+24V_ADPIN +19V_+24V_ADPIN OFT-10W02 Quick Reference Guide 43...

  • Page 44: Fcc

    OFT-10W02 2.5 FCC Contains FCC ID: TX2-RTL8723BS IC: 6317A-RTL8723BS FCC ID is located on the MB WiFi Module: Remove all screws on shielding cover. WiFi Module is located on MB underneath of the Shielding cover. 44 OFT-10W02 Quick Reference Guide...
  • Page 45 Quick Reference Guide FCC ID is shown on WiFi Module. OFT-10W02 Quick Reference Guide 45...

  • Page 46: Android Rotate Setting

    OFT-10W02 2.6 Android Rotate Setting Landscape/portrait mode rotate setting: Default rotation is 0° rotate 90°/180°/270° Power offRestart 46 OFT-10W02 Quick Reference Guide...
  • Page 47 Quick Reference Guide OFT-10W02 Quick Reference Guide 47...
  • Page 48 OFT-10W02 48 OFT-10W02 Quick Reference Guide...
