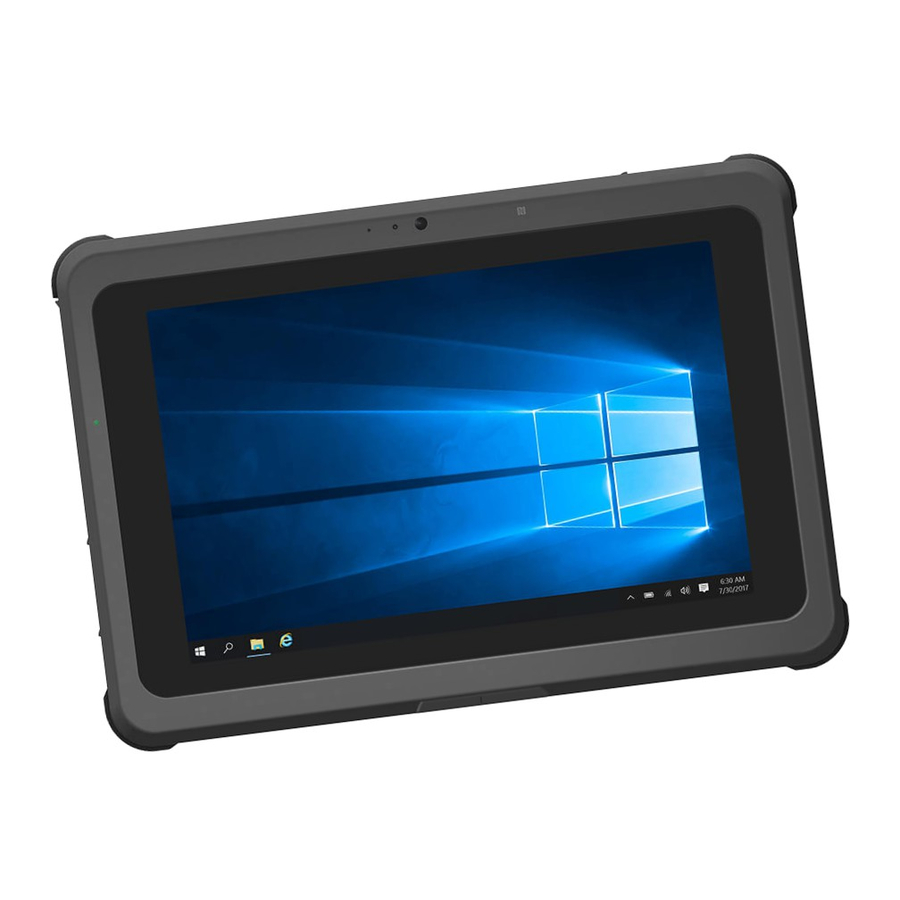

Avalue Technology CAXA0 User Manual

Rugged tablet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CAXA0 Rugged Tablet
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAXA0 and is the answer not in the manual?

Questions and answers

Related Manuals for Avalue Technology CAXA0

Summary of Contents for Avalue Technology CAXA0

  • Page 1 CAXA0 Rugged Tablet User Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Precautions and Usage Notes ..............4 Regulatory Information ................... 9 Federal Communication Commission Interference Statement ..........10 FOR PORTABLE DEVICE USAGE (<20cm from body/SAR needed) ........12 Industry Canada statement ..................... 12 FOR PORTABLE DEVICE (<20cm from body / SAR needed) ..........13 FOR WLAN 5GHZ DEVICE: ....................
  • Page 3 Wall Mounting ........................... 35 Removing from Wall Mounting Station .................. 38 Care and Maintenance ..................42 Environmental Guidelines ....................... 42 General Guidelines........................43 Cleaning Guidelines ......................... 43 Battery Guidelines........................44 Touchscreen Guidelines ......................45 Troubleshooting ....................46 Battery Issues ........................... 46 Bluetooth Issues ........................

  • Page 4: Safety Precautions And Usage Notes

    Safety Precautions and Usage Notes Safety Precautions and Usage Notes To reduce the risk of injury, loss of life, electric shock, fire, malfunction, and damage to equipment or property, always observe the following safety guidelines: DANGER: Precautions on the Battery: Failure to comply with the following precautions may result in electrolyte leakage, generation of heat, ignition or rupture.
  • Page 5 Safety Precautions and Usage Notes WARNING:  DO NOT turn the volume up too loud when using headphones.  DO NOT use this product with exposed in a hot or cold environment for a long period of time, low-temperature burns or frost-bite may result. When it is necessary to expose the skin to this product such as to perform the operation, operate it in the shortest amount of time possible.
  • Page 6 CAXA0 Rugged Tablet User Manual  DO NOT place this product near any magnetic objects.  The icon above is included on the device's rating label, indicating that the user should consult the device's user manual before usage. ESD WARNING:...
  • Page 7 Safety Precautions and Usage Notes  Please use non-magnetic tools when installing a component.  Before handling a component, please touch a conductive metal surface to discharge the static electricity from your body.  After removing a component, please store the component inside an anti-static container. Camera Notes：...
  • Page 8 CAXA0 Rugged Tablet User Manual  The environmental temperature affects the storage life of the battery. Cool are the best, and are assumed for the estimates below.  All storage times are based on starting with the battery charged to 30%.

  • Page 9: Regulatory Information

    Regulatory Information Regulatory Information CAUTION: Do not operate this personal computer or handheld computer’s incorporated wireless WAN modem in the presence of flammable gases or fumes. Switch off the cellular terminal when you are near petrol stations, fuel depots, chemical plants or where blasting operations are in progress. Operation of any electrical equipment in potentially explosive atmospheres can constitute a safety hazard.

  • Page 10: Federal Communication Commission Interference Statement

    CAXA0 Rugged Tablet User Manual The radio wave exposure guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2W/kg. Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested frequency bands.
  • Page 11 Regulatory Information radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ...

  • Page 12: For Portable Device Usage (<20Cm From Body/Sar Needed)

    CAXA0 Rugged Tablet User Manual FOR PORTABLE DEVICE USAGE (<20cm from body/SAR needed) Radiation Exposure Statement: This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S.

  • Page 13: For Portable Device (<20Cm From Body / Sar Needed)

    Regulatory Information FOR PORTABLE DEVICE (<20cm from body / SAR needed) Radiation Exposure Statement: The product comply with the Canada portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available.
  • Page 14 CAXA0 Rugged Tablet User Manual Avertissement: 1. les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;...

  • Page 15: Tablet Usage

    Tablet Usage Tablet Usage CAXA0 is designed for healthcare settings with various possible applications listed below:  Designed for health care professionals Health care professionals, such as doctors and nurses can use the tablet to access and maintain their patients' records anywhere on-site. Patient data can be transmitted in real- time via Wi-Fi to the hospital's information management system to be stored.
  • Page 16 CAXA0 Rugged Tablet User Manual  Emergency medical service usage In cases of emergency, emergency services personnel can use the tablet on-site to record the patient's physical condition and instantly transmit the data back to the hospital over a wireless network. The patient's information can then be logged before the patient arrives the hospital.NOTE: * "Appropriate software"...

  • Page 17: Your Tablet

    Your Tablet Your Tablet Package Contents Ensure that all of the proper items are included with the tablet in the packaging. The items that should be included in the packaging are: Tablet Power Adapter Quick Start Guide Power Cord If any items are damaged or missing upon inspection, contact your dealer. NOTE: The image is for illustrative purposes only and may differ from the actual product.

  • Page 18: Tablet Overview

    CAXA0 Rugged Tablet User Manual Tablet Overview Front View The following illustration shows the front side of the system. Number Component Microphone Captures audio. Senses the ambient light in order to make adjustments Ambient Light Sensor to the brightness of the display.

  • Page 19: Right View

    Tablet Overview Right View The following illustration shows the right side of the system. Number Component Power Button Turns the tablet or display on/off.

  • Page 20: Left View

    CAXA0 Rugged Tablet User Manual Left View The following illustration shows the left side of the system. Number Component Connects to headphones, speakers, microphones and Universal Audio Jack other audio output/input devices. Connects to video devices such as a display, television, HDMI Port or projector.

  • Page 21: Rear View

    Tablet Overview Rear View The following illustration shows the rear side of the system. Number Component Covers the removable battery, optional SIM card, and SD Battery Compartment Cover card slots. Rear-Facing Camera (8MP) Captures images and videos. Accepts a Micro-SIM card for 4G LTE mobile broadband. SIM Card Slot (Optional) NOTE: The SIM card slot is only accessible after removing the Located inside the battery...

  • Page 22: Top View

    CAXA0 Rugged Tablet User Manual Top View The following illustration shows the top side of the system. Number Component Barcode Scanner (Optional) Scans barcodes/QR codes. SmartCard Reader (Optional) Reads SmartCards. NOTE: The SmartCard reader slot is protected by a port cover, for information on removing the port cover, see Removing and Securing Port Covers.

  • Page 23: Bottom View

    Tablet Overview Bottom View The following illustration shows the bottom side of the system. Number Component Docking Connector Connects to the optional tablet dock. Used to attach a carrying strap to the tablet. Strap Loop Holes NOTE: A carrying strap is not provided by the manufacturer and must be purchased separately by the user.

  • Page 24: Getting Started

    CAXA0 Rugged Tablet User Manual Getting Started Battery Status Indicator The battery status LED is located on the front of the system showing the tablet's battery charging status. When the tablet is connected to an electrical outlet, the battery charge LED operates as follows:...

  • Page 25: Charging The Tablet

    Getting Started Charging the Tablet 1. Connect the power cord to the power adapter. 2. Connect the power adapter to the DC-In port of the tablet. 3. Plug the power supply into an electrical outlet. The battery charge LED lights yellow when your tablet is getting charged.

  • Page 26: Powering On/Off The Tablet

    CAXA0 Rugged Tablet User Manual Set up the tablet according to the displayed messages before initial use. The detailed procedure will be introduced in CAXA0 Rugged Tablet Service Guide. Powering On/Off the Tablet To power on the tablet, press the power button.

  • Page 27: Turning On/Off The Display

    Getting Started Turning On/Off the Display Press the power button when the system is on to turn off the display and put the system in standby mode. When the system is in standby mode, press the power button once to wake up the system and turn the display on.

  • Page 28: Operating Your Tablet

    CAXA0 Rugged Tablet User Manual Operating Your Tablet SmartCard Reader (Optional) The optional SmartCard reader located on the top side of the tablet allows for the transmission of data, mainly for identification/authentication purposes between the tablet and a smart card.

  • Page 29: Nfc Sensor

    Operating Your Tablet NFC Sensor The NFC sensor located on the front of the tablet allows it to interact with other NFC-enabled devices or NFC cards/tags, such as smartphones or contactless smart cards. Tap an NFC-supported device or card/tag to the NFC logo, indicating the sensor area, to activate the NFC sensor, as shown in the image below.

  • Page 30: Barcode Scanner (Optional)

    CAXA0 Rugged Tablet User Manual Barcode Scanner (Optional) The optional barcode scanner located on the top of the tablet allows the tablet to retrieve information from bar codes when the barcode scanner button is pressed. 1. Open the application/software that you want to use to read the barcode data.

  • Page 31: Entering The Bios Menu

    Operating Your Tablet Entering the BIOS Menu BIOS (Basic Input / Output System) is a hardware configuration program installed in the tablet and initialized when the tablet is powered on. The BIOS is preset to optimal default settings for normal use, but in certain cases a user or technician might want to access the BIOS menu to change certain hardware settings for the tablet or to boot directly to a specific bootable device.

  • Page 32: Replacing The Battery

    CAXA0 Rugged Tablet User Manual Replacing the Battery Battery Removal and Replacement The battery is a 7.2V / 3950mAh battery installed on all models under the battery compartment cover located on the rear of the tablet, which can be removed and replaced by the user.
  • Page 33 Operating Your Tablet 5. Use the tab to pull and remove the battery from the battery compartment. 6. Reverse the steps described to insert/replace the battery. NOTE: Dispose of used batteries according to the local laws and regulations of your region.
  • Page 34 CAXA0 Rugged Tablet User Manual Table Top Docking (Optional) 1. Slide the tablet into the table top docking station.

  • Page 35: Wall Mounting

    Operating Your Tablet Wall Mounting Fix the wall mounting station (without the tablet) to the roll stand or wall mounting racket. The wall mounting station is compatible with VESA 75. 1. Slide the tablet into the wall mounting station.
  • Page 36 CAXA0 Rugged Tablet User Manual 2. Make sure the tablet is placed at the right position and press down the upper cover.
  • Page 37 Operating Your Tablet 3. Turn the key to lock in position. Keep the key in a safe place. If you lose the key, contact the manufacturer.

  • Page 38: Removing From Wall Mounting Station

    CAXA0 Rugged Tablet User Manual Removing from Wall Mounting Station 1. Turn the key to unlock.
  • Page 39 Operating Your Tablet 2. Press the left and right hooks inward.
  • Page 40 CAXA0 Rugged Tablet User Manual 3. The upper cover automatically pops up.
  • Page 41 Operating Your Tablet 4. Take off the tablet from the mounting station.

  • Page 42: Care And Maintenance

    CAXA0 Rugged Tablet User Manual Care and Maintenance Carefully read and follow the instructions in this section to prevent damage to your tablet. Environmental Guidelines  DO NOT use the tablet in an environment with metallic dust.  When placing the tablet, place it on a flat steady surface. DO NOT balance the tablet on its side or store it in an upside-down orientation.

  • Page 43: General Guidelines

    Care and Maintenance General Guidelines  Keep the display dry at all times to prevent any unintended operation of the touchscreen. During cleaning and disinfection, lock the screen to avoid any unintended device operation.  In situations that may result in the unintended operation of the device (for example during cleaning, transport, or device movement), lock the touchscreen.

  • Page 44: Battery Guidelines

    CAXA0 Rugged Tablet User Manual Battery Guidelines  Charge the battery when it is nearly fully discharged. When charging, make sure that the battery is fully charged before you stop charging. Doing so may avoid harm to the battery.  The battery is a consumable product, the following conditions will shorten its life: - Frequently charging the battery.

  • Page 45: Touchscreen Guidelines

    Care and Maintenance Important guidelines when using the battery.  When installing or removing the battery, take note of the following: - Avoid removing or installing the battery when the tablet is in Sleep mode. Abruptly removing the battery may cause loss of data or the tablet may become unstable. - Avoid touching the battery terminals as damage may occur, thereby causing improper operation to it or the tablet.

  • Page 46: Troubleshooting

    CAXA0 Rugged Tablet User Manual Troubleshooting Battery Issues The battery does not charge (the battery charge LED does not light up)  Make sure that the AC adapter is properly connected.  Make sure that the battery is not too hot or cold. Allow time for the battery pack to return to room temperature.

  • Page 47: Display Issues

    Troubleshooting Display Issues Nothing appears on the screen.  During operation, the screen may automatically turn off as a result of power management. Press any button on the tablet to see if the screen comes back.  The brightness level might be too low. Increase the brightness. The characters on the screen are dim.

  • Page 48: Hardware Issues

    CAXA0 Rugged Tablet User Manual Hardware Issues The tablet does not recognize a newly installed device.  Make sure that the device driver is installed by referring to the documentation that came with the device.  Check to see if the cables or power cords are connected correctly.

  • Page 49: Software Issues

    Troubleshooting 3. Hold the tablet level with the horizon, with the LCD side facing up. 4. Rotate the tablet 360° at least three times around each axis (X, Y, and Z). Software Issues An application program does not work correctly. ...

  • Page 50: Wi-Fi Issues

    CAXA0 Rugged Tablet User Manual  If you are using the battery power, make sure that the battery is not discharged. When the tablet is turned on, it stops after POST.  Reset your tablet. Wi-Fi Issues I cannot use the Wi-Fi feature.

  • Page 51: Miscellaneous Issues

    Troubleshooting  Your tablet may be in an out-of-range situation. Move your tablet closer to the Access Point it is associated with.  Make sure that your tablet is configured with the same security option (encryption) as the Access Point. ...

  • Page 52: Specifications

    CAXA0 Rugged Tablet User Manual Specifications ® ® Intel Celeron Processor N3350 Memory* 4GB on-board LPDDR4 Storage* 64GB / 128GB / 256GB M.2 SSD (Type 2242) Display 10.1" 1280 x 800 (HD) pixels, 300 nits  Gorilla Glass III touchscreen, supports 10 finger touch ®...
  • Page 53 The HDMI port does not guarantee compatibility with all HDMI-compatible peripherals. Only for use with the CAXA0 dock. Battery performance features such as charge time and life span can vary according to the condition under which the computer and battery are used.
  • Page 54 CAXA0 Rugged Tablet User Manual Wall mounting station (Optional) IO interface USB x3, LAN x1, DC IN x1 Dimensions 143.6mm x 50.4mm x 218.8mm (5.65 inches x 1.98 inches x 8.61 inches) (W x D x H) Weight 580g (1.28lbs.)
  • Page 55 Trademarks All brand and product names are trademarks or registered trademarks of their respective companies. Manufacturer Contact Information Name: Avalue Technology Inc. Address: 7F, 228, Lian-cheng Road, Zhonghe Dist., New Taipei City 235, Taiwan Phone: +886 2- 8226-2345 https://m.avalue.com.tw/Contact...
