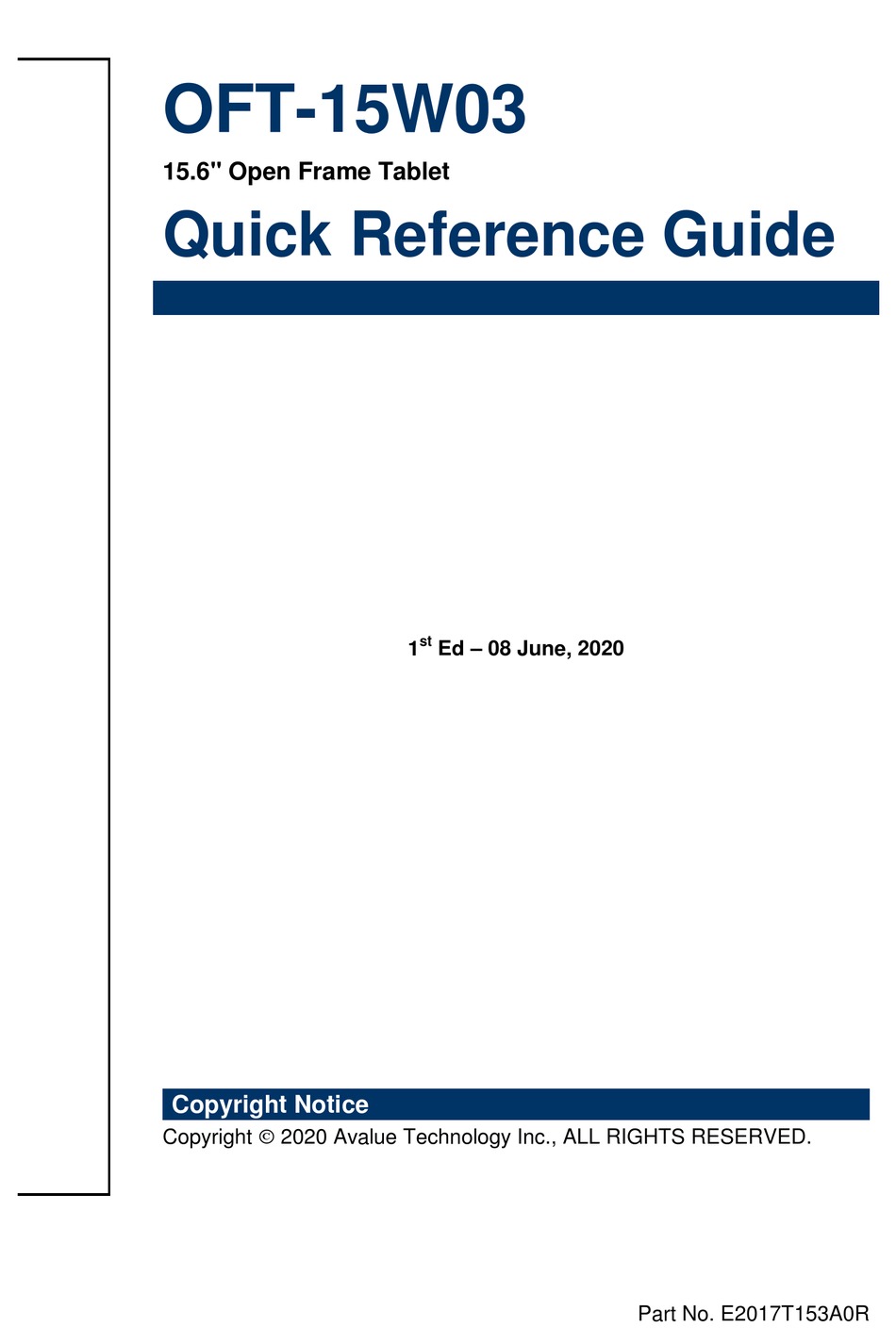

OFT-15W03
15.6" Open Frame Tablet
Quick Reference Guide
st
Ed – 08 June, 2020
1
Copyright Notice
Copyright  2020 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017T153A0R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OFT-15W03 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avalue Technology OFT-15W03

Summary of Contents for Avalue Technology OFT-15W03

  • Page 1 OFT-15W03 15.6" Open Frame Tablet Quick Reference Guide Ed – 08 June, 2020 Copyright Notice Copyright  2020 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017T153A0R...
  • Page 2 (2) Use only shielded cables to connect I/O devices to this equipment. (3) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 OFT-15W03 Quick Reference Guide...
  • Page 3 RF exposure compliance, in order to comply with RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than 20 cm. OFT-15W03 Quick Reference Guide...
  • Page 4 “CAUTION - Use a power cord that matches the voltage of the power outlet, which has been approved and complies with the safety standard of your particular country.” “WARNING – To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth.” 4 OFT-15W03 Quick Reference Guide...

  • Page 5: Table Of Contents

    2.4.14 Console Debug connector (JCOM1) ..................41 2.4.15 RS-232 connector (JCOM2) ...................... 42 2.4.16 RS-232 & RS-485 connector (JCOM3) ..................42 2.4.17 USB Camera & DMIC connector (JCAM1) ................43 2.4.18 RTD connector (JRTD1) ......................43 OFT-15W03 Quick Reference Guide...
  • Page 6 OFT-15W03 2.4.19 LVDS/eDP connector (JLCD1) ....................44 2.4.20 Backlight connector 1 (JBL1) ....................45 2.4.21 Backlight connector 2 (JBL2) ....................45 2.4.22 RTC battery connector (JBAT1) ....................46 6 OFT-15W03 Quick Reference Guide...

  • Page 7: Getting Started

    1.2 Packing List 1 x OFT-15W03  1 x Screw M3-4mm / ziplock bag No.00 40x60mm x1pc  1 x power cord, AC/DC adapter 12V/5A 90 Screw Type (Option)  OFT-15W03 Quick Reference Guide...

  • Page 8: System Specifications

    JAMIC1: 3P_2mm_90D  Speaker JSPK1: 4P_2mm_90D  Sensor JSEN1: 5 x 2P_2mm_90D  Touch Panel JTP1: 6P_2mm_90D  Console Debug JCOM1: 3P_2mm_90D  RS232 JCOM2: 5P_2mm_90D  RS232 & RS485 JCOM3: 5 x 2P_2mm_90D  8 OFT-15W03 Quick Reference Guide...
  • Page 9 5 Test time :30 min. each axis  6 System condition : Non-Operating mode  7. Reference IEC 60068-2-6 Testing procedures  Package vibration 1. PSD: 0.026G²/Hz , 2.16 Grms  test 2. Non-operation mode  OFT-15W03 Quick Reference Guide...
  • Page 10 ISTA 2A, IEC-60068-2-32 Test: Ed  Operating 0°C ~ 40°C  Temperature Operating 40°C @ 95% Relative Humidity, Non-condensing  Humidity Storage -20°C ~ 60°C  Temperature Note: Specifications are subject to change without notice. 10 OFT-15W03 Quick Reference Guide...

  • Page 11: System Overview

    Label Function Note Audio line-out connector HDMI HDMI connector USB3.0 USB 3.0 connector USB2.0 USB 2.0 connector RJ-45 Ethernet Reset button Reset DCIN DC power-in connector Micro SD card slot Micro USB Micro USB connector OFT-15W03 Quick Reference Guide 11...

  • Page 12: System Dimensions

    OFT-15W03 1.5 System Dimensions 1.5.1 Front and Rear side (Unit: mm) 12 OFT-15W03 Quick Reference Guide...

  • Page 13: Flush Mounting Concept

    Quick Reference Guide 1.6 Flush Mounting Concept OFT-15W03 Quick Reference Guide 13...

  • Page 14: Panel Mounting

    OFT-15W03 1.7 Panel Mounting (Opening dimension) (Panel thickness) (Installation surface) (Unit: mm) 14 OFT-15W03 Quick Reference Guide...
  • Page 15 Step1-1. Locate brackets on both sides, matching the holes on the monitor. Step1-2. Insert and fasten 12 screws on each side of the monitor to secure Mounting brackets. Hexagon Stud OFT-15W03 Item Part Name Quantity OFT-15W03 Quick Reference Guide 15...
  • Page 16 OFT-15W03 Step2. Insert and fasten 4 screws on each side of the monitor to secure Front bracket. Front Bracket Screw Item Part Name Quantity 16 OFT-15W03 Quick Reference Guide...
  • Page 17 Quick Reference Guide Step3. Insert and fasten 16 screws to secure Bracket. Panel Mount Bracket Screw Item Part Name Quantity OFT-15W03 Quick Reference Guide 17...
  • Page 18 OFT-15W03 (Outside of the wall) Step4. Insert Motherboard 10” Open frame into the wall. Wall Item Part Name Quantity 18 OFT-15W03 Quick Reference Guide...
  • Page 19 Quick Reference Guide (Inside of the wall) Step5. Fasten 8 screws to secure Panel mount brackets and insert it into Bracket. Panel mount Screw Panel Mount Kit Bracket Item Part Name Quantity OFT-15W03 Quick Reference Guide 19...
  • Page 20 OFT-15W03 Step6. Insert and fasten 8 Panel mount screws to secure the module. 20 OFT-15W03 Quick Reference Guide...
  • Page 21 Quick Reference Guide Step7. Paste the Decoration Plate on the Front bracket to complete installation. Decoration Plate Item Part Name Quantity OFT-15W03 Quick Reference Guide 21...

  • Page 22: Wall Mounting Concept

    OFT-15W03 1.8 Wall Mounting Concept 22 OFT-15W03 Quick Reference Guide...

  • Page 23: Wall Mounting

    Quick Reference Guide 1.9 Wall Mounting Size of the opening (Opening dimension) (Wall box installation dimension) (Installation surface) (Unit: mm) OFT-15W03 Quick Reference Guide 23...
  • Page 24 OFT-15W03 Screw hole location (Unit: mm) 24 OFT-15W03 Quick Reference Guide...
  • Page 25 Quick Reference Guide Step1. Fasten the screw on the wall. Wall box Item Part Name Quantity OFT-15W03 Quick Reference Guide 25...
  • Page 26 OFT-15W03 Step2. Insert and fasten 12 screws on each side of the monitor to secure brackets. OFT-15W03 Hexagon Stud Item Part Name Quantity 26 OFT-15W03 Quick Reference Guide...
  • Page 27 Step3-3. Insert the Support Bracket into the rectangular hole of the locked Wall mount kit. Step3-4. Insert and fasten 6 screws to secure Bracket. Support Bracket Wall mount kit Screw Front bracket Item Part Name Quantity OFT-15W03 Quick Reference Guide 27...
  • Page 28 OFT-15W03 Step4. Insert and fasten 2 screws on Front bracket and Wall box of the monitor to secure Ground wire. Ground wire Screw Item Part Name Quantity 28 OFT-15W03 Quick Reference Guide...
  • Page 29 Quick Reference Guide Step5. Wrap the Kensington lock (option) around the hole in the front bracket and attach the lock to the keyhole in the Wall box. Kensington lock Item Part Name Quantity OFT-15W03 Quick Reference Guide 29...
  • Page 30 Step6-1. Insert the Ground wire and Kensington lock in the Wall box and Insert Motherboard 10” Open frame into the wall. Step6-2. Paste the Decoration Plate on the Front bracket to complete installation. PC bezel Item Part Name Quantity 30 OFT-15W03 Quick Reference Guide...

  • Page 31: Hardware Configuration

    Quick Reference Guide 2. Hardware Configuration For advanced information, please refer to: 1- Motherboard included in this manual. Note: If you need more information, please visit our website: http://www.avalue.com.tw OFT-15W03 Quick Reference Guide 31...

  • Page 32: Motherboard Overviews

    OFT-15W03 2.2 Motherboard Overviews 32 OFT-15W03 Quick Reference Guide...

  • Page 33: Motherboard Connector List

    5 x 1 wafer, pitch 2.00 mm JCOM3 RS-232 & RS-485 connector 5 x 2 wafer, pitch 2.00 mm JCAM1 USB Camera & DMIC connector 5 x 2 wafer, pitch 2.00 mm JSD1 Micro SD card slot OFT-15W03 Quick Reference Guide 33...
  • Page 34 Warning: Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions." Attention: Risque d'explosion si la batterie est remplacée par un type incorrect. Jetez les piles usagées selon les instructions. 34 OFT-15W03 Quick Reference Guide...

  • Page 35: Motherboard Jumpers & Connectors Settings

    Quick Reference Guide 2.4 Motherboard Jumpers & Connectors settings 2.4.1 Clear CMOS (JCMOS1) Protect* Clear CMOS * Default 2.4.2 Backlight power select (JBLP1) 3.3V* * Default OFT-15W03 Quick Reference Guide 35...

  • Page 36: At/Atx Input Power Select (Jat1)

    OFT-15W03 2.4.3 AT/ATX Input power select (JAT1) * Default 2.4.4 DC Power-in connector (JPWR2) Signal PIN PIN Signal DC-IN DC-IN 36 OFT-15W03 Quick Reference Guide...

  • Page 37: Touch Key Button (Jtk1)

    Quick Reference Guide 2.4.5 Touch Key Button (JTK1) Signal PIN PIN Signal KEY_RST-BTN KEY_BU1 KEY_VOL-UP KEY_VOL-DN KEY_PWR-BTN KEY_BR-UP KEY_BR-DN KEY_BU7 LED_GRN LED_ORG 2.4.6 MCU connector (JMCU1) Signal PIC_MCLR PIC_ICSPCLK PIC_ICSPDAT OFT-15W03 Quick Reference Guide 37...

  • Page 38: Power Button (Jpb1)

    OFT-15W03 2.4.7 Power button (JPB1) Signal KEY_PWR-BTN 2.4.8 Speaker interface (JSPK1) Signal SPK_L+ SPK_L- SPK_R+ SPK_R- 38 OFT-15W03 Quick Reference Guide...

  • Page 39: A-Mic Connector (Jamic1)

    2.4.9 A-MIC connector (JAMIC1) Signal MIC_JD MIC_IN 2.4.10 General purpose I/O connector (JGPIO1) Signal PIN PIN Signal DIO_GP00 DIO_GP10 DIO_GP01 DIO_GP11 DIO_GP02 DIO_GP12 DIO_GP03 DIO_GP13 DIO_GP04 DIO_GP14 DIO_GP05 DIO_GP15 DIO_GP06 DIO_GP16 DIO_GP07 DIO_GP17 DIO_SDA_3.3 DIO_SCL_3.3 OFT-15W03 Quick Reference Guide 39...

  • Page 40: I2C Touch Panel Connector (Jtp1)

    OFT-15W03 2.4.11 I2C Touch Panel connector (JTP1) Signal +3.3V TP_INT# TP_SCL TP_SDA TP_RST# 2.4.12 USB Touch connector (JTP2) Signal USB_JTP2_N USB_JTP2_P 40 OFT-15W03 Quick Reference Guide...

  • Page 41: I2C Sensor (Jsen1)

    Quick Reference Guide 2.4.13 I2C Sensor (JSEN1) Signal PIN PIN Signal +3.3V +3.3V SEN1_SCL SEN2_SCL SEN1_SDA SEN2_SDA SEN1_IRQP# SEN2_IRQP# 2.4.14 Console Debug connector (JCOM1) Signal COM1_TX_232 COM1_RX_232 OFT-15W03 Quick Reference Guide 41...

  • Page 42: Rs-232 Connector (Jcom2)

    OFT-15W03 2.4.15 RS-232 connector (JCOM2) Signal COM2_CTS_232 COM2_RTS_232 COM2_RX_232 COM2_TX_232 2.4.16 RS-232 & RS-485 connector (JCOM3) Signal PIN PIN Signal COM3_CTS_232 485+ COM3_RTS_232 485- COM3_RX_232 COM3_TX_232 42 OFT-15W03 Quick Reference Guide...

  • Page 43: Usb Camera & Dmic Connector (Jcam1)

    Quick Reference Guide 2.4.17 USB Camera & DMIC connector (JCAM1) Signal PIN PIN Signal DMIC_DATA USB_JCAM1_P DMIC_CLK USB_JCAM1_N +1.8V 2.4.18 RTD connector (JRTD1) Signal +3.3V RTD-EE_WP RTD-EE_SCL RTD-EE_SDA OFT-15W03 Quick Reference Guide 43...

  • Page 44: Lvds/Edp Connector (Jlcd1)

    OFT-15W03 2.4.19 LVDS/eDP connector (JLCD1) Signal PIN PIN Signal +3.3V +3.3V EDP-HPD LVDS-TXO0+_EDP-TX0P LVDS-TXO1+_EDP-TX1P LVDS-TXO0-_EDP-TX0N LVDS-TXO1-_EDP-TX1N LVDS-TXO2+_EDP-AUXP 16 LVDS_TXO3+ LVDS-TXO2-_EDP-AUXN LVDS_TXO3- LVDS_TXE0+ LVDS_TXE1+ LVDS_TXE0- LVDS_TXE1- LVDS_TXE2+ LVDS_TXE3+ LVDS_TXE2- LVDS_TXE3- LVDS_TXOC+ LVDS_TXEC+ LVDS_TXOC- LVDS_TXEC- +12V +12V 44 OFT-15W03 Quick Reference Guide...

  • Page 45: Backlight Connector 1 (Jbl1)

    Quick Reference Guide 2.4.20 Backlight connector 1 (JBL1) Signal +12V BL_EN BL_PWM 2.4.21 Backlight connector 2 (JBL2) Signal BKL_LED4 BKL_LED3 +38V +38V BKL_LED2 BKL_LED1 OFT-15W03 Quick Reference Guide 45...

  • Page 46: Rtc Battery Connector (Jbat1)

    OFT-15W03 2.4.22 RTC battery connector (JBAT1) Signal 46 OFT-15W03 Quick Reference Guide...
