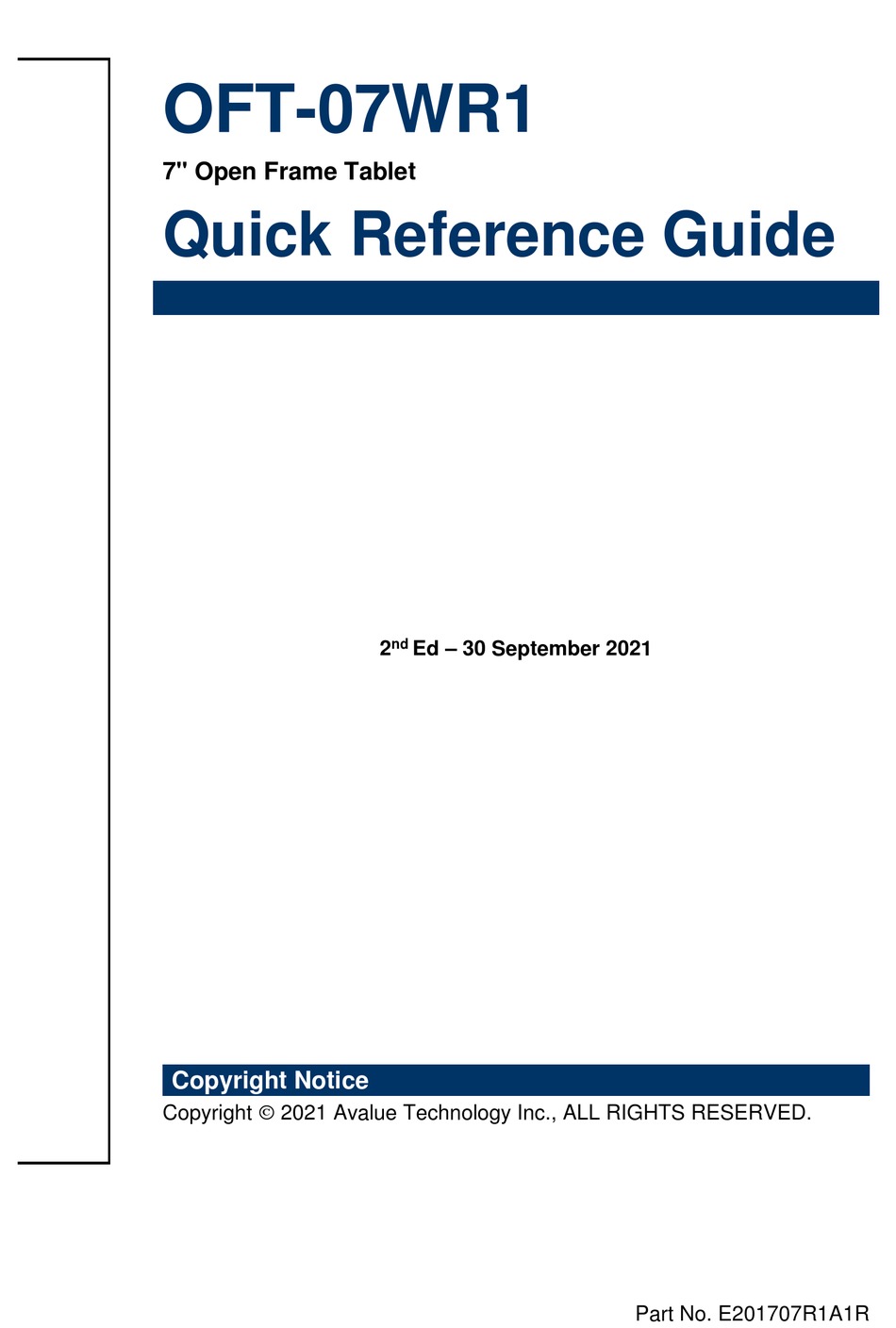

OFT-07WR1
7" Open Frame Tablet
Quick Reference Guide
Ed – 30 September 2021
nd
2
Copyright Notice
Copyright  2021 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E201707R1A1R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OFT-07WR1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avalue Technology OFT-07WR1

Summary of Contents for Avalue Technology OFT-07WR1

  • Page 1 OFT-07WR1 7" Open Frame Tablet Quick Reference Guide Ed – 30 September 2021 Copyright Notice Copyright  2021 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E201707R1A1R...
  • Page 2 (2) Use only shielded cables to connect I/O devices to this equipment. (3) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 OFT-07WR1 Quick Reference Guide...
  • Page 3 RF exposure compliance, in order to comply with RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than 20 cm. OFT-07WR1 Quick Reference Guide...
  • Page 4 “CAUTION - Use a power cord that matches the voltage of the power outlet, which has been approved and complies with the safety standard of your particular country.” “WARNING – To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth.” 4 OFT-07WR1 Quick Reference Guide...

  • Page 5: Table Of Contents

    2.6.11 I2C Touch Panel connector (JITP1) ..................33 2.6.12 Debug connector (JDBG1) ......................33 2.6.13 Serial port 1 connector (JCOM1) ....................34 2.6.14 MCU Firmware upgrade connector (JMCU1)................34 2.6.15 RTC Battery connector (JBAT1) ....................35 2.6.16 Battery connector (JBAT2) ......................35 OFT-07WR1 Quick Reference Guide...
  • Page 6 OFT-07WR1 2.6.17 LVDS connector (JLVDS1)......................36 2.6.18 Power Button (PWRBTN1) ......................37 2.6.19 MIPI Port (JMIPI1) ........................38 6 OFT-07WR1 Quick Reference Guide...

  • Page 7: Getting Started

    Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x OFT-07WR1 Open Frame Tablet  Power cord / Power adapter (Optional) ...

  • Page 8: System Specifications

    4P x 1 (12 ~ 24V), pitch 2.0mm 7P x 1, pitch 2.0mm Battery 2 Note: You need a 19v or a 24v power adapter to fully charge the battery. You cannot fully charge the battery with a 12v power adapter. 8 OFT-07WR1 Quick Reference Guide...
  • Page 9 4. Test Axis : X,Y and Z axis Operation 5. 30 minutes per each axis 6. IEC 60068-2-64 Test:Fh 7. Storage : CF or SSD Sine Vibration test 1 Test Acceleration : 2G (Non-operation) 2 Test frequency : 5~500 Hz OFT-07WR1 Quick Reference Guide...
  • Page 10 1 One corner , three edges, six faces Package drop test 2 ISTA 2A, IEC-60068-2-32 Test:Ed Operating 0°C ~ 40°C Temperature Operating 40°C @ 95% Relative Humidity, Non-condensing Humidity Storage -20°C ~ 60°C Temperature Note: Specifications are subject to change without notice. 10 OFT-07WR1 Quick Reference Guide...

  • Page 11: System Overview

    Bottom View Connectors Label Function Note Micro SD card slot Micro USB Micro USB connector Audio line-out connector HDMI HDMI connector 2 x USB 2.0 connector RJ-45 Ethernet Reset Reset button DCIN DC power-in connector OFT-07WR1 Quick Reference Guide 11...

  • Page 12: System Dimensions

    OFT-07WR1 1.5 System Dimensions 1.5.1 Front and Rear side (Unit: mm) 12 OFT-07WR1 Quick Reference Guide...

  • Page 13: Installing Extend Brackets

    Installing Extend Brackets Step1. Locate brackets on both sides, matching the holes on the monitor. Step2. Insert and fasten 4 screws on each side of the monitor to secure Mounting brackets. Note: Brackets sold separately. OFT-07WR1 Quick Reference Guide 13...

  • Page 14: Flush Mounting Concept

    OFT-07WR1 1.6 Flush Mounting Concept 14 OFT-07WR1 Quick Reference Guide...

  • Page 15: Panel Mounting

    Quick Reference Guide 1.7 Panel Mounting (Panel thickness) (Opening dimension) (Installation surface) (Unit: mm) OFT-07WR1 Quick Reference Guide 15...
  • Page 16 OFT-07WR1 Step2. Insert and fasten 4 screws on each side of the monitor to secure Front bracket. Screw Front Bracket OFT-07WR1 Item Part Name Quantity 16 OFT-07WR1 Quick Reference Guide...
  • Page 17 Quick Reference Guide Step3. Insert and fasten 4 screws to secure Bracket R/L. Bracket R/L Screw Front Bracket Item Part Name Quantity OFT-07WR1 Quick Reference Guide 17...
  • Page 18 OFT-07WR1 (Outside of the wall) Step4. Insert OFT-07WR1 Open frame into the wall. Wall Item Part Name Quantity 18 OFT-07WR1 Quick Reference Guide...
  • Page 19 Quick Reference Guide (Inside of the wall) Step5. Fasten 4 screws to secure Panel mount brackets and insert it into Bracket R/L. Panel mount Screw Panel mount Bracket Bracket R/L Item Part Name Quantity OFT-07WR1 Quick Reference Guide 19...
  • Page 20 OFT-07WR1 Step6. Insert and fasten 4 Panel mount screws to secure the module. Panel mount Screw Wall Item Part Name Quantity 20 OFT-07WR1 Quick Reference Guide...
  • Page 21 Quick Reference Guide Step7. Paste the Decoration Plate on the Front bracket to complete installation. Decoration Plate Front Bracket Item Part Name Quantity OFT-07WR1 Quick Reference Guide 21...

  • Page 22: Hardware Configuration

    OFT-07WR1 2. Hardware Configuration For advanced information, please refer to: 1- ACP-RK3288 included in this manual. Note: If you need more information, please visit our website: http://www.avalue.com.tw 22 OFT-07WR1 Quick Reference Guide...

  • Page 23: Architecture Overview-Block Diagram

    Quick Reference Guide 2.1 Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of ACP-RK3288. OFT-07WR1 Quick Reference Guide 23...

  • Page 24: Acp-Rk3288 Overviews

    OFT-07WR1 2.2 ACP-RK3288 Overviews ACP-RK3288 (DCIN) ACP-RK3288 (Powered LAN) 24 OFT-07WR1 Quick Reference Guide...
  • Page 25 Quick Reference Guide OFT-07WR1 Quick Reference Guide 25...

  • Page 26: Acp-Rk3288 Connector List

    3 x 1 wafer, pitch 2.00 mm JDBG1 Debug connector 3 x 1 wafer, pitch 2.00 mm JLVDS1 LVDS connector 40 x 1 FPC, pitch 0.50 mm JMIPI1 MIPI Port 31 x 1 FPC, pitch 0.30 mm 26 OFT-07WR1 Quick Reference Guide...

  • Page 27: Ethernet Led Behavior

    Warning: Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions." Attention: Risque d'explosion si la batterie est remplacée par un type incorrect. Jetez les piles usagées selon les instructions. OFT-07WR1 Quick Reference Guide 27...

  • Page 28: Acp-Rk3288 Jumpers & Connectors Settings

    OFT-07WR1 2.6 ACP-RK3288 Jumpers & Connectors settings 2.6.1 AT/ATX Input power select (JSATX1) * Default 2.6.2 Touch button board connector (JTB1) Signal PIN PIN Signal PWR_TB LINUX-SW VOL_UP VOL_DN ONOFF BR_UP BR_DN LED_GRN LED_ORG 28 OFT-07WR1 Quick Reference Guide...

  • Page 29: General Purpose I/O Connector (Jgpio1)

    PIN PIN Signal DIO_GP20 DIO_GP10 DIO_GP21 DIO_GP11 DIO_GP22 DIO_GP12 DIO_GP23 DIO_GP13 DIO_GP24 DIO_GP14 DIO_GP25 DIO_GP15 DIO_GP26 DIO_GP16 DIO_GP27 DIO_GP17 DIO_SDA_5V DIO_SCL_5V +V5S_DIOP 2.6.4 RS-485 connector (J485_COM2) Signal PIN PIN Signal COM2_TX COM2_RX COM2_RTS 485TX1- COM2_CTS 485TX1+ OFT-07WR1 Quick Reference Guide 29...

  • Page 30: Usb Camera Connector (Jcam_Dmic1)

    OFT-07WR1 2.6.5 USB Camera connector (JCAM_DMIC1) Signal PIN PIN Signal +VDD_DMIC DMIC_CLK USB3_NP DMIC_DATA USB3_PP 2.6.6 A-MIC connector (JAMIC1) Signal MIC_JDET# MIC_INR 30 OFT-07WR1 Quick Reference Guide...

  • Page 31: Dc Power-In Connector (Dcin2)

    Quick Reference Guide 2.6.7 DC Power-in connector (DCIN2) Signal PIN PIN Signal +VIN +VIN 2.6.8 Speaker connector (JSPK1) Signal SPK_L+ SPK_L- SPK_R+ SPK_R- OFT-07WR1 Quick Reference Guide 31...

  • Page 32: Usb Touch Connector (Jutp1)

    OFT-07WR1 2.6.9 USB Touch connector (JUTP1) Signal USBTP_PP USBTP_NP USB_RST_P 2.6.10 I2C connector (JSEN1) Signal PIN PIN Signal +3.3V +3.3V SEN1_SCL SEN2_SCL SEN1_SDA SEN2_SDA SEN1_IRQP# SEN2_IRQP# 32 OFT-07WR1 Quick Reference Guide...

  • Page 33: I2C Touch Panel Connector (Jitp1)

    Quick Reference Guide 2.6.11 I2C Touch Panel connector (JITP1) Signal TOUCH_RST#_R TOUCH_SDA TOUCH_SCL TOUCH_IRQP# +3.3V 2.6.12 Debug connector (JDBG1) Signal CNSL_TX CNSL_RX OFT-07WR1 Quick Reference Guide 33...

  • Page 34: Serial Port 1 Connector (Jcom1)

    OFT-07WR1 2.6.13 Serial port 1 connector (JCOM1) Signal COM1_CTS COM1_RTS COM1_RX COM1_TX 2.6.14 MCU Firmware upgrade connector (JMCU1) Signal +V5MCU MCU_MCLR MCU_ICSPCLK MCU_ICSPDAT 34 OFT-07WR1 Quick Reference Guide...

  • Page 35: Rtc Battery Connector (Jbat1)

    Quick Reference Guide 2.6.15 RTC Battery connector (JBAT1) Signal +V_BAT 2.6.16 Battery connector (JBAT2) Signal +V_BATP +V_BATP BAT_SCL BAT_SDA BAT_TS OFT-07WR1 Quick Reference Guide 35...
  • Page 36 OFT-07WR1 2.6.17 LVDS connector (JLVDS1) Signal LVDS0_TX1_N LVDS0_TX1_P LVDS0_TX2_N LVDS0_TX2_P LVDS0_CLK_N LVDS0_CLK_P LVDS0_TX3_N LVDS0_TX3_P Signal +3.3V +3.3V BKLT_CTL BKLT_EN +V7S_BKLT LVDS0_TX0_N +V7S_BKLT LVDS0_TX0_P +V7S_BKLT 36 OFT-07WR1 Quick Reference Guide...
  • Page 37 Quick Reference Guide 2.6.18 Power Button (PWRBTN1) Signal PMIC_PWRON# OFT-07WR1 Quick Reference Guide 37...
  • Page 38 OFT-07WR1 2.6.19 MIPI Port (JMIPI1) Signal MIPI_TX0_P MIPI_CLK_N MIPI_TX1_N MIPI_CLK_P MIPI_TX1_P Signal +VLED+ MIPI_TX2_N +VLED+ MIPI_TX2_P +VLED- +VLED- +VLED- MIPI_RST# +1.8V +1.8V MIPI_TX3_N +3.3V MIPI_TX0_N +3.3V MIPI_TX3_P +3.3V 38 OFT-07WR1 Quick Reference Guide...
