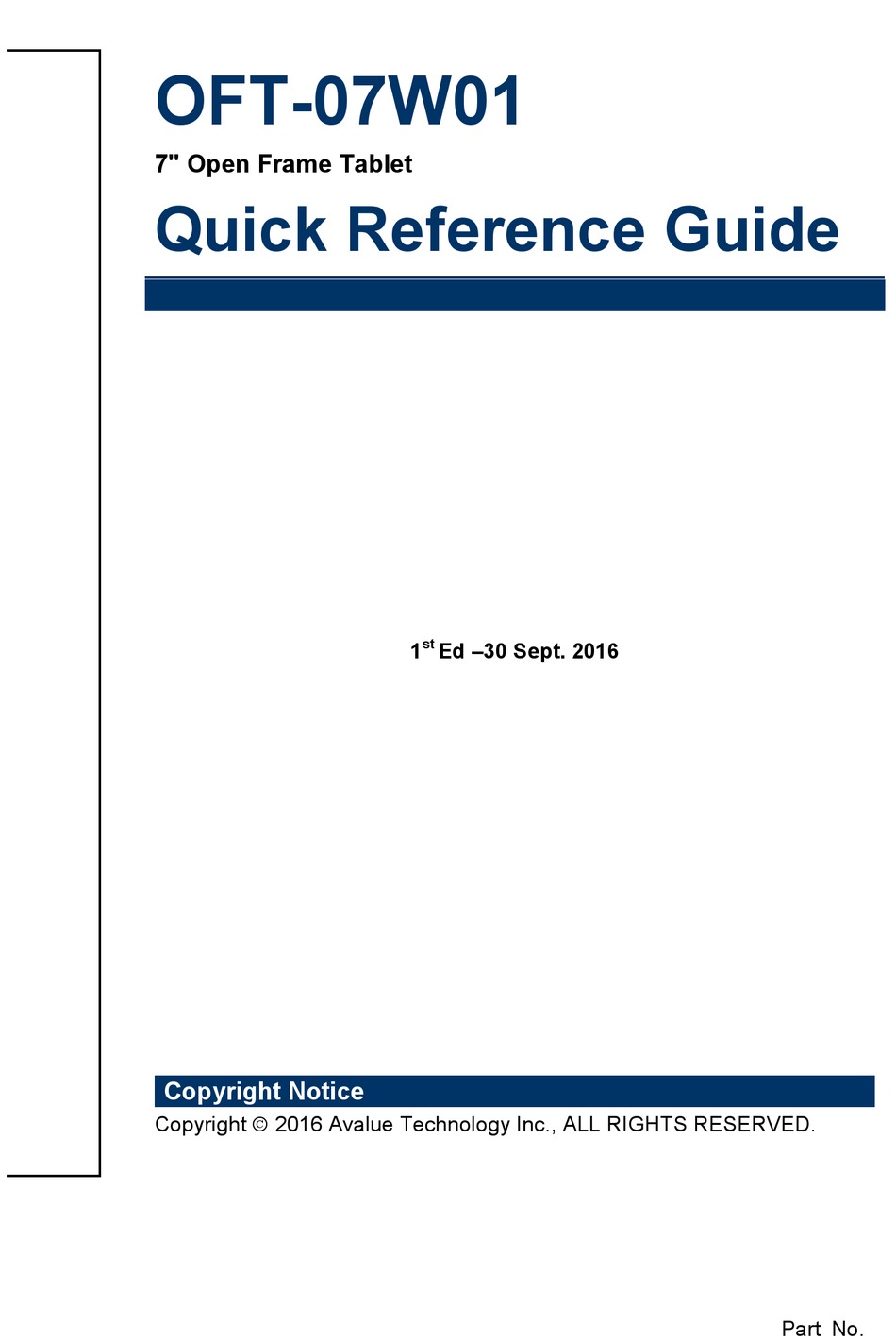

OFT-07W01
7" Open Frame Tablet
Quick Reference Guide
st
1
Ed –30 Sept. 2016
Copyright Notice
Copyright  2016 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No.

Advertisement

Table of Contents
loading

Related Manuals for Avalue Technology OFT-07W01

Summary of Contents for Avalue Technology OFT-07W01

  • Page 1 OFT-07W01 7" Open Frame Tablet Quick Reference Guide Ed –30 Sept. 2016 Copyright Notice Copyright  2016 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No.
  • Page 2 (2) Use only shielded cables to connect I/O devices to this equipment. (3) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 OFT-07W01 Quick Reference Guide...

  • Page 3: Fcc Rf Radiation Exposure Statement

    RF exposure compliance, in order to comply with RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than 20 cm. OFT-07W01 Quick Reference Guide...
  • Page 4 “CAUTION - Use a power cord that matches the voltage of the power outlet, which has been approved and complies with the safety standard of your particular country.” “WARNING – To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth.” 4 OFT-07W01 Quick Reference Guide...
  • Page 5 WLAN: DSSS, OFDM, BPSK(9/6Mbps), QPSK(18/12Mbps), DBPSK(1Mbps), DQPSK(2Mbps), CCK(11/5.5Mbps), 16-QAM(36/24Mbps), 64-QAM Modulation (72.2/54/48Mbps) Bluetooth: GFSK (1Mbps), Π/4DQPSK (2Mbps) and 8DPSK (3Mbps) Avalue Technology Address：7F, 228, Lian-cheng Road, Zhonghe Dist., New Taipei City 235, Taiwan Tel： +886-2-8226-2345 service：sales@avalue.com.tw OFT-07W01 Quick Reference Guide...

  • Page 6: Table Of Contents

    2.4.4 RS-485 connector (J485-1) ......................22 2.4.5 USB connector (JCAM1) ......................23 2.4.6 AMPLIFIER_L (JAMP_L) ......................23 2.4.7 AMPLIFIER_R (JAMP_R) ......................24 2.4.8 A-MIC connector (JAMIC1) ......................24 2.4.9 I2C connector (JSEN1) ......................25 2.5 FCC .......................... 26 2.6 Android Rotate Setting ..................... 28 6 OFT-07W01 Quick Reference Guide...

  • Page 7: Getting Started

    Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x OFT-07W01 Open Frame Tablet  OFT-07W01 Quick Reference Guide...

  • Page 8: System Specifications

    12V~24V DC input  Requirement DC Jack  Power Type DC input 4pin header  Operating Temp. 0°C ~ 40°C  Storage Temp. -20°C ~ 60°C  Operating 0% ~ 90% Relative Humidity, Non-condensing  Humidity 8 OFT-07W01 Quick Reference Guide...
  • Page 9 Quick Reference Guide LCD Characters Panel Resolution 1280 x 800 Luminance View Angle 80°/80° (H+-/V+-) Touch Touch PCAP Surface hardness Note: Specifications are subject to change without notice. OFT-07W01 Quick Reference Guide...

  • Page 10: System Overview

    Right View 1.4.2 Left View Connectors Label Function Note Audio line-out connector HDMI HDMI connector 2 x USB 2.0 connector DCIN DC power-in connector Micro SD card slot Micro USB Micro USB connector RJ-45 Ethernet 10 OFT-07W01 Quick Reference Guide...

  • Page 11: System Dimensions

    Quick Reference Guide 1.5 System Dimensions 1.5.1 Front and Rear side (Unit: mm) OFT-07W01 Quick Reference Guide 11...

  • Page 12: Installing Extend Brackets

    OFT-07W01 1.5.2 Installing Extend Brackets 12 OFT-07W01 Quick Reference Guide...

  • Page 13: Front And Rear Side (With Extend Bracket)

    Quick Reference Guide 1.5.3 Front and Rear side (With Extend Bracket) OFT-07W01 Quick Reference Guide 13...

  • Page 14: Flush Mounting Concept

    OFT-07W01 1.6 Flush Mounting Concept 14 OFT-07W01 Quick Reference Guide...

  • Page 15: Wall Mounting Concept

    Quick Reference Guide 1.7 Wall Mounting Concept OFT-07W01 Quick Reference Guide 15...

  • Page 16: Hardware Configuration

    OFT-07W01 2. Hardware Configuration For advanced information, please refer to: 1- BCX12 included in this manual. Note: If you need more information, please visit our website: http://www.avalue.com.tw 16 OFT-07W01 Quick Reference Guide...

  • Page 17: Architecture Overview-Block Diagram

    Quick Reference Guide 2.1 Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of BCX11. OFT-07W01 Quick Reference Guide 17...

  • Page 18: Bcx12 Overviews

    OFT-07W01 2.2 BCX12 Overviews 18 OFT-07W01 Quick Reference Guide...

  • Page 19: Bcx12 Connector List

    Micro USB connector JDIO1 General purpose I/O connector JCAM1 USB connector J485 RS-485 connector J232 RS-232 connector JAMP_L SPEAKER_L JAMP_R SPEAKER_R JAMIC1 A-MIC connector JDB1 Debug connector J80PORT DEBUG connector JROM FLASH connector STANDOFF SWITCH OFT-07W01 Quick Reference Guide 19...
  • Page 20 Warning: Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions." Attention: Risque d'explosion si la batterie est remplacée par un type incorrect. Jetez les piles usagées selon les instructions. 20 OFT-07W01 Quick Reference Guide...

  • Page 21: Bcx12 Connectors Settings

    PWRBTN_3V BU_BR+_3V BU_BR-_3V BU7_3V LED_GREEN_con LED_ORANGE_con 2.4.2 General purpose I/O connector (JDIO1) Signal PIN PIN Signal DIO_GP20 DIO_GP10 DIO_GP21 DIO_GP11 DIO_GP22 DIO_GP12 DIO_GP23 DIO_GP13 DIO_GP24 DIO_GP14 DIO_GP25 DIO_GP15 DIO_GP26 DIO_GP16 DIO_GP27 DIO_GP17 I2C_0_SDA_5V I2C_0_SCL_5V +V5S_DIO OFT-07W01 Quick Reference Guide 21...

  • Page 22: Rs-232 Connector (J232-1)

    OFT-07W01 2.4.3 RS-232 connector (J232-1) Signal DEBUG_TXD DEBUG_RXD 2.4.4 RS-485 connector (J485-1) Signal 485_422TX1- 485_422TX1+ PWR_RS485 22 OFT-07W01 Quick Reference Guide...

  • Page 23: Usb Connector (Jcam1)

    Quick Reference Guide 2.4.5 USB connector (JCAM1) Signal +5V_UUSB USB20_N0_CAM_R USB20_P0_CAM_R 2.4.6 AMPLIFIER_L (JAMP_L) Signal SPKL_P SPKL_M OFT-07W01 Quick Reference Guide 23...

  • Page 24: Amplifier_R (Jamp_R)

    OFT-07W01 2.4.7 AMPLIFIER_R (JAMP_R) Signal SPKR_P SPKR_M 2.4.8 A-MIC connector (JAMIC1) Signal IN2P 24 OFT-07W01 Quick Reference Guide...

  • Page 25: I2C Connector (Jsen1)

    Quick Reference Guide 2.4.9 I2C connector (JSEN1) Signal SENSOR_INT_R I2C_2_SCL_SENSOR I2C_2_SDA_SENSOR +3.3VA_SENSOR OFT-07W01 Quick Reference Guide 25...

  • Page 26: Fcc

    OFT-07W01 2.5 FCC Contains FCC ID: TX2-RTL8723BS IC: 6317A-RTL8723BS FCC ID is located on the MB WiFi Module: Remove all screws on shielding cover. WiFi Module is located on MB underneath of the Shielding cover. 26 OFT-07W01 Quick Reference Guide...
  • Page 27 Quick Reference Guide FCC ID is shown on WiFi Module. OFT-07W01 Quick Reference Guide 27...

  • Page 28: Android Rotate Setting

    OFT-07W01 2.6 Android Rotate Setting Landscape/portrait mode rotate setting: Default rotation is 0° rotate 90°/180°/270° Power offRestart 28 OFT-07W01 Quick Reference Guide...
  • Page 29 Quick Reference Guide OFT-07W01 Quick Reference Guide 29...
  • Page 30 OFT-07W01 30 OFT-07W01 Quick Reference Guide...
