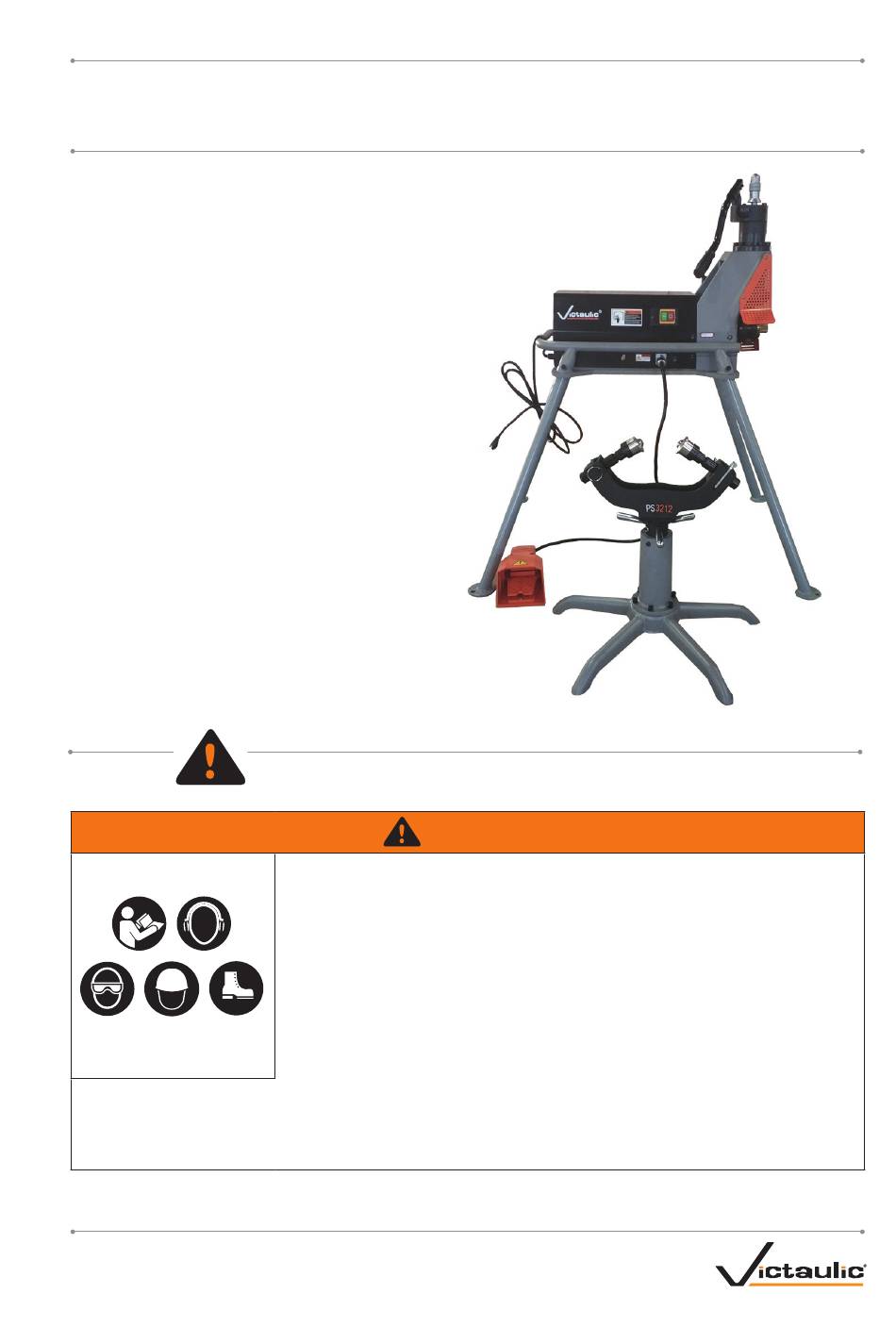

OPERATING AND MAINTENANCE INSTRUCTIONS MANUAL

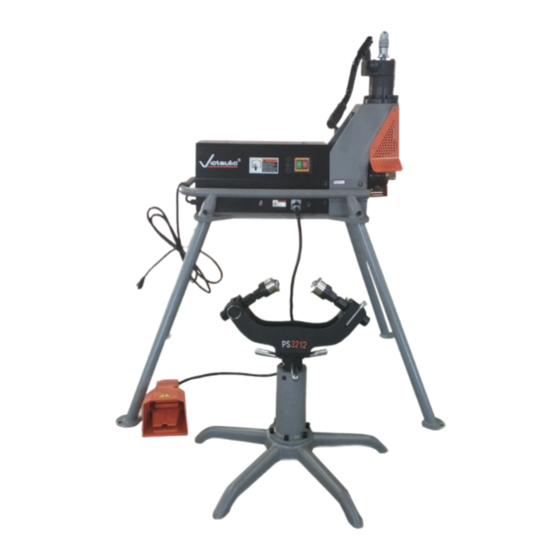

RG3212 Roll Grooving Tool
WARNING
If you need additional copies of any literature, or if you have questions concerning the safe
and proper operation of this tool, contact Victaulic, P.O. Box 31, Easton, PA 18044-0031,
Phone: 1-800-PICK-VIC, E-Mail: pickvic@victaulic.com.
REV_C
WARNING
Failure to follow instructions and warnings could result in death,
serious personal injury, property damage, and/or product damage.
• Before operating or servicing any grooving tools, read all
instructions in this manual and all warning labels on the tool.
• Wear safety glasses, hardhat, foot protection, and hearing
protection while working around this tool.
• Save this operating and maintenance manual in a place
accessible to all operators of the tool.
Original Instructions
TM-RG3212
OGS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Victaulic OGS RG3212
Summary of Contents for Victaulic OGS RG3212
- Page 1 If you need additional copies of any literature, or if you have questions concerning the safe and proper operation of this tool, contact Victaulic, P.O. Box 31, Easton, PA 18044-0031, Phone: 1-800-PICK-VIC, E-Mail: pickvic@victaulic.com.
-
Page 3: Table Of Contents
TM-RG3212 / Operating and Maintenance Instructions Manual TABLE OF CONTENTS Hazard Identification ....4 Operator Safety Instructions ... . 4 Introduction . -
Page 4: Hazard Identification
. Additional copies injury and product or property damage of this manual are available upon request if instructions, including recommended through Victaulic, or can be downloaded at precautions, are not followed. victaulic .com . NOTICE •... - Page 5 . grooving operation. Grooving rolls can crush or cut fingers and hands . 10. Use only Victaulic replacement parts and accessories. Use of any other parts Do not reach inside pipe ends during tool may result in a voided warranty, improper operation.
-
Page 6: Introduction
Victaulic. The RG3212 is a hydraulic feed tool for roll grooving pipe to receive Victaulic grooved pipe products . The standard RG3212 tool is supplied with grooving rolls for 2–12 inch/50–300 mm steel pipe . -
Page 7: Power Requirements
TM-RG3212 / Operating and Maintenance Instructions Manual POWER REQUIREMENTS EXTENSION CORD REQUIREMENTS When pre-wired outlets are not available and DANGER an extension cord must be used, it is important to use the proper cord size (gauge) . Cord size • To reduce the risk of selection is based upon tool rating and cord electric shock, check length . -
Page 8: Tool Nomenclature
TM-RG3212 / Operating and Maintenance Instructions Manual TOOL NOMENCLATURE Locking Nut Depth Adjuster Nut Hydraulic Pump Valve Hydraulic Hydraulic Cylinder Pump Handle Power Switch Upper Roll Power Cord PS3212 Pipe Stand Foot Switch REV_C... -
Page 9: Tool Dimensions
TM-RG3212 / Operating and Maintenance Instructions Manual TOOL DIMENSIONS TOOL SPECIFICATIONS Tool weight: 302 pounds/137 kg Voltage: 120-volt, single phase Frequency: 60 Hz 15A Capacity of oil reservoir: 5 fl oz/150 ml 51.2 inches 1300 mm 43.3 inches 1100 mm 32.3 inches 820 mm TOOL SETUP... -
Page 10: Pre-Operation Adjustments
10 inches/255 mm . For proper tool operation and production of grooves that are within Victaulic specifications, Roll groove a 19-foot, 6-inch/5 .9-m length the following pipe preparation steps must be of pipe and a 10-inch/255-mm length followed . -
Page 11: Long Pipe Lengths
TM-RG3212 / Operating and Maintenance Instructions Manual Table 1- Carbon Steel and Schedule 40 Stainless Steel Pipe Lengths Suitable for Grooving without a Pipe Stand Length inches Nominal Size inches or mm 2 – 4 inches 4 1/2 – 5 inches 152.4 mm 6 inches 203.2 mm –... -
Page 12: Groove Diameter Stop Adjustment
TM-RG3212 / Operating and Maintenance Instructions Manual CAUTION • Right-to-left tracking angle must be kept to a minimum. Keep the pipe as centered as possible on the lower roll. • Verify that the tool is level. The pipe may not track properly if the back end of the pipe is higher than the end being grooved. - Page 13 TM-RG3212 / Operating and Maintenance Instructions Manual 8. Groove the sample pipe by following the “Grooving Operation” section . Continue the grooving operation until the depth adjuster nut contacts the tool head . Allow the pipe to rotate an additional one to two turns to ensure groove Locking Nut completion .
-
Page 14: Grooving Operation
TM-RG3212 / Operating and Maintenance Instructions Manual GROOVING OPERATION DANGER • To reduce the risk of electric shock, check the electrical source for proper grounding. Hydraulic • Before operating the tool, review the Pump “Operator Safety Instructions” section of Valve this manual. - Page 15 TM-RG3212 / Operating and Maintenance Instructions Manual NOTE: If the pipe does not remain against the WARNING lower roll, stop the tool by turning the switch to the “OFF” position . Verify that the pipe is level Grooving rolls can crush and positioned properly .
-
Page 16: Lower Roll Removal
TM-RG3212 / Operating and Maintenance Instructions Manual LOWER ROLL REMOVAL WARNING WARNING • DO NOT strike the lower roll/ main shaft with a hammer or • Always disconnect the tool from the other blunt object. electrical source before making any tool Striking the lower roll/main adjustments. -
Page 17: Upper Roll Removal
TM-RG3212 / Operating and Maintenance Instructions Manual UPPER ROLL REMOVAL WARNING • Always disconnect the tool from the electrical source before making any tool adjustments. Accidental startup of tool may result in serious personal injury. 3. While supporting the upper roll, remove the upper shaft from the slide/upper roll holder by pulling it straight outward . -
Page 18: Upper Roll Installation
TM-RG3212 / Operating and Maintenance Instructions Manual UPPER ROLL INSTALLATION LOWER ROLL INSTALLATION Clean the upper shaft to remove any dirt Clean the main shaft and lower roll bore to before installation of the upper roll . Inspect the remove any dirt before installation of the lower roll . -
Page 19: Maintenance
TM-RG3212 / Operating and Maintenance Instructions Manual MAINTENANCE Fill Hydraulic System WARNING • Always disconnect the tool from the electrical source before making any tool adjustments. Accidental startup of tool may result in serious personal injury. Prior to the start of each shift, verify that the tool Hydraulic and roll sets are clean . -
Page 20: Ps3212 Pipe Stand
. PARTS ORDERING INFORMATION When ordering parts, the following information is required for Victaulic to process the order and send the correct part(s) . Parts can be ordered by calling 1-800-PICK-VIC . Tool Model Number Tool Serial Number 2. -
Page 21: Troubleshooting
Hydraulic pump is low on oil. Refer to the “Maintenance” section. Pipe is beyond tool’s wall thickness capability. Refer to the “Tool Rating and Roll Selection” section. In the event of tool malfunction outside the scope of the troubleshooting section, contact Victaulic for assistance. REV_C... -
Page 22: Tool Rating And Roll Selection
TM-RG3212 / Operating and Maintenance Instructions Manual TOOL RATING AND ROLL SELECTION ORIGINAL GROOVE SYSTEM (OGS) ROLLS FOR CARBON STEEL AND STAINLESS STEEL PIPE Pipe Size Dimensions - inches/millimeters Actual Steel Pipe Stainless Steel Pipe Outside Wall Thickness † Wall Thickness Nominal Size Diameter Roll Set... - Page 23 The wall thicknesses listed are nominal minimum and maximum In addition, the following pipe sizes may be roll grooved: 76.1 mm; 108.0 mm; 133.0 mm; 139.7 mm; 152.4 mm; 159.0 mm; 165.1 mm; and 203.2 mm. Contact Victaulic for details. REV_C...
- Page 24 In addition. the following pipe sizes may be roll grooved: 76.1 mm; 108.0 mm; 133.0 mm; 139.7 mm; 159.0 mm; and 165.1 mm. Contact Victaulic for details. A special lower roll is available for grooving 2-inch Schedule 80 PVC plastic pipe (part number RP02272L02).
- Page 25 TM-RG3212 / Operating and Maintenance Instructions Manual ROLLS FOR CTS US STANDARD – ASTM DRAWN COPPER TUBING – COLOR-CODED COPPER Pipe Size Dimensions – inches/millimeter Actual Copper Tubing Wall Thickness † Outside Copper Nominal Size Diameter Roll Part inches inches/mm Minimum Maximum Numbers...
-
Page 26: Explanation Of Critical Roll Groove Dimensions
TM-RG3212 / Operating and Maintenance Instructions Manual EXPLANATION OF CRITICAL GROOVE DIMENSIONS FOR ORIGINAL GROOVE SYSTEM (OGS) PRODUCTS WARNING • Pipe dimensions and groove dimensions must be within the tolerances specified in the tables on the following pages to ensure proper joint performance. Failure to follow these specifications could cause joint failure, resulting in serious personal injury and/or property damage. - Page 27 . NOTICE • Coatings that are applied to the interior surfaces of Victaulic grooved pipe couplings must not exceed 0.010 inch/0.25 mm. This includes bolt pad mating surfaces. • In addition, the coating thickness applied to the gasket-sealing surface and within the groove on the pipe exterior must not exceed 0.010 inch/0.25 mm.
-
Page 28: Roll Groove Specifications
TM-RG3212 / Operating and Maintenance Instructions Manual REV_C... - Page 29 TM-RG3212 / Operating and Maintenance Instructions Manual REV_C...
- Page 30 TM-RG3212 / Operating and Maintenance Instructions Manual REV_C...
- Page 31 TM-RG3212 / Operating and Maintenance Instructions Manual This page intentionally blank REV_C...
- Page 32 OPERATING AND MAINTENANCE INSTRUCTIONS MANUAL RG3212 Roll Grooving Tool UPDATED 10/2021 TM-RG3212 13505 REV C VICTAULIC IS A REGISTERED TRADEMARK OF VICTAULIC COMPANY AND/OR ITS AFFILIATED ENTITIES IN THE UNITED STATES AND/OR OTHER COUNTRIES. © 2021 VICTAULIC COMPANY. ALL RIGHTS RESERVED.
