OPERATING AND MAINTENANCE INSTRUCTIONS MANUAL

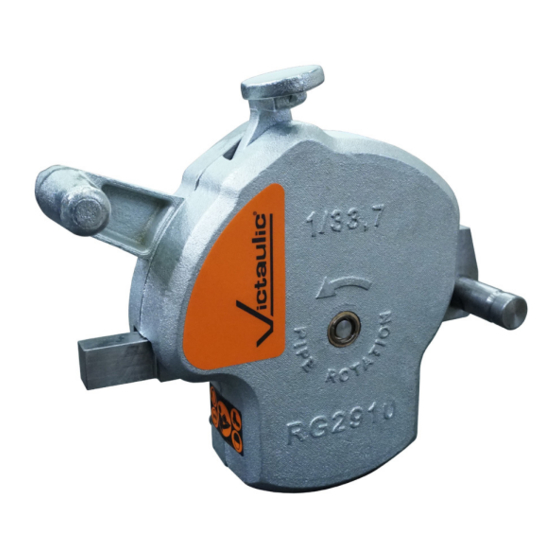

RG2910 Roll Grooving Tool
WARNING
If you need additional copies of any literature, or if you have questions concerning the safe
and proper operation of this tool, contact Victaulic, P.O. Box 31, Easton, PA 18044-0031,
Phone: 1-800-PICK-VIC, E-Mail: pickvic@victaulic.com.
REV_C
WARNING
Failure to follow instructions and warnings could result in death,
serious personal injury, property damage, and/or product damage.
• Before operating or servicing any grooving tools, read all
instructions in this manual and all warning labels on the tool.
• Wear safety glasses, hardhat, foot protection, and hearing
protection while working around this tool.
• Save this operating and maintenance manual in a place
accessible to all operators of the tool.
Original Instructions
TM-RG2910
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Victaulic RG2910
Summary of Contents for Victaulic RG2910
- Page 1 If you need additional copies of any literature, or if you have questions concerning the safe and proper operation of this tool, contact Victaulic, P.O. Box 31, Easton, PA 18044-0031, Phone: 1-800-PICK-VIC, E-Mail: pickvic@victaulic.com.
-
Page 3: Table Of Contents
TM-RG2910 / Operating and Maintenance Instructions Manual TABLE OF CONTENTS Hazard Identification ....4 Operator Safety Instructions ... . 4 Introduction . -
Page 4: Hazard Identification
INSTRUCTIONS Definitions for identifying the various hazard levels are provided below . RG2910 Roll Grooving tools are designed to be used in conjunction with a power drive for the This safety alert symbol indicates sole purpose of roll grooving pipe . These instruc- important safety messages . - Page 5 TM-RG2910 / Operating and Maintenance Instructions Manual Ground the power drive to protect the CAUTION operator from electric shock. Verify that the power drive is connected to an internally grounded electrical source . RG2910 tools are designed ONLY for grooving pipe sizes, materials, and wall Disconnect the power cord from the thicknesses as designated.
-
Page 6: Introduction
Victaulic RG2910 roll grooving tools are portable tools used in conjunction with a power drive for grooving pipe to be compatible with Victaulic grooved piping products . The RG2910 tool is Qty. Description equipped to groove 1”/DN25 Schedule 10 and Schedule 40 carbon steel pipe to Victaulic’s... -
Page 7: Power Requirements
100 ft/31 m are listed in the table Several power drive options are compatible for below . Use of extension cords longer than 100 use with the RG2910, as shown in the table ft/31 m must be avoided . below . -
Page 8: Tool Nomenclature
TM-RG2910 / Operating and Maintenance Instructions Manual TOOL NOMENCLATURE NOTICE • Drawings and/or pictures in this manual may be exaggerated for clarity. • The tool, along with this operating and maintenance instructions manual, contains trademarks, copyrights, and/or patented features that are the exclusive property of Victaulic. -
Page 9: Tool Dimensions And Specifications
TM-RG2910 / Operating and Maintenance Instructions Manual TOOL DIMENSIONS AND SPECIFICATIONS 9.14 in/ 232 mm 3.07 in/ 78 mm 7.50 in/ 191 mm 2.46 in/ 62 mm 7.90 in/ 201 mm 4.38 in/ 111 mm Tool weight is 18 .8 pounds/8 .5 kilograms . Tool weight includes the tool head assembly only . -
Page 10: Pipe Setup
TM-RG2910 / Operating and Maintenance Instructions Manual PIPE SETUP For proper tool operation and production of grooves that are within Victaulic specifications, the following guidelines must be followed . 1. Victaulic requires square-cut pipe for use with grooved-end pipe products . -
Page 11: Drive Setup
TM-RG2910 / Operating and Maintenance Instructions Manual DRIVE SETUP 1. Plug the power drive cord into the provided safety foot switch, as shown above . Refer to the power drive manufacturer’s operating manual for additional information . 2. Place the safety foot switch on the same... -
Page 12: Tool And Carriage Assembly Setup
. Failure to follow this instruction could result in personal injury. The RG2910 tool is easily converted for use with multiple power drives by using carriage adapters . These adapters may be provided with the tool or purchased separately, depending on the tool model ordered . -
Page 13: Cutting And Reaming Operation
TM-RG2910 / Operating and Maintenance Instructions Manual CUTTING AND REAMING OPERATION DANGER • To reduce the risk of electric shock, check the electrical source for proper grounding. • Before operating the tool, review the “Operator Safety Instructions” section of 2. Depress the safety foot switch to start the this manual. -
Page 14: Grooving Operation
TM-RG2910 / Operating and Maintenance Instructions Manual GROOVING OPERATION Before proceeding, verify that all instructions in the previous sections of this manual have been followed . NOTICE • When grooving pipe from 4.5 to 6.75 inches in length, leave 2 inches of pipe extended from the front of the chuck. - Page 15 TM-RG2910 / Operating and Maintenance Instructions Manual 2. Using the carriage lever, push the grooving head fully over the pipe end . 4. Maintain grip on the carriage lever to keep the tool in position during grooving . Depress the safety foot switch to start the power drive, then press and release the actuator .
-
Page 16: Using The Groove Confirmation Cable
TM-RG2910 / Operating and Maintenance Instructions Manual USING THE GROOVE CONFIRMATION CABLE At the beginning of a grooving session, confirm groove specifications of the first completed piece with the provided groove confirmation cable . 7. Loosen the chuck to remove the pipe from the power drive . -
Page 17: Maintenance
No . 2EP lithium- INFORMATION based grease . When ordering parts, the following information is required for Victaulic to process the order and send the correct part(s) . Parts can be ordered by calling 1-800-PICK-VIC . Tool Model Number... -
Page 18: Accessories
TM-RG2910 / Operating and Maintenance Instructions Manual ACCESSORIES ROTHENBERGER ADAPTER KIT REMS ADAPTER KIT Item Part No. Qty. Description Rothenberger Stop Arm Item R057910ADP Part No. Qty. Description Rothenberger Pivot Mount Rems Stop Arm R053910ADP Rems Mounting Stud Block Assembly... -
Page 19: Troubleshooting
TM-RG2910 / Operating and Maintenance Instructions Manual TROUBLESHOOTING DANGER • Before performing any adjustment on the tool, disconnect the power cord from the electrical source. Failure to follow this instruction could result in death or serious personal 1. To align the rolls, insert a flat-head injury. -
Page 20: Chart
2 inches past the edge of the chuck. Pipe is rotating clockwise. Reverse power drive direction to create counterclockwise rotation of the pipe. In the event of tool malfunction outside the scope of the troubleshooting section, contact Victaulic for assistance. REV_C... -
Page 21: Roll Groove Specifications
TM-RG2910 / Operating and Maintenance Instructions Manual REV_C... -
Page 22: Ec Declaration Of Incorporation
Signed for and on behalf of Victaulic Company, Mr. Len R. Swantek Director – Global Regulatory Compliance Machinery Manufacturer Representative Place of Issue: Easton, Pennsylvania, USA Date of Issue: January 10, 2020 MD_DoI_RGT_010_011020_en.docx VICTAULIC IS A REGISTERED TRADEMARK OF VICTAULIC COMPANY. ©2020 VICTAULIC COMPANY. ALL RIGHTS RESERVED... -
Page 23: Uk Declaration Of Incorporation
Director – Global Regulatory Compliance Machinery Manufacturer Representative Place of Issue: Easton, Pennsylvania, USA Date of Issue: May 17, 2021 Victaulic and all other Victaulic marks and logos are registered trademarks of Victaulic Company and/or its affiliates. ©2021 All Rights Reserved... - Page 24 OPERATING AND MAINTENANCE INSTRUCTIONS MANUAL RG2910 Roll Grooving Tool UPDATED 09/2021 TM-RG2910 14437 REV C RM00RG2910 VICTAULIC IS A REGISTERED TRADEMARK OF VICTAULIC COMPANY AND/OR ITS AFFILIATED ENTITIES IN THE UNITED STATES AND/OR OTHER COUNTRIES. © 2021 VICTAULIC COMPANY. ALL RIGHTS RESERVED.
