TDE Instruments 101398 Instruction Manual

Digalox DPM72-AVP Instruction manual (Rev-2018-09)
Visit www.digalox.com to download the software "Digalox Manager".

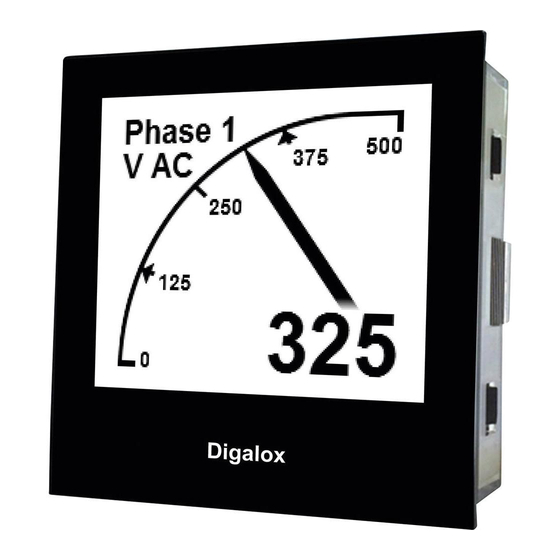

Package contents: Panel meter Digalox DPM72, 5 × jumpers, 1 × mounting bracket

1. Intended Use


Indoor use non condensing, non corrosive.

Panel mounting.

Failure to comply with these instructions will void all guarantee and warranty.

In operation, supply the device preferably via screw terminals with 10 to 24 V
AC/DC. If the device is supplied via USB in operation, USB supply voltage must
be at least 5 V.

2. Safety instructions


Note: The measurement inputs of the device can carry life-threatening
voltages!

When working on the device hazardous voltages must not be connected to
the device!

The device must not be used as the only protective device or protective
shutdown.

Read instruction manual carefully before operating the device!

The device is not intended to protect persons or facilities against harm. Specific
devices must be used to guarantee safety (protection relays, cut-off switches,
etc.).

When connecting switches to the terminals J1-J6, only switches must be used
whose isolation voltage is at least twice the maximum occurring measurement
voltage. For example, when measuring 250 V AC switches must be isolated for
at least 500 V.

Do not open the housing!

Do not use the instrument in the presence of explosive or flammable substances!

All cables carrying hazardous voltages must be secured with external separators.
----- 1 -----
