Package contents:
1. Safety instructions
• Read instruction manual carefully before operating the device! Keep for later
reference.
• Mounting and installation must be carried out by suitably qualified and competent
persons only.
• WARNING: The measurement inputs of the device can carry life-threatening
voltages!
• When working on the device hazardous voltages must not be connected to
the device! The terminals J1-J12 are not isolated from the measuring
circuit.
• The device must not be used as the only protective device or protective
shutdown.
• The device is not intended to protect persons or facilities against harm. Specific
devices must be used to guarantee safety (protection relays, cut-off switches,
etc.).
• When connecting switches to the terminals J1-J8, only switches must be used
whose isolation voltage is at least twice the maximum occurring measurement
voltage. For example, when measuring 250 V AC switches must be isolated for at
least 500 V.
• Do not open the housing!
• Do not use the device in the presence of explosive or flammable substances!
• All cables carrying hazardous voltages must be secured with external separators.
2. Meaning of symbols
General warning sign
(Attention, observe the documentation!)
Warning of an electrical hazard
DPM72-MP + /MPN + -DIN
®
Digalox
Instruction manual (Rev-2021-05)

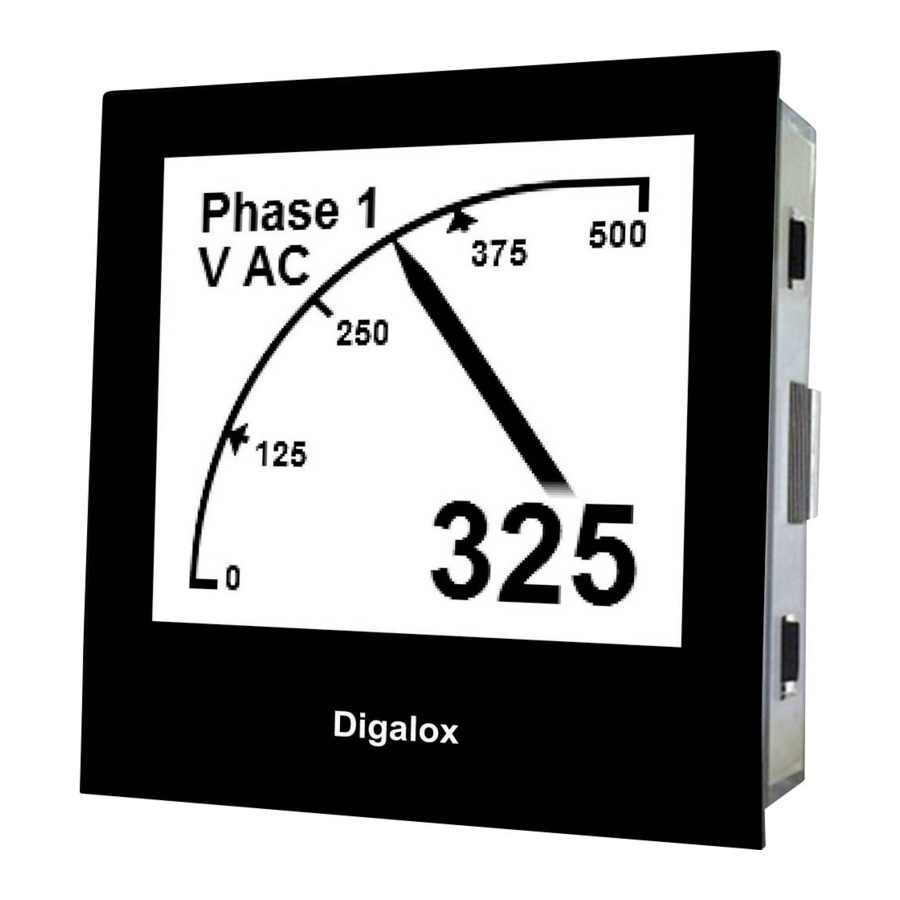

Multimeter for DIN rail
®
Digalox
DPM72, 5 jumpers, 2 instruction manuals (EN + DE)
----- 1 / 8 -----
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TDE Instruments Digalox DPM72-MP+
Summary of Contents for TDE Instruments Digalox DPM72-MP+
- Page 1 DPM72-MP + /MPN + -DIN ® Digalox Instruction manual (Rev-2021-05) Multimeter for DIN rail ® Package contents: Digalox DPM72, 5 jumpers, 2 instruction manuals (EN + DE) 1. Safety instructions • Read instruction manual carefully before operating the device! Keep for later reference.
- Page 2 3. Intended use • Measurement of current, voltage, power and frequency in the specified measuring ranges. • Indoor use non condensing, non corrosive. • Mounting on DIN rail or screwing on. • Failure to comply with these instructions will void all guarantee and warranty. 4.
- Page 3 5. Product overview 1 2 optocoupler switch outputs 2 Jumper pins J1–J12 3 Supply voltage input 4 Interface (XBEE / RS485) 5 Measurement inputs 6. Mounting Hook the device into the top-hat rail from above and then press it at the bottom until the latch engages.
- Page 4 7. Electrical connections DPM72-MP + Supply Voltage direct 12 - 24 V Fuse 250 mA high high max. 500 V − Digalox +/L -/N Supply Current direct Current and voltage direct high high high high max. max. max. 10 A 10 A 500 V Load...
- Page 5 8. Electrical connections DPM72-MPN + Supply Voltage direct 12 - 24 V Sicherung 250 mA high high max. 500 V − Digalox Supply Current via external shunt Current via external shunt, voltage direct high high high high max. max. max. 333 mV 333 mV 500 V...
- Page 6 9. Configuration Connect the device to a computer: USB: Connect the device and the computer using a USB cable. The device driver is installed automatically if the computer is connected to the Internet. XBEE: Insert the XBEE stick into the computer. The device driver is installed automatically if the computer is connected to the Internet.
-
Page 7: Specification
12. Specification DPM72-MP + DPM72-MPN + 12 - 24 V AC/DC ±10% (50/60 Hz ±10%), Supply galvanically isolated Power consumption Max. 1.2 W Measuring range voltage ±500 V AC/DC, 10 - 500 Hz Accuracy voltage ±1 % true RMS Internal resistance voltage 2.6 MΩ... - Page 8 13. Dimensions [mm] 67.5 RS485 57.5 ⌀3.2 61.2 78.7 XBEE 14. Contact information TDE Instruments GmbH, Gewerbestraße 8, D-71144 Steinenbronn Phone: +49 7157 20801 E-mail: info@tde-instruments.de Internet: www.tde-instruments.de, www.digalox.com ----- 8 / 8 -----...
