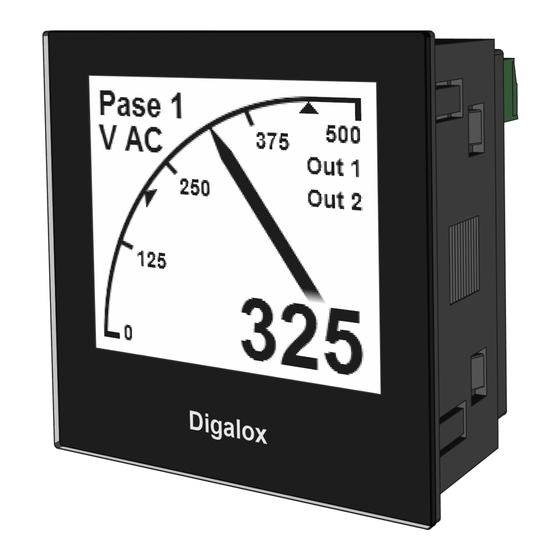

TDE Instruments Digalox DPM72-AVP Instruction Manual

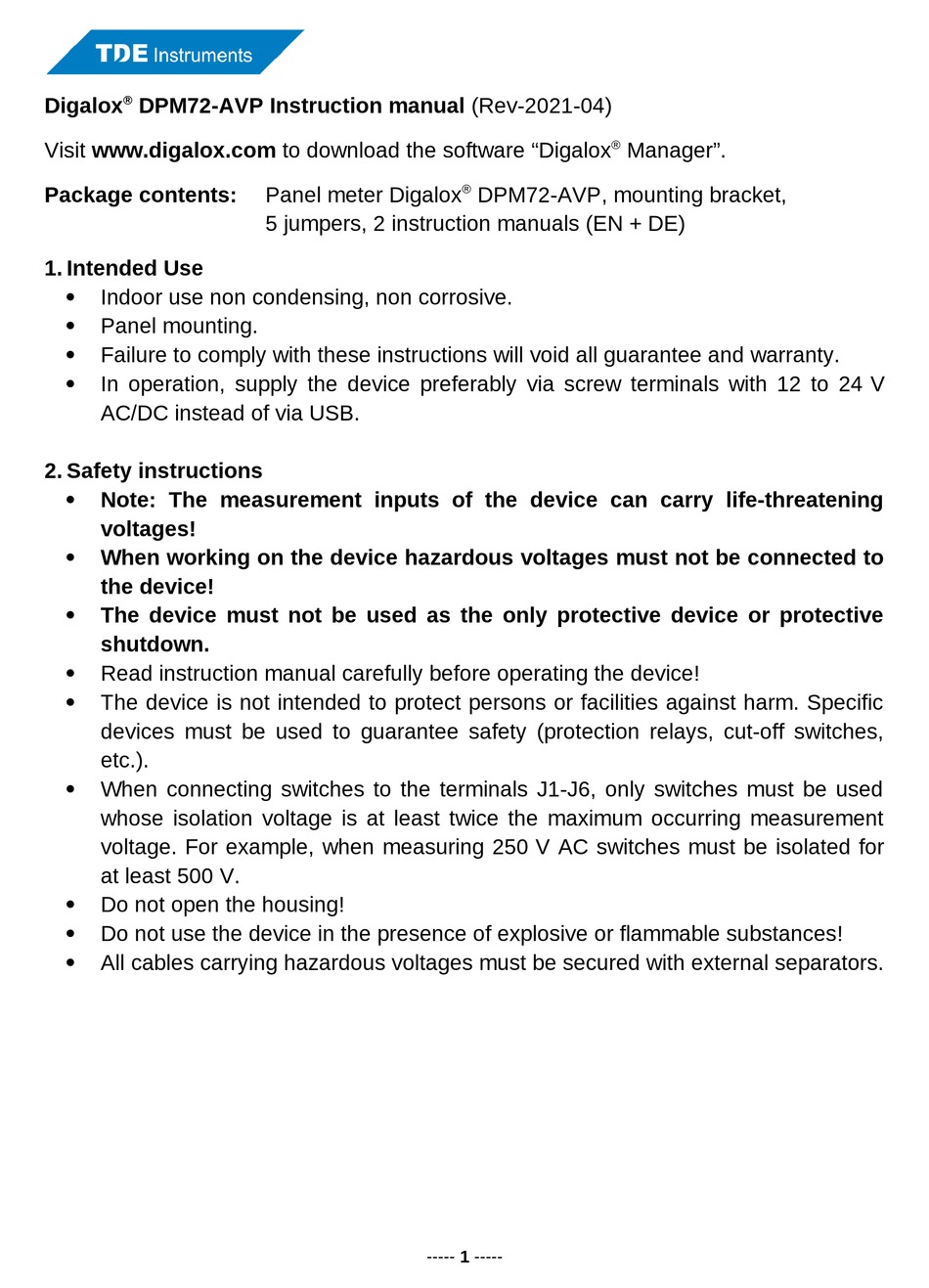

Digalox ® DPM72-AVP Instruction manual (Rev-2021-04)
Visit www.digalox.com to download the software "Digalox
Package contents:

1. Intended Use

Indoor use non condensing, non corrosive.

Panel mounting.

Failure to comply with these instructions will void all guarantee and warranty.

In operation, supply the device preferably via screw terminals with 12 to 24 V

AC/DC instead of via USB.

2. Safety instructions

Note: The measurement inputs of the device can carry life-threatening

voltages!
When working on the device hazardous voltages must not be connected to

the device!
The device must not be used as the only protective device or protective

shutdown.
Read instruction manual carefully before operating the device!

The device is not intended to protect persons or facilities against harm. Specific

devices must be used to guarantee safety (protection relays, cut-off switches,
etc.).
When connecting switches to the terminals J1-J6, only switches must be used

whose isolation voltage is at least twice the maximum occurring measurement
voltage. For example, when measuring 250 V AC switches must be isolated for
at least 500 V.
Do not open the housing!

Do not use the device in the presence of explosive or flammable substances!

All cables carrying hazardous voltages must be secured with external separators.

Panel meter Digalox
5 jumpers, 2 instruction manuals (EN + DE)
----- 1 -----
® Manager".
®
DPM72-AVP, mounting bracket,
