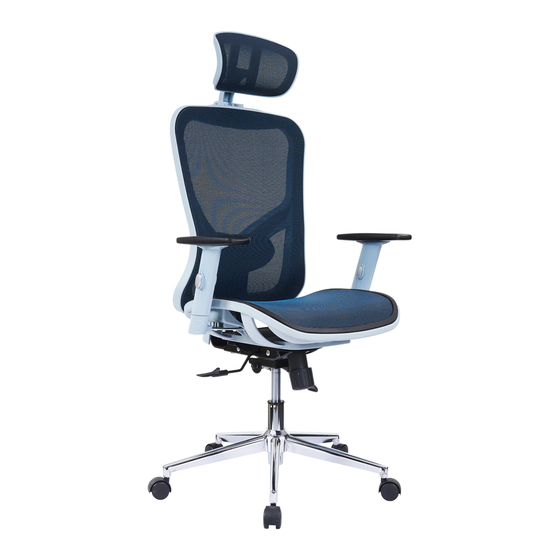

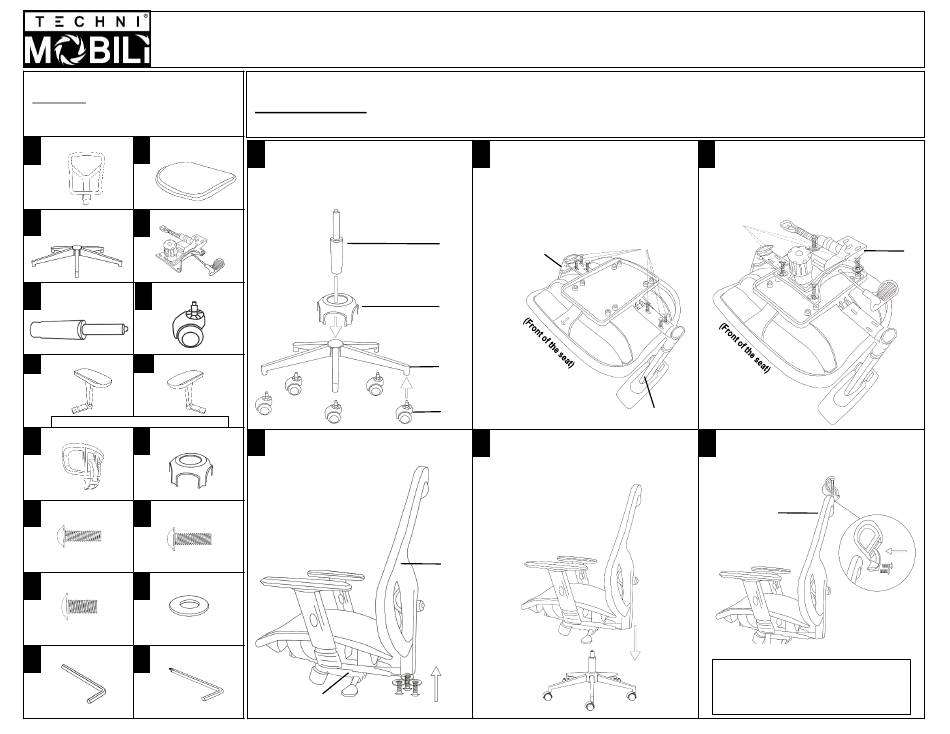

Techni Mobili RTA-1008 Assembly Instructions

PARTS LIST

ATTENTION: Before you begin to assemble the
product, please make sure that all the parts are
included in the package and in good condition.
A Backrest B Seat
x1 x1
C 5-Star base Mechanism
D
x1
x1
F Casters
E
Hydraulic
Gas Lift
x5
x1
Left armrest
Right armrest
GR
GL
When you seat on the chair, not looking at it.
H
Headrest I Base cover
x1
x1
J Ø 6x30mm K Ø 6x25mm
x4
x8
(Armrests, headrest)
(Mechanism)
M N
Ø 8x20mm Washers
x3 x7
(Backrest) (Mechanism, backrest)
O Allen wrench 6mm P Allen wrench 5mm
x1 x1
ASSEMBLY INSTRUCTIONS
CHAIR STYLE RTA-1008
• Follow the instructions step by step.
ATTENTION:
• To avoid misalignments, leave the screws loose and do not tighten them until all are in their respective places.
• Do not overtighten or force the screws as they could break, strip, or damage the threads of the holes.
• Using the wrong size of screws on a part could result in damage to the screw or the part
1
Insert the casters (F) in the legs of the
base (C) using pressure, then place the
gas lift (E) and the cover (J) in the middle
of the base as shown.
4
Assemble the backrest (A) to the
mechanism (D) using screws (M) and
washers (N) as shown.
D
M+N
2
Flip over the seat (B) with its front
towards you and assemble the armrests
(G) in the respective sides using screws
(J) as shown.
E
G (Left)
B
J
C
F
5
Place the top parts over the base parts
making sure the tip of the gas lift enters
into the hole of the mechanism.
A
3
Using screws (K) and washers (N),
assemble the mechanism (D) to the seat
(B) with its knob facing to the FRONT as
shown.
K+N
J (x6)
B
G (Right)
6
Assemble the headrest (H) to the
backrest (A) using screws (J) as shown.
A
Before seating and using the chair for
the first time, make sure that all
screws are properly tightened.
D
H
J
