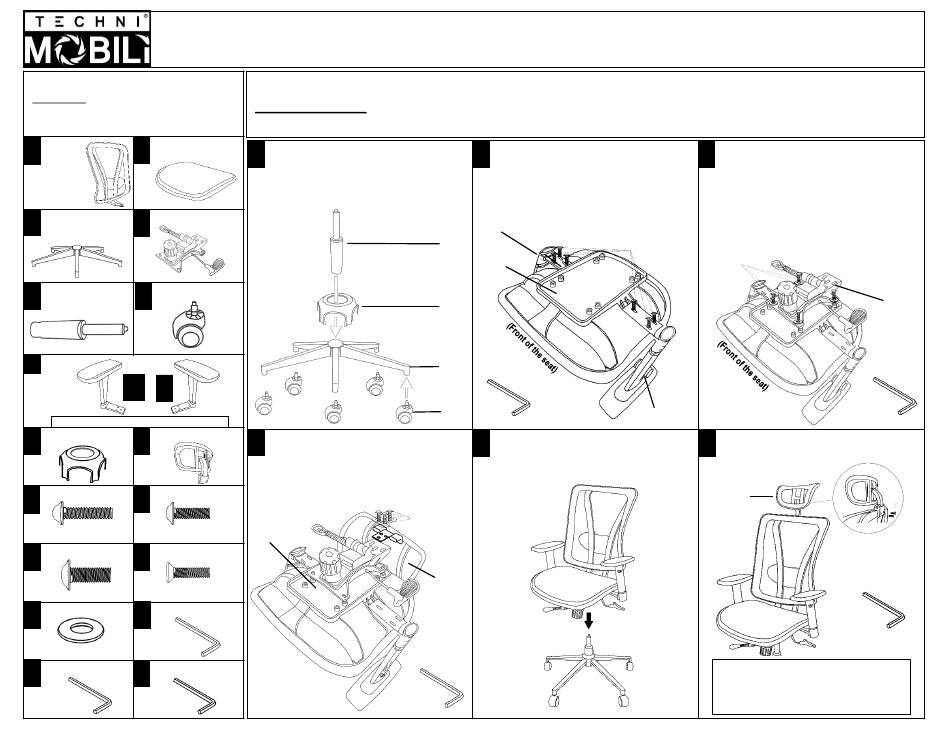

Techni Mobili RTA-1009 Assembly Instructions

PARTS LIST

ATTENTION: Before you begin to assemble the
product, please make sure that all the parts are
included in the package and in good condition.
A Backrest B Seat
x1 x1
C 5-Star base Mechanism
D
x1
x1
F Casters
E
Hydraulic
Gas Lift
x5
x1
Armrests
G
x1
x1
Right Left
When you seat on the chair, not looking at it.
I
Base Cover J Headrest
x1
x1
K Ø 6x30mm L Ø 6x25mm
x6 x4
(Armrests)
(Mechanism)
M Ø 8x20mm N Ø 6x25mm
x3 x2
(Headrest)
(Backrest)
O P
Allen wrench 6mm
Washers
x7 x1
(Mechanism, backrest)
Q R
Allen wrench 5mm Allen wrench 4mm
x1
x1
ASSEMBLY INSTRUCTIONS
CHAIR STYLE RTA-1009
• Follow the instructions step by step.
ATTENTION:
• To avoid misalignments, leave the screws loose and do not tighten them until all are in their respective places.
• Do not overtighten or force the screws as they could break, strip, or damage the threads of the holes.
• Using the wrong size of screws on a part could result in damage to the screw or the part
1
Insert the casters (F) in the legs of the
base (C) using pressure, then place the
gas lift (E) and the cover (I) in the middle
of the base as shown.
4
Assemble the backrest (A) to the
mechanism (D) from underneath using
screws (M) and washers (O) as shown.
M+O
D
2
Flip over the seat (B) with its front
towards you and assemble the armrests
(G) in the respective sides using screws
(K) as shown.
G (Left)
E
B
I
C
Q
F
5
Place the top parts over the base parts
making sure the tip of the gas lift enters
into the hole of the mechanism.
A
P
3
NOTE: The position of the backrest
(forward or backward) depends on which
set of 4 holes you choose on the seat to
install the mechanism.
Assemble the mechanism (D) to the seat
(B) on one of the sets of 4 holes using
screws (L) and washers (O) as shown.
K
L+O
B
G (Right)
6
Assemble the headrest (J) to the
backrest (A) using screws (N) as shown.
J
Before seating and using the chair for
the first time, make sure that all
screws are properly tightened.
D
Q
N
R
