PARTS LIST
ATTENTION: Before you begin the assembly,
make sure that all parts are included in good
condition.
Seat, x1
A
Mechanism, x1
B
Star Base, x1
C
Hydraulic
D
Gas Lift, x1
Caster, x5
E
M6x22mm, x4
F
(Mechanism)
Allen Wrench, x1
G

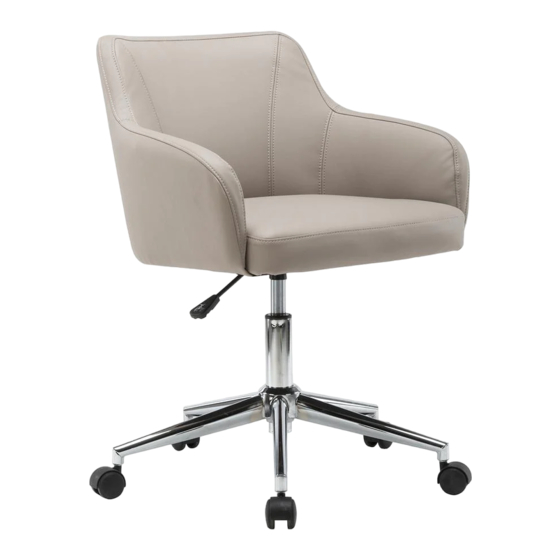

ASSEMBLY INSTRUCTIONS FOR CHAIR MODEL
ATTENTION:
⚠ Follow the instructions step by step.
⚠ To avoid misalignments, leave the screws loose and do not tighten them until all are in their respective places.
⚠ Do not overtighten or force the screws as they could break, strip, or damage the threads of the holes.
Insert the casters (E) into the legs of the base (C) using
pressure, then place the gas lift (D) in the middle of the base
as shown.
D
E
Place the seat over the base, making sure the tip of the gas
lift enters into the hole of the mechanism.
RTA-1006
to the seat with its handle facing to your LEFT as shown.
C
Place the seat (A) upside-down with its backrest end towards
you as shown. Using screws (F), assemble the mechanism (B)
B
Before sitting on the chair for the very first time,
make sure that the screws are tighten well.
F
A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Techni Mobili RTA-1006
Summary of Contents for Techni Mobili RTA-1006
- Page 1 ASSEMBLY INSTRUCTIONS FOR CHAIR MODEL RTA-1006 ATTENTION: PARTS LIST ⚠ Follow the instructions step by step. ATTENTION: Before you begin the assembly, ⚠ To avoid misalignments, leave the screws loose and do not tighten them until all are in their respective places.
- Page 2 To raise or lower the chair’s height, pull UP the lever that is under the seat. The chair goes down while sitting on it, or up if you lift your body. NOTE: This chair does not recline. WARNINGS: • Do not stand up on the chair or use it as ladder. •...
