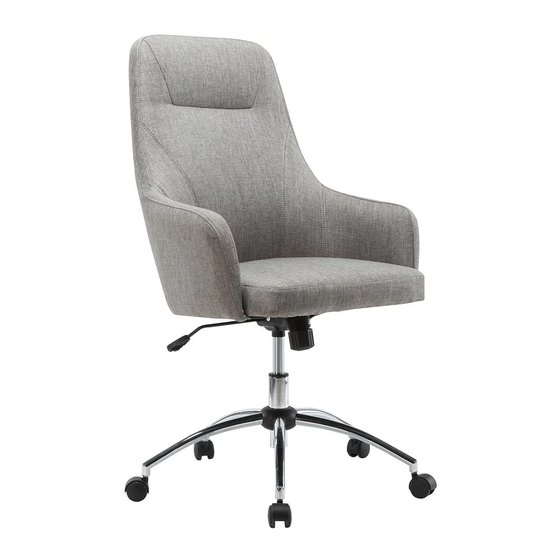

Techni Mobili RTA-1005 Assembly Instructions

Techni Mobili RTA-1005 Assembly Instructions

Advertisement

PARTS LIST

ATTENTION: Before you begin the assembly,
make sure that all parts are included in good
condition.
Seat, x1
A
NOTE:
This piece might come
with the mechanism (part
B) already installed on it
from the factory.
Mechanism, x1
B
NOTE:
This piece might come
already installed on the seat
(part A) from the factory.
Star Base, x1
C
Hydraulic
D
Gas Lift, x1
Caster, x5
E
M6x20mm, x4
F
(Mechanism)
NOTE:
If the mechanism comes already installed on
the seat from the factory, then these screws
are not needed during assembly.
Allen Wrench, x1
G
ASSEMBLY INSTRUCTIONS FOR CHAIR MODEL
ATTENTION:
⚠ Follow the instructions step by step.
⚠ To avoid misalignments, leave the screws loose and do not tighten them until all are in their respective places.
⚠ Do not overtighten or force the screws as they could break, strip, or damage the threads of the holes.

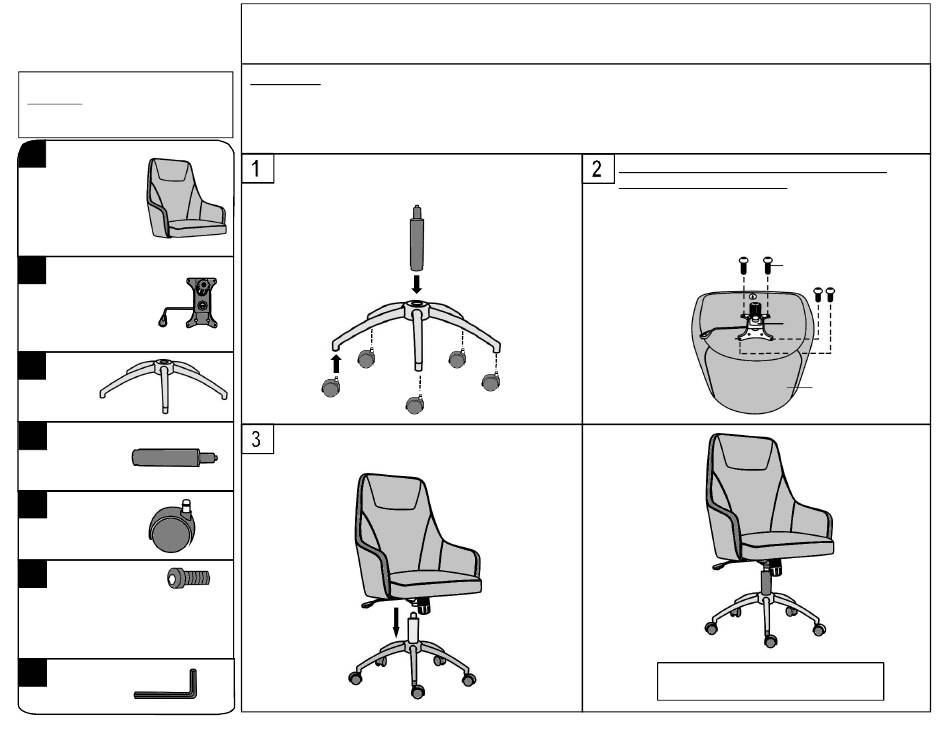

Insert the casters (E) into the legs of the base (C) using
pressure, then place the gas lift (D) in the middle of the base
as shown.
D
E
Place the seat over the base, making sure the tip of the gas
lift enters into the hole of the mechanism.
RTA-1005
IF THE SEAT COMES WITH THE MECHANISM ALREADY
ATTACHED, THEN SKIP THIS STEP.
Place the seat (A) upside-down with its backrest end towards you as
shown. Using screws (F), assemble the mechanism (B) to the seat
with its handle facing to your LEFT as shown.
C
F
B
A
Before sitting on the chair for the very first time,
make sure that the screws are tighten well.
