This symbol is used to alert the user to important
operating or maintenance instructions.
The Lightning bolt triangle is used to alert the user
to the risk of electric shock.
SAFETY
1.
It is important to read these instructions, and to follow them.
2.
Keep this instruction manual in an accessible place.
3.
Clean only with a dry cloth. Cleaning fluids may affect the equipment.
4.
Do not install this equipment near any heat sources such as radiators, heating vents
or other apparatus that produces heat.
5.
WARNING – THIS APPARATUS MUST BE EARTHED / GROUNDED.
6.
Only power cords with the correct power connector may be used to maintain safety.
Cables incorporating the UK 13A fused plug, Schuko with earthing contacts and UL
approved "grounding type" are acceptable. These must be plugged into power outlets
which provide a protective earth.
7.
Refer all servicing to qualified personnel. Servicing is required when the apparatus
has been damaged in any way, such as a power supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has
been exposed to any rain or moisture, does not operate normally or has been
dropped.
8.
WARNING – To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture. The apparatus shall not be exposed to dripping
or splashing and no objects filled with liquids, such as vases, shall be placed
on the apparatus.
ATTENTION: RISQUE DE CHOCS ELECTRIQUE NE PAS OUVRIR

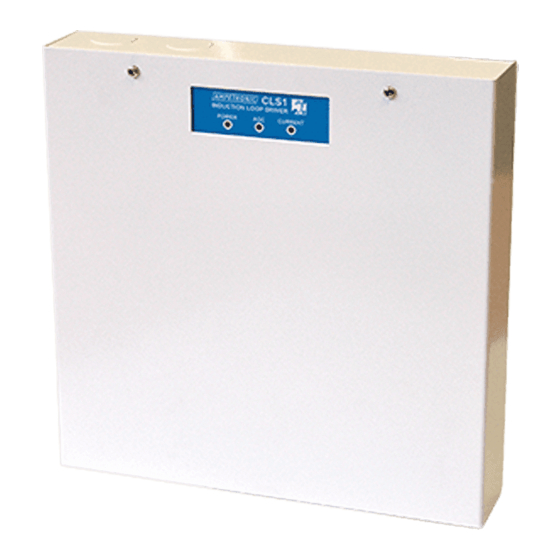

CLS1 Installation Handbook
TO PREVENT ELECTRIC SHOCK DO NOT REMOVE THE
COVER. THERE ARE NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
Box Contents
1 x CLS1
1 x 'Installation Handbook'
1 x Deaf logo
1 x P-clip, nut & washer
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CLS1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ampetronic CLS1

  • Page 1 CLS1 Installation Handbook Handbook Contents Box Contents 1 x CLS1 Safety • 1 x ‘Installation Handbook’ • Introduction 1 x Deaf logo Block diagram • 1 x P-clip, nut & washer Overview • Connections • Installation • Troubleshooting • Accessories •...
  • Page 2 Depending on a number of factors regarding the installation of the loop and the set-up of the amplifier the CLS1 can provide compliance with IEC60118-4 for areas >200m...
  • Page 3 Block Diagram...
  • Page 4 OVERVIEW Mounting and Cable entry (shown with lid removed) Mounting holes Knock-outs (5 X 10mm) CLS1 Knock-outs Mounting holes (5 X 10mm) Knock-outs Detachable earth lead. MUST be re-connected before lid is secured.
  • Page 5 Controls and Indication Line Mic Mic / Phantom Input gain Metal loss Output current Line enable controls correction control switch (shown in position) Connections (For wiring details see next section) Input 3 100V Line/speaker Input 1 Mic / Line Input 2 Line Loop output...
  • Page 6 CONNECTIONS All connections are made using screw terminals which accept up to 2.5mm (14 AWG) wire. To avoid a single strand of wire shorting to other conductive parts wires should be stripped no more than 6mm. Signal Inputs: - (Signal cold) - (Signal cold) + (Signal hot) + (Signal hot)
  • Page 7 + (Signal hot) - (Signal cold) + (Signal hot) either channel - (Signal cold) can be used 100V Line Mono Low Impedance speaker + (Signal hot) Left - (Signal cold) + (Signal hot) Right - (Signal cold) Stereo Low INPUT 3 – 100V Impedance Speaker LINE/SPEAKER CAUTION...
  • Page 8 Neutral Sheathed 3-core cable Earth Live Fuse cover Separate cables Cable tie Washer AC POWER P-clip...
  • Page 9 Tools and Equipment A magnetic field strength meter (e.g. Ampetronic FSM) or a loop receiver (e.g. Ampetronic ILR3 or ILR3+) is vital to check that the loop system is providing the desired level of performance. As well as tools for securing the unit to the wall, a large flat bladed screwdriver and hammer are required to remove the knock-outs.
  • Page 10 Any knock-outs left open must be blanked off with a suitable plug. Cable glands and conduit fittings are available at most electrical suppliers. The CLS1 is classed as permanently connected apparatus and as such shall be installed in accordance with relevant building and wiring regulations.
  • Page 11 Line level signals (balanced mono or unbalanced mono and stereo): From other audio equipment such as PA system, mixing desk or CD player. Connect to appropriate terminals of INPUT 2 see Connections drawing 100V line / low impedance speaker: Connect to the appropriate terminals of INPUT 3 see Connections drawing.
  • Page 12 If the standard cannot be met a redesign of the loop will be required. 11. If not already done so, steps can now be taken to integrate the CLS1 into a PA / mixer arrangement following standard audio techniques. If any unusual effects are experienced refer to the Troubleshooting section.
  • Page 13 Due to insufficient current or excessive metal loss. May require a special loop design to achieve acceptable performance, contact Ampetronic for advice. Instability or high frequency noise 1. It is possible for the loop cable to be grounded under fault conditions, resulting in instability which may sound like high frequency noise, buzz or whistling.
  • Page 14 Always run long audio signal cables as 3-wire balanced circuits and keep away from loop cables. 5. See also point 1 of Instability ACCESSORIES Details of all products and services provided by Ampetronic can be found at www.ampetronic.co...
  • Page 15 TECHNICAL SPECIFICATIONS INPUTS MLC (Metal loss correction) Frequency response adjustment INPUT 1 (MIC/Line) From flat to +3dB/octave centred around 1kHz Input Impedance: 10kΩ per side Sensitivity: -73/-31dBu OUTPUTS Overload: -37/+5dBu Loop Output INPUT 2 (Line) Max. Voltage: 11Vpk, 7.8Vrms Input Impedance: 1MΩ per side Max.
  • Page 16 WARRANTY This product carries a five year parts and labour warranty from date of shipment from Ampetronic. To qualify for the five year warranty, the product must be registered at www.ampetronic.co (products/warranty), without which the warranty will be valid for two years only.
