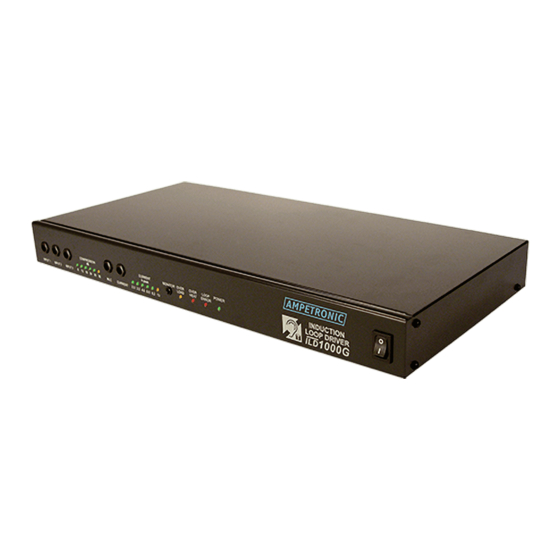

Ampetronic ILD1000G Installation Handbook

Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Handbook Contents
Safety
Introduction
Quick Start
Installation
Overview
Troubleshooting
Accessories

Technical Specifications

Warranty

Declaration Of Conformity

This symbol is used to alert the user to important
operating or maintenance instructions.
The Lightning bolt triangle is used to alert the user
to the risk of electric shock.
SAFETY
1.
It is important to read these instructions, and to follow them.
2.
Keep this instruction manual in an accessible place.
3.
Clean only with a dry cloth. Cleaning fluids may effect the equipment.
4.
Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
5.
Do not install this equipment near any heat sources such as radiators, heating vents
or other apparatus that produces heat.
6.
WARNING – THIS APPARATUS MUST BE EARTHED / GROUNDED.
7.
Only power cords with the correct power connector may be used to maintain safety.
Cables incorporating the UK 13A fused plug, Schuko with earthing contacts and UL
approved "grounding type" are acceptable. These must be plugged into power outlets
which provide a protective earth.
8.
Refer all servicing to qualified personnel. Servicing is required when the apparatus
has been damaged in any way, such as a power supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has
been exposed to any rain or moisture, does not operate normally or has been
dropped.
9.
WARNING – To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture. The apparatus shall not be exposed to dripping
or splashing and no objects filled with liquids, such as vases, shall be placed
on the apparatus.

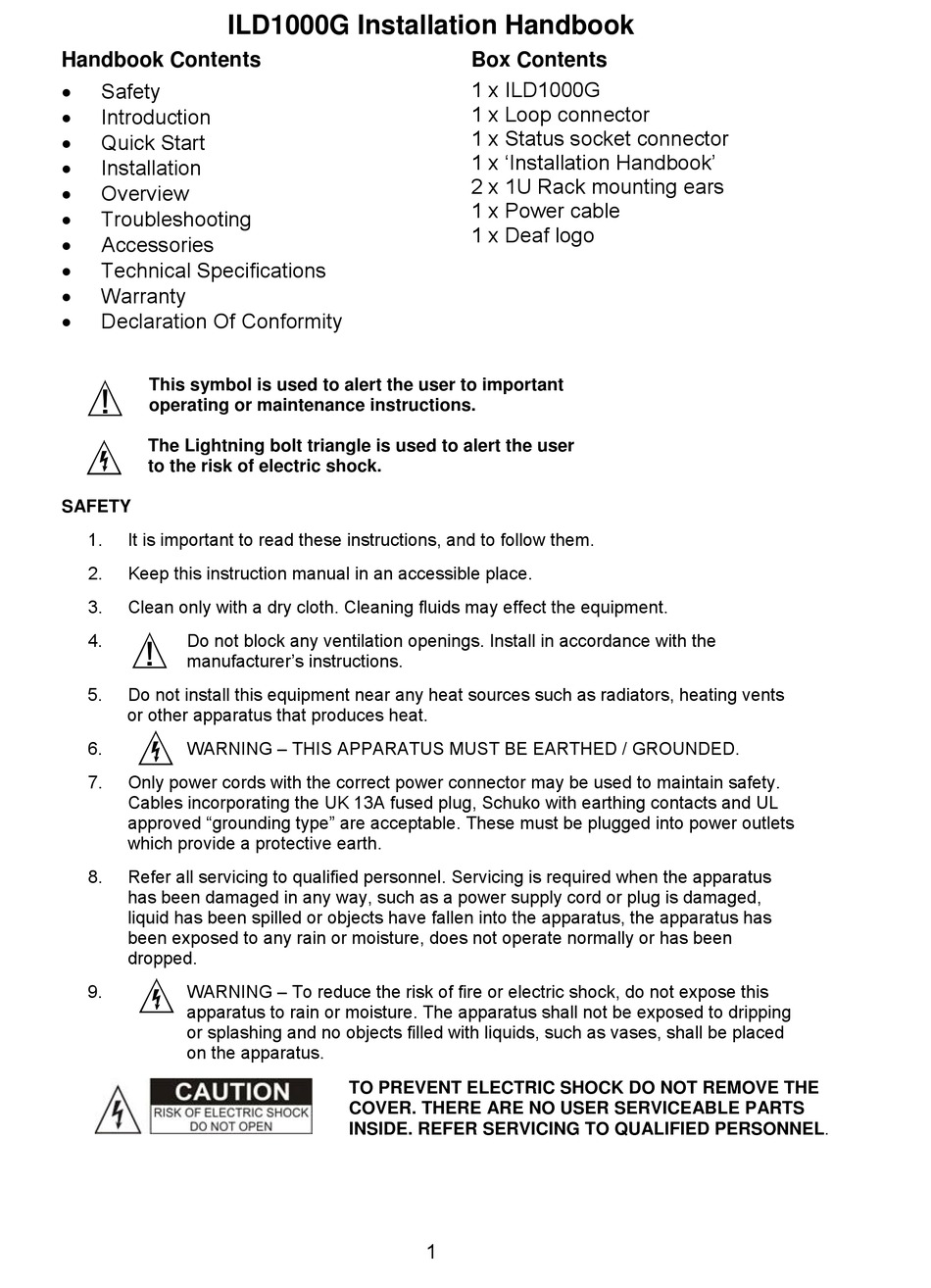

ILD1000G Installation Handbook
TO PREVENT ELECTRIC SHOCK DO NOT REMOVE THE
COVER. THERE ARE NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
Box Contents
1 x ILD1000G
1 x Loop connector
1 x Status socket connector
1 x 'Installation Handbook'
2 x 1U Rack mounting ears
1 x Power cable
1 x Deaf logo
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ILD1000G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ampetronic ILD1000G

Summary of Contents for Ampetronic ILD1000G

  • Page 1: Technical Specifications

    ILD1000G Installation Handbook Handbook Contents Box Contents  1 x ILD1000G Safety 1 x Loop connector  Introduction 1 x Status socket connector  Quick Start 1 x ‘Installation Handbook’  Installation 2 x 1U Rack mounting ears  Overview 1 x Power cable ...

  • Page 2: Quick Start

    INTRODUCTION The ILD1000G Induction loop driver has been designed as a high quality amplifier for use with conference rooms, stadia, theatres, sports halls, confidential rooms, lecture halls and cinemas. Depending on a number of factors regarding the installation of the loop and the set-up of the amplifier the ILD1000G can provide compliance with IEC60118-4 for areas >1300m...

  • Page 3: Loop Connector

    Connections Screen INPUT 1 & 2 - (Signal cold) + (Signal hot) Connection of balanced male XLR INPUT 3 RING SOURCE SLEEVE + (Signal hot) Balanced - (Signal cold) Connection of 3-pole Plug with balanced signals. Use Twin-screened cable. RING Unbalanced SLEEVE SOURCE...

  • Page 4: Block Diagram

    Block Diagram +15V +15V Phantom Phantom Power Power Switch Switch Compression LEDs Compression LEDs Overheat Overheat Gain Boost Input 1 Loop Loop Overload Overload Current LEDs Current LEDs Error Error Input 1 Gain Gain Boost Input 2 Compressor Compressor Output Output Loop Loop...

  • Page 5: Installation

    The induction loop cable itself should be already installed according to the ‘Designing Induction Loops’ handbook, or as per specific design instructions provided by Ampetronic. As a result, a target current should be known, based on achieving acceptable field strength across the area to be covered.
  • Page 6 Ampetronic signal processing equipment or for obtaining a signal for recording. See Connections for details. Connect AC power to the ILD1000G. See points 6 and 7 in Safety section. Switch ON. The POWER LED will flash for a few seconds whilst an internal self-test is performed and the loop resistance is tested.
  • Page 7 NOT need re-adjusting. If not already done so, steps can now be taken to integrate the ILD1000G into a PA / mixer arrangement following standard audio techniques. If any unusual effects are experienced refer to the Troubleshooting section.
