Handbook Contents
Safety
Introduction
Quick Start
Overview
Installation
Troubleshooting
Accessories
Technical Specification
Warranty
Declaration of Conf o rmity
-4-
This symbol is used to alert the user to important
ill
operating or maintenance instructions.
/,\
The Lightning bolt triangle is used to alert the user
ill
to the risk of electric shock.
SAFETY
1. It is important to read these instructions, and to follow them.
2. Keep this instruction manual in an accessible place.
3. Clean only with a dry cloth. Cleaning fluids may effect the equipment.
4. Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
5. Do not install near any heat sources such as radiators, heating vents, or other
apparatus that produces heat.
6. WARNING - THIS APPARATUS MUST BE EARTHED/ GROUNDED.
7. Only power cords with the correct power connector may be used to maintain
safety. Cables incorporating the UK 13A fused plug, Schuko with earthing
contacts or UL approved "grounding type" are acceptable. These must be
plugged into power outlets which provide a protective earth.
8. Refer all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way, such as a power supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to any rain or moisture, does not
operate normally or has been dropped.
9. WARNING To reduce risk of fire or electric shock, do not expose this
apparatus to rain or moisture. The apparatus shall not be exposed to dripping
or splashing and no objects filled with liquids, such as vases, shall be placed
on the apparatus.
ILD300 HANDBOOK
Box Contents
1 x ILD300
1 x Loop connector
1 x Installation & Commissioning
Handbook
1 x Power Cable
TO PREVENT ELECTRIC SHOCK DO NOT
REMOVE THE COVER. THERE ARE NO
USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
PERSONNEL.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ILD300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ampetronic ILD300

  • Page 1 ILD300 HANDBOOK Handbook Contents Box Contents • Safety 1 x ILD300 • Introduction 1 x Loop connector • Quick Start 1 x Installation & Commissioning • Overview Handbook • Installation 1 x Power Cable • Troubleshooting • Accessories • Technical Specification •...
  • Page 2: Quick Start

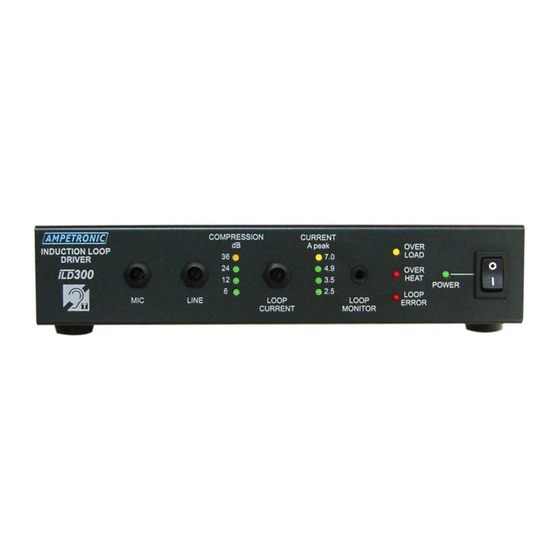

    INTRODUCTION The ILD300 Induction Loop Driver has been designed as a high quality amplifier for use with conference rooms, stadia, theatres, sports halls, confidential rooms, lecture halls and cinemas. Depending on a number of factors regarding the installation of the loop and set-up of the amplifier, the ILD300 can provide compliance with IEC60118-4 for areas>...
  • Page 3 COMPRESSION CURRENT /AMPETRON IC/ A peak � INDUCTION LOOP 07.0 DRIVER 0 4. 9 2 4 0 OVER HEAT 03 5 ILD300 02.s LOOP LOOP LINE OE��6R MONITOR CURRENT ' . . �= ===­ LINE INPUT lDesignedandEnginooredlntheUK G) MIC and LINE: Screwdriver adjustable controls which set the AC POWER: Standard 3-pole IEC320 connector containing level of signal fed into the compressor from Mic and Line inputs.
  • Page 4 Connections LINE INPUT Balanced Unbalanced Connection of 3-pole plug. Use Twin-screened cable. Must be 3m or less. �------ Screen - (Signal cold) INPUT 1,_..,...""" ____ + (Signal hot) Connection of balanced male XLR for microphone input SLAVE RECORDING DEVICE LOOP Twisted feeder cable to loop CONNECTOR Undo the screw to remove the...
  • Page 5: Block Diagram

    Block Diagram +15V ��!: �j Compression LEDs Switch Overheat Gain Boost Loop Overload Current LEDs Error Slave Correction Power ±15V Power Switch 150mA +15V 230V -15V Output 120V AC Power -----.--"'---+------� av Socket +15V -15V Use cable supplied. Must be 3m or less. INSTALLATION Location: The unit may be free standing or 19"...
  • Page 6: System Requirements

    Ampetronic signal processing equipment, or for obtaining a signal for recording. See Connections section f o r details. 4.Connect AC power to the ILD300. See points 6 and 7 in Safety section. 5. Switch ON. The POWER LED will flash for a few seconds while an internal self test is performed and the loop resistance is tested.
  • Page 7 Once the LOOP CURRENT AND METAL LOSS CORRECTION have been adjusted to the correct level they should not need re-adjusting. 9. If not already done so, steps can now be taken to integrate the ILD300 into a PA / mixer arrangement following standard audio techniques. If any unusual effects are experienced refer to the troubleshooting section.
  • Page 8: Troubleshooting

    Switch the unit OFF, remove all connections except the loop and power connections, turn all front panel controls to minimum and switch back ON. If the problem persists, contact Ampetronic for advice. COMPRESSION LEDs not illuminating: Check input connections.
  • Page 9 Due to insufficient LOOP CURRENT or excessive metal loss. May require a special loop design to achieve acceptable performance, contact Ampetronic for advice. Instability or high frequency noise 1) It is possible for the loop cable to become grounded under fault conditions, resulting in instability which may sound like high frequency noise, buzz or whistling.
  • Page 10 The loop short to earth may only be completed when a person steps on the tape in the affected location, which can create significant difficulties when diagnosing the cause of fuse failure. Contact Ampetronic for further advice if a unit is suffering recurring but untraceable failure of the rear panel fuse.
  • Page 11: Technical Specifications

    ½ rack width, 1 U high. Compression (AGC): Standards: >36dB dynamic range Meets relevant CE, EMC and Controlled by adjusting input level. safety standards. Loop Design: Depends on application, see Please contact Ampetronic if you need Designing induction loops handbook further assistance. or consult Ampetronic.
  • Page 12: Warranty

    Wall mount brackets are available for mounting the amplifier on the wall with appropriate fixings. A 1 U rack mount tray is available which can be used to mount up to two ILD300's. Blanking plates can be used to cover unused sections.
