- Page 2 Thank you for your purchase of a NAUTICAM camera housing. At NAUTICAM, we pride ourselves on the ability to recognise the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products. We strive to achieve a high level of user-friendliness by allowing stress-free installation and easy operation of all important functions of the camera.
- Page 3 2. NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/or poor maintenance; it is the responsibility of the owner to carefully follow the instructions in this manual.

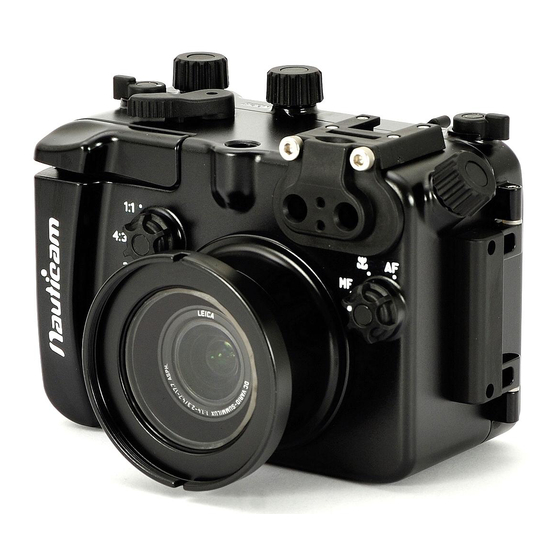

- Page 4 1. NA-LX7 housing 2. Instruction manual 3. Spare silicone rubber housing o-ring 4. O-ring remover 5. CR2032 battery (for moisture alarm) 6. Lubricant 7. Set of Allen keys CR2032 battery Spare silicone rubber o-ring O-ring remover Lubricant Set of Allen keys...
- Page 5 O-ring(s). 2. Do not use lubricants from other brands with the silicone rubber O- ring on this housing, only use the lubricant provided by NAUTICAM. 3. Discontinue use immediately should you notice any leakage. 4. Store the housing in a robust, shock-proof container during transportation;...
- Page 6 Specifications Identification of Parts Preparation of the Housing Opening and Locking the Housing Installing the Camera Care and Maintenance Optional Accessories...
- Page 7 Housing body: Aluminium alloy Construction Surface treatment: Hard anodised Display window: Abrasion resistant polycarbonate Width: 158mm Dimensions Height: 111mm Depth: 108mm Weight Approx. 0.90kg (without camera) Buoyancy Slightly negative Depth rating 100 metres Moisture alarm: Blinking LED and audible alarm Optical fibre mount included for external strobes connection, TTL capability:...
- Page 8 Mode dial Aspect ratio selector Zoom lever Flash open lever Rear dial Accessory coldshoe On/off/video lever M10 strobe mounting base Shutter release lever Aperture dial Housing lock safety button Optical fibre mount Housing lock Focus selector...
- Page 9 * The maximum length of screws that can be used with the tripod sockets is 4mm Flash off lever Fn/Left selection button Moisture alarm window Menu/Set button Manual focus lever WB/Right selection button Drive mode/Self-timer/down ND on/off button selection button Rear control wheel control Display button button...
- Page 10 1. After verifying that the housing O-ring is in good condition, lightly coat it with the lubricant provided. 2. Make sure the O-ring groove located in the rear part of the housing is free from any foreign material; the groove can be cleaned with the aid of a microfiber cloth.
- Page 11 Setting up the moisture alarm 1. Install CR2032 battery provided into battery compartment on the circuit board inside the rear part of the housing. 2. Test the alarm by contacting the two wires near the bottom of the housing with a damped cotton bud;...
- Page 12 To open the housing: 1. Press the housing lock safety 2. Turn the housing lock anti- button. clockwise for 270°, until the lock reaches the “Open” position as shown. To lock the housing: 4. Turn the housing lock clockwise 3. Close the housing while the housing lock is in the “Open”...
- Page 13 2. Place the camera inside the 1. Make sure the aspect ratio and housing as shown. focus mode selectors of both the camera and housing have the same selected setting. 3. Confirm that all the controls of the housing are correctly engaged.
- Page 14 A damaged O-ring should be discarded immediately and replaced only with one that is provided by NAUTICAM. 3. Replace the main O-ring annually. 4. It is recommended that you ship the housing to our distributor for a...
- Page 15 P.N. 38017 Diffuser for NA-LX7 housing P.N. 25101 M67 flip diopter holder for M67 macro ports...
