- Page 1 5 Megapixel Network Camera User Manual Please read this manual carefully before use of the products and preserve for reference purposes. Specifications are subject to change without notice* Notes on Safety...
- Page 2 The ownerships of trademarks, logos and other intellectual properties related to Microsoft, Apple and Google belong to the above-mentioned companies. This manual is suitable for Sibell’s IR water-proof network camera. All pictures and examples used in the manual are for reference only.
-
Page 3: Table Of Contents
Table of Contents 1Introduction ......................6 2IE Remote Access ....................7 2.1LAN ............................. 7 2.1.1Access through IP-Tool ................... 7 2.1.2Directly Access through IE ..................8 2.2WAN ..........................10 3Remote Preview ..................... 12 3.1The Remote Preview Interface ..................13 3.2Playback ..........................14 3.3Snap Pictures ........................ - Page 4 4.5.9FTP Setting ......................31 4.6Advanced Configuration ..................... 32 4.6.1User Configuration ....................32 4.6.2Security Configuration ................... 33 4.6.3Configure Backup & Restore ................. 34 4.6.4Reboot ........................34 4.6.5Upgrade ........................ 35 5Video Search ......................36 6Q & A........................38 Appendix ........................40 Appendix 1 — Installation of Water-proof Rubber Plug ........40 Appendix 2 —...
-
Page 5: 1Introduction
Introduction This IP-CAMERA is designed for high performance CCTV security solutions. It adopts state of the art video processing chips. It utilizes some of the most advanced technologies in the market, such as video encoding and decoding technology, complies with the TCP/IP protocol, SoC, and more, in order to create a security system that is both stable and reliable. -
Page 6: 2Ie Remote Access
IE Remote Access You may connect IP-Cam via LAN (Local Area Network) or WAN (Wide Area Network). The details are as follows: LAN (Local Network) In LAN, there are two ways to access IP-Cam: 1. access through IP-Tool; 2. directly access through IE browser. -
Page 7: 2Directly Access Through Ie
For example, the IP address of your computer is 192.168.1.4. So the IP address of the camera shall be changed to 192.168.1.X. After modification, please input the password of the administrator and click “Modify” button to modify the setting. ☞ The default password of the administrator is “123456”. - Page 8 You may use the above default settings when you log in the camera for the first time. You may directly connect the camera to the computer through network cable. ① Manually set the IP address of the PC. The network segment should be as the same as the default settings of the IP camera.
-
Page 9: Wan
level > Scroll to DOWNLOAD UNSIGNED ACTIVEX CONTROLS > set it to PROMPT > Click OK. WAN (Router) Access through the router ① Make sure the camera is well connected via LAN and then login the camera via LAN and go to ConfigNetwork ConfigPort menu to set the port number. **Note: Only change the ports if there will be more than 1 camera installed at the location. - Page 10 the Port forwarding, Virtual Server, Custom service, or Pinhole section in the router. Router Setup ④ Open the IE browser and input its WAN IP and http port to access. You can find the WAN IP address under the router status page. It is also called the “Internet IP address.”...
- Page 11 The setting steps are as follow: ① Go to ConfigNetwork ConfigPort menu to set the port number. ② Go to Config Network ConfigIP Address menu to set the IP address. Check “Use the following IP address” and then input the static IP address and other parameters. ③...
-
Page 12: 3Remote Preview
Remote Preview The Remote Preview Interface Icon Description Icon Description Motion alarm Sensor alarm indicator icon indicator icon Fix size Start/Stop record Actual size Playback Zoom in Snap Zoom out Talk Full screen Enable audio When motion detection alarm is triggered, the people icon will ... -
Page 13: Playback
The descriptions of the control panel are as follows: Button Description to rotate the dome upwards； to rotate the dome downwards; to rotate the dome towards left; to rotate the dome towards right； to rotate the dome diagonally up- left;； to rotate the dome diagonally up-right; to rotate the dome diagonally down- left;... - Page 14 Single Snap Select the image frame number pull down list box, such as 2, and check “Title” and “Time” to show capture title and time on the snap pictures simultaneously. Multi-picture Snap...
-
Page 15: 4Remote Live Surveillance
Remote Live Surveillance Functions of remote configurations include System Configuration, Video Configuration, PTZ Configuration, Alarm Configuration, Network Configuration and Advanced Configuration. You should select the menu on the left and then set up the relative parameters. System Configuration The “System configuration” includes three submenus: Basic Information, Date & Time and SD card. -
Page 16: 3Sd Card
Date & Time 4.1.2 Setting steps: 1. Go to System ConfigDate & Time menu as shown below. 2. Set time zone. 3. Enable DST mode as required. 4. Set time. You may set time manually or enable NTP. SD Card 4.1.3 1. -
Page 17: Video Configuration
Video Configuration Camera Configuration includes six submenus: Camera, Video Stream, OSD Config, Video Mask, ROI Config and Lens Control. Camera 4.2.1 Setting steps: 1.Go to “Video Configuration” “Camera” interface as shown below. 2. You may adjust frequency, brightness, contrast, hue and saturation of the picture. 3. -
Page 18: 3Osd Configuration
Bitrate type: Including CBR and VBR. CBR means that no matter how changeable the video resources are, the compression bitrate keeps constant. This will not only facilitate the image quality better in a constant bitrate but also help to calculate the capacity of the recording. VBR means that the compression bitrate can be adjustable according to the change of the video resources. -
Page 19: 4Video Mask
Video Mask 4.2.4 Go to “Video Config” “Video Mask” menu to display the interface. You can set 4 mask areas at most. To set up video mask 1. Enable video mask. 2. Click “Draw” button and then drag the mouse to draw the video mask area. 3. -
Page 20: Ptz Configuration
5. Click “Save” button to save the settings. Now, you will see the selected ROI area is clearer than other areas, especially in low bitrate condition. PTZ Configuration PTZ Configuration includes two submenus: Protocol and Preset. Protocol 4.3.1 1. Go to “PTZ Configuration” “Protocol” interface as shown below: 2. -
Page 21: 2Preset Configuration
Preset Configuration 4.3.2 1. Go to “PTZ Configuration” “Preset” to see an interface as shown below: Button Meanings to rotate the dome upwards; to rotate the dome downwards; to rotate the dome towards left; to rotate the dome towards right; to stop rotating the dome. -
Page 22: 2Motion Detection Trigger
area. Select “Erase” and move the mouse to clear all motion detection area. 4. Press the “Save” button to save the settings. Motion Detection Trigger 4.4.2 1. Go to “Alarm Configuration” “Motion Detection Trigger” to display an interface as shown below. -
Page 23: 3Motion Detection Schedule
5. Press the “Save” button to save the settings. Motion Detection Schedule 4.4.3 Go to “Alarm configuration” “Motion Detection schedule” interface as shown below. Week schedule You can set the alarm time from Monday to Sunday for alarm everyday in one week. Add: Add the schedule for a special day. -
Page 24: 5Alarm Input Schedule
2. Select the sensor at the “Sensor” pull down list and set the sensor name and alarm type: NO and NC. 3. Enable alarm and select alarm holding time. 4. Set alarm trigger options. The setting steps are the same as that of motion detection trigger. Please refer to motion detection trigger chapter for details. -
Page 25: 6Alarm Out
Alarm Out 4.4.6 1. Go to “Alarm configuration” “Alarm output” as shown below: 2. Select alarm holding time and alarm name at the “Alarm out” and “Alarm holding time” pull down list box respectively. 3. Press the “Save” button to save the settings. Alarm Server 4.4.7 Go to “Alarm configuration”... -
Page 26: 2Ip Address
IP Address 4.5.2 1. Go to “Network Configuration” “IP Address”. There are two options for IP setup: obtain an IP address auto by DHCP protocol and use the following IP address. You may choose one of options as required. Use the following IP address: display the IP address, subnet mask, gateway and DNS of the device. -
Page 27: 4Ip Notify
the auto report in the CMS/NVMS when adding a new device. Next, self-define the device ID and input the remaining information of the device in the CMS/NVMS. 3. Input the above-mentioned server IP, server port and device ID in the responding boxes. 4. -
Page 28: 6Rtsp
Create domain name. After you successfully request your domain name, you will see your domain in the list. 3. Select the server type and then input the username, password and domain name you apply for in the DDNS configuration interface. 4. -
Page 29: 7Upnp
RTSP Port: Access Port of the streaming media. The default number is 554. RTSP Address: The RTSP address you need to input in the media player. You can also choose to enable anonymous viewer login. UPNP 4.5.7 Go to “Network Configuration” “UPNP” interface as shown below. Select “Enable UPNP”... -
Page 30: 9Ftp Setting
Notice: If you change the static IP into PPPoE and select mailbox, there will be an e-mail sent to your mail box for notifying a new IP address. FTP Setting 4.5.9 Go to Network ConfigurationFTP Setting interface as shown below. 1. -
Page 31: Advanced Configuration
Advanced Configuration Advanced configuration includes five submenus: User Configuration, Security Configuration, Configure Backup & Restore, Reboot, and Upgrade. User Configuration 4.6.1 Go to Advanced configurationUser Configuration interface. Add user: 1. Clicking “Add” button pops up “Add user” dialog box. User Configuration Add User Note: After binding physical address to the IP-CAM, you can access the device on this PC in network only. -
Page 32: 2Security Configuration
3. Input original password of this user in the “Password” text box. 4. Input new password in the “New password” and “Confirmation” text box. 5. Input computer’s physical address which is used to access the server in the “User PC MAC”... -
Page 33: 3Configure Backup & Restore
Configure Backup & Restore 4.6.3 Go to Advanced configurationConfigure Backup & Restore Interface. Import & Export Configuration: You can import or export the setting information from PC or to device. 1. Click “Browse” to select save path for import or export information on PC. 2. -
Page 34: 5Upgrade
Upgrade 4.6.5 Go to Advanced Configuration—Upgrade interface as shown below. 1. Click “Browse” button to select the save path of the upgrade file. 2. Click “Upgrade server firmware” button to start upgrading the application program. 3. The device will restart automatically. 4. -
Page 35: 5Video Search
Video Search Click “Picture” icon and search the images saved in the SD card. Set time: Select date in the “Calendar” and choose the start and end time. Choose event “Motion” or “Sensor”. Click “Search” button to search the picture. Double click a filename or select a filename and then click “View”... - Page 36 Item Buttons Explanations Close: Select certain picture and click this button to close this picture. Close all: Click this button to close all pictures viewing. Save: Click this button to select the save path of the picture file on the PC for saving the current picture. Save all: Click this button to select the save path of the picture files on PC for saving all pictures.
- Page 37 Q & A Q: How to find my password if I forget it? A：Reset the device to the default factory settings. Default IP: 192.168.226.201 User name: admin Password: 123456 Q：Fail to connect devices through IE browser, why? A: Network is not well connected. Please check the connection and make sure it is connected well.
-
Page 38: Appendix 1 - Installation Of Water-Proof Rubber Plug
Appen Appendix 1 — Installation of Water-proof Rubber Plug For the purpose of better water-proof, the rubber plugs are attached to some network bullet cameras. You may mount the rubber plugs to the mounting base of the camera as requried when installing. -
Page 39: Appendix
Appendix 2 — Specifications Specification /Model Network Box Camera 1/1.8＂CMOS Image Sensor 2592×1944 Image Size 1/25s~1/100000s Electronic Shutter DC drive Auto Iris Color: 01lux@F1.2, AGC ON: B/W: 0.001lux@F1.2, AGC ON Min. llumination Camera Lens C/CS Lens Mount Day&Night Digital WDR Digital NR 3D DNR Video Compression... - Page 40 50m IR Water-proof Bullet Network 70m IR Water-proof Bullet Network Specification /Model Camera Camera 1/1.8＂CMOS Image Sensor 2592×1944 Image Size 1/25s~1/100000s Electronic Shutter Fixed Iris Auto Iris 0.01lux@F1.2, AGC ON: 0 lux with IR Min. llumination 5mm@F2.2, 3.6~10mm@F1.4, 3.6~10mm@F1.4, 5mm@F2.2, angle angle of view: angle of view: angle of view:...

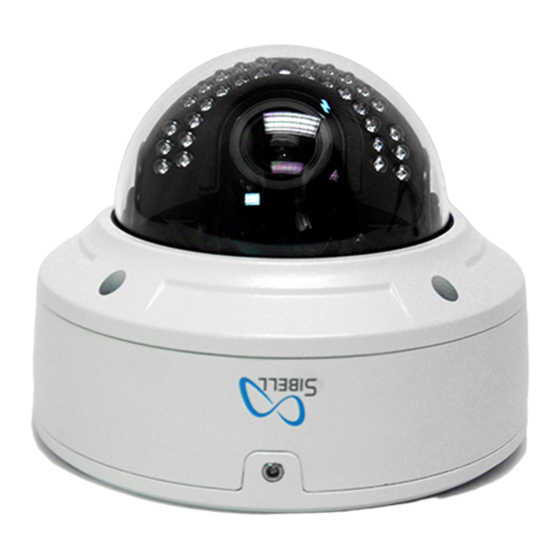

- Page 41 Specification /Model Vandal-proof Dome Netowrk Camera 1/1.8＂CMOS Image Sensor 2592×1944 Image Size 1/25s~1/100000s Electronic Shutter Fixed Iris Auto Iris Color: 0.01lux@F1.2, AGC ON; 0.01lux@F1.2, AGC ON: 0 lux with IR Min. llumination B/W: 0.001lux@F1.2, AGC ON 3.6~10mm@F1.4, 3.6~10mm@F1.4, 5mm@F2.2, angle 5mm@F2.2, angle angle of view: angle of view:...
