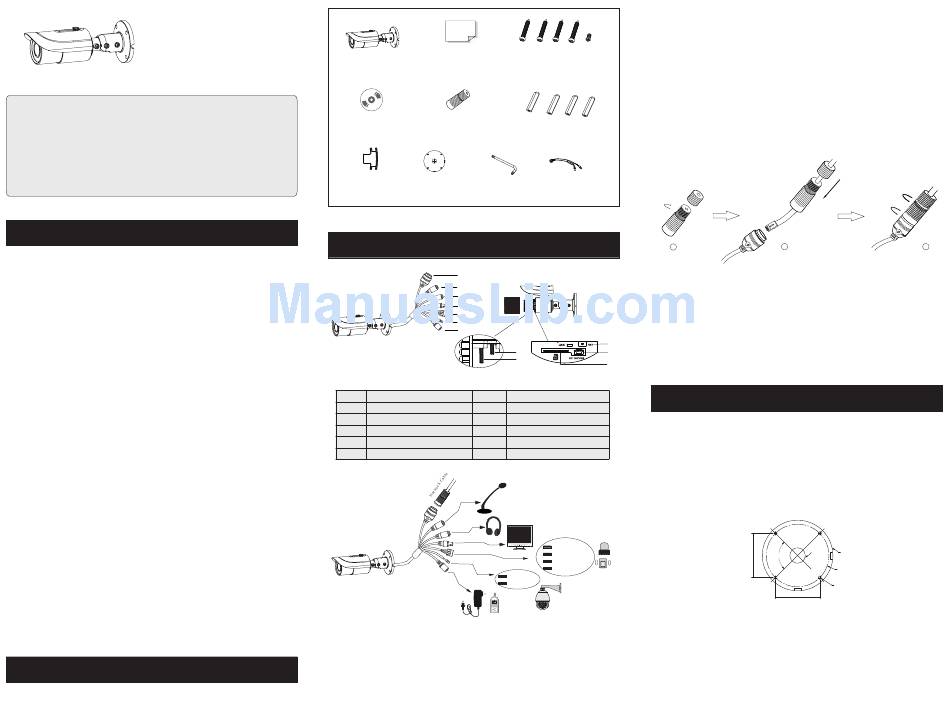

SIBELL IPOB-SB4IRZA Quick Start Manual

Network Camera

Quick Start Guide
Thank you for purchasing Sibell. We are always looking to
improve and will update the products or procedures as technology
changes and the industry adapts. If you need further product
assistance please contact your technical support specialist.
Content is subject to change without notice.*
1
Warning and Caution
■ If the product does not work properly, please contact your dealer or the
nearest service center. Never attempt to disassemble the camera yourself.
(We shall not be responsible for any problems caused by unauthorized
repair or maintenance.)
■ Keep away from liquid while in use due to risks of electric shock.
■ When using this product, you must be strict compliance with electrical
safety regulations to reduce the risk of electric shock. When the product
is mounted on the wall or ceiling, the device should be secured firmly.
■ Do not use camera beyond specified voltage range.
■ Do not drop the camera or damage the camera physically.
■ Avoid touching the camera lens.
■ If cleaning is necessary, please use clean cloth to wipe the lens gently.
If the device will not be in use for a long period of time, please cover the
lens with lens cap to protect the device.
■ Do not aim the camera at the sun or extra bright illumination.
■ Do not place the camera in dusty, damp or extremely hot, or cold
situations/locations (the operating temperature is
(-4˚F~122˚F/-20˚C~50˚C), and do not expose it to high
electromagnetism or radiation.
■ To avoid heat accumulation, good ventilation is required for operating
environment.
■ Regular Maintenance is recommended for all users.
2
Package
Camera
1 machine screw PWM3×5
Quick start guide
CD -
Water proof cap
Rubber plug Drill template Screwdriver
3
Overview
1
2
3
4
5
6
7
1 7
Network Cable
2 Microphone Cable 8
3 Headphone Cable
9
4 Alarm Input/Output 10
5 RS485 Cable 11
6 Power Cable 12
* 1 It is recommended to install the water-proof cap for network cable connection.
* 2 If the PoE network switch is used to connect the camera, DC12V power supply
is not required.
●
Alarm Connection
Alarm Input: Join the grounding ends of the sensor and the camera
and then connect the signal cable of the sensor to the alarm input
4 tapping screws PA4×25
port of the camera.
Alarm Output: Loosen the screws in the alarm output port. Then
insert the signal wires of the alarm output devices into the port of
NO and COM separately. Finally tighten the screws. Some of the
external alarm output devices need the power supply.
×4
Plastic plug
●
Connecting Network Cable
CVBS&DC
IN cables
1
① Loosen the nut from the main element.
② Run the network cable (without RJ 45 connector) through the
both elements. Then crimp the cable with RJ 45 connector.
③ Connect the cable to the hermetic connector. Then tighten the
nut and the main cover.
10
8
11
9
12
4
Installation
Zoom
Focus
Network Indicator
Reset Hole Please make sure that the wall or ceiling is strong enough to withstand 3
CVBS/DC IN port for testing times the weight of the camera. Please install and use the camera in a dry
TF Card Slot
environment.
Advised: If lens cover is removed, re apply cover within 4 hours
① Drill the screw holes and the cable hole on the wall according to
the drill template.
ALM-COM
ALM-NO
ALM-IN
ALM-GND
RS485T+
RS485T-
② Route the cables and connect the relevant cables.
③ Mount the rubber plug to the gap of the mounting base. Then
secure the mounting base with camera to the wall with screws.
2
To Use Water-proof Cap:
you must have experience in cable termination
∅22.6
∅103
64.6mm
90°
∅91.4
∅5
64.6mm
3
