SIBELL IPOD-SB3IREV Quick Start Manuals

Network Camera

Quick Start Guide

Thank you for purchasing Sibell. We are always looking to
improve and will update the products or procedures as technology
changes and the industry adapts. If you need further product
assistance please contact your technical support specialist.
Content is subject to change without notice.*.
1

Warning and Caution

■ If the product does not work properly, please contact your dealer
or the nearest service center. Never attempt to disassemble the
camera yourself. (We will not be responsible for any problems
caused by unauthorized repair or maintenance.)
■ Keep away from liquid while in use, due to risks of electric shock
■ When using this product, you must be in compliance with the
electrical safety regulations of the region. When the product is mounted
on wall or ceiling, the device should be secured firmly.
■ Do not use camera beyond specified voltage range.
■ Do not drop the camera or subject it to physical shock.
■ Avoid touching the camera lens.
■ If cleaning is necessary, please use clean cloth to wipe it gently.
If the device will not be used for a long time, please cover the lens
cap to protect the device from dirt.
■ Do not aim the camera at the sun or extra bright places.
■ Do not place the camera in extreme hot or cold temps (the operating
temperature shall be -20˚C~50˚C), dusty or damp locations, and do
not expose it to high electromagnetism radiation.
■ To avoid heat accumulation, good ventilation is required for
operating environment.
■ Regular Maintenance is recommended for all devices
2

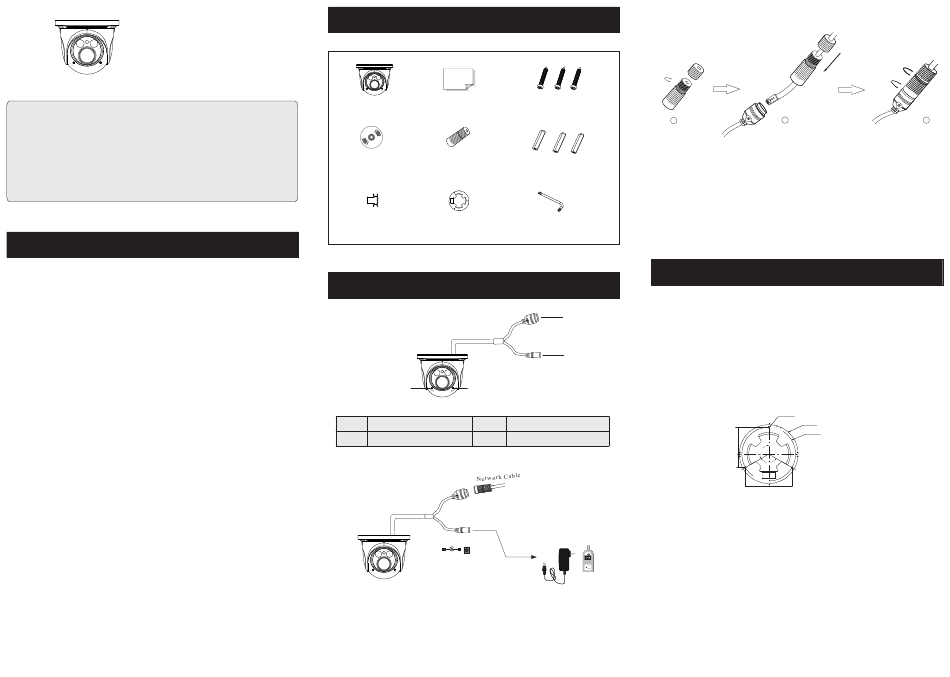

Package

3 tapping screws PA 4×25
Camera Quick start guide
CD Security cap
Rubber plug Drill template
3

Overview

2
1
1 Focus 3
2 Zoom
4
DC12V
* 1 It is recommended to install the Security cap for network cable connection.
* 2 If the PoE network switch is used to connect the camera, DC12V power supply
is not required.

► Connecting Network Cable

1
① Loosen the nut from the main element.
×3
Plastic plug
② Run the network cable (without RJ 45 connector) through the
both elements. Then crimp the cable with RJ 45 connector.
③ Connect the cable to the hermetic connector. Then tighten the
Screwdriver
nut and the main cover.
To Use Security Cap: you must have experience in cable termination
4

Installation

Please make sure that the wall or ceiling is strong enough to
3
withstand 3 times the weight of the camera. Please install and use the
camera in a dry environment. Advised: If lens cover is removed, re-
4
apply the cover within 4 hours.
① Drill the screw holes and the cable hole on the wall according to
the drill template.
Network Cable
Power Cable
② Route the cables and connect the power cable and network cable.
And then secure the camera to the ceiling or wall with the screws.
2
∅4.5
∅130.7
∅119.5
59.7mm
120°
29.9mm
120°
103.5 mm
3
