Summary of Contents for SIBELL IPVD-SB4IRZA

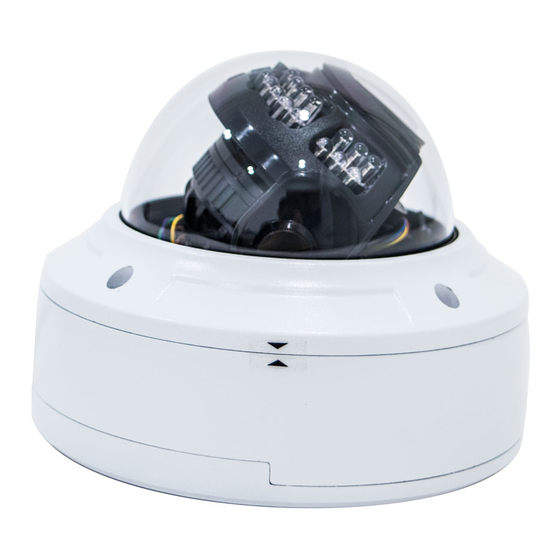

- Page 1 4 Megapixel Network Camera User Manual For Varifocal Lens Bullet & Dome Camera Please read this manual carefully before use of the products and preserve for reference purposes. Specifications are subject to change without notice*...
- Page 2 Notes on Safety ■ Please use the specified power supply to connect. ■ Do not attempt to disassemble the camera; in order to prevent electric shock, do not remove screws or covers. ■ There are no user-serviceable parts inside. Please contact the nearest service center as soon as possible if there is any failure.
-
Page 3: Table Of Contents
Table of Contents Introduction IE Remote Access 2.1.1 Access through IP-Tool 2.1.2 Directly Access through IE Remote Preview The Remote Preview Interface Playback Snap Pictures Remote Live Surveillance System Configuration 4.1.1 Basic Information 4.1.2 Date & Time 4.1.3 SD Card Video Configuration 4.2.1 Camera... - Page 4 Appendix 3 Specifications...
-
Page 5: Introduction
1 Introduction This IP-Cam (short for IP-Camera) is designed for high performance CCTV solutions. It adopts state of the art video processing chips. It utilizes most advanced technologies, such as video encoding and decoding technology, complies with the TCP/IP protocol, SoC, etc to ensure this system more stable and reliable. -
Page 6: Ie Remote Access
2 IE Remote Access You may connect IP-Cam via LAN (Local Area Network) or WAN (Wide Area Network). The details are as follows: LAN (Local network) In LAN, there are two ways to access IP-Cam: 1. access through IP-Tool; 2. directly access through IE browser. -
Page 7: Directly Access Through Ie
the information of the camera listed in the above table to show the network information on the right hand. Modify the IP address and gateway of the camera and make sure its network address is in the same local network segment as the computer’s. Please modify the IP address of your device according to your local network configuration. - Page 8 ① Manually set the IP address of the PC. The network segment should be as the same as the default settings of the IP camera. Open Network and Sharing Center in Windows Control Panel. Click “Change adapter settings,” Right-click “Local Area Connection” and choose Properties, Left-click on “Internet Protocol TCP/IP v4,”...
-
Page 9: Wan
③ After downloading Active X control, the login dialog box will pop up. ④ Input the default username and password and then enter to view camera, and access camera settings. WAN (Router) ➢ Access through a router ① Make sure the camera is well connected via LAN and then login the camera via LAN and go to ConfigNetwork ConfigPort menu to set the port number. - Page 10 IP Setup ③ Go to the router’s management interface through IE browser to forward the IP address and port of the camera. Login to the router by typing in the default gateway address into the web address bar of the browser (ex. http://192.168.1.1). Navigate to the Port forwarding, Virtual Server, Custom service, or Pinhole section in the router.
- Page 11 ② Go to Config Network ConfigIP Address menu. Check “PPPoE” and then input the username and password which you can get from your internet service provider. ③ Go to Config Network ConfigDDNS Config menu. Before you configure the DDNS, please apply for a domain name first. Please refer to 4.4.5 DDNS Configuration for detail information.
-
Page 12: Remote Preview
3 Remote Preview The Remote Preview Interface Icon Descriptio Icon Descriptio Motion alarm Sensor alarm indicator icon indicator icon Fix size Start/Stop record Actual size Playback Zoom in Snap Zoom out Talk Fullscreen Enable audio When motion detection alarm is triggered, the people icon will turn red. Right click to pop up a pull-down list as shown below:... -
Page 13: Playback
Stream: Three streams are optional. Turn off the live: Click this item to close present live preview. Enable audio: Open the volume. Full screen: The live preview picture will be full-screen display. Double click or click right mouse to return to the previous interface. -
Page 14: Snap Pictures
Play Next frame Zoom out Pause The previous file Full screen Stop The next file Path Forward Zoom in Volume Snap Pictures Select the image frame number, and then click “Snap” icon as shown below: Single Snap Snap multiple pictures: Select the image frame number pull down list box, such as 2, and check “Title”... -
Page 15: Remote Live Surveillance
4 Remote Live Surveillance Functions of remote configurations include System Configuration, Video Configuration, PTZ Configuration, Alarm Configuration, Network Configuration and Advanced Configuration. You should select the menu on the left and then set up the relative parameters. System Configuration The “System configuration” includes three submenus: Basic Information, Date & Time and SD card. -
Page 16: Sd Card
2. Set time zone. 3. Enable DST mode as required. 4. Set time. You may set time manually or enable NTP. 4.1.3 SD Card 1. Go to “System Configuration” “SD Card” as shown below: (Some models do not support a SD card) The first time you use the SD card, you should click “Format SD card”. -
Page 17: Video Stream
2. You may adjust frequency, brightness, contrast, hue and saturation of the picture. 3. Select white balance mode. 4. Wide dynamic, sharpen, and denoise are adjustable. 5. Set day-night mode, sensitivity, and infrared mode. 6. You may enable the image mirror and image overturn function. 7. -
Page 18: Osd Configuration
Profile: Baseline, main/high profile are optional. Baseline profile is mainly used in interactive application with low complexity and delay. Main/high profile is mainly used for higher coding requirement. Alarm picture size: Please select it according to the actual situation. Video encode slice split: If enabled, you may get a more fluent image even though using the low-performance PC. -
Page 19: Roi Configuration
To set up video mask 1. Enable video mask. 2. Click “Draw” button and then drag the mouse to draw the video mask area. 3. Click “Save” button to save the settings. 4. Return to the live to see the following picture. Clear the video mask: Go to video mask menu and then click “Clear”... -
Page 20: Ptz Configuration
Now, you will see the selected ROI area is clearer than other areas, especially in low bitrate condition. PTZ Configuration PTZ Configuration includes two submenus: Protocol and Preset. 4.3.1 Protocol 1. Go to “PTZ Configuration” “Protocol” interface as shown below: 2. -
Page 21: Preset Configuration
4.3.2 Preset Configuration 1. Go to “PTZ Configuration” “Preset” to see an interface as shown below: Button Meaning to rotate the dome upwards; to rotate the dome downwards; rotate the dome towards left; to rotate the dome towards right; stop rotating the dome. Focus button. -
Page 22: Motion Detection Trigger
4. Press the “Save” button to save the settings. 4.4.2 Motion Detection Trigger 1. Go to “Alarm Configuration” “Motion Detection Trigger” to display an interface as shown → below. 2. Check “Enable alarm” check box. Then motion based alarm is activated. 3. -
Page 23: Motion Detection Schedule
4.4.3 Motion Detection Schedule Go to “Alarm configuration” “Motion Detection schedule” interface as shown below. Week schedule You can set the alarm time from Monday to Sunday for alarm everyday in one week. Add: Add the schedule for a special day. Erase: Delete holiday schedule. -
Page 24: Alarm Input Schedule
2. Select the sensor at the “Sensor” pull down list and set the sensor name and alarm type: NO and NC. 3. Enable alarm and select alarm holding time. 4. Set alarm trigger options. The setting steps are the same as that of motion detection trigger. Please refer to motion detection trigger chapter for details. -
Page 25: Alarm Out
4.4.6 Alarm Out 1. Go to “Alarm configuration” “Alarm output” as shown below: 2. Select alarm holding time and alarm name at the “Alarm out” and “Alarm holding time” pull down list box respectively. 3. Press the “Save” button to save the settings. 4.4.7 Alarm Server Go to “Alarm configuration”... -
Page 26: Server Configuration
There are two options for IP setup: obtain an IP address auto by DHCP protocol and use the following IP address. You may choose one of options as required. Use the following IP address: display the IP address, subnet mask, gateway and DNS of the device. -
Page 27: Ip Notify
4. Click “Save” button to save the settings. 4.5.4 IP Notify 1. Go to “Network Configuration” “IP Notify” to see a tab as shown below. 2. If the “Enable notifying change of IP” is selected, when the IP address of the device is changed, a new IP address will be sent to the appointed mailbox automatically;... -
Page 28: Rtsp
Create domain name. After you successfully request your domain name, you will see your domain in the list. 3. Select the server type and then input the username, password and domain name you apply for in the DDNS configuration interface. 4. -
Page 29: Mail Configuration
name and IP address of the camera. You may quickly access the device by double clicking this icon. 4.5.8 Mail configuration Go to “Network Configuration” “Mail configuration” interface. 1. From Email: sender’s e-mail address. 2. User name and password: sender’s user name and password. 3. -
Page 30: Advanced Configuration
4. Test: Select certain FTP account. Click this button to test its validity. Please refer to the following table for parameters and instructions of FTP configuration. Parameter Meaning Server name The name of the FTP server Server address The address of the FTP server Port The port number of the FTP server User name... -
Page 31: Security Configuration
Modify User 3. Input original password of this user in the “Password” text box. 4. Input new password in the “New password” and “Confirmation” text box. 5. Input computer’s physical address which is used to access the server in the “User PC MAC” text box. -
Page 32: Configure Backup & Restore
4.6.3 Configure Backup & Restore Go to Advanced configurationConfigure Backup & Restore Interface. ● Import & Export Configuration: You can import or export the setting information from PC or to device. 1. Click “Browse” to select save path for import or export information on PC. 2. -
Page 33: Upgrade
4.6.5 Upgrade Go to Advanced Configuration—Upgrade interface as shown below. 1. Click “Browse” button to select the save path of the upgrade file. 2. Click “Upgrade server firmware” button to start upgrading the application program. 3. The device will restart automatically. 4. -
Page 34: Video Search
5 Video Search Click “Picture” icon and search the images saved in the SD card. Set time: Select date in the “Calendar” and choose the start and end time. Choose event “Motion” or “Sensor”. Click “Search” button to search the picture. Double click a filename or select a filename and then click “View”... - Page 35 Item Buttons Explanations Close: click this button to close the picture chosen. Close all: Click this button to close all pictures viewing. Save: Click this button to select the save path of the picture file on the PC for saving the current picture. Save all: Click this button to select the save path of the picture files on PC for saving all pictures.
-
Page 36: Appendix
Appendix Appendix 1 Q & A Q: How to find my password if I forget it? A：Reset the device to the default factory settings. Default IP: 192.168.226.201; Username: admin; Password: 123456 Q：Fail to connect devices through IE browser, why? A: Network is not well connected. Check the connection and make sure it is connected well. B: IP is not available. - Page 37 Please mount the rubber plug to the gap of the mounting base. Please let the camber surface of the rubber plug mount outside. Appendix 3 Specifications Specification /Model 50m IR Water-proof Bullet Network Camera Image Sensor 1/3＂CMOS Image Size 2688×1520 Electronic Shutter 1/25s~1/100000s Auto Iris...
- Page 38 Support Network RJ45 Video CVBS output (BNC ×1) Interfaces Audio MIC IN×1; MIC OUT×1 Storage Support TF card, up to 64GB RS485 Support Alarm 1CH alarm input; 1 CH alarm output Remote Monitoring IE browser, CMS remote control Online Connection Support simultaneous monitoring for up to10 users and multi-stream transmission Network Protocol TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP...
- Page 39 Interface Protocol ONVIF, GB-T/28181-2011 Storge TF card storage; network remote storage Smart Alarm Motion alarm; sensor alarm IR Distance 20~30 m Protection Grade IP66&IK10 Power DC12V/PoE Power Consumption < 2.5W(ICR OFF); < 5W(ICR ON) Operating Others Temperature: -20°C~50°C; Humidity: 10%~90% Environment Dimension (mm) Ø150mm×114mm...
