SIBELL IPVD-SB4IR Quick Start Manual

Network Camera

Quick Start Guide

Thank you for purchasing Sibell. We are always looking to
improve and will update the products or procedures as technology
changes and the industry adapts. If you need further product
assistance please contact your technical support specialist.
Content is subject to change without notice.*
1
Warning and Caution
■ If the product does not work properly, please contact your dealer or the
nearest service center. Never attempt to disassemble the camera yourself.
(We shall not be responsible for any problems caused by unauthorized
repair or maintenance.)
■ Keep away from liquid while in use due to risks of electric shock
■ When using this product, you must be strict compliance with electrica
safety regulations to reduce the risk of electric shock. When the product
is mounted on the wall or ceiling, the device should be secured firmly.
■ Do not use camera beyond specified voltage rang
■ Do not drop the camera or damage the camera physicall
■ Avoid touching the camera len
■ If cleaning is necessary, please use clean cloth to wipe the lens gently
If the device will not be in use for a long period of time, please cover the
lens with lens cap to protect the device.
■ Do not aim the camera at the sun or extra bright illuminatio
■ Do not place the camera in dusty, damp or extremely hot, or col
situations/locations (the operating temperature is
(-4˚F~122˚F/-20˚C~50˚C), and do not expose it to high
electromagnetism or radiation.
■ To avoid heat accumulation, good ventilation is required for operatin
environment.
■ Regular Maintenance is recommended for all users
2

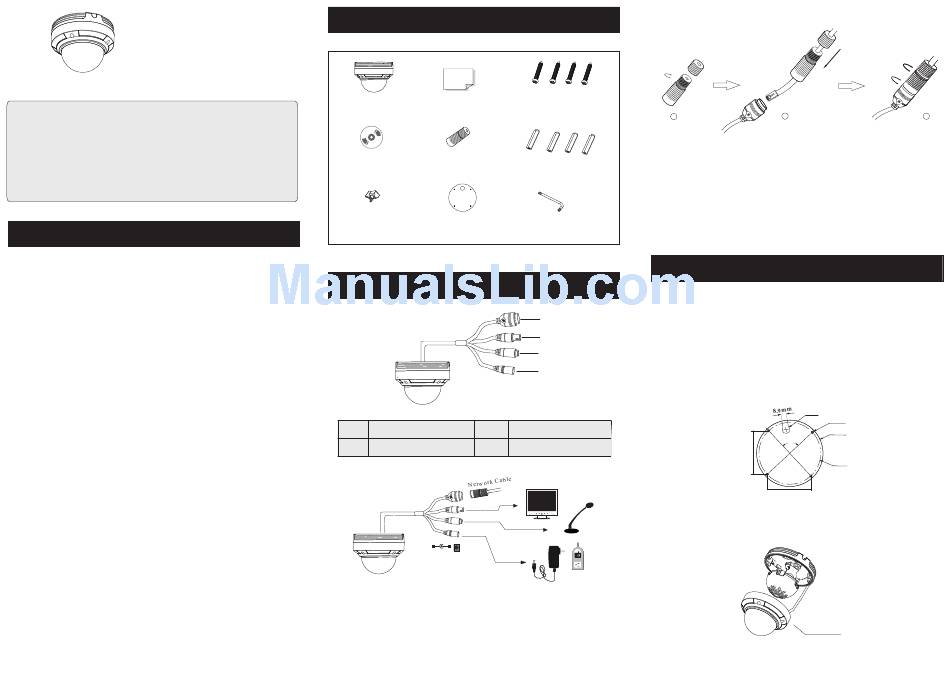

Package
Camera Quick start guide 4 tapping screws PA 4×35
-
CD Water proof cap
Rubber plug Drill template
3
Overview
1 3
Network Cable
2 CVBS Cable 4
DC12V
* 1 It is recommended to install the water-proof cap for network cable connection.
* 2 If the PoE network switch is used to connect the camera that supports PoE
power supply, DC12V power supply is not required.
► Connecting Network Cable
1
① Loosen the nut from the main element.
② Run the network cable (without RJ 45 connector) through the
×4
Plastic plug
both elements. Then crimp the cable with RJ 45 connector.
③ Connect the cable to the hermetic connector. Then tighten the
nut and the main cover.
Screwdriver
you must have experience in cable termination
4
Installation
Please make sure that the wall or ceiling is strong enough to
1
withstand 3 times the weight of the camera. Please install and use the
camera in the dry environment.
2
Advised: If lens cover is removed, re apply cover within 4 hours
3
① Drill the screw holes and the cable hole on the wall according to the
4
drill template.
MIC IN Cable
Power Cable
② Loosen the screws to remove the lower dome from the camera.
2
To Use Water-proof Cap:
R6.3
∅4.3
∅107.5
90°
70.7mm
∅100.0
70.7mm
Lower Dome
3
