B. General Operating Parts
Figure 3.2 references the general operating parts of the
appliance and the section of this manual in which they are
discussed.

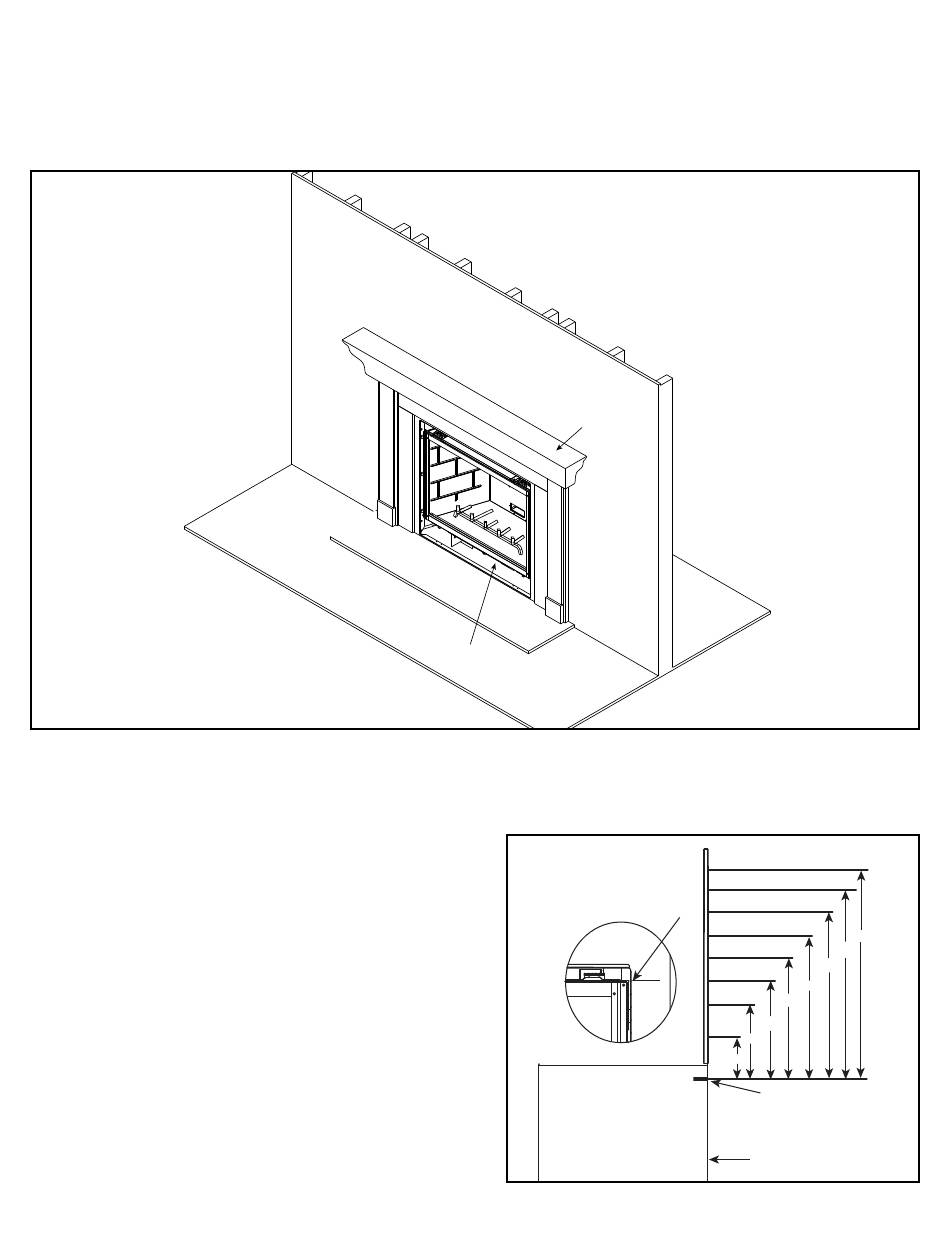

Figure 3.2 General Operating Parts
C. Fuel Specifications
WARNING! Risk of Fire or Explosion! Appliance must
be set up for compatible gas type!
• This appliance is designed to operate on either natural
gas or propane. Make sure the appliance is compatible
with gas type selected for installation site.
• Conversions must be made by a qualified service
technician using Hearth & Home Technologies specified
and approved parts.
8
DECORATIVE DOORS
(NOT SHOWN)
SECTION 4.B.
FAN KIT
SECTION 3.J
CLEAR SPACE
SECTION 3.A
Heatilator • ECLIPSE-32, ECLIPSE-36 Owner's Manual • 2297-985 Rev. L • 1/19
FIXED GLASS ASSEMBLY
(NOT SHOWN)
SECTION 4.B.
MANTEL
(See Appliance
Installation Manual)
HEARTH
CONTROL CAVITY
SECTION 3.H
D. Wall Surface/TV Guidelines
Figure 3.3. Maximum Wall Surface Temperatures Above Appliance
TO CEILING
FIREPLACE
120°F
OPENING
122°F
125°F
36 in.
128°F
30 in.
132°F
24 in.
18 in.
142°F
12 in.
6 in.
MEASUREMENTS FROM
TOP EDGE OF THE OPENING
APPLIANCE FRONT
116°F
117°F
48 in.
42 in.
