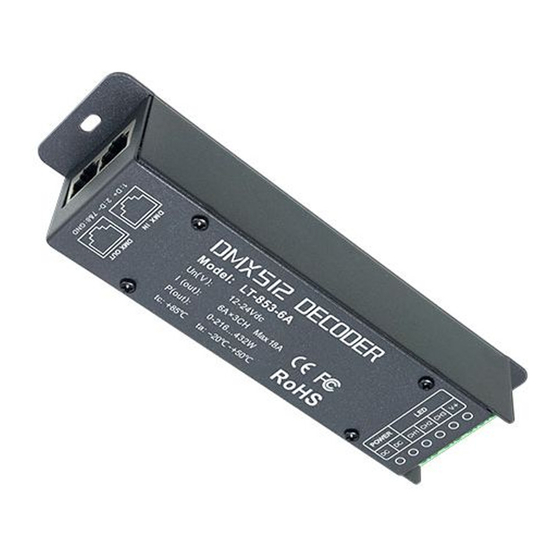

Ltech LT-853-6A Quick Start Manual

LT-853-6A
DMX-PWM CV DECODER
LT-853-6A DMX-PWM decoder works to convert universal DMX512 digital signal to PWM
signal, which controlled by DMX512 console. Rrealize 0-100% brightness and various
changing effect. And can control single color, two color, RGB LED lights.
1. Product Parameter:
LT-853-6A
Input Signal: DMX512
Input Voltage: 12~24Vdc
Max Current Load: 6A×3CH Max. 18A
Max Output Power: 216W/432W(12V/24V)
DMX512 Socket: RJ45
2. Product Size:
LT-853-6A DMX-PWM Decoder
warranty
5 years
Working Temperature: -30℃～65℃
Dimensions: L175×W42×H33mm
Package Size: L183×W48×H41mm
Weight(G.W.): 310g
1

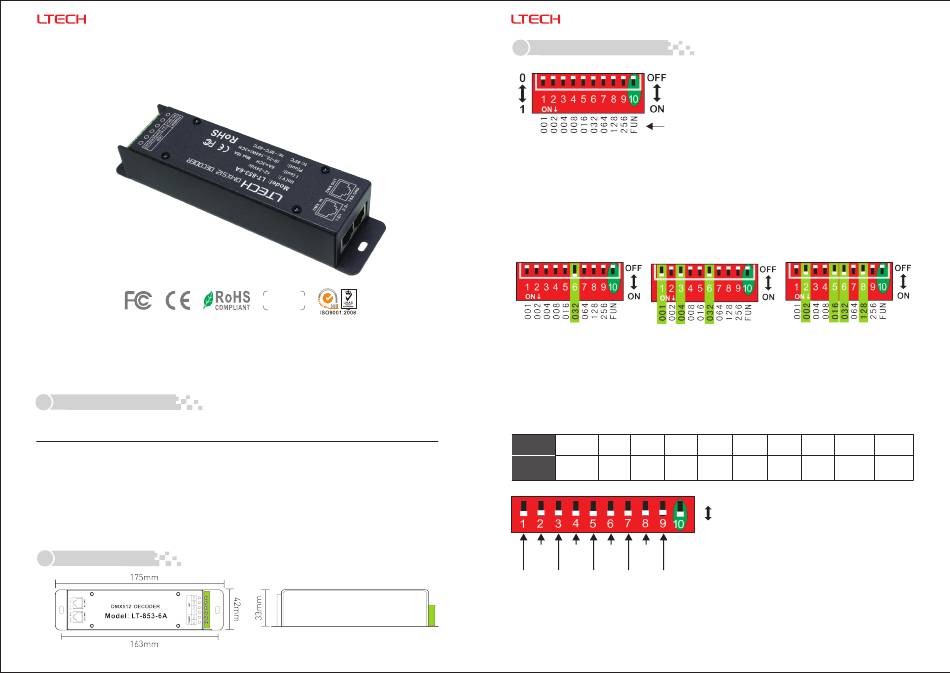

3. Dip Switch Operation:
FUN=OFF (the 10th
FUN=ON (the 10th
Value
3.1 How to set DMX address via dip switch:
FUN=OFF (the 10th dip switch=OFF )
DMX address value=the total value of (1-9), to get the place value when in "on" position,
otherwise will be 0.
E.g.1: Set Initial Address To 32. E.g.2: Set Initial Address To 37.
001+004+032=37
*
When Dip switch 1-9 are OFF, the defaulted
3.2 Self-testing Mode:
FUN=ON (the 10th dip switch=ON )
1=ON 2=ON 3=ON
Dip Switch 1-9=OFF
Self-test
Static Static Static Static
Function Black Red Green Blue
Static Static Static 7 Colors
Green Yellow Cyan Jumping
Static Static Static 7 Colors
Static
Red Blue Purple Smooth
White
[Attn] When several dip switches are ON, subjected to the highest switch value.
As the figure above shows, the effect will be 7 colors smooth at 7 speed level.
LT-853-6A DMX-PWM Decoder
dip switch=OFF ) DMX Mode
dip switch=ON ) Self-testing Mode
DMX Mode
E.g.3: Set Initial Address To 178.
002+016+032+128=178
initial DMX address is 1 .
Self-testing Mode
4=ON 5=ON 6=ON 7=ON 8=ON
Static Static
Static Static 7 Colors 7 Colors
Purple Cyan
Yellow White Jumping Smooth
OFF
ON
For changing effects (Dip Switch 8 9=ON): /
DIP switch 1-7 is used to realize 7 speed
levels. (7=ON, the fastest level)
2
www.ltechonline.com
9=ON
