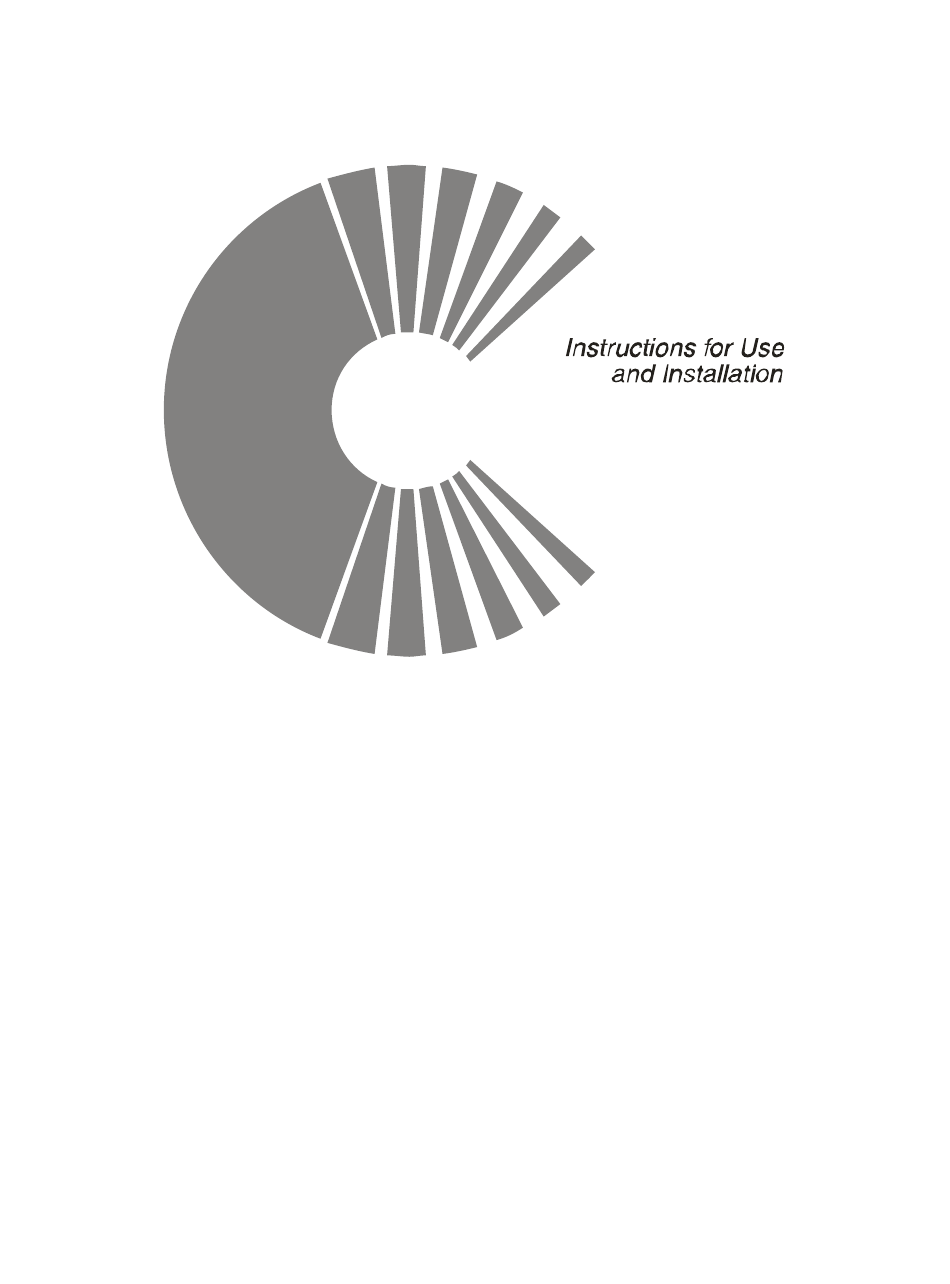

- Page 1 Multifunction Double Ovens TGDO84TBS...
-
Page 2: Close-Up View
We recommend that you read the instructions in this owner’s manual carefully before use for the best performance and to extend the life of your appliance, as it will provide you with all the instructions you require to ensure its safe installation, use and maintenance. Always keep this owner’s manual close to hand since you may need to refer to it in the future. -
Page 5: How To Use Your Oven
A. Control Panel B. Cooking mode selection knob C. Cooking temperature selection knob D. Electronic programmer-Allows you to programmer the desired cooking by selecting the cooking time and the end cooking time. It can also be used as a timer (only available on certain models) E. - Page 6 the oven only when grilling food or when using the rotisserie (only available on certain models). For all other types of cooking, never use the bottom shelf and never place anything on the bottom of the oven when it is in operation because this could damage the enamel. Place your cookware (dishes, aluminum foil, etc.
- Page 7 Fan Assisted Grill 2100-2550W Position of thermostat knob “C”:Between 60℃and 200℃. The top central heating elements and the fan come on. This combination of features increases the effectiveness of the unidirectional thermal radiation of the heating elements through forced circulation of the air throughout the oven.
- Page 8 The screen shows 3 glittery number and “AUTO”if the power is on. In order to set the correct time, press the button first, then + or - button to carry forward or backward the figure until the exact time shows. Manual operation setting Press the button to remove the flashing of “AUTO”.
- Page 9 time (hour, minute) will disappear. After the power is on again, three“0”and “AUTO”shows on the screen, the oven will automatically reset. 3-keys timer procedure baking mode (only available on certain models) Adjust the clock after switch on: Once it connected with electrical power, the display will show “12:00” with the square symbol above “ ”;...
-
Page 10: How To Keep Your Oven In Shape
(hour, minute) and the square symbol above the “ ” begins to flash. In addition, the time countdown begins to work. When it reaches the set time, the square symbol above the “ ” flashes, and the alarm will ring, the square symbol will flash, To stop the ringing press any button. - Page 11 · Hold the door as shown in fig.3 · Gently close the door(fig.3)until left and right hinge levers A are hooked to part B of the door(fig.4). · withdraw the hinge hooks from their location following arrow C(fig.4); · Rest the door on a soft surface; ·...
- Page 12 · Replace the glass cover and reconnect the oven to the mains power supply . Warranty & Service FAQs and Troubleshooting What should I do if the oven doesn’t heat up? Check to see if one of the following actions resolves the issue: ●...
-
Page 13: Practical Cooking Advice
Practical Cooking Advice The oven offers a wide range of alternatives which allow you to cook any type of food in the best possible way. With time you will learn to make the best use of this versatile cooking appliance and the following directions are only a guideline which may be varied according to your own personal experience. - Page 14 When using this mode ,we advise you to set the thermostat to 200℃,as it is the most efficient way to use the grill ,which is based on the use of infrared rays .However, this does not mean you cannot use lower temperatures, simply by adjusting the thermostat knob to the desired temperature.
- Page 15 low rack heights .For savory roasts (especially duck and wild game), dress the meat with lard or bacon on the top. Selector knob setting Food to be cooked Weight Cooking rack Preheating Thermostat Cooking (in kg ) position from time knob setting time bottom...
- Page 16 Tarts 20-30 40-45 Fruit cakes 40-50 Fruitcake 25-30 30-35 Sponge cake Stuffed pancakes) on 2 racks) 20-25 15-20 Small cakes (0n 2 rakes) 1-3-5 20-25 1-3-5 20-25 Cheese puffs (on2 cakes) 1-3-5 Cream puffs (on 3 cakes) Biscuits (0n 3 racks) Meringues (0n 3 racks) 7 Fast cooking Frozen food...
- Page 17 with current safety standards . · When the appliance is in use ,the heating elements and some parts of the oven door become extremely hot .Make sure you don’t touch them and keep children well away. · Heat will be generated during its working. Caution must be observed to avoid touch of the heating element. The following items are potentially dangerous, and therefore appropriate measures must be taken to prevent children and the disabled from coming into contact with them: Controls and the appliance in general;...
- Page 18 Always grip the oven door handle in the center as the extremities of the same may be hot due to any hot air leaks; Make sure the knobs are in the “ ”position when the appliance is not in use ; ”/“...
- Page 19 N. B :Installation in compliance with the consumption declaration In order to ensure adequate ventilation ,the back panel of the cabinet unit must be removed . If the double oven rests on a continuous ,flat surface ,there must be an aperture of at least 15×560mm . The panels of the adjacent cabinets must be made of heat-resistant material .In particular ,cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 100℃.
- Page 20 should be sized according to the load and should comply with current regulations (the earth wire should not be interrupted by the circuit breaker). The supply cable should be positioned so that it does not reach a temperature of more than 50 ℃with respect to the room temperature ,anywhere along its length , or protected by insulation sleeping having an appropriate rating.
- Page 21 Width 43.5cm 43.5cm 43.5cm Depth 40cm 42cm 43cm Height 32cm 24.6cm 18.5cm Voltage and Frequency of Power Supply: 220-240V ~50/60Hz or 50Hz Meaning of crossed –out wheeled dustbin: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact you local government for information regarding the collection systems available.
- Page 22 All Technika appliances are for Domestic use only, and must be installed by a licence installer into Domestic Applications only, without exception and to the required Authorities guidelines. Any installation outside of this will VOID warranty. ...
