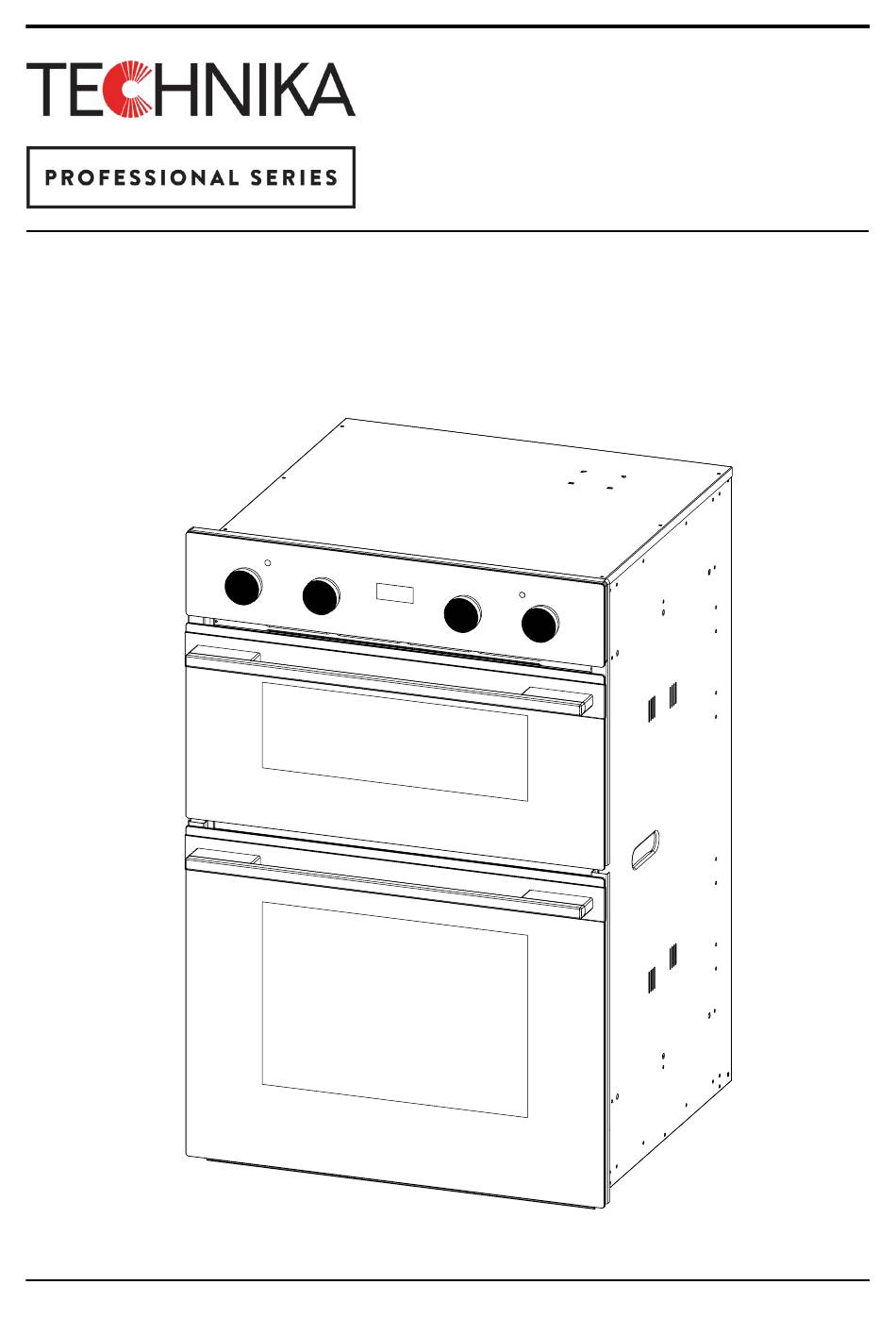

  • Page 1 USER GUIDE M U L T I F U N C T I O N D O U B L E O V E N T G D O 8 4 T B K TECHNIKA.COM.AU...
  • Page 3: Table Of Contents

    CONTENTS TABLE For Your Safety Use and Care Controls Oven & accessories How to use your oven Positioning the oven trays & shelves Cooking modes The oven light Cooling ventilation Practical cooking advice Cooking guide Cleaning and maintenance How to remove the oven door Replacing the oven lamp Disposal Installation...
  • Page 4: For Your Safety

    FOR YOUR SAFETY We recommend that you read the instructions in this owner's manual carefully before use for the best performance and to extend the life of your appliance. It will provide you with all the information you need to ensure its safe installation, use and maintenance. Retain this owner's manual for future reference.
  • Page 5 FOR YOUR SAFETY Packaging items such as plastic bags, polystyrene, nails, etc. are potentially dangerous, and therefore appropriate measures must be taken to prevent children and the disabled from coming into contact with them. Avoid the following: • Touching the appliance with wet parts of the body. •...
  • Page 6 FOR YOUR SAFETY WARNINGS: • DO NOT steam clean the oven. • DO NOT use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. •...
  • Page 7: Use And Care

    USE AND CARE Controls TOP OVEN LOWER OVEN B - Top oven cooking temperature selection knob A - Top oven cooking mode selection knob C - Top oven indication light D - Electronic programmer E - Touch Controls F - Bottom oven cooking mode selection knob G - Bottom oven cooking temperature selection knob H - Bottom oven indication light Timer/Clock...
  • Page 8 USE AND CARE Lower Oven Cooking Mode Selection Knob Top Oven Cooking Mode Selection Knob Cooking Temperature Selection Knob PG 8...
  • Page 9: Oven & Accessories

    USE AND CARE Oven and accesories Ovens are supplied with a bottom hinged door, chrome wire shelf supports, five shelf positions and a range of shelf options as shown below. A - Control Panel B - Guides for shelves & drip tray. C - Oven rack D - Drip tray PG 9...
  • Page 10: How To Use Your Oven

    USE AND CARE How to use your oven This multi-function double oven combines the advantages of traditional conventional ovens with modern fan assisted ovens in a single appliance. It is an extremely versatile appliance that allows you to choose easily and safely between different cooking modes. The various cooking modes are selected by means of a cooking mode selection knob, located on the control panel.
  • Page 11: Positioning The Oven Trays & Shelves

    USE AND CARE Positioning the oven trays & shelves The Grill Tray or Oven Shelf can be located in any of the five height positions in the upper or lower oven. Refer to the ‘Cooking Guide Table’ for the recommended shelf position. When fitting the trays or shelves, ensure they are fitted between the two wires that are closest together as shown below.
  • Page 12: Cooking Modes

    USE AND CARE Cooking modes Conventional mode Position the cooking temperature selection knob between 60°C and ‘Max’ for this setting. When set to Conventional mode, the top and bottom heating elements operate together like a ‘normal’ conventional oven that you have probably used before.
  • Page 13 USE AND CARE Delicate cooking mode Select ‘Delicate’ mode with the cooking mode selection knob and turn cooking temperature selection knob between 60°C and 250°C. When set to Delicate cooking mode, the bottom element and the fan will operate. This mode is suitable for pastries, cakes and nondry sweets in baking tins or moulds that require heat from the bottom.
  • Page 14 USE AND CARE Defrost mode When set to ‘Defrost’ mode, the fan located at the back of the oven circulates room temperature air around the food. This is recommended for the defrosting of all types of food, but in particular for delicate types of food which do not require heat, for example: ice cream cakes, cream or custard desserts, fruit cakes, etc.
  • Page 15 USING THE CONTROLS This model has a digital display, 24hr clock with 3 control buttons. When the power is connected, the screen displays ‘12:00’ and the bar above the symbol flashes. Setting the time when power is first connected To set the correct time, press the + or - button to advance forward or backward until the correct time is displayed.
  • Page 16 USE AND CARE When the clock displays 14:00, the oven automatically stops cooking. The alarm will sound and the bar will flash, press any button to stop the alarm. Semi-automatic setting There are two methods of semi-automatic cooking: A. Start cooking now and set cooking time: This semi-automatic setting of the oven allows you to start cooking immediately, set the cooking time (up to 10 hours), select the temperature and cooking mode.
  • Page 17: The Oven Light

    USE AND CARE To stop the alarm, press any button. Note: Press the relevant button, the setting must be carried out in 5 seconds; In the event of an electricity failure, all set functions and the clock time will disappear and need to be re-set. When the electrical power comes back on, “12:00”...
  • Page 18: Practical Cooking Advice

    USE AND CARE Practical Cooking Advice The oven offers a wide range of settings which allow you to cook any type of food in the best possible way. With time you will learn to make the best use of this versatile cooking appliance and the following directions are only a guideline which may be varied according to your own personal experience.
  • Page 19 USE AND CARE Using the grill This multi-function oven has 2 different grilling modes. Use the ‘Grill’ mode with the oven door closed, place the food on the centre of the grill pan, insert and fit the grill pan on either the 3rd or 4th shelf from the bottom. Note: only the central part of the top heating element operates for grilling.
  • Page 20 USE AND CARE Baking cakes When baking cakes ,always place them in a preheated oven. Make sure you wait until the oven has been preheated thoroughly (the indicator light will turn off). To prevent heat loss and the cake from dropping, do not open the oven door during baking. In general...
  • Page 21 USE AND CARE Cooking pizza • For best results when cooking pizza, use the ‘Fan Forced’ mode • Preheat the oven for at least 10 minutes. • Use a light aluminum pizza pan, placing it on the shelf supplied with the oven. Don’t use the dripping pan since this will extend the cooking time, making it difficult to get a crispy crust.
  • Page 22: Cooking Guide

    USE AND CARE Cooking guide Note: Cooking times are approximate and may vary according to personal taste. When cooking using the grill or fan assisted grill, the dripping pan must always be placed on the 1st oven shelf from the bottom. PG 22...
  • Page 23 USE AND CARE Fan Forced / Baking (on 2 shelves) (on 2 shelves) (on 2 shelves) (on 3 shelves) (on 3 shelves) (on 3 shelves) PG 23...
  • Page 24: Cleaning And Maintenance

    USE AND CARE Cleaning and maintenance Before cleaning your oven or performing maintenance, make sure that the cooking mode selection knob is set to ‘OFF’ and the cooking temperature selection knob is set to ‘OFF’. To extend the life of your oven, it must be cleaned frequently. The enamelled or stainless steel parts should be washed with lukewarm water without using any abrasive powders or corrosive substances.
  • Page 25: How To Remove The Oven Door

    USE AND CARE How to remove the oven door You can remove the oven door for better access to the oven when cleaning. Proceed as follows to remove the door: • Open the door fully (1). • Lift up and turn the latch situated on each of the two hinges (2). •...
  • Page 26 USE AND CARE How to dismantle the oven door for cleaning You can remove the inner door glass for better cleaning. Proceed as follows to remove the inner door glass: • Remove the trim ‘G’ by unscrewing the 2 screws (fig.1) •...
  • Page 27: Replacing The Oven Lamp

    USE AND CARE Replacing the oven lamp WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. Remove the glass cover of the lamp-holder as shown below. Remove the lamp and replace with a lamp resistant to high temperatures (300°C) with the following characteristics: •...
  • Page 28: Cabinet Details

    INSTALLATIONS IMPORTANT: Installation, assembly and electrical connections must be carried out by authorised personnel. Cabinet details In order to ensure that the built-in appliance functions properly, the cabinet containing it must be appropriate. The figure below gives the dimensions of the cut-out for installation under the counter or in a wall cabinet unit.
  • Page 29: Electrical Connection

    INSTALLATIONS Electrical connection When connecting the cable directly to the mains, connection to the electricity supply must be made by an authorised person in accordance with the Wiring Rules AS/NZS3000. The installation must include a suitable isolating switch with a minimum contact opening of 3mm between the appliance and the mains.
  • Page 30 INSTALLATIONS Opening the terminal board · Using a screwdriver, undo the screw on the side tabs of the cable cover; · Use a screwdriver to pry open the fixing hooks (A&B), pull open the cover of the terminal board. To install the cable ·...
  • Page 31: Technical Data

    INSTALLATIONS Technical Data Inner dimensions of the oven: 56 Litres 35 Litres 43.5cm 43.5cm Width 40cm 43cm Depth 32cm 18.5cm Height Inner Volume of the Top oven: 35 litres. Inner Volume of the Bottom oven: 56 litres. Voltage and Frequency of Power Supply: 220-240V, 50-60Hz PG 31...
  • Page 32: Warranty

    Subject to the exclusions below, we warrant that the product will not have any electrical or mechanical breakdowns within: a) In the case of Technika Professional products used for personal, domestic or household purposes, a period of 2 years from the date the product is purchased as a brand-new product from a retailer located in Australia / New Zealand.
  • Page 33 MANUFACTURER GUARANTEE The product requires repairs due to damage resulting from accident, misuse, incorrect installation, insect or vermin infestation, improper liquid spillage, cleaning or maintenance, unauthorised modification, use on an incorrect voltage, power surges and dips, voltage supply problems, tampering or unauthorised repairs by any persons, use of defective or incompatible accessories or exposure to abnormally corrosive conditions, events independent of human control which occurred after the goods left the control of Glen Dimplex;...
  • Page 34 MANUFACTURER GUARANTEE Warranty claims If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply, we will, at our election, either repair the product or replace the product with a product of identical specification (or where the product is superseded or no longer in stock, with a product of as close a specification as possible).
  • Page 35 NOTES PG 35...
  • Page 36 NOTES PG 36...
  • Page 37 MANUFACTURER GUARANTEE READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE. The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this manual.
