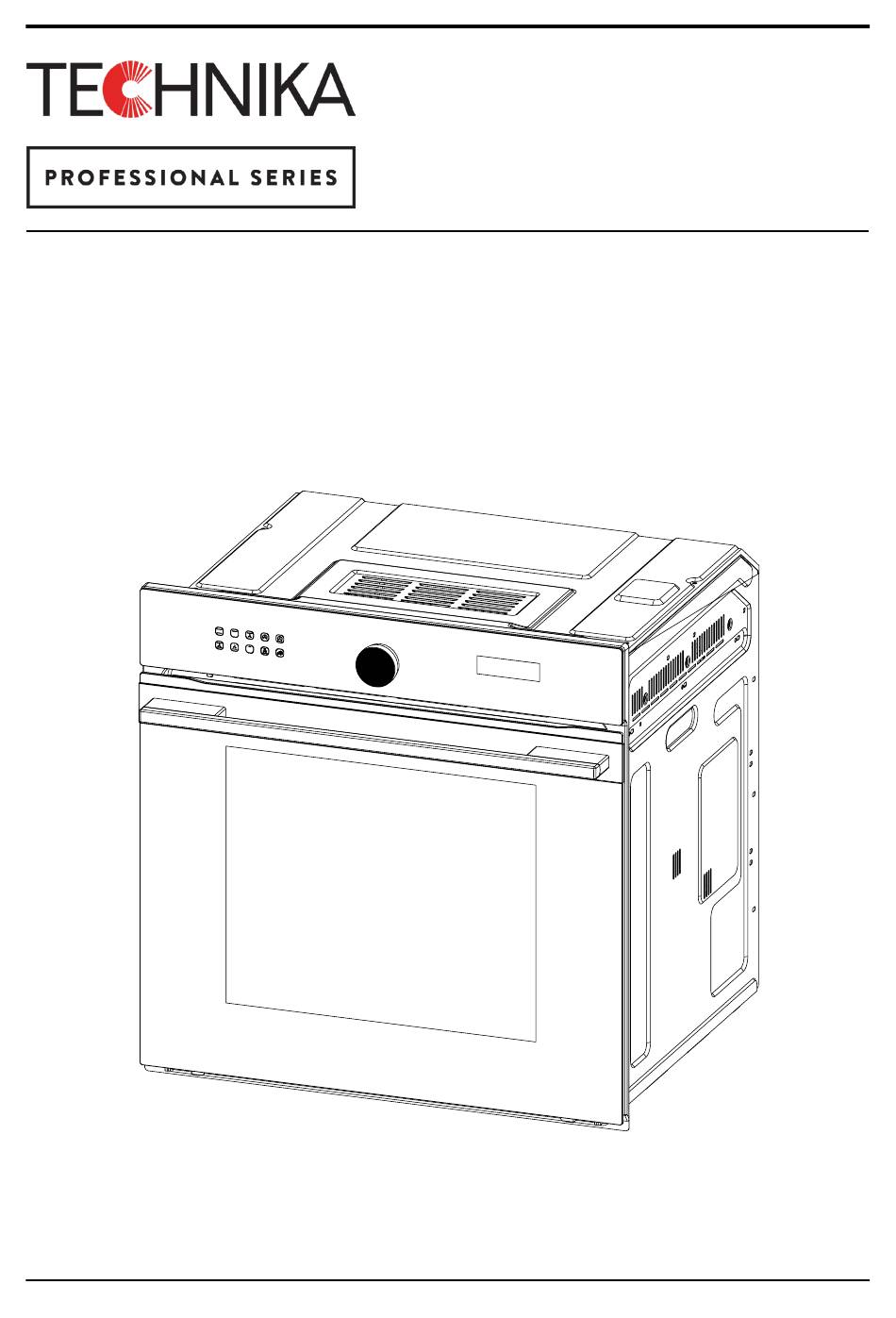

- Page 1 USER GUIDE M U L T I F U N C T I O N 6 0 C M O V E N T G P O 6 1 1 A B K TECHNIKA.COM.AU...
-
Page 3: Table Of Contents
CONTENTS TABLE For Your Safety Use and Care Controls Oven & accessories How to use your oven Positioning the oven trays & shelves The oven light Cooking modes Cooling ventilation Practical cooking advice Cooking guide Cleaning and maintenance Pyro Function How to remove the oven door Troubleshooting Replacing the oven lamp... -
Page 4: For Your Safety
FOR YOUR SAFETY We recommend that you read the instructions in this owner's manual carefully before use for the best performance and to extend the life of your appliance. It will provide you with all the information you need to ensure its safe installation, use and maintenance. Retain this owner's manual for future reference. - Page 5 FOR YOUR SAFETY Packaging items such as plastic bags, polystyrene, nails, etc. are potentially dangerous, and therefore appropriate measures must be taken to prevent children and the disabled from coming into contact with them. Avoid the following: • Touching the appliance with wet parts of the body. •...
- Page 6 FOR YOUR SAFETY WARNINGS: • DO NOT steam clean the oven. • DO NOT use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. •...
-
Page 7: Use And Care
USE AND CARE Controls 1. Function Knob 2. Temperature Button 3. Time/Timer 4. Time/Temp/Function Adjust Buttons 5. Function Display 6. Display 11 functions include: Conventional Fan Assist Pyro Fan Forced Half Grill Temperature Full Grill Multi Cooking Time Fan grill Airfry Defrost Pizza... -
Page 8: Oven & Accessories
USE AND CARE Oven & Accessories The oven is supplied with the following accessories: Oven rack x 2 Grill tray / Baking tray Grill insert 4. Telescopic rails (1 set) Air Fry basket For Air Fry mode the basket can be inserted into the shelf guides in the same way as the oven racks or baking trays. -
Page 9: How To Use Your Oven
USE AND CARE How to use your oven There are five shelf positions in the oven. Shelf levels are numbered from the bottom up. Levels 4 and 5 are used mainly for the grill function. Control Panel Guides for sliding the Level 5 racks of trays in and out Level 4... -
Page 10: Positioning The Oven Trays & Shelves
USE AND CARE Positioning the oven trays & shelves The Grill Tray or Oven Shelf can be located in any of the five height positions in the oven. Refer to the ‘Cooking Guide Table’ for the recommended shelf position. When fitting the trays or shelves, ensure they are fitted between the two wires that are closest together as shown below. - Page 11 USE AND CARE Telescopic rails The oven may also include a set of telescopic rails which can be positioned on different levels and allow the oven racks or trays to slide in and out effortlessly. • To un-clip the telescopic rail for cleaning or repositioning purposes you must apply outward pressure on the underside of the telescopic rail to release, as shown in Fig 1 (Note: reverse of rail shown).
- Page 12 USE AND CARE This multi-function oven combines the advantages of traditional conventional ovens with those of the more modern fan assisted models in a single appliance. It is an extremely versatile appliance that allows you to choose easily and safely between different cooking modes.
-
Page 13: The Oven Light
USE AND CARE Safety shutoff This oven’s electrical circuitry features a thermal shutoff system. If the oven heats to abnormally high temperatures, the system will shut off the power supply to the heating elements for a period of time until the oven cools down to a safe temperature. Attention: The oven comes with a soft close door feature which will only operate correctly when sufficient initial force is applied when closing. - Page 14 USE AND CARE Delayed start / Automatic cooking If the end time is entered after the cook time has already been set, the cook time and the end time are calculated and if necessary the oven sets a delayed start point. This can be used for automatic cooking where the oven will start and end at the chosen time.
-
Page 15: Cooking Modes
USE AND CARE Cooking Modes Conventional Mode The top and bottom heating elements come on. This is the classic, traditional type of oven which has been perfected, with exceptional heat distribution and reduced energy consumption. The conventional oven is still unequalled when it comes to cooking dishes made up of several ingredients, e. - Page 16 USE AND CARE Multi Cooking Mode The top, rear and bottom heating elements, as well as the fan, will come on alternately. Since the heat remains constant and uniform throughout the oven, the air cooks and browns food uniformly over its entire surface. With this mode, you can also cook various dishes at the same time, as long as their respective cooking temperatures are the same.
- Page 17 USE AND CARE Air fry Mode The top and rear heating elements, as well as the fan, will come on. Air fry enables advanced convection cooking function without having to turn the food, giving crispy great tasting results in a shorter time without all the oil. This is suitable for french fries, chicken wings, nuggets and similar products.
- Page 18 USE AND CARE Fan Assisted Grill The top heating elements and the fan come on. This combination of features increases the effectiveness of the unidirectional thermal radiation of the heating elements through forced circulation of the air throughout the oven. This helps prevent food from burning on the surface, allowing the heat to penetrate right into the food.
-
Page 19: Cooling Ventilation
USE AND CARE Cooling ventilation In order to cool down the exterior of the appliance, this model is equipped with a cooling fan, which switches on automatically. When the cooling fan is on, you will notice a flow of air exiting between the oven door and the control panel. -
Page 20: Practical Cooking Advice
USE AND CARE Practical Cooking Advice The oven offers a wide range of alternatives which allow you to cook any type of food in the best possible way. With time you will learn to make the best use of this versatile cooking appliance and the following directions are only a guideline which may be varied according to your own personal experience. - Page 21 USE AND CARE Setting “fan assisted grill”, is extremely useful for grilling foods rapidly, as the distribution of heat makes it possible not only to brown the surface, but also to cook the bottom part. Moreover, it can also be used for browning foods at the end of the cooking process, such as adding that gratin finish to pasta bakes, for example.
- Page 22 USE AND CARE Baking cakes When baking cakes ,always place them in a preheated oven. Make sure you wait until the oven has been preheated thoroughly. To prevent heat loss and the cake from dropping, do not open the oven door during baking. In general...
- Page 23 USE AND CARE Cooking Pizza For best results when cooking pizza ,use the “Pizza Mode”: • Preheat the oven for at least 10 minutes; • Use a light aluminum pizza pan, placing it on the grid supplied with the oven .If the dripping pan is used, •...
-
Page 24: Cooking Guide
USE AND CARE Cooking Guide PG 24... - Page 25 USE AND CARE PG 25...
- Page 26 USE AND CARE Fan Assist Note: Cooking times are approximate and may vary according to personal taste. When cooking using the grill or fan assisted grill, the dripping pan must always be placed on the 1st oven shelf from the bottom. PG 26...
-
Page 27: Cleaning And Maintenance
USE AND CARE Cleaning and maintenance Before cleaning your oven or performing maintenance, make sure that the oven is turned off. To extend the life of your oven, it must be cleaned frequently. The enamelled or stainless steel parts should be washed with lukewarm water without using any abrasive powders or corrosive substances. -
Page 28: Pyro Function
USE AND CARE Pyro Function Self Cleaning Pyro Function There are 3 time durations to select depending on the degree of self cleaning required: Standard Degree of self cleaning Duration Approx. 2 hours Medium Approx. 2 .5 hours Strong Approx. 3 hours What we should know For safety reasons, the oven locks automatically when the Pyro function begins.. -
Page 29: How To Remove The Oven Door
USE AND CARE How to remove the oven door You can remove the oven door for better access to the oven when cleaning. Proceed as follows to remove the door: • Open the door fully (1). • Lift up and turn the latch situated on each of the two hinges (2). •... - Page 30 USE AND CARE How to dismantle the oven door for cleaning You can remove the inner door glass for better cleaning. Proceed as follows to remove the inner door glass: • Remove the trim ‘G’ by unscrewing the 2 screws (fig.1) •...
-
Page 31: Troubleshooting
USE AND CARE Troubleshooting Problem Possible cause and remedy The oven does not heat up -The oven may not be switched on. Switch the oven on. -The clock may not be set. Set the clock. -Check to see if the required settings have been applied. -A household fuse may have blown or a circuit breaker may have tripped. -
Page 32: Replacing The Oven Lamp
USE AND CARE Replacing the oven lamp WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. Remove the glass cover of the lamp-holder as shown below. Remove the lamp and replace with a lamp resistant to high temperatures (300°C) with the following characteristics: •... -
Page 33: Cabinet Details
INSTALLATIONS IMPORTANT: Installation, assembly and electrical connections must be carried out by authorised personnel. Cabinet details In order to ensure that the built-in appliance functions properly, the cabinet containing it must be appropriate. The figure below gives the dimensions of the cut-out for installation under the counter or in a wall cabinet unit. -
Page 34: Electrical Connection
INSTALLATIONS The panels of the adjacent cabinets must be made of heat resistant material. In particular, cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 75°C. In compliance with current safety standards, contact with the electrical parts of the oven must not be possible once it has been installed. -
Page 35: Technical Data
INSTALLATIONS Warning: All electrical connections must be made by a suitably qualified and licenced person in accordance with local regulations. Glen Dimplex will not be held responsible for damages caused to cabinetry due to incorrect installation. Technical data Inner dimensions of the oven: Width: 42.3cm Depth: 40.7cm Height: 39.2cm... -
Page 36: Warranty
Subject to the exclusions below, we warrant that the product will not have any electrical or mechanical breakdowns within: a) In the case of Technika Professional products used for personal, domestic or household purposes, a period of 2 years from the date the product is purchased as a brand-new product from a retailer located in Australia / New Zealand. - Page 37 MANUFACTURER GUARANTEE The product requires repairs due to damage resulting from accident, misuse, incorrect installation, insect or vermin infestation, improper liquid spillage, cleaning or maintenance, unauthorised modification, use on an incorrect voltage, power surges and dips, voltage supply problems, tampering or unauthorised repairs by any persons, use of defective or incompatible accessories or exposure to abnormally corrosive conditions, events independent of human control which occurred after the goods left the control of Glen Dimplex;...
- Page 38 MANUFACTURER GUARANTEE Warranty claims If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply, we will, at our election, either repair the product or replace the product with a product of identical specification (or where the product is superseded or no longer in stock, with a product of as close a specification as possible).
- Page 39 MANUFACTURER GUARANTEE READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE. The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this manual.
