Technika Professional Series TGO66TX User Manual

Technika Professional Series TGO66TX User Manual

Multifunction 60cm oven

Advertisement

USER GUIDE
M U L T I F U N C T I O N 6 0 C M O V E N
T G O 6 6 T X
TECHNIKA.COM.AU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Professional Series TGO66TX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Technika Professional Series TGO66TX

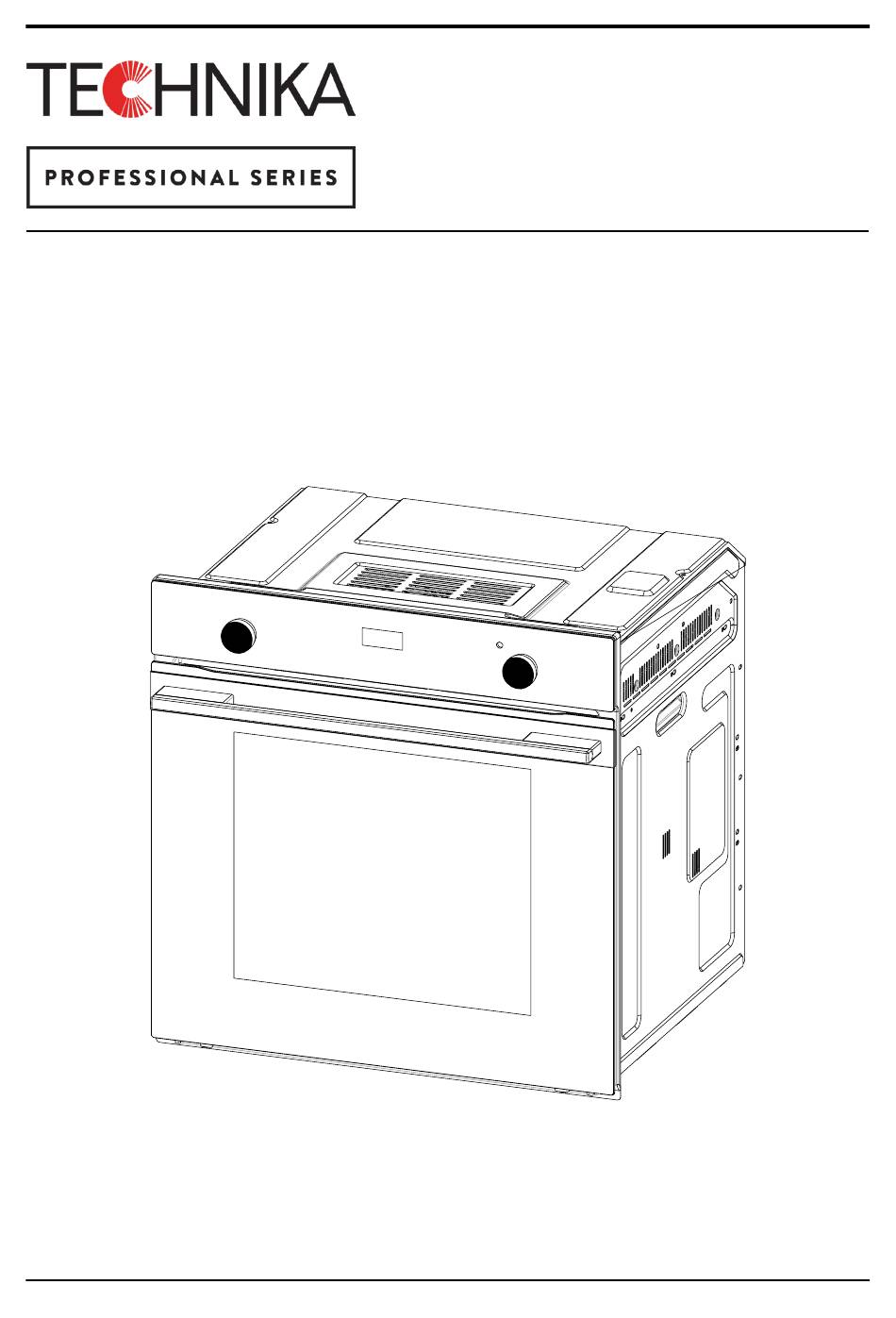

  • Page 1 USER GUIDE M U L T I F U N C T I O N 6 0 C M O V E N T G O 6 6 T X TECHNIKA.COM.AU...
  • Page 3: Table Of Contents

    CONTENTS TABLE For Your Safety Use and Care Controls Oven & accessories Positioning the oven trays & shelves How to use your oven Cooking modes Electronic clock/ timer The oven light Cooling ventilation Practical cooking advice Cooking guide Cleaning and maintenance How to remove the oven door Replacing the oven lamp Disposal...
  • Page 4: For Your Safety

    FOR YOUR SAFETY We recommend that you read the instructions in this owner's manual carefully before use for the best performance and to extend the life of your appliance. It will provide you with all the information you need to ensure its safe installation, use and maintenance. Retain this owner's manual for future reference.
  • Page 5 FOR YOUR SAFETY Packaging items such as plastic bags, polystyrene, nails, etc. are potentially dangerous, and therefore appropriate measures must be taken to prevent children and the disabled from coming into contact with them. Avoid the following: • Touching the appliance with wet parts of the body. •...
  • Page 6 FOR YOUR SAFETY WARNINGS: • DO NOT steam clean the oven. • DO NOT use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. •...
  • Page 7: Use And Care

    USE AND CARE Controls 6 function model Oven Temperature Indicator Light FUNCTION FUNCTION Cooking Mode Electronic Clock / Timer Cooking Temperature Selection Knob Selection Knob Oven & Accessories The oven is supplied with chrome wire shelf supports, a baking / grill tray and a removable grill insert.
  • Page 8: Positioning The Oven Trays & Shelves

    USE AND CARE Positioning the oven trays & shelves The Grill Tray or Oven Shelf can be located in any of the five height positions in the oven. Refer to the ‘Cooking Guide Table’ for the recommended shelf position. When fitting the trays or shelves, ensure they are fitted between the two wires that are closest together as shown below.
  • Page 9: How To Use Your Oven

    USE AND CARE How to use your oven This Multi-function oven is an extremely versatile appliance that allows you to choose easily and safely between different cooking modes. The various cooking modes are selected by means of a cooking mode selection knob, located on the control panel. To operate the oven: •...
  • Page 10: Cooking Modes

    USE AND CARE Cooking modes Grill mode Select ‘Grill’ mode with cooking mode selection knob and turn cooking temperature selection knob to ‘Max’. When set to Grill mode, the top inner element operates. The extremely high and direct temperature of the grill makes it possible to brown the surface of meats and roasts while locking the juices in to keep them tender.
  • Page 11 Intensive Bake mode When set to Intensive Bake mode, the top element and fan element, as well as the fan will operate together. This enables uniform heat distribution throughout the oven, whilst also directing radiant heat from above for advanced convection cooking, helping you achieve extra crispy results.
  • Page 12: Electronic Clock/ Timer

    USE AND CARE 3 Button Digital Clock Decrease time button Function button Increase time button Bell symbol (to set the timer) Cooking time symbol (to set the amount of time to cook) Cooking end time symbol (to set the end time for cooking) Clock symbol (to set the time) This model has a digital display, 24hr clock with 3 control buttons.
  • Page 13 Automatic setting Automatic setting of the oven allows you to select the end time, cooking time, temperature and cooking mode. The oven will switch on, cook according to the selected cooking mode and temperature and then switch off automatically. Press the function button repeatedly until the bar above flashes, then press + or - button to set the time frame for cooking.
  • Page 14 Press the function button repeatedly until the bar above flashes, then press + or - button to set the time frame for cooking. Set cooking temperature and cooking mode by turning the thermostat knob and selector knob. The oven starts immediately, the bar above will flash.
  • Page 15: The Oven Light

    USE AND CARE The oven light Set cooking mode selection knob to symbol to switch on the oven light/s. The oven light/s stay on when the oven is operating. Cooling ventilation In order to cool down the exterior of the appliance, this model is equipped with a cooling fan, which switches on automatically.
  • Page 16 USE AND CARE Multi shelf cooking If you want to cook food on several shelves, select the ‘Fan Forced’ or ‘Intensive Bake’ mode as these are the only cooking mode that allows you to do so. When cooking delicate foods on more than one shelf, use the ‘Fan Forced’ mode. This mode allows you to cook on 3 shelves at the same time.
  • Page 17 USE AND CARE Baking cakes When baking cakes ,always place them in a preheated oven. Make sure you wait until the oven has been preheated thoroughly (the indicator light will turn off). To prevent heat loss and the cake from dropping, do not open the oven door during baking. In general...
  • Page 18 USE AND CARE Cooking pizza • For best results when cooking pizza, use the ‘Fan Forced’ mode • Preheat the oven for at least 10 minutes. • Use a light aluminum pizza pan, placing it on the shelf supplied with the oven. Don’t use the dripping pan since this will extend the cooking time, making it difficult to get a crispy crust.
  • Page 19: Cooking Guide

    USE AND CARE Cooking guide Fan Forced (on 2 shelves) (on 2 shelves) (on 2 shelves) (on 3 shelves) (on 3 shelves) (on 3 shelves) Intensive Bake Note: Cooking times are approximate and may vary according to personal taste. When cooking using the grill or fan assisted grill, the dripping pan must always be placed on the 1st oven shelf from the bottom.
  • Page 20: Cleaning And Maintenance

    USE AND CARE Cleaning and maintenance Before cleaning your oven or performing maintenance, make sure that the cooking mode selection knob is set to ‘OFF’ and the cooking temperature selection knob is set to ‘OFF’. To extend the life of your oven, it must be cleaned frequently. The enamelled or stainless steel parts should be washed with lukewarm water without using any abrasive powders or corrosive substances.
  • Page 21: How To Remove The Oven Door

    USE AND CARE How to remove the oven door You can remove the oven door for better access to the oven when cleaning. Proceed as follows to remove the door: • Open the door fully (1). • Lift up and turn the latch situated on each of the two hinges (2). •...
  • Page 22 USE AND CARE How to dismantle the oven door for cleaning You can remove the inner door glass for better cleaning. Proceed as follows to remove the inner door glass: • Remove the trim ‘G’ by unscrewing the 2 screws (fig.1) •...
  • Page 23: Replacing The Oven Lamp

    USE AND CARE Replacing the oven lamp WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. Remove the glass cover of the lamp-holder as shown below. Remove the lamp and replace with a lamp resistant to high temperatures (300°C) with the following characteristics: •...
  • Page 24: Cabinet Details

    INSTALLATIONS IMPORTANT: Installation, assembly and electrical connections must be carried out by authorised personnel. Cabinet details In order to ensure that the built-in appliance functions properly, the cabinet containing it must be appropriate. The figure below gives the dimensions of the cut-out for installation under the counter or in a wall cabinet unit.
  • Page 25: Electrical Connection

    INSTALLATIONS The panels of the adjacent cabinets must be made of heat resistant material. In particular, cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 75°C. In compliance with current safety standards, contact with the electrical parts of the oven must not be possible once it has been installed.
  • Page 26: Technical Data

    INSTALLATIONS Warning: All electrical connections must be made by a suitably qualified and licenced person in accordance with local regulations. Glen Dimplex will not be held responsible for damages caused to cabinetry due to incorrect installation. Technical data Inner dimensions of the oven: Width: 42.3cm Depth:...
  • Page 27: Warranty

    Subject to the exclusions below, we warrant that the product will not have any electrical or mechanical breakdowns within: a) In the case of Technika Professional products used for personal, domestic or household purposes, a period of 2 years from the date the product is purchased as a brand-new product from a retailer located in Australia / New Zealand.
  • Page 28 MANUFACTURER GUARANTEE The product requires repairs due to damage resulting from accident, misuse, incorrect installation, insect or vermin infestation, improper liquid spillage, cleaning or maintenance, unauthorised modification, use on an incorrect voltage, power surges and dips, voltage supply problems, tampering or unauthorised repairs by any persons, use of defective or incompatible accessories or exposure to abnormally corrosive conditions, events independent of human control which occurred after the goods left the control of Glen Dimplex;...
  • Page 29 MANUFACTURER GUARANTEE Warranty claims If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply, we will, at our election, either repair the product or replace the product with a product of identical specification (or where the product is superseded or no longer in stock, with a product of as close a specification as possible).
  • Page 30 NOTES PG 30...
  • Page 31 NOTES PG 31...
  • Page 32 NOTES PG 32...
  • Page 33 MANUFACTURER GUARANTEE READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE. The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this manual.
