REG DESIGN NO: 3007645
PATENT NO: 1546599
US PATENT NO: 7523906
Installation Safety Instructions............................................................................................................2
Parts List.............................................................................................................................................4
Installation Instructions.......................................................................................................................6
Product Dimensions..........................................................................................................................11
B-Tech Contact Details.....................................................................................................................12
INSTALLATION TOOLS REQUIRED
Crosshead /
Flathead screwdriver
B-TECH AUDIO VIDEO MOUNTS
BT33

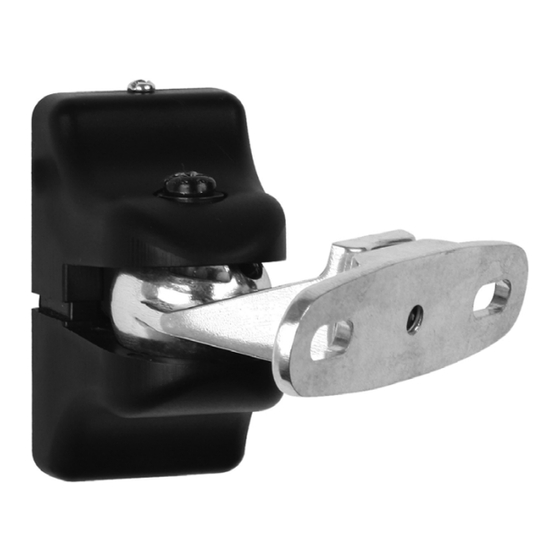

HOME CINEMA SPEAKER WALL MOUNT
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Speaker Mount
PLEASE KEEP THIS FOR FUTURE REFERENCE
CONTENTS
6mm (1/4") masonry bit
Drill
or 3mm (1/8") wood bit
www.btechavmounts.com
FEATURES
● Designed for small home cinema speakers weighing
up to 5kg (11lbs)
● Mounts speaker only 72mm (2.8") from wall
● Suitable for single point, dual point and keyhole fixings
● Distance between dual point fixings:
51 - 67mm (2" - 2.6")
● Suitable for speakers using M5, M6, UNC ¼" &
Wood Screws
● Simple installation with all mounting hardware included
Pencil
Stud finder
Level
(optional)
(optional)
