IMPORTANT!
Read all instructions in this manual before operating pump.
As a result of Crane Pumps & Systems, Inc., constant product improvement program,
product changes may occur. As such Crane Pumps & Systems reserves the right to
change product without prior written notifi cation.
A Crane Co. Company
420 Third Street
Piqua, Ohio 45356
Phone: (937) 778-8947
Fax: (937) 773-7157
www.cranepumps.com
Manual Index
Professional Plumbing
INSTALLATION MANUAL

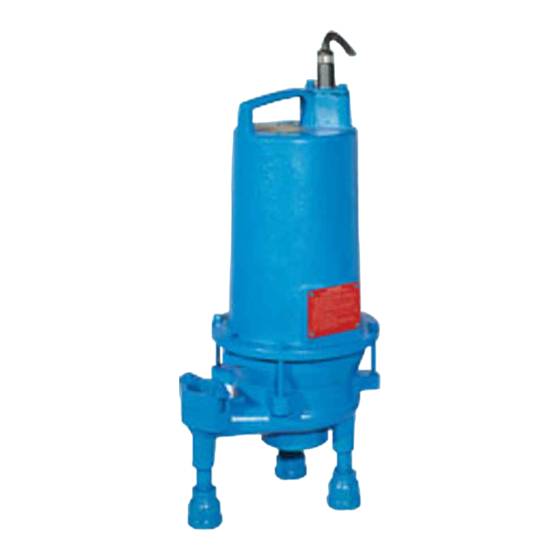

Submersible Grinder Pump
Series: PGPP & PGPH
2 HP, 3450 RPM, 60 Hz.
High-Flow and High-Head
83 West Drive, Bramton
Ontario, Canada L6T 2J6
Phone: (905) 457-6223
Fax: (905) 457-2650
Form No. 131469-Rev. E
Advertisement
Table of Contents
Related Manuals for Crane Barnes PGPP Series
Summary of Contents for Crane Barnes PGPP Series
- Page 1 Read all instructions in this manual before operating pump. As a result of Crane Pumps & Systems, Inc., constant product improvement program, product changes may occur. As such Crane Pumps & Systems reserves the right to change product without prior written notifi cation.
-
Page 2: Safety First
Other brand and product names are trademarks or registered trademarks of their respective holders. ® Barnes is a registered trademark of Crane Pumps & Systems, Inc. 2002, 2003, 4/04, 5/04, 4/05, 12/05, 1/06, 9/06, 11/06, 2/07... - Page 3 Professional Plumbing USER GUIDE The grinder pump generates suffi cient pressure Congratulations on your purchase of a Barnes to pump this slurry from your home to the grinder pump system. With proper care and by wastewater plant. following a few simple guidelines your grinder pump will give you many years of dependable Power Failure service.
-
Page 4: Pump Specifications
PUMP SPECIFICATIONS: DISCHARGE ....... 1¼” NPT, Vertical, Bolt-on 1¼” BAF SPEED ........ 3450 RPM, 60Hz (nominal) (CE Only) Flange UPPER BEARING: LIQUID TEMPERATURE ..160°F (71°C) Intermittent Design ..... Single Row, Ball, Oil Lubricated MOTOR HOUSING ..... Cast Iron ASTM A-48, Class 30 Load .... - Page 5 MODEL VOLT PH/Hz NEMA FULL LOCKED CORD CODE CORD WINDING RESISTANCE (Nom) START LOAD ROTOR SIZE TYPE O.D. MAIN -- START CODE AMPS AMPS ± .02 (.5) in (mm) PGPH2022L 1 / 60 3450 15.0 53.8 12/3 .61 (15.5) 1.5 -- 5.1 PGPP2022L 1 / 60 3450...
- Page 6 Tie the bowline knot where shown per the directions provided (Steps 1 through 5). On the CT (Not Shown) series tie bowline knot on the eyebolt. On the L and AUE series tie bowline knot on the lifting handle. (See Fig 1). FIGURE 1...
-
Page 7: Service Centers
For the location of the nearest Barnes Service Center, protector used is referred to as an inherent overheating check your Barnes representative or Crane Pumps protector and operates on the combined effect of temperature & Systems, Inc., Service Department in Piqua, Ohio, and current. -
Page 8: Cord Connections
CORD CONNECTIONS: Power/Control Cord- Insert female end of cord plug into housing bore aligning alignment mark with hole in terminal block see Figure 4. Tighten bolts on compression fl ange until fl ush with motor housing. FIGURE 4 -OGV-L Single phase 240 Volt AC, 60Hz FIGURE 5 “L”... -
Page 9: Troubleshooting
TROUBLE SHOOTING CAUTION ! Always disconnect the pump from the electrical power source before handling. If the system fails to operate properly, carefully read instructions and perform maintenance recommendations. If operating problems persist, the following chart may be of assistance in identifying and correcting them: MATCH “CAUSE”... - Page 10 FIGURE 6...
-
Page 11: Parts Kits
PARTS KITS Seal Repair Kit ...P/N: 108303 Item #’s 6,7,12,13,15,20,25,26,35,36,47 Overhaul Kit ....P/N: 127238 108303 & Item #’s 9, 18, 28, 29, 31A, 31B, 31C, 31D, 38 Cutter Kit - PGPP ..P/N: 108330 Item #’s 5, 6, 7, 9, 15, 23, 26 Cutter Kit - PGPH ..P/N: 108330A Item #’s 5, 6, 7, 9, 15, 23, 26 PARTS LIST... - Page 12 Notes...
-
Page 14: Returned Goods
Crane Pumps & Systems, Inc. Distributor. RETURNED GOODS RETURN OF MERCHANDISE REQUIRES A “RETURNED GOODS AUTHORIZATION”. CONTACT YOUR LOCAL CRANE PUMPS & SYSTEMS, INC. DISTRIBUTOR. Products Returned Must Be Cleaned, Sanitized, Or Decontaminated As Necessary Prior To Shipment, To Insure That Employees Will Not Be Exposed To Health Hazards In Handling Said Material. - Page 15 A Crane Co. Company START-UP REPORT General Information Pump Owner’s Name: __________________________________________________________ Address: ____________________________________________________________________ Location of Installation: _________________________________________________________ Contact Person: __________________________________Phone: _______________________ Purchased From: _____________________________________________________________ Nameplate Data Pump Model #: ___________________ Serial #: _____________________________________ Part #: __________________________ Impeller Diameter: ____________________________ Voltage: _________ Phase: _____ Ø...
