HD330-Q87
MicroATX Industrial Motherboard
User's Manual
A29750547
1

Advertisement

Table of Contents
loading

Related Manuals for DFI HD330-Q87

Summary of Contents for DFI HD330-Q87

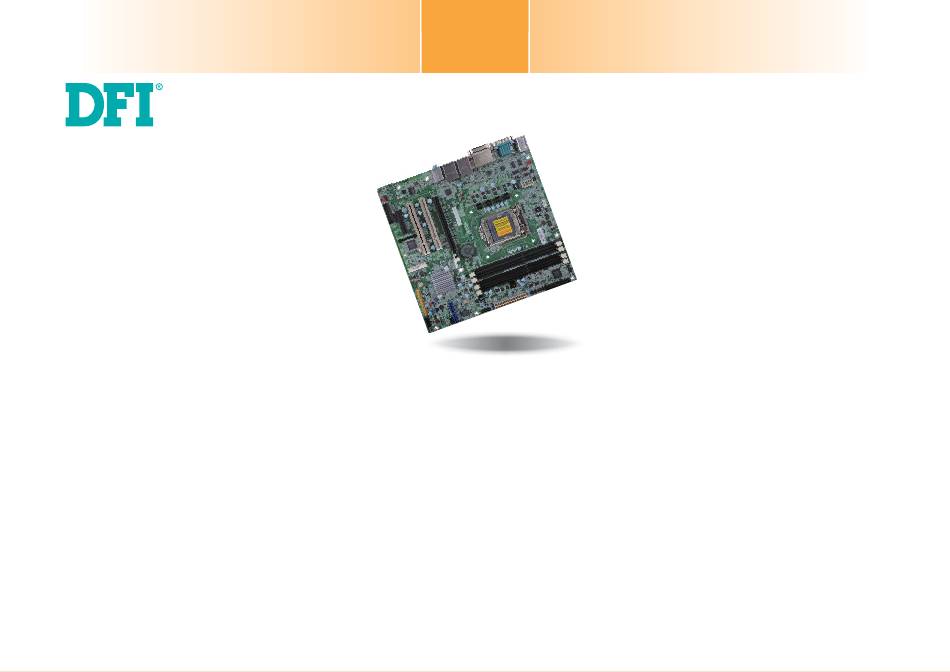

  • Page 1 HD330-Q87 MicroATX Industrial Motherboard User’s Manual A29750547...

  • Page 2: Copyright

    Copyright FCC and DOC Statement on Class B This publication contains information that is protected by copyright. No part of it may be re- This equipment has been tested and found to comply with the limits for a Class B digital produced in any form or by any means or used to make any transformation/adaptation without device, pursuant to Part 15 of the FCC rules.

  • Page 3: Table Of Contents

    Table of Contents USB Ports ....................22 Audio ......................23 I/O Connectors ................... 24 SATA (Serial ATA) Connectors ..............24 Digital I/O Connector .................. 24 Copyright ......................2 Cooling Fan Connectors................25 Power Connectors ..................25 Trademarks ......................2 Chassis Intrusion Connector ................ 26 Front Panel Connector ................

  • Page 4: About This Manual

    About this Manual Static Electricity Precautions An electronic file of this manual is included in the CD. To view the user’s manual in the CD, It is quite easy to inadvertently damage your PC, system board, components or devices even insert the CD into a CD-ROM drive.

  • Page 5: About The Package

    About the Package The package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance. • One HD330 motherboard • One Serial ATA data cable • One I/O shield •...

  • Page 6: Chapter 1 - Introduction

    Chapter 1 Chapter 1 - Introduction Specifications Processor • LGA 1150 socket for: Serial ATA • 2 SATA 3.0 ports with data transfer rate up to 6Gb/s - 4th Generation Intel ® Core processors (22nm process technology) • 1 SATA 2.0 port with data transfer rate up to 3Gb/s ®...

  • Page 7: Features

    Gigabit LAN controllers, Intel I210 PCI Express Gigabit Ethernet controller and In- ® ® I217LM Gigabit Ethernet Phy, support up to 1Gbps data transmission. ® • Audio The Realtek ALC886 audio codec provides 5.1-channel High Definition audio output. Chapter 1 Introduction www.dfi.com...
  • Page 8 Chapter 1 • Wake-On-LAN • Wake-On-PS/2 This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It is This function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system. supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Man- agement Event) signal.

  • Page 9: Chapter 2 - Hardware Installation

    Chapter 2 Chapter 2 - Hardware Installation Important: Board Layout Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in boards, and other components. Perform installation procedures at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wear- ing an antistatic wrist strap and attaching it to a metal part of the system chassis.

  • Page 10: Installing The Dimm Module

    Chapter 2 The system board supports the following memory interface. Installing the DIMM Module Single Channel (SC) Note: The system board used in the following illustrations may not resemble the actual Data will be accessed in chunks of 64 bits (8B) from the memory channels. board.

  • Page 11: Cpu

    Chapter 2 6. Grasping the module by its edges, position the module above the socket with the “notch” in the module aligned with the “key” on the socket. The keying mechanism ensures the module can be plugged into the socket in only one way. The system board is equipped with a surface mount LGA 1150 socket.

  • Page 12: Installing The Cpu

    Chapter 2 Load lever Installing the CPU 5. Lifting the load lever will at the same time lift the load plate. 1. Make sure the PC and all other peripheral devices connected to it has been powered down. Lift the load lever up to 2.
  • Page 13 Chapter 2 7. Insert the CPU into the 8. Close the load plate then socket. The gold triangular push the load lever down. mark on the CPU must align with the corner of While closing the load the CPU socket shown on plate, make sure the front Retention knob edge of the load plate...

  • Page 14: Installing The Fan And Heat Sink

    Chapter 2 Installing the Fan and Heat Sink 4. Rotate each push-pin ac- cording to the direction of the arrow shown on top of The CPU must be kept cool by using a CPU fan with heat sink. Without sufficient air circula- the pin.

  • Page 15: Jumper Settings

    Chapter 2 Jumper Settings PS/2 Keyboard/Mouse Power Select Clear CMOS Data COM 2 COM 2 COM 1 COM 1 1-2 On: +5V (default) 2-3 On: +5V_standby 1-2 On: Normal (default) 2-3 On: Clear CMOS Data If you encounter the followings, JP1 is used to select the power of the PS/2 keyboard/mouse port.

  • Page 16: Usb Power Select

    Chapter 2 USB Power Select Power-on Select USB 8-9 (JP4) COM 2 COM 2 COM 1 COM 1 1-2 On: +5V (default) USB 0-1 (JP5) 1-2 On: Power-on via power button (default) 2-3 On: +5V_standby JP10 USB 4-5 (JP6) 2-3 On: Power-on via AC power 1-2 On: +5V (default)

  • Page 17: Com1/Com2 Rs232/422/485 Select

    Chapter 2 COM1/COM2 RS232/422/485 Select COM1/COM2 RS232/Power Select COM 2 JP11 COM 2 COM 1 3-5 (+5V), 4-6 (+12V) On: 1-3 (RI), 2-4 (DCD) On: RS232 (default) RS232 with power COM 1 JP14 COM 2 COM 2 COM 1 COM 1 JP2 (for COM 1) and JP11 (for COM 2) are used to configure the COM ports to RS232, RS422 (Full Duplex) or RS485.

  • Page 18: Mini Pcie Signal Select

    Chapter 2 Mini PCIe Signal Select Mini PCIe Power Select COM 2 COM 2 COM 1 COM 1 1-4-7-10, 2-5-8-11 On: 1-2 On: +3.3V PCIe (default) (default) JP15 JP16 2-3 On: 2-5-8-11, 3-6-9-12 On: +3V_standby mSATA JP15 is used to select the Mini PCIe signal. JP16 is used to select the power supplied with the Mini PCIe.

  • Page 19: Digital I/O Power Select

    Chapter 2 Digital I/O Power Select Digital I/O Output State COM 2 COM 2 COM 1 COM 1 1-2 On: +5V_standby (default) JP13 2-3 On: +5V DIO 11/13/15/17 DIO 3/5/7/9 (JP7) (JP12) JP13 is used to select the power of DIO (Digital I/O) signal. 1-2 On: +5V or 2-3 On: GND +5V_standby...

  • Page 20: Rear Panel I/O Ports

    Chapter 2 Rear Panel I/O Ports PS/2 Keyboard/Mouse Port PS/2 Keyboard/Mouse COM 2 COM 2 DVI-I LAN 1 LAN 2 COM 1 Line-in/Surround PS/2 KB/MS Line-out USB 2.0 Mic-in/ Center+Subwoofer COM 1 HDMI USB 3.0 USB 2.0 The rear panel I/O ports consist of the following: •...

  • Page 21: Com (Serial) Ports

    Chapter 2 COM (Serial) Ports Graphics Interfaces COM 5/COM 6: RS232 The display ports consist of the following: • 1 DVI-I port • 1 HDMI port COM 5 COM 6 COM 2 DVI-I COM 2 COM 1 COM 2 COM 1 COM 3 COM 4 COM 1...

  • Page 22: Rj45 Lan Ports

    Chapter 2 RJ45 LAN Ports USB Ports USB 9 COM 2 COM 2 COM 1 COM 1 USB 8 USB 2.0 LAN 1 LAN 2 LAN 1 LAN 2 USB 1 USB 5 USB 0 USB 4 USB 3.0 USB 2.0 USB 2-3 Features USB 6-7...

  • Page 23: Audio

    Chapter 2 Audio Wake-On-USB Keyboard/Mouse The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state. To use this function: Rear Audio • Jumper Setting COM 2 COM 1...

  • Page 24: I/O Connectors

    Chapter 2 I/O Connectors Digital I/O Connector SATA (Serial ATA) Connectors COM 2 COM 1 COM 2 COM 1 SATA 3.0 6Gb/s SATA 1 SATA 0 SATA 2.0 3Gb/s Digital I/O SATA 5 Features The 8-bit Digital I/O connector provides powering-on function to external devices that are connected to these connectors.

  • Page 25: Cooling Fan Connectors

    Chapter 2 Cooling Fan Connectors Power Connectors CPU Fan +12V Power Ground +12V Ground Speed Control COM 2 COM 2 Power COM 1 COM 1 Sense 12 24 System Fan 2 +3.3V +12V +12V Power +5VSB PWR_OK PS_ON# +3.3V -12V +3.3V +3.3V System Fan 1...

  • Page 26: Chassis Intrusion Connector

    Chapter 2 Chassis Intrusion Connector Front Panel Connector Chassis Intrusion COM 2 COM 1 Signal COM 2 COM 1 Ground PWR-LED Front HDD-LED Panel ATX-SW RESET-SW HDD-LED - HDD LED This LED will light when the hard drive is being accessed. RESET SW - Reset Switch The board supports the chassis intrusion detection function.

  • Page 27: Standby Power Led

    Chapter 2 Standby Power LED S/PDIF Connector COM 2 COM 2 COM 1 COM 1 Standby Power LED SPDIF out S/PDIF Ground SPDIF in This LED will lit red when the system is in the standby mode. It indicates that there is power The S/PDIF connector is used to connect an external S/PDIF port.

  • Page 28: Expansion Slots

    Chapter 2 Expansion Slots Parallel Port Parallel COM 2 COM 1 COM 2 COM 1 PCI Express x16 PCI Express x4 Mini PCI Express The 25-pin connector is used to connect an external parallel port. The parallel port connects PCI Express x16 Slot your PC to a parallel printer.

  • Page 29: Battery

    Chapter 2 Battery COM 2 COM 1 Battery The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source of power when the main power is shut off. Safety Measures • Danger of explosion if battery incorrectly replaced. •...

  • Page 30: Chapter 3 - Bios Setup

    Chapter 3 Chapter 3 - BIOS Setup Legends Overview Keys Function The BIOS is a program that takes care of the basic level of communication between the CPU and peripherals. It contains codes for various advanced features found in this system board. Right and Left arrows Moves the highlight left or right to select a menu.

  • Page 31: Ami Bios Setup Utility

    Chapter 3 AMI BIOS Setup Utility Advanced The Advanced menu allows you to configure your system for basic operation. Some entries are Main defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference. The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.
  • Page 32 Chapter 3 ACPI Power Management Configuration Trusted Computing This section is used to configure the ACPI Power Management. This section configures settings relevant to Trusted Computing innovations. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Advanced Advanced Confi...
  • Page 33 Chapter 3 CPU Configuration SATA Configuration This section is used to configure the CPU. It will also display the detected CPU information. This section is used to configure the functions of Serial ATA devices. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
  • Page 34 Chapter 3 When IDE mode is selected in the SATA Mode Selection, it will display the following When RAID mode is selected in the SATA Mode Selection, it will display the following information: information: Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
  • Page 35 Chapter 3 Software Feature Mask Confi guration PCH-FW Configuration This section is used to configure the parameters of Management Engine Technology. RAID OROM/RST driver will refer to the SWFM configuration in order to enable or dis- able the features of the storage device. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
  • Page 36 Chapter 3 USB Configuration Super IO Configuration This section is used to configure the parameters of the USB device. This section is used to configure the I/O functions supported by the onboard Super I/O chip. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
  • Page 37 Chapter 3 Serial Port 0 Configuration to Serial Port 5 Configuration Sets parameters of serial port 0 (COM A) to serial port 5 (COM F). Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Advanced Advanced Serial Port 0 Confi...
  • Page 38 Chapter 3 Parallel Port Configuration Sets the parameters of the parallel port (LPT/LPTE). Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Advanced Advanced Serial Port 4 Confi guration Parallel Port Confi...
  • Page 39 Chapter 3 CPU Smart Fan Control PC Health Status When this feature is set to Automatic, the CPU’s fan speed will rotate according to the This section displays the hardware health monitor. CPU’s temperature. The higher the temperature, the faster the speed of rotation. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
  • Page 40 Chapter 3 Network Stack Ipv4 PXE Support This section is used to enable or disable UEFI network stack. When enabled, Ipv4 PXE boot supports. When disabled, Ipv4 PXE boot option will not be created. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Ipv6 PXE Support Advanced When enabled, Ipv6 PXE boot supports.
  • Page 41 Chapter 3 Intel(R) Ethernet Network Connection i217-LM - 00:01:29:... Intel(R) I210 Gigabit Network Connection - 00:01:29:53... This section is used to configure the parameters of the Gigabit Ethernet device. This section is used to configure the parameters of the Gigabit Ethernet device. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.

  • Page 42: Chipset

    Chapter 3 Chipset System Agent (SA) Configuration This section is used to configure the parameters of System Agent. This section configures relevant chipset functions. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset...
  • Page 43 Chapter 3 Graphics Configuration DVMT Pre-Allocated This field configures the graphics settings. Selects DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device. Please refer to the screen shown below. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
  • Page 44 Chapter 3 NB PCIe Configuration LCD Control This field is used to configure the settings of NB PCI Express. This field configures the LCD control. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Chipset Chipset NB PCIe Confi...
  • Page 45 Chapter 3 Memory Configuration PCH-IO Configuration This field only displays the memory configuration. This section illustrates the PCH parameters. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Chipset Chipset Memory Information Intel PCH RC Version...
  • Page 46 Chapter 3 PCI Express Configuration USB Configuration This field is used to configure the PCI Express settings. This field is used to configure the USB settings. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Chipset Chipset PCI Express Confi...
  • Page 47 Chapter 3 XHCI Mode USB Ports Per-Port Disable Control Selects the operation mode of XHCI controller. These options are Auto, Enabled, This field is used to control each of the USB ports(0~13) disabling. When enabled, and Disabled. When Disabled is selected in the XHCI Mode, it will display the following it will display the following information: information: Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.

  • Page 48: Boot

    Chapter 3 Boot PCH Azalia Configuration This field is used to configure the PCH Azalia settings. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Boot Confi...

  • Page 49: Security

    Chapter 3 Security CSM Parameters Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Main Advanced Chipset Boot Security Save & Exit This option controls if Launch CSM [Enabled]...

  • Page 50: Save & Exit

    Chapter 3 Save & Exit Updating the BIOS To update the BIOS, you will need the new BIOS file and a flash utility, AFUDOS. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. EXE. Please contact technical support or your sales representative for the files. Main Advanced Chipset...

  • Page 51: Notice: Bios Spi Rom

    Chapter 3 Notice: BIOS SPI ROM 1. The Intel Management Engine has already been integrated into this system board. Due to ® the safety concerns, the BIOS (SPI ROM) chip cannot be removed from this system board and used on another system board of the same model. 2.

  • Page 52: Chapter 4 - Supported Software

    Chapter 4 Chapter 4 - Supported Software For Windows 7 The CD that came with the system board contains drivers, utilities and software applications required to enhance the performance of the system board. Insert the CD into a CD-ROM drive. The autorun screen (Mainboard Utility CD) will appear. If after inserting the CD, “Autorun”...
  • Page 53 Chapter 4 For Windows XP Microsoft .NET Framework 3.5 (For Windows XP) Note: Before installing Microsoft .NET Framework 3.5, make sure you have updated your Windows XP operating system to Service Pack 3. To install the driver, click “Microsoft .NET Framework 3.5” on the main menu. 1.
  • Page 54 Chapter 4 Intel Chipset Software Installation Utility 3. Click Exit. The Intel Chipset Software Installation Utility is used for updating Windows INF files so that ® the Intel chipset can be recognized and configured properly in the system. To install the utility, click “Intel Chipset Software Installation Utility” on the main menu. 1.
  • Page 55 Chapter 4 Microsoft DirectX 9.0C (For Windows XP) 3. Go through the readme document for more installa- tion tips then click Next. To install the utility, click “Microsoft DirectX 9.0C Driver” on the main menu. 1. Click “I accept the agreement”...
  • Page 56 Chapter 4 Intel HD Graphics Drivers (For Windows XP) 4. Setup is now installing the driver. Click Next to continue. To install the driver, click “Intel HD Graphics Drivers” on the main menu. 1. To start installation, click Next. 5. Click “Yes, I want to restart this computer now”...
  • Page 57 Chapter 4 Intel HD Graphics Drivers (For Windows 7 and Windows 8) 3. Go through the readme document for system re- quirements and installation To install the driver, click “Intel HD Graphics Drivers” on the main menu. tips then click Next. 1.
  • Page 58 Chapter 4 Intel Management Engine Drivers 3. Setup is currently installing the driver. After installation has completed, click Next. To install the driver, click “Intel Management Engine Drivers” on the main menu. 1. Setup is ready to install the driver. Click Next. 4.
  • Page 59 To install the driver, click “Audio Drivers” on the main menu. The LAN drivers for Windows XP supporting on the HD330-Q87 system board has to be installed manually. When you want to install the LAN driver for Windows XP, please follow the steps below to accomplish the installation.
  • Page 60 Chapter 4 3. Choose the option "Don't 6. Insert the installation disk search. I will choose the and make sure the selected driver to install" in order to drive is correct. select the device driver from a list, and click "Next." (For 32-bit, the fi...
  • Page 61 Chapter 4 Intel LAN Drivers (For Windows 7 and Windows 8) 9. Click "Finish" to close the wizard. To install the driver, click “Intel LAN Drivers” on the main menu. 1. Setup is ready to install the driver. Click Next. 10.
  • Page 62 DFI Utility 4. Click Install to begin the installation. DFI Utility provides information about the board, Watchdog,and DIO. To access the utility, click “DFI Utility” on the main menu. Note: If you are using Windows 7, you need to access the operating system as an administrator to be able to install the utility.
  • Page 63 Chapter 4 3. Click “Install” to begin the The DFI Utility icon will appear on the desktop. Double-click the icon to open the utility. installation. 4. After completing installa tion, click “Finish”. Information HW Health Chapter 4 Supported Software www.dfi .com...
  • Page 64 Chapter 4 HW Health Set WatchDog Chapter 4 Supported Software www.dfi .com...
  • Page 65 Chapter 4 Intel USB 3.0 Drivers (For Windows 7) 3. Go through the readme docu- ment for more installation tips then click Next. To install the driver, click “Intel USB 3.0 Driver” on the main menu. 1. Setup is ready to install the driver. Click Next.
  • Page 66 Chapter 4 Intel Rapid Storage Technology 3. Read the license agreement then click Yes. (For Windows 7 and Windows 8) The Intel Rapid Storage Technology is a utility that allows you to monitor the current status of the SATA drives. It enables enhanced performance and power management for the storage subsystem.
  • Page 67 Chapter 4 Intel Rapid Start Technology 6. Click “Yes, I want to restart my computer now” then click Finish. (For Windows 7 and Windows 8) Restarting the system will allow the The Intel Rapid Start Technology is a utility that allows your system to wake up and run faster. new software installation to take To install the driver, click “Intel Rapid Start Technology”...
  • Page 68 Chapter 4 Infineon TPM Driver and Tool (optional) 4. Enter the necessary information and then click Next. To install the driver, click “Infineon TPM driver and tool (option)” on the main menu. 1. The setup program is preparing to install the driver. 5.
  • Page 69 Chapter 4 7. TPM requires installing the Micro- 10. Click “Yes“ to restart your system. soft Visual C++ package prior to installing the utility. Click Install. 8. The setup program is currently installing the Microsoft Visual C++ package. 9. Click Finish. Chapter 4 Supported Software www.dfi...
  • Page 70 Chapter 4 Adobe Acrobat Reader 9.3 To install the reader, click “Adobe Acrobat Reader 9.3” on the main menu. 1. Click Next to install or click Change Destination Folder to select another folder. 2. Click Install to begin installa- tion. 3.

  • Page 71: Chapter 5 - Digital I/O Programming Guide

    Chapter 5 Chapter 5 - Digital I/O Programming Guide The Configuration Register (register 3) configures the direction of the I/O pins. If a bit in this register is set to 1, the corresponding port pin is enabled as an input with a high-impedence Register Description output driver.
  • Page 72 Chapter 5 Function Description GPIO Output Process I2CWriteByte(SlaveAddr, SubAddr, Data): 0x42 #defi ne SLAVE_ADDR Write a Byte data to a specified I2C Device. 0x00 #defi ne INPUT_PORT 0x01 #defi ne OUTPUT_PORT 0x02 I2CReadByte(SlaveAddr, SubAddr, *Data): #defi ne INVERSION_PORT 0x03 Read a Byte data from a specified I2C Device. #defi...

  • Page 73: Chapter 6 - Raid

    Chapter 6 Chapter 6 - RAID Settings The system board allows configuring RAID on Serial ATA drives. It supports RAID 0, RAID 1, To enable the RAID function, the following settings are required. and RAID 5. 1. Connect the Serial ATA drives. RAID Levels 2.
  • Page 74 Chapter 6 Step 4: Install the RAID Driver During OS Installation Step 5: Install the Intel Rapid Storage Technology Utility The RAID driver must be installed during the Windows XP or Windows 2000 installation us- The Intel Rapid Storage Technology Utility can be installed from within Windows. It allows ®...
  • Page 75 Chapter 6 5. Go through the readme 8. Click “Yes, I want to restart document to view system this computer now” to requirements and installa- complete the installation tion information then click and then click Finish. Next. 6. Click Next to install to the default folder or click change to choose another destination folder.

  • Page 76: Appendix A - Watchdog Sample Code

    Appendix A Appendix A - Watchdog Sample Code ;Software programming example: ;--------------------------------------------- ;(1) Enter Super IO Confi guration mode ;--------------------------------------------- DX,4EH AL,87H DX,AL DX,AL ;------------------------------------------------------------------------------------------- ;(2) Confi guration Logical Device 8, register CRF0/CRF1 (WDT Control/WDT timer) ;------------------------------------------------------------------------------------------- DX,4EH AL,07H ;Ready to Program Logical Device DX,AL DX,4FH AL,08H...

  • Page 77: Appendix B - System Error Message

    Appendix B Appendix B - System Error Message Hard Disk(s) fail (20) When the BIOS encounters an error that requires the user to correct something, either a beep HDD initialization error. code will sound or a message will be displayed in a box in the middle of the screen and the message, PRESS F1 TO CONTINUE, CTRL-ALT-ESC or DEL TO ENTER SETUP, will be shown in Hard Disk(s) fail (10) the information box at the bottom.

  • Page 78: Appendix C - Troubleshooting

    Appendix C Appendix C - Troubleshooting Checklist The picture seems to be constantly moving. Troubleshooting Checklist 1. The monitor has lost its vertical sync. Adjust the monitor’s vertical sync. 2. Move away any objects, such as another monitor or fan, that may be creating a magnetic This chapter of the manual is designed to help you with problems that you may encounter field around the display.
  • Page 79 Appendix C Hard Drive System Board 1. Make sure the add-in card is seated securely in the expansion slot. If the add-in card is Hard disk failure. loose, power off the system, re-install the card and power up the system. 1.
