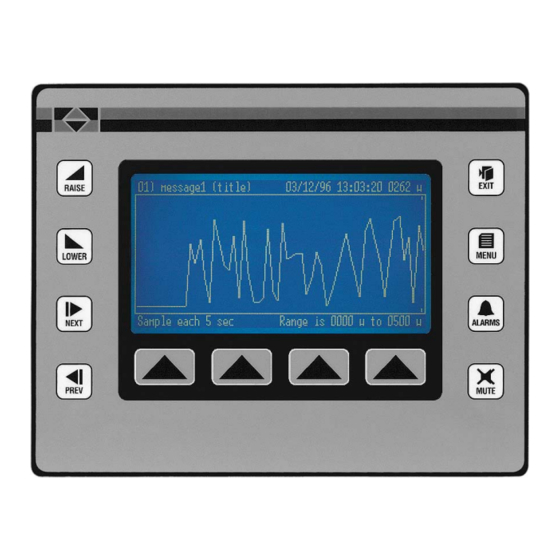

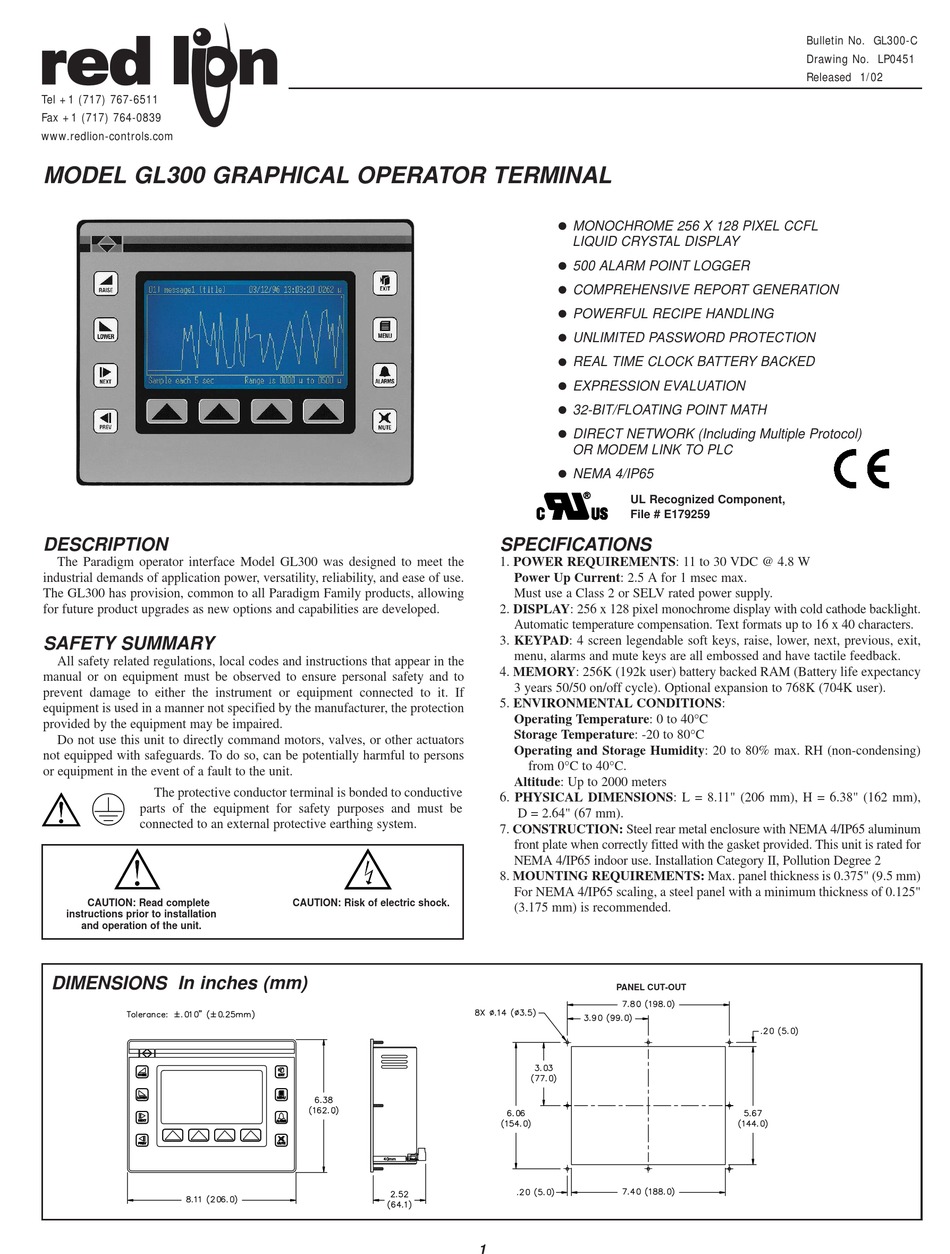

MODEL GL300 GRAPHICAL OPERATOR TERMINAL
DESCRIPTION
The Paradigm operator interface Model GL300 was designed to meet the
industrial demands of application power, versatility, reliability, and ease of use.
The GL300 has provision, common to all Paradigm Family products, allowing
for future product upgrades as new options and capabilities are developed.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use this unit to directly command motors, valves, or other actuators
not equipped with safeguards. To do so, can be potentially harmful to persons
or equipment in the event of a fault to the unit.
The protective conductor terminal is bonded to conductive
parts of the equipment for safety purposes and must be
connected to an external protective earthing system.
CAUTION: Read complete
instructions prior to installation
and operation of the unit.
DIMENSIONS In inches (mm)
CAUTION: Risk of electric shock.
MONOCHROME 256 X 128 PIXEL CCFL
!
LIQUID CRYSTAL DISPLAY
500 ALARM POINT LOGGER
!
COMPREHENSIVE REPORT GENERATION
!
POWERFUL RECIPE HANDLING
!
UNLIMITED PASSWORD PROTECTION
!
REAL TIME CLOCK BATTERY BACKED
!
EXPRESSION EVALUATION
!
32-BIT/FLOATING POINT MATH
!
DIRECT NETWORK (Including Multiple Protocol)
!
OR MODEM LINK TO PLC
! NEMA 4/IP65
UL Recognized Component,
File # E179259
SPECIFICATIONS
1. POWER REQUIREMENTS: 11 to 30 VDC @ 4.8 W
Power Up Current: 2.5 A for 1 msec max.
Must use a Class 2 or SELV rated power supply.
2. DISPLAY: 256 x 128 pixel monochrome display with cold cathode backlight.
Automatic temperature compensation. Text formats up to 16 x 40 characters.
3. KEYPAD: 4 screen legendable soft keys, raise, lower, next, previous, exit,
menu, alarms and mute keys are all embossed and have tactile feedback.
4. MEMORY: 256K (192k user) battery backed RAM (Battery life expectancy
3 years 50/50 on/off cycle). Optional expansion to 768K (704K user).
5. ENVIRONMENTAL CONDITIONS:
Operating Temperature: 0 to 40°C
Storage Temperature: -20 to 80°C
Operating and Storage Humidity: 20 to 80% max. RH (non-condensing)
from 0°C to 40°C.
Altitude: Up to 2000 meters
6. PHYSICAL DIMENSIONS: L = 8.11" (206 mm), H = 6.38" (162 mm),
D = 2.64" (67 mm).
7. CONSTRUCTION: Steel rear metal enclosure with NEMA 4/IP65 aluminum
front plate when correctly fitted with the gasket provided. This unit is rated for
NEMA 4/IP65 indoor use. Installation Category II, Pollution Degree 2
8. MOUNTING REQUIREMENTS: Max. panel thickness is 0.375" (9.5 mm)
For NEMA 4/IP65 scaling, a steel panel with a minimum thickness of 0.125"
(3.175 mm) is recommended.
PANEL CUT-OUT
