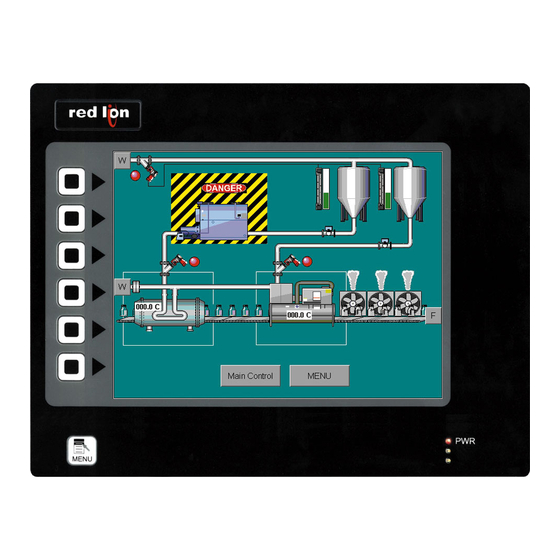

Graphic lcd operator interface terminal with vga display and touchscreen

Advertisement

Quick Links

Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net

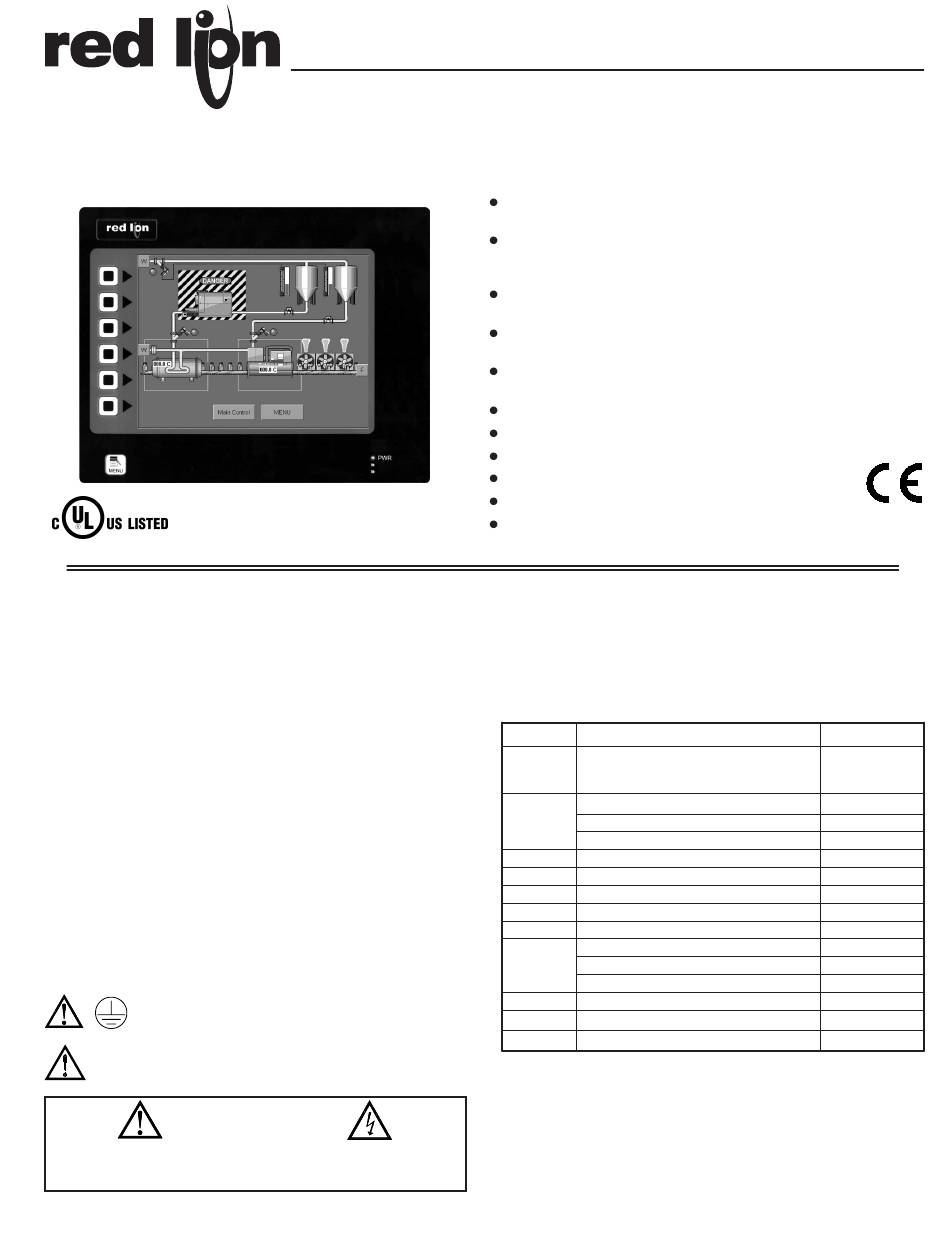

MODEL G308A - GRAPHIC LCD OPERATOR INTERFACE TERMINAL WITH
FOR USE IN HAZARDOUS LOCATIONS:
Class I, Division 2, Groups A, B, C, and D
Class II, Division 2, Groups F and G
63YN
Class III, Division 2
LABORATORY EQUIPMENT

GENERAL DESCRIPTION

The G308 Operator Interface Terminal combines unique capabilities
normally expected from high-end units with a very affordable price. It is built
around a high performance core with integrated functionality. This core allows
the G308 to perform many of the normal features of the Paradigm range of
Operator Interfaces while improving and adding new features.
The G308 is able to communicate with many different types of hardware using
high-speed RS232/422/485 communications ports and Ethernet 10 Base T/100
Base-TX communications. In addition, the G308 features USB for fast downloads
of configuration files and access to trending and data logging. A CompactFlash
socket is provided so that Flash cards can be used to collect your trending and
data logging information as well as to store larger configuration files.
In addition to accessing and controlling of external resources, the G308
allows a user to easily view and enter information. Users can enter data through
the touchscreen or front panel 7-button keypad.

SAFETY SUMMARY

All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the controller.
The protective conductor terminal is bonded to conductive
parts of the equipment for safety purposes and must be
connected to an external protective earthing system.
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2/CLASS II, DIVISION 2/CLASS III, DIVISION 2
CAUTION: Risk of Danger
Read complete instructions prior to
installationand operation of the unit.
CompactFlash is a registered trademark of CompactFlash Association.
CAUTION: Risk of electric shock.
VGA DISPLAY AND TOUCHSCREEN
CONFIGURED USING CRIMSON SOFTWARE (VERSION 2.0 BUILD
187 OR LATER)
UP TO 5 RS-232/422/485 COMMUNICATIONS PORTS
(2 RS-232 AND 1 RS-422/485 ON BOARD, 1 RS-232 AND 1
RS422/485 ON OPTIONAL COMMUNICATIONS CARD)
10 BASE T/100 BASE-TX ETHERNET PORT TO NETWORK UNITS
AND HOST WEB PAGES
USB PORT TO DOWNLOAD THE UNIT'S CONFIGURATION FROM
A PC OR FOR DATA TRANSFERS TO A PC
UNIT'S CONFIGURATION IS STORED IN NON-VOLATILE MEMORY
(8 MBYTE FLASH)
®
COMPACTFLASH
SOCKET TO INCREASE MEMORY CAPACITY
8.4-INCH TFT DISPLAY (256 COLOR, VGA 640X480 PIXELS)
7-BUTTON KEYPAD FOR ON-SCREEN MENUS
THREE FRONT PANEL LEDS
POWER UNIT FROM 24VDC ±20% SUPPLY
RESISTIVE ANALOG TOUCHSCREEN

CONTENTS OF PACKAGE

- G308 Operator Interface.
- Panel gasket.
- Template for panel cutout.
- Hardware packet for mounting unit into panel.
- Terminal block for connecting power.

ORDERING INFORMATION

MODEL NO.
Operator Interface with TFT display for
G308A
indoor applications, textured finish with
embossed keys
64 MB CompactFlash Card
G3CF
256 MB CompactFlash Card
512 MB CompactFlash Card
G3RS
RS232/485 Optional Communication Card
G3CN
CANopen Optional Communication Card
G3PBDP
Profibus DP Optional Communication Card
PSDR
Mini Power Supply 1 A
SFCRM2
2
Crimson 2.0
RS-232 Programming Cable
CBL
USB Cable
Communications Cables
DR
DIN Rail Mountable Adapter Products
Replacement Battery
G3FILM
Protective Films
1
Contact your Red Lion distributor or visit our website for complete selection.
2
Use this part number to purchase Crimson on CD with a printed
manual, USB cable, and RS-232 cable. Otherwise, download from
www.redlion.net.
3
Red Lion offers RJ modular jack adapters. Refer to the DR literature for
complete details.
4
Battery type is lithium coin type CR2025.
5
Industrial grade two million write cycles.
1
Bulletin No. G308A-E
Drawing No. LP0613
Released 1/08
DESCRIPTION
PART NUMBER
G308A000
5
G3CF064M
5
G3CF256M
5
G3CF512M
G3RS0000
G3CN0000
G3PBDP00
PSDR0100
SFCRM200
CBLPROG0
CBLUSB00
1
CBLxxxxx
3
DRxxxxxx
4
BNL20000
G3FILM08
