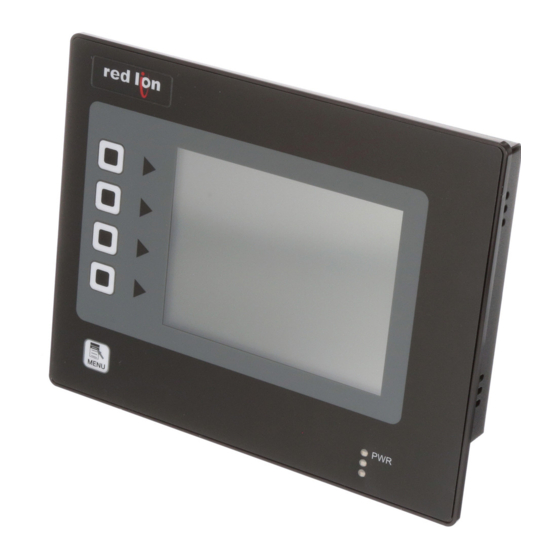

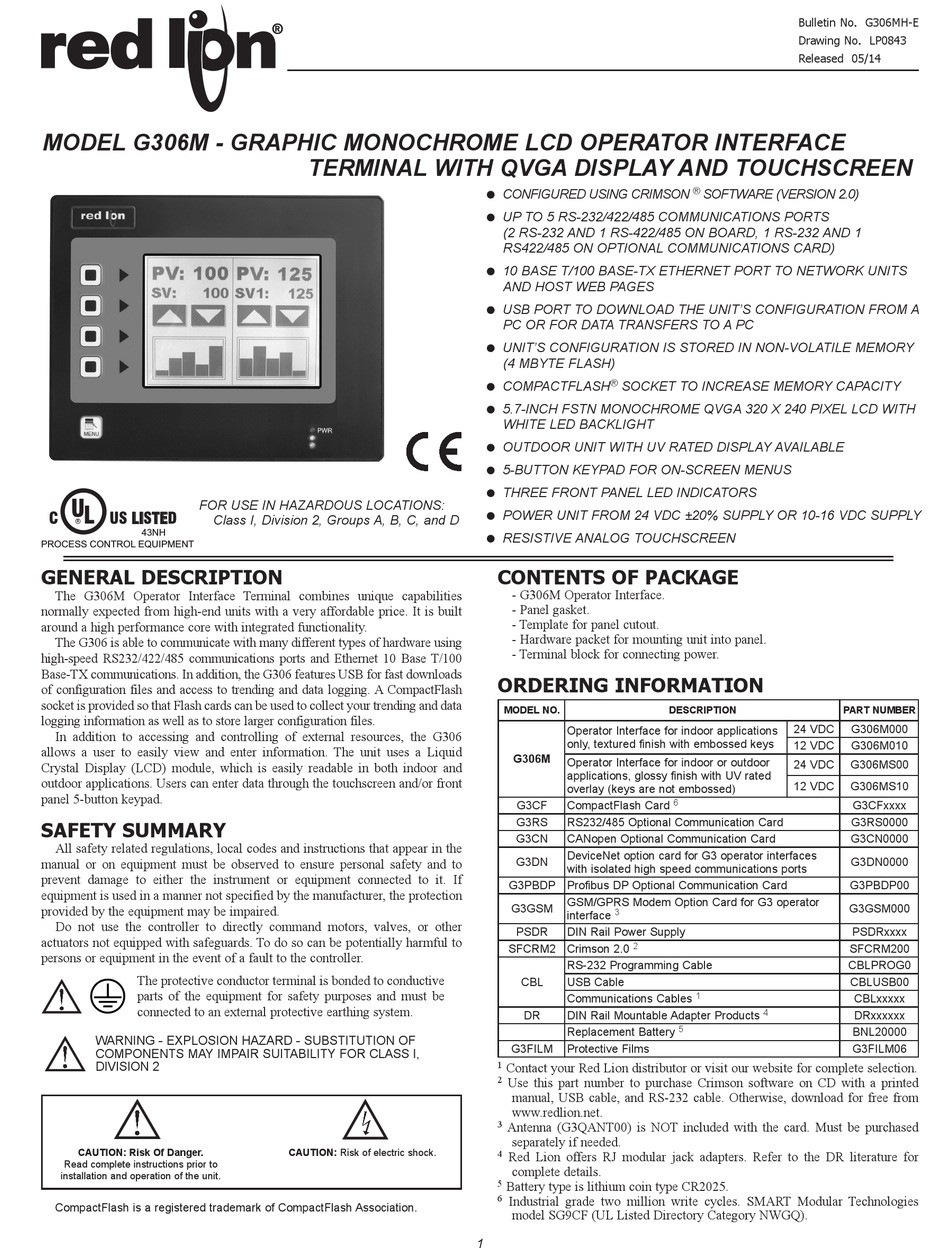

MODEL G306M - GRAPHIC MONOCHROME LCD OPERATOR INTERFACE
U L
FOR USE IN HAZARDOUS LOCATIONS:
C US LISTED
Class I, Division 2, Groups A, B, C, and D
R
43NH
PROCESS CONTROL EQUIPMENT
GENERAL DESCRIPTION
The G306M Operator Interface Terminal combines unique capabilities
normally expected from high-end units with a very affordable price. It is built
around a high performance core with integrated functionality.
The G306 is able to communicate with many different types of hardware using
high-speed RS232/422/485 communications ports and Ethernet 10 Base T/100
Base-TX communications. In addition, the G306 features USB for fast downloads
of configuration files and access to trending and data logging. A CompactFlash
socket is provided so that Flash cards can be used to collect your trending and data
logging information as well as to store larger configuration files.
In addition to accessing and controlling of external resources, the G306
allows a user to easily view and enter information. The unit uses a Liquid
Crystal Display (LCD) module, which is easily readable in both indoor and
outdoor applications. Users can enter data through the touchscreen and/or front
panel 5-button keypad.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the controller.
The protective conductor terminal is bonded to conductive
parts of the equipment for safety purposes and must be
connected to an external protective earthing system.
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2
CAUTION: Risk Of Danger.
Read complete instructions prior to
installation and operation of the unit.
CompactFlash is a registered trademark of CompactFlash Association.
TERMINAL WITH QVGA DISPLAY AND TOUCHSCREEN
CAUTION: Risk of electric shock.
CONFIGURED USING CRIMSON

UP TO 5 RS-232/422/485 COMMUNICATIONS PORTS

(2 RS-232 AND 1 RS-422/485 ON BOARD, 1 RS-232 AND 1
RS422/485 ON OPTIONAL COMMUNICATIONS CARD)
10 BASE T/100 BASE-TX ETHERNET PORT TO NETWORK UNITS

AND HOST WEB PAGES
USB PORT TO DOWNLOAD THE UNIT'S CONFIGURATION FROM A

PC OR FOR DATA TRANSFERS TO A PC
UNIT'S CONFIGURATION IS STORED IN NON-VOLATILE MEMORY

(4 MBYTE FLASH)
®
COMPACTFLASH SOCKET TO INCREASE MEMORY CAPACITY

5.7-INCH FSTN MONOCHROME QVGA 320 X 240 PIXEL LCD WITH

WHITE LED BACKLIGHT
OUTDOOR UNIT WITH UV RATED DISPLAY AVAILABLE

5-BUTTON KEYPAD FOR ON-SCREEN MENUS

THREE FRONT PANEL LED INDICATORS

POWER UNIT FROM 24 VDC ±20% SUPPLY OR 10-16 VDC SUPPLY

RESISTIVE ANALOG TOUCHSCREEN

CONTENTS OF PACKAGE
- G306M Operator Interface.
- Panel gasket.
- Template for panel cutout.
- Hardware packet for mounting unit into panel.
- Terminal block for connecting power.
ORDERING INFORMATION
MODEL NO.
Operator Interface for indoor applications
only, textured finish with embossed keys
G306M
Operator Interface for indoor or outdoor
applications, glossy finish with UV rated
overlay (keys are not embossed)
G3CF CompactFlash Card
G3RS RS232/485 Optional Communication Card
G3CN CANopen Optional Communication Card
DeviceNet option card for G3 operator interfaces
G3DN
with isolated high speed communications ports
G3PBDP Profibus DP Optional Communication Card
GSM/GPRS Modem Option Card for G3 operator
G3GSM
3
interface
PSDR DIN Rail Power Supply
2
SFCRM2 Crimson 2.0
RS-232 Programming Cable
CBL USB Cable
Communications Cables
DR DIN Rail Mountable Adapter Products
Replacement Battery
G3FILM Protective Films
1
Contact your Red Lion distributor or visit our website for complete selection.
2
Use this part number to purchase Crimson software on CD with a printed
manual, USB cable, and RS-232 cable. Otherwise, download for free from
www.redlion.net.
3
Antenna (G3QANT00) is NOT included with the card. Must be purchased
separately if needed.
4
Red Lion offers RJ modular jack adapters. Refer to the DR literature for
complete details.
5
Battery type is lithium coin type CR2025.
6
Industrial grade two million write cycles. SMART Modular Technologies
model SG9CF (UL Listed Directory Category NWGQ).
1
Bulletin No. G306MH-E
Drawing No. LP0843
Released 05/14
®
SOFTWARE (VERSION 2.0)
DESCRIPTION PART NUMBER
24 VDC
12 VDC
24 VDC
12 VDC
6
1
4
5
G306M000
G306M010
G306MS00
G306MS10
G3CFxxxx
G3RS0000
G3CN0000
G3DN0000
G3PBDP00
G3GSM000
PSDRxxxx
SFCRM200
CBLPROG0
CBLUSB00
CBLxxxxx
DRxxxxxx
BNL20000
G3FILM06
