Summary of Contents for Westermo DDW-02-B1

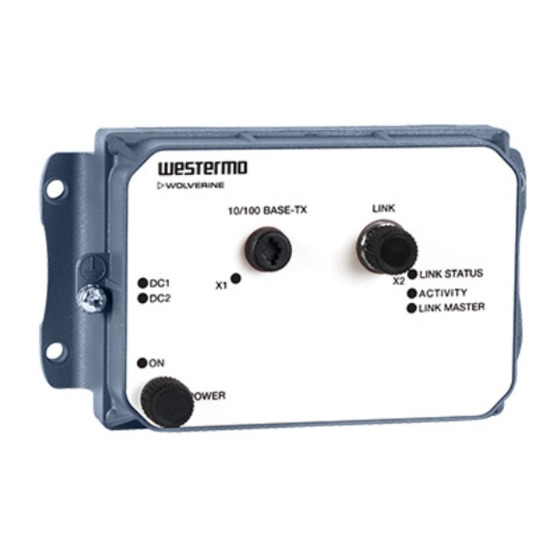

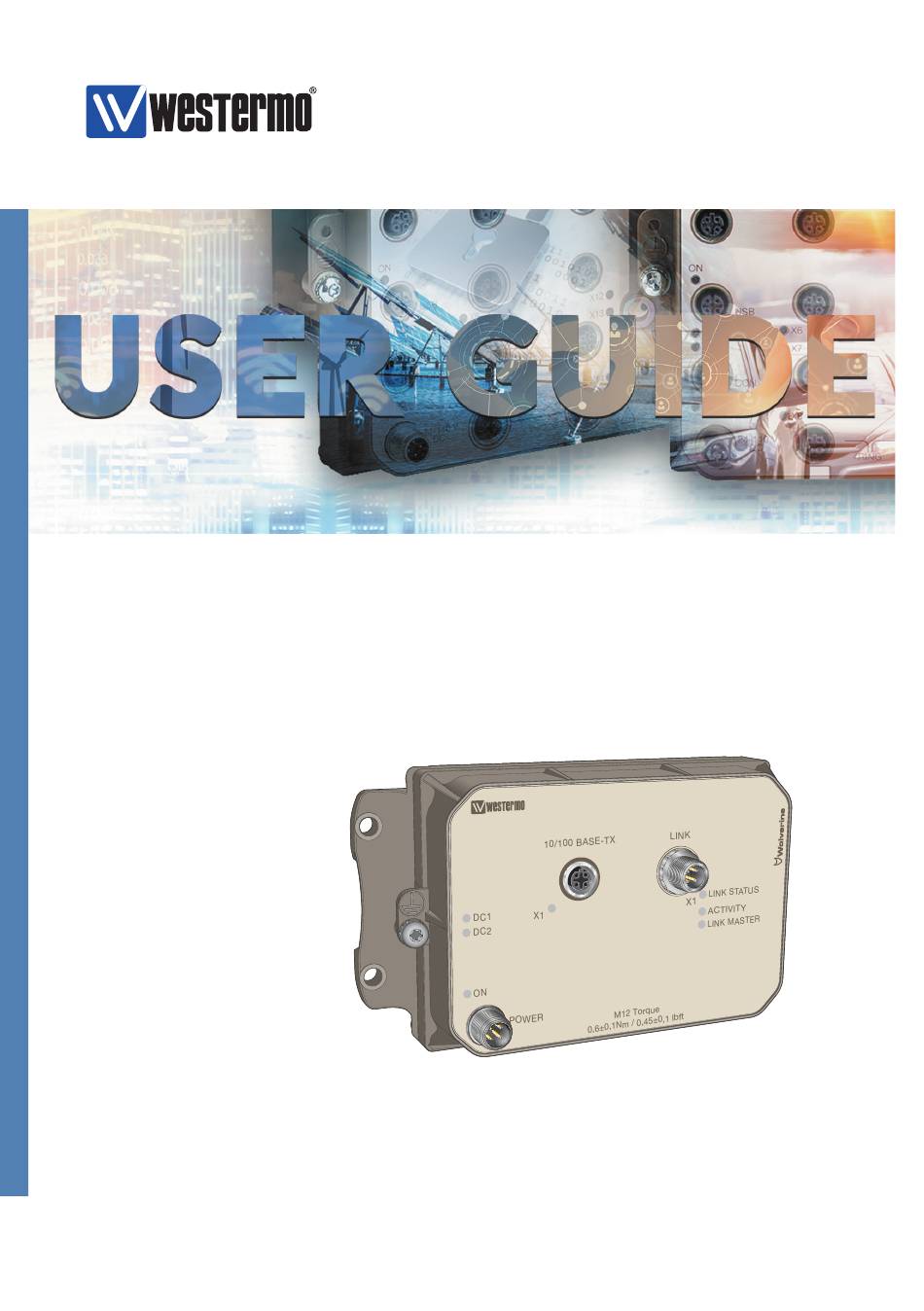

- Page 1 DDW-02-B1 EN 50155 Ethernet Broadband Bridge...
- Page 2 Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused.
- Page 3 Safety Before installation: Read this manual completely and gather all information on the unit. Make sure that you understand it fully. Check that your application does not exceed the safe operating specifications for this unit. This unit should only be installed by qualified personnel. This unit should be built-in to an apparatus cabinet, or similar, where access is restricted to service personnel only.
-
Page 4: Care Recommendations
… Do not cover or bring mechanical force to the ventilation membrane on the back of the unit. If the unit is not working properly, contact the place of purchase, nearest Westermo distributor office or Westermo Tech support. Maintenance No maintenance is required, as long as the unit is used as intended within the specified conditions. -
Page 5: Simplified Eu Declaration Of Conformity
Simplified EU declaration of conformity Hereby, Westermo declares that the equipment is in compliance with EU directives. The full EU declaration of conformity and other detailed information are available at the respective product page at www.westermo.com. . Agency approvals and standards compliance... - Page 6 Type tests and environmental conditions Environmental phenomena Basic standard Description Test levels EN 61000-4-2 Enclosure Contact: ±6 kV Air: ±8 kV Fast transients EN 61000-4-4 Power port ±2 kV Signal ports ±2 kV Earth port ±1 kV Surge EN 61000-4-5 Power port L-E: ±2 kV, 12Ω, 9 μF, 1.2/50 μs L-L: ±1 kV, 2Ω, 18 μF, 1.2/50 μs...
- Page 7 EN 50155. For several characteristics, Westermo exceeds the requirements mandated by the standard. Furthermore, the design is based on Westermo’s long experience within the rolling stock market, which brings benefits such as vi bration safe integrated connector threading, IP67 ingress protection with GORE-TEX®...
-
Page 8: Interface Specifications
Up to 150 m with CAT5e cable or better Isolation to 1500 VAC rms to all other ports Connection 4-pin M12 D-code, auto MDI/MDI-X, use e g Westermo cable 3146-1100 M12-M12 – 1 m 3146-1101 M12-M12 – 5 m 3146-1103 RJ45-M12 – 1 m 3146-1104 RJ45-M12 –... - Page 9 Location of interface ports and LEDs Ethernet connection TX Powerline connection LED indicators 10/100 BASE/TX LINK LINK STATUS Earth ACTIVITY connection LINK MASTER POWER M12 Torque 0,6±0,1Nm / 0,45±0,1 lbft Power connection 6641-2280...
- Page 10 Connector pinout Power connection Pin number Signal No 1 +DC1 No 2 +DC2 No 3 -COM No 4 -COM Ethernet connection Pin number Signal No 1 No 2 No 3 TD– No 4 RD– Housing Shield Auto MDI/MDI-X is used. The table shows signals in MDI mode.
-
Page 11: Led Indicators
LED Indicators Status Description Unit has no power GREEN All OK, no alarm condition Unit has no power GREEN Power OK on DC1 Power failure on DC1 Unit has no power GREEN Power OK on DC2 Power failure on DC2 No Link GREEN Link established... -
Page 12: Wall Mounting
Wall mounting There are four 6 mm bore holes intended for mounting the unit. The unit can be mounted vertical or horizontal. Use four M5 screws with 12 mm washer on a flat and stable surface. 10/100 BASE/TX LINK LINK STATUS ACTIVITY LINK MASTER POWER... -
Page 13: Getting Started
Getting Started This product is an unmanaged Ethernet extender designed to propagate Ethernet traffic over existing cabling. The DDW-002-B1 is easy to use and install. The units work in a pair over existing copper cabling infrastructure and automatically connect to each other when the remote device is sensed over the interconnecting lines. - Page 14 Dimensions Measurements are stated in millimeters. 6641-2280...
- Page 15 6641-2280...
- Page 16 Westermo • SE-640 40 Stora Sundby, Sweden Tel +46 16 42 80 00 Fax +46 16 42 80 01 E-mail: info@westermo.com www.westermo.com REV. F 6641-2280 2018-05 Westermo Teleindustri AB, Sweden...
