Stacker Relocation
The stacker cannot be moved except by a DRC rigger.
To ensure that the stacker operates reliably after moving it to a new
location, consider the following guidelines:
·

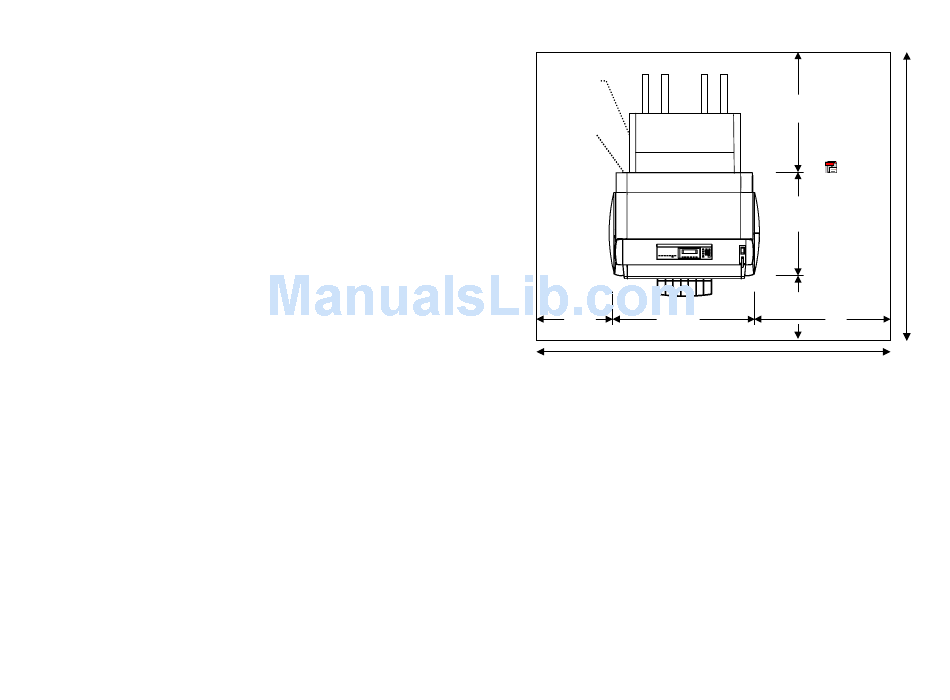

The new location must provide minimum clearances around the
stacker. These clearances are shown in the diagram on the
right.
·
The flooring in the new location must be adequate to support the
weight of the stacker and be reasonably level.
·
The new location must be well ventilated and maintain an even
temperature. Extreme temperature or humidity changes can
affect the stacker.
·
Power source receptacles must be properly grounded.
In addition to the above requirements, the surface must be at least
157" (400cm) x153.5" (390cm) and be capable of supporting at least
108lb (49kg) stacker and the 880lb (400kg) printer attached.
Top View
Stacker
power cord
12'
Printer
Stacker
power cord
12'
(3.66m)
721P
35"
57"
(90cm)
(145cm)
157"
(400cm)
8
66"
(168cm)
153.5"
(390cm)
39.5"
(100cm)
48"
(122cm)
65"
(165cm)
