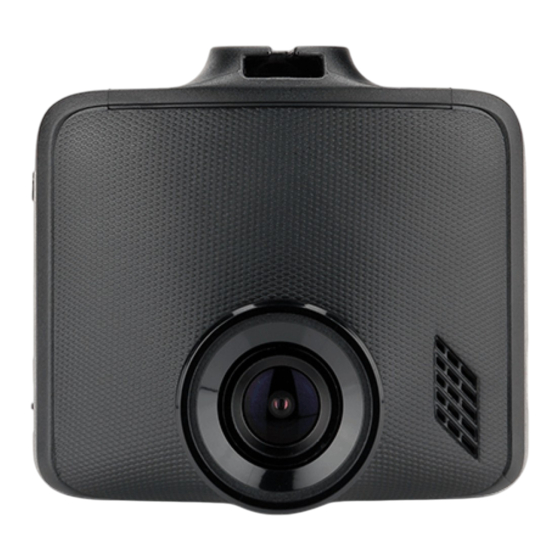

Mio 5415N5780005 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
MiVue
C380D
™

Advertisement

Table of Contents
loading

Related Manuals for Mio 5415N5780005

Summary of Contents for Mio 5415N5780005

  • Page 1 User Manual MiVue C380D ™...
  • Page 2 The screenshots in this manual may differ between different operating systems and software versions. You can download the latest User Manual of your product from Mio™ website (www.mio.com). Specifications and documents are subject to change without notice. MiTAC does not warrant this document is error-free.

  • Page 3: Table Of Contents

    Table of Contents Getting to know your dash cam ................4 MiVue rear camera ..................4 Using your dash cam in a vehicle ................. 5 Precautions and notices .................. 5 Inserting a memory card ..................8 Formatting a card .................... 8 Connecting to your computer ................
  • Page 4 System settings ....................17 File Playback ....................17 Camera......................17 Sound Recording................... 17 SafetyCam..................... 17 Parking mode ....................18 Video Recording .................... 18 System ......................19 Format ......................19 MiVue Manager ....................20 Installing MiVue Manager ................20 Playing the recording files ................20 For more information ..................

  • Page 5: Getting To Know Your Dash Cam

    Getting to know your dash cam Device mount socket Mini-USB connector Memory card slot System indicator Microphone LCD screen Power button ( Function keys Camera lens Speaker Shutdown button MiVue rear camera Depending on your model, your device may support a rear camera (may be sold separately).

  • Page 6: Using Your Dash Cam In A Vehicle

    Using your dash cam in a vehicle Precautions and notices Do not operate the device while driving. Using this product does not change the requirement for a driver to take full responsibility for his or her behavior. This responsibility includes observing all traffic rules and regulations in order to avoid accidents, personal injury or property damage.
  • Page 7 Make sure that your car is parked on level ground. Follow the instructions to mount your dash cam in a vehicle securely. 1. Mount the dash cam. 2. Mount the rear camera (optional). Note: Before sticking the mounting pad, it is recommended to clean the windscreen with rubbing alcohol.
  • Page 8 3. Adjust the lens angle. When adjusting the angle of mounting, make sure that the camera’s view is parallel with the level ground and the ground/sky ratio is close to 6/4. 4. Connect the cables. Route the cables through the top ceiling and the A-pillar so that it does not interfere with driving.

  • Page 9: Inserting A Memory Card

    Inserting a memory card Note: DO NOT apply pressure to the centre of the memory card. MiTAC does not guarantee the product’s compatibility with memory cards from all manufacturers. Before you start recording, please format the memory card to avoid malfunction caused by files not created by the dash cam. Turn the device off before removing the memory card. You must insert a memory card (not supplied) before you can start recording.

  • Page 10: Turning The Dash Cam On

    Turning the dash cam on Complete the installation according to the instructions in the “Using your dash cam in a vehicle” section. Once the vehicle engine is started, the dash cam automatically turns on. The System indicator glows in green when the dash cam is powered. Power button Press and hold the Power button for 2 seconds to manually turn the dash cam on and off.

  • Page 11: System Icons

    System icons Various system icons on the status bar at the top of the screen provide the status information of your device. The displayed icons will vary depending on your device model and state. Recording indicator Time display Microphone status GPS signal* Current GPS car speed* * For selected models only.

  • Page 12: Switching Screens

    Switching screens Once you connect the rear camera and start recording, the icon will appear on the screen. You can switch the front and rear camera images by pressing Setting the date and time To make sure that the date and time of your recordings are correct, check the settings before you begin recording.

  • Page 13: Recording In Driving Mode

    Recording in driving mode Continuous recording The system will automatically begin continuous recording in few seconds after start- up. The System indicator flashes in green and amber alternately while the recording is in progress. When continuous recording is in progress, you can manually stop recording by pressing .

  • Page 14: Parking Mode

    Note: This feature is not available on all models. Your dash cam supports the parking recording function. You must use an additional power source to record the video during the Parking mode, such as a Mio uninterruptible power cable which is sold separately. For more information on using a Mio power cable, see the provided documentation in its package.

  • Page 15: Camera Mode

    To exit the Parking mode and resume continuous recording, press . If movements are detected and recorded during the Parking mode, you will be asked to playback the video when you exit the Parking mode. The parking recordings can be found in the “Parking” category for file playback. Camera mode The dash cam allows you to take a photo.

  • Page 16: Safety Camera Alerts

    Play / Pause: Starts or pauses the playback. Play rear video / Play front video: The "D" icon displayed on the thumbnail on the playlist indicates that the video comes with a corresponding rear video. While playing the video, you can use this option to switch between the front and rear videos.

  • Page 17: Adding A Safety Camera

    MiTAC does not warrant that all types and locations of safety camera data are available as cameras may be removed, relocated or new cameras installed. Occasionally, MiTAC may offer you updates of safety camera data. Visit the Mio website for available downloads and follow the instructions to complete update.

  • Page 18: System Settings

    System settings Note: Not all setting items and options are available for all models. To customise the system settings, press File Playback Plays the recorded videos and photos. Camera Press to enter Camera mode. Sound Recording Sets if you want to include sounds in the recordings. SafetyCam Alert Sound: Turns on (Beep or Voice) or off (Mute) the alert sound.

  • Page 19: Parking Mode

    Parking mode Detection: When enabled, the dash cam will automatically enters the Parking mode when the car stops moving for about 5 minutes. Detection Method: Sets the parking detection method to G-Sensor, Motion or Both. Auto Entry: Sets the mode for the system to enter the Parking mode automatically.

  • Page 20: System

    Text stamp: Displays customisable text information. System Satellites: Displays the status of the GPS/GLONASS signal reception. You can press and then select GPS or GLONASS for better signal reception if the need arises. Date/Time: Sets the system date and time. System Sound: Enables or disables system notification sounds.

  • Page 21: Mivue Manager

    Note: Not all features are available for every model. Installing MiVue Manager Download MiVue Manager from the Support page of Mio website (www.mio.com/ support) and follow the on-screen prompts to install it. Make sure to download the correct software version (Windows or Mac) according to your computer's operating system.
  • Page 22 Skips to the previous / next file on the list. Starts or pauses the playback. Changes the playback speed to 1/4x, 1/2x, 1x (default), 1.5x, or 2x. Mutes or unmutes the volume. Adjusts the volume level. Plays the video in full screen. Displays the playback progress.
  • Page 23 Opens the Settings Menu. Change Language: Sets the display language of MiVue Manager. Change Skin: Sets the colour scheme of MiVue Manager. Check for Update: Checks if there is any new version of MiVue Manager. (Internet access is required for this feature.) About: Displays the version and copyright information of MiVue Manager.

  • Page 24: For More Information

    For more information Caring for your device Taking good care of your device will ensure trouble-free operation and reduce the risk of damage. Keep your device away from excessive moisture and extreme temperatures. Avoid exposing your device to direct sunlight or strong ultraviolet light for extended periods of time.

  • Page 25: Safety Precautions

    Safety precautions About charging Use only the charger supplied with your device. Use of another type of charger may result in malfunction and/or danger. This product is intended to be supplied by a LISTED Power Unit marked with “LPS”, “Limited Power Source” and output rated + 5 V dc / 1.0 A. About the charger Do not use the charger in a high moisture environment.

  • Page 26: About Gps

    The battery must be recycled or disposed of properly. Use the battery only in the specified equipment. About GPS Note: This feature is not available on all models. GPS is operated by the United States government, which is solely responsible for the performance of GPS.

  • Page 27: Declaration Of Conformity

    EN 50498: 2010 EN 55032: 2015+AC: 2016, Class B EN 55024: 2010 EN 61000-4-2: 2009 / IEC 61000-4-2: 2008 ED. 2.0 EN 61000-4-3: 2006 +A1: 2008+A2: 2010 / IEC 61000-4-3: 2010 ED. 3.2 EN 61000-4-4: 2012 / IEC 61000-4-4: 2012 ED. 3.0 EN 61000-4-6: 2014 / IEC 61000-4-6: 2013 ED.
