Steam Generator Connections - Insignia GT0509 Instruction Manual

www.insigniarange.com Last Modified: 08/10/2015

Steam Generator Connections

The steam generator has 3 connections.
Steam Outlet: Connect the white insulated hose to the white steam pod within your shower.
Make sure these are fitted in the correct position as they are only attached for transportation
reasons only.
Water Inlet: Connect a braided hose from the shower valve's centre feed to this opening.
Drain: Connect the grey rubber hose from the steam generators drain opening to the nozzle on

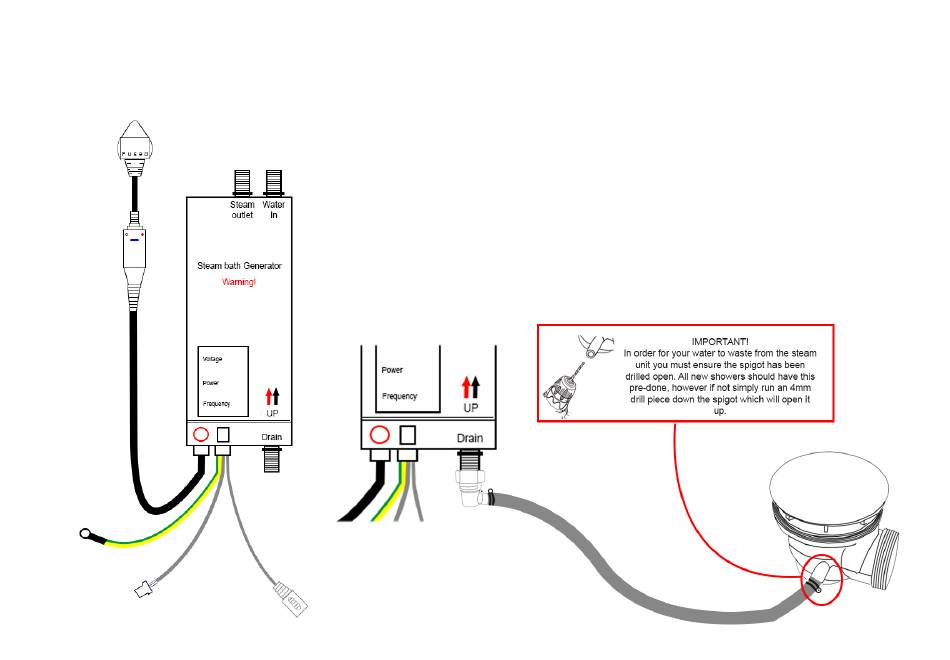

the shower waste (as shown in the below image)
