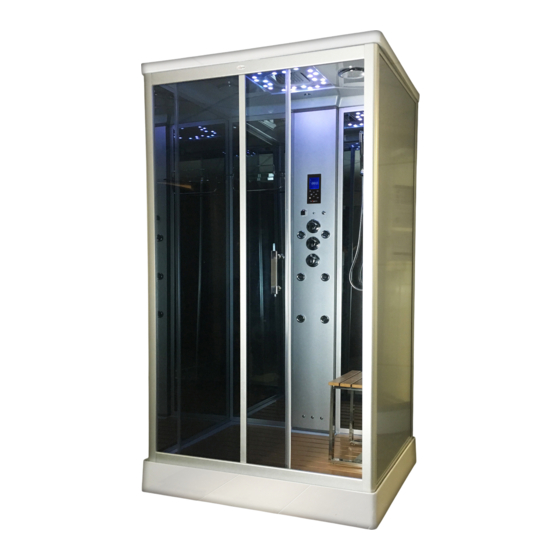

Insignia GT9001 Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
INSTALLATION MANUAL
GT9001
ATTENTION INSTALLERS:
These instructions must be
left with the customer
www.insigniarange.com
CHECK ALL CONTENTS BEFORE BUILD COMMENCES. NO RETURNS CAN BE MADE
ONCE THE BUILD HAS STARTED AS IT IS DEEMED ACCEPTANCE OF PRODUCT!
WARRANTY REG NO: __________________________
To claim your full 5 year warranty, register your shower within 90 days of delivery at: www.insigniarange.co.uk/
warrantyreg.aspx. Standard 12 month warranty applies if outside this time period.
Last Modified: 26/01/2017
www.insigniarange.co.uk
30 Day Technical Support:
(NOTE: This service is only available to customers from the day of delivery,
please have your supplier's details and your postcode to hand before calling)
Replacements Parts:
inside of your warranty contact:
www.insigniarange.co.uk/customerService.aspx
Spares/Replacements Parts:
outside of your warranty
contact 0844 800 3069
01908 226545

Advertisement

loading

Related Manuals for Insignia GT9001

Summary of Contents for Insignia GT9001

  • Page 1 INSTALLATION MANUAL 30 Day Technical Support: 01908 226545 GT9001 (NOTE: This service is only available to customers from the day of delivery, please have your supplier’s details and your postcode to hand before calling) Replacements Parts: inside of your warranty contact: www.insigniarange.co.uk/customerService.aspx...

  • Page 2: Table Of Contents

    www.insigniarange.com Last Modified: 26/01/2017 Contents Introduction Electrical Requirements What’s In The Boxes? Screw Pack Contents Plumbing Requirements Starting The Installation Electric Box Connections Steam Generator Connections Sealing and Water Testing MK117 Control Panel Instructions Help Book Information Parts lists...
  • Page 3 Last Modified: 26/01/2017 Thank you for your recent purchase of an Insignia shower. Please read this booklet with great care to ensure you get the best out of your build and have a shower that will last for many years to come! Like everything, in order to obtain a first class product that will serve you well for many years, the effort and correctness put into the assembly will reflect in the quality of your finish.
  • Page 4 www.insigniarange.com Last Modified: 26/01/2017 ASSEMBLY AND PLUMBING THIS PRODUCT BUILD IS RATED SUITABLE FOR DIY PURPOSES PROVIDING THE CUSTOMER IS OF ABOVE AVERAGE SKILL AND FEELS CONFIDENT IN THEIR ABILITY. ONLY YOU THE CUSTOMER WILL KNOW THIS SO BEFORE ANY ATTEMPT IS MADE TO ASSEMBLE, READ THROUGH THE FOLLOWING PAGES IN DETAIL THEN DECIDE.
  • Page 5 www.insigniarange.com Last Modified: 26/01/2017 TOTAL ELECTRICAL REQUIREMENTS Voltage Rating 220 -240AC Frequency Rating 50HZ Power Rating 2.8KW Your electrical contractor should understand ALL legal requirements of connection before undertaking any work or installation. UNDER NO CIRCUMSTANCES UNDERTAKE THIS YOURSELF!!! Note for electrician. This product comes with 13 amp plug(s) fitted with an RCD unit. We leave it this way for you to connect this your own way due to continued additions to current regulations.
  • Page 6 www.insigniarange.com Last Modified: 26/01/2017 Tool Requirements Scissors Stanley Blade Silicone Gun Spirit Level Tape Measure Philips Screwdriver Electric Drill Adhesive Requirements Bacteria Resistant Sanitary Silicone - (for vertical joints) RubberGum Plumbers Mait (for waste joints) Not Supplied Not Supplied Not Supplied Hardware Requirements A Steam Shower requires 3 x 1 Metre Braided Hose Not Supplied...

  • Page 7: What's In The Boxes

    www.insigniarange.com Last Modified: 26/01/2017 Whilst the next steps show you how to assemble your shower we want to make sure you have a correct build to ensure you get a trouble free shower. Therefore our advice is to follow the instructions and perform a dry run to ensure you are confident with the build and you understand fully how the unit is assembled. When we use the word “DRY RUN”...
  • Page 8 Note: In some cases you may have more screws than needed, this is done so you have spares! VERY IMPORTANT Have you got everything? If not please contact the Insignia Support Line on 01908 226545. Remember NEVER book your tradesman until everything has arrived, been checked and is present.
  • Page 9 www.insigniarange.com Last Modified: 26/01/2017 Pressure Requirements from your house supply We recommend a bar pressure between 2.5 and 3.4 BAR. If you have a combi boiler system no problem should be experienced. If you have a gravity feed older type installation (hot water tank type usually less than 1 bar) you will almost certainly need a pump.
  • Page 10 www.insigniarange.com Last Modified: 26/01/2017 TO START Make sure you have a clear space, remember when finished and in place you need access to check your build and able to pull the shower out for servicing or should you have the need to replace anything! Take the shower tub and remove all the protective wrapping and fit the waste.
  • Page 11 www.insigniarange.com Last Modified: 26/01/2017 Step 1 Silicone under the left hand glass panel and place in position on the tray and whilst holding in this position silicone the bottom and align the back left glass panel in the po- sition numbered 1 on the adjacent picture and walk around into position 2 to click the panel in it’s final position Step 2 Repeat step 1 on the right hand side of the tray...
  • Page 12 www.insigniarange.com Last Modified: 26/01/2017 Step 3 Now silicone the column either side and at the bottom and place the column in be- tween the two rear glass panels and screw in position using the ST20 screws (please note, if your column has a rubber seal at the bottom , take the rubber off and apply silicone inside the rubber and replace)
  • Page 13 www.insigniarange.com Last Modified: 26/01/2017 Step 4 Attach both uprights to your top and bottom rails using the ST35 screws...
  • Page 14 www.insigniarange.com Last Modified: 26/01/2017 Step 5 Now using the ST20 screws, screw in position as indicated by the image Step 6 Now use the corner uprights and place into position on either side of the frame as indicated by the image on the right...
  • Page 15 Step 8 Meet the frame to the side panels as per the hand opening of your choice ( Note: If the insignia logo is at the bottom simply peal it off and place on the top rail) Silicone under the frame before securing into position...
  • Page 16 www.insigniarange.com Last Modified: 26/01/2017 Step9 Now using the ST20 screws and SW9 washers, screw in position as Indicated by the image...
  • Page 17 www.insigniarange.com Last Modified: 26/01/2017 Step 10 Screw down the roof to the back and side panels as well as the back walls to the shower tray using ST25 screws and SW9 washers from the rear of the shower.
  • Page 18 www.insigniarange.com Last Modified: 26/01/2017 Accessory Installation Please Note Ensure all grey backing film on the rear of the glass panels are pierced through the existing glass holes with a knife to provide an efficient smooth fitting and location of the accessories. We recommend using a screwdriver on the smaller holes.
  • Page 19 www.insigniarange.com Last Modified: 26/01/2017 Hand Shower Attach the chrome riser bar to the glass wall ensuring the water inlet is inserted through the lower large hole and hand tightened from the rear side. Now tighten the chrome shower holder ensuring that this will take the Monsoon Head hand shower itself without falling (please note over tightening will pre-...
  • Page 20 www.insigniarange.com Last Modified: 26/01/2017 Handle Ensuring that the inner thread is protruding out from the handle far enough, place the handle on the outside of the door and secure by tightening the inner chrome knob to the protruding inner thread. Wheels Fit the adjustable wheels to the top and bottom of the glass doors and ensure the wheels are at their lowest position and hang on the inner curved rails with the wheels facing the...
  • Page 21 Connect the hoses to the corresponding inlets on the back of the shower. Device output may differ from the image. Please refer to your outer chrome faceplate in- side your Insignia shower as a reference point. IF YOUR DIAL DOES NOT CORROSPOND TO THE APPROPRIATE DEVICE: Turn on your water to the shower and note which output the water exits from then turn off the water and swap over the relevant hose.

  • Page 22: Electric Box Connections

    www.insigniarange.com Last Modified: 26/01/2017 Electric Box Connections Connect the cables below to the corresponding devices on the shower Tray Lights (Requires supplied extension lead) Ozone (o3) Top Light Speaker Earth Radio Aerial Phono (AUX, CD/MP3) RJ11 Phone Connection Thermostatic Probe...
  • Page 23 www.insigniarange.com Last Modified: 26/01/2017 Connection For Tray & Column Lights Using the supplied extension lead, please connect the end with the single connection to your tray lights. Next bring the extension lead up the back of the shower and connect one of the plugs to the wire coming from the electric box representing the symbol as shown on the image (essentially bridging the two sets of lights together) Now with the remaining connection, Just leave this as this is not required to be used on...

  • Page 24: Steam Generator Connections

    www.insigniarange.com Last Modified: 26/01/2017 Steam Generator Connections The steam generator has 3 connections. Steam Outlet: Connect the white insulated hose to the white steam pod within your shower. Make sure these are fitted in the correct position as they are only attached for transportation reasons only.
  • Page 25 www.insigniarange.com Last Modified: 26/01/2017 Silicone Seal where shown in red on the inside of the shower TESTING FOR WATER LEAKS LEAVE THE SHOWER 24 HOURS AFTER BUILD TO ALLOW SEALENT TO CURE AND ENSURE THE SHOWER IS AWAY FROM ITS FINAL POSITION TO ALLOW REAR VIEWING Ensure all connections are tight and sealed including the waste, body jets and steam outlet (model dependent) on your shower.

  • Page 26: Mk117 Control Panel Instructions

    www.insigniarange.com Last Modified: 26/01/2017 MK117 Control Panel Instructions Button 1 (Light Bulb) Button 7 (Down Arrow) Press 1x For Top Light Channel select down/manual search Press 2x For Column Light Press 3x For All Lights Button 8 (TUN) Press 4x To Switch Off Lights Switch Between manual &...
  • Page 27 www.insigniarange.com Last Modified: 26/01/2017 Need Help? Then simply download the following "Help" advice booklet found at this link below. This contains many useful items such as is your parts warranty registered, advice on cleaning / servicing your shower cabin, fault finding and many more items. This is a MUST to read and not just "HELP". It saves time in nearly all cases, avoiding contact with ourselves as most answers are there for a ready fix! Simply visit: www.insigniarange.co.uk/help.aspx...

  • Page 28: Parts Lists

    SP164 MK117 Control panel Part Code Part Description Part Code Part Description SP143 Monsoon Shower head SP222 Blister pack GT9001-4 Top & Bottom Rail SP056 Ozone Module (for Steam SP152 Standard shower head GT9001-5 Curved corner post Showers) GT9001-2 Corner Post...
  • Page 29 All images are registered with ImageTraker Insignia™ is a registered trademark of Maclean International Ltd All images are subject to copyright. Images may not be used in any way shape or form with out written permission from Maclean International Ltd. Images are NOT permitted...
