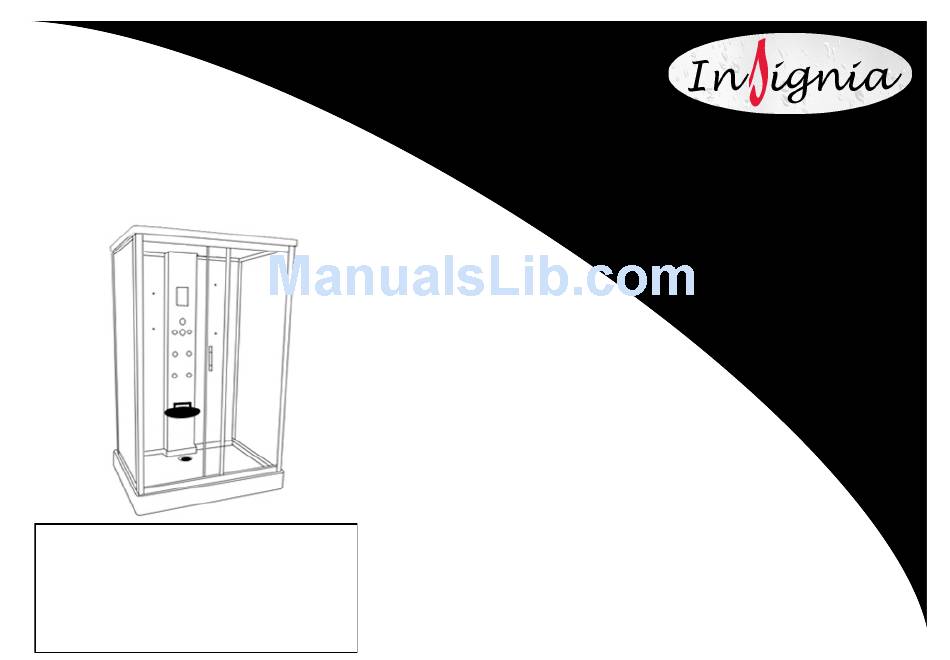

INSTALLATION MANUAL
GT002
ATTENTION INSTALLERS:
These instructions must be
left with the customer
www.insigniarange.com
CHECK ALL CONTENTS BEFORE BUILD COMMENCES. NO RETURNS CAN BE MADE
ONCE THE BUILD HAS STARTED AS IT IS DEEMED ACCEPTANCE OF PRODUCT!
WARRANTY REG NO: __________________________
To claim your full 5 year warranty, register your shower within 90 days of delivery at: www.insigniarange.co.uk/
warrantyreg.aspx. Standard 12 month warranty applies if outside this time period.
Last Modified: 23/06/2017
www.insigniarange.co.uk
30 Day Technical Support:
(NOTE: This service is only available to customers from the day of delivery,
please have your supplier's details and your postcode to hand before calling)
Replacements Parts:
inside of your warranty contact:
www.insigniarange.co.uk/customerService.aspx
Spares/Replacements Parts:
outside of your warranty
contact 0844 800 3069
01908 226545

Advertisement

loading
Need help?

Need help?

Do you have a question about the GT002 and is the answer not in the manual?

Questions and answers

Related Manuals for Insignia GT002

Summary of Contents for Insignia GT002

  • Page 1 Last Modified: 23/06/2017 INSTALLATION MANUAL www.insigniarange.co.uk GT002 30 Day Technical Support: 01908 226545 (NOTE: This service is only available to customers from the day of delivery, please have your supplier’s details and your postcode to hand before calling) Replacements Parts: inside of your warranty contact: www.insigniarange.co.uk/customerService.aspx...

  • Page 2: Table Of Contents

    www.insigniarange.com Last Modified: 23/06/2017 Contents Introduction Electrical Requirements What’s In The Boxes? Screw Pack Contents Plumbing Requirements Schematics Starting The Installation Electric box connections Sealing and Water Testing Control Panel Instructions Help Book Information Parts lists...
  • Page 3 Last Modified: 23/06/2017 Thank you for your recent purchase of an Insignia shower. Please read this booklet with great care to ensure you get the best out of your build and have a shower that will last for many years to come! Like everything, in order to obtain a first class product that will serve you well for many years, the effort and correctness put into the assembly will reflect in the quality of your finish.
  • Page 4 DURING BUILD, LIKE ALL SHOWERS CORRECT SEALING IS IMPERATIVE. If you are using Insignia’s RubberGum, please ensure the product does not come in contact with your silicone as this will cause the RubberGum to fail and will not adhere as intended.

  • Page 5: Electrical Requirements

    www.insigniarange.com Last Modified: 23/06/2017 TOTAL ELECTRICAL REQUIREMENTS Voltage Rating 220 -240AC Frequency Rating 50HZ Power Rating Your electrical contractor should understand ALL legal requirements of connection before undertaking any work or installation. UNDER NO CIRCUMSTANCES UNDERTAKE THIS YOURSELF!!! Note for electrician. This product comes with 13 amp plug(s) fitted with an RCD unit. We leave it this way for you to connect this your own way due to continued additions to current regulations.

  • Page 6: What's In The Boxes

    www.insigniarange.com Last Modified: 23/06/2017 Whilst the next steps show you how to assemble your shower we want to make sure you have a correct build to ensure you get a trouble free shower. Therefore our advice is to follow the instructions and perform a dry run to ensure you are confident with the build and you understand fully how the unit is assembled. When we use the word “DRY RUN”...
  • Page 7 Note: In some cases you may have more screws than needed, this is done so you have spares! VERY IMPORTANT Have you got everything? If not please contact the Insignia Support Line on 01908 226545. Remember NEVER book your tradesman until everything has arrived, been checked and is present.
  • Page 8 www.insigniarange.com Last Modified: 23/06/2017 Tool Requirements Scissors Stanley Blade Silicone Gun Spirit Level Tape Measure Philips Screwdriver Electric Drill Adhesive Requirements Bacteria Resistant Sanitary Silicone - (for vertical joints) RubberGum x3 Plumbers Mait (for waste joints) Not Supplied Not Supplied Supplied requires 2 x 1 Metre Braided Hose Not Supplied...
  • Page 9 www.insigniarange.com Last Modified: 23/06/2017 Pressure Requirements from your house supply We recommend a bar pressure between 2.5 and 3.4 BAR. If you have a combi boiler system no problem should be experienced. If you have a gravity feed older type installation (hot water tank type usually less than 1 bar) you will almost certainly need a pump.
  • Page 10 www.insigniarange.com Last Modified: 23/06/2017...
  • Page 11 www.insigniarange.com Last Modified: 23/06/2017 TO START Make sure you have a clear space, remember when finished and in place you need access to check your build and able to pull the shower out for servicing or should you have the need to replace anything! Take the shower tub and remove all the protective wrapping and fit the waste.
  • Page 12 www.insigniarange.com Last Modified: 23/06/2017 Step 1 Apply Silicone under the left hand glass panel and place in position on the tray and whilst holding in this position silicone the bottom and align the back left glass panel in the position numbered 1 on the adjacent picture and walk around into position 2 to click the panel in it’s final position Step 2 Repeat step 1 on the right hand side of the tray...
  • Page 13 (please note, if your column has a rubber seal at the bottom , take the rubber off and apply silicone inside the rubber and replace) Step 4 The next step is to attach the uprights to the top & bottom rails using the ST35 screws (wider rail with Insignia logo at the top)
  • Page 14 www.insigniarange.com Last Modified: 23/06/2017 Step 5 Now using the ST14 screws, screw in position as indicated by the image Step 6 Now use the corner uprights and place into position on either side of the frame as indicated by the image on the right...
  • Page 15 Step 10 Meet the frame to the side panels as per the hand opening of your choice ( Note: If the insignia logo is at the bottom simply peal it off and place on the top rail) Silicone...
  • Page 16 www.insigniarange.com Last Modified: 23/06/2017 Step11 Now using the ST14 screws and screw in position as Indicated by the image...
  • Page 17 www.insigniarange.com Last Modified: 23/06/2017 Step 12 Screw down the roof to the back and side panels as well as the back walls to the shower tray using ST25 screws from the rear of the shower.
  • Page 18 www.insigniarange.com Last Modified: 23/06/2017 Accessory Installation Please Note Ensure all grey backing film on the rear of the glass panels are pierced through the existing glass holes with a knife to provide an efficient smooth fitting and location of the accessories. We recommend using a screwdriver on the smaller holes.
  • Page 19 www.insigniarange.com Last Modified: 23/06/2017 Monsoon Head Hand Shower Attach the grey hose from your valve to the inner black tube Attach the chrome riser bar to the using PTFE tape (please note this only needs to be hand glass wall ensuring the water inlet is tight.
  • Page 20 www.insigniarange.com Last Modified: 23/06/2017 Handle Ensuring that the inner thread is protruding out from the handle far enough, place the handle on the outside of the door and secure by tightening the inner chrome knob to the protruding inner thread. Wheels Fit the adjustable wheels to the top and bottom of the glass doors and ensure the wheels are at their lowest position and hang on the inner curved rails with the wheels facing the...
  • Page 21 Shower Valve Device output may differ from the image. Please refer to your outer chrome faceplate in- side your Insignia shower as a reference point. IF YOUR DIAL DOES NOT CORRESPOND TO THE APPROPRIATE DEVICE: Turn on your water to the shower and note which output the water exits from then turn off the water and swap over the relevant hose.

  • Page 22: Electric Box Connections

    www.insigniarange.com Last Modified: 23/06/2017 Electric Box Connections Connect the cables below to the corresponding devices on the shower Roof Light Speaker Antenna Speaker...
  • Page 23 www.insigniarange.com Last Modified: 23/06/2017 Safety precautions Never leave children unattended in the shower or bath. Never bath children (under 12) using whirlpool function if fitted. Regulate the temperature of water before showering Never allow children to use the steam function. This function is for ADULTS ONLY.
  • Page 24 www.insigniarange.com Last Modified: 23/06/2017 Silicone Seal where shown in red on the inside of the shower TESTING FOR WATER LEAKS LEAVE THE SHOWER 24 HOURS AFTER BUILD TO ALLOW SEALENT TO CURE AND ENSURE THE SHOWER IS AWAY FROM ITS FINAL POSITION TO ALLOW REAR VIEWING Ensure all connections are tight and sealed including the waste, body jets and steam outlet (model de- pendent) on your shower.

  • Page 25: Control Panel Instructions

    Press to either turn up or down the radio volume. To see our tutorial videos for operating this control panel’s features, please search for “Insignia Showers” on YouTube and find our “SUN Control Panel” Playlist, or you can...
  • Page 26 www.insigniarange.com Last Modified: 23/06/2017 Need Help? Then simply download the following "Help" advice booklet found at this link below. This contains many useful items such as is your parts warranty registered, advice on cleaning / servicing your shower cabin, fault finding and many more items. This is a MUST to read and not just "HELP". It saves time in nearly all cases, avoiding contact with ourselves as most answers are there for a ready fix! Simply visit: www.insigniarange.co.uk/help.aspx...

  • Page 27: Parts Lists

    External Items Part Code Part Description Part Code Part Description Part Code Part Description SP143 Monsoon Shower head SP300 Waste hose GT002-3 Blank Column GT002-2 Blank Roof SP048 Massage jet—2 open ends SP211 Transformer SP048A Massage jet—1 open, 1 closed GT002-1...
  • Page 28 All images are registered with ImageTraker Insignia™ is a registered trademark of Maclean International Ltd All images are subject to copyright. Images may not be used in any way shape or form with out written permission from Maclean International Ltd. Images are NOT permitted...
