Brickcom Economy Outdoor Bullet Series Easy Installation Manual page 4

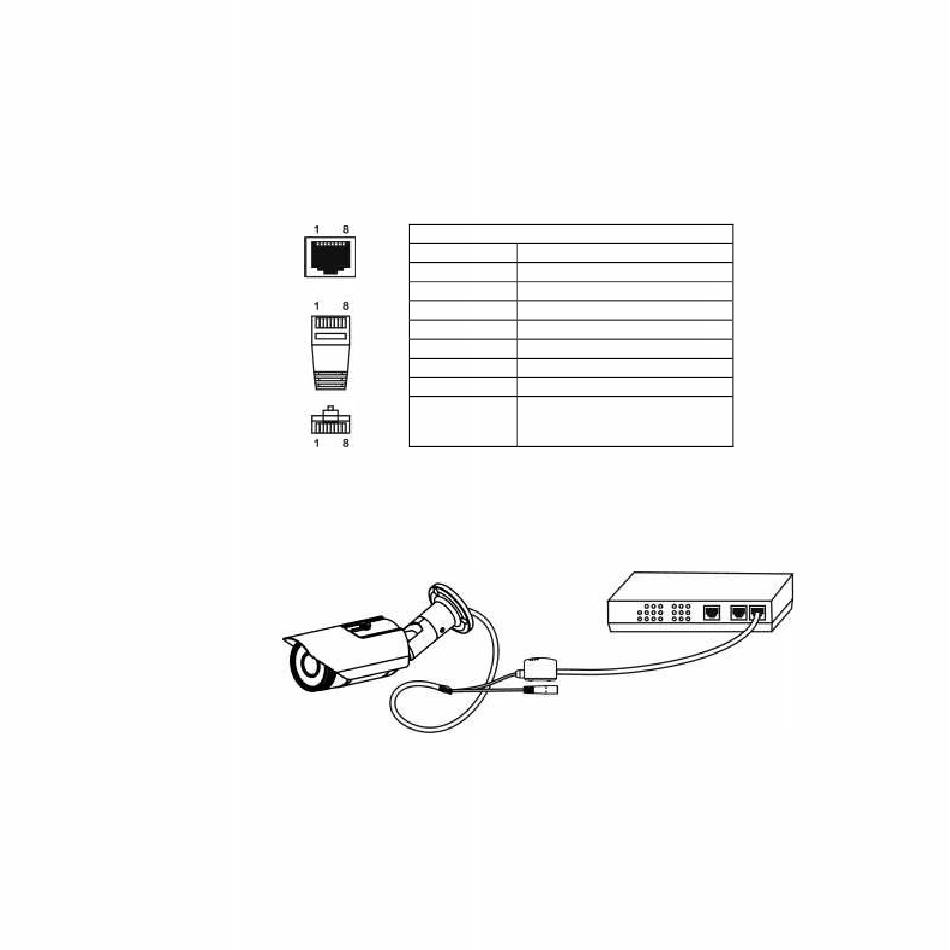

Step 2-1. PoE Connection
For the Power over Ethernet connection, construct the PoE cable using the pin definitions of
the RJ45 connector below and refer to step 5 for instructions on how to install the Water Proof
Connector. Once the PoE cable has been constructed using the waterproof connector, pass
the RJ-45 cable from the camera through the bracket and connect it to the PoE cable.
Step 2-2.Camera Connection
The Bullet Series PoE compliant. The camera can be connected to a PoE-enabled switch.
a. If using a PoE-enabled switch:
i. Use a single Ethernet cable to connect the camera to the PoE-enabled switch.
RJ45 Connector
Pin No. Function
Pin 1 Transmit Out+ (Tx+)
Pin 2 Transmit Out- (Tx-)
Pin 3 Receive In+ (Rx+)
Pin 4 DC 48V
Pin 5 DC 48V
Pin 6 Receive In- (Rx-)
Pin 7 48V_GND
Pin 8 48V_GND
