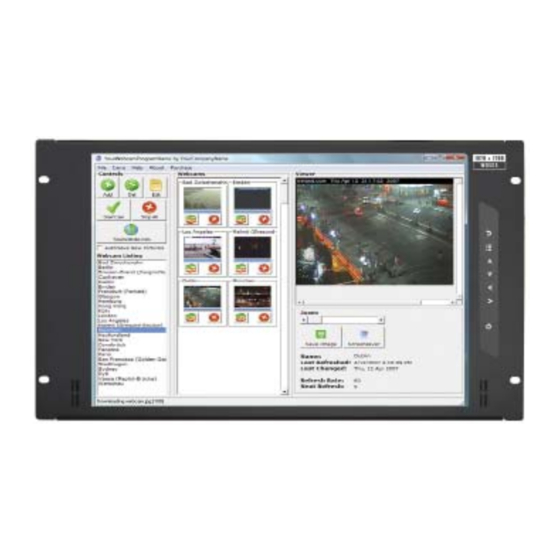

- Page 1 XMP Series 6U High Resolution Monitor Panel Options Available: - SDI / MCS - DC Power - Touch-Screen - MIL-Type or Lockable Connector Designed/Manufactured by Austin Hughes and Distributed by Eclipse Rackmount, Inc. Manual ML40V02A -- Generation 4 -- www.EclipseRackmount.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > XMP-17 Package Contents Structure Diagram & Dimensions P.1 - 2 Installation Specifications / OSD / Remote Controller < Part. 2 > Product Specifications P.4 - 5 On-Screen Display Operation ( OSD ) P.6 - 7 Picture In Picture ( PIP ) / Picture By Picture ( PBP ) P.8 - 9 <... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Part. 1 > Xmp-17
< Part 1 > < 1.1 > Package Contents XMP-17 XMP-17 unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 < 1.2 > Structure Diagram Front view Power adapter Rear view LCD panel LCD membrane Audio speaker... - Page 6 < 1.2 > Dimensions Front View Side View UNIT : mm Bottom View 1mm = 0.03937 inch Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 480 x 48 x 266 mm 529 x 124 x 451 mm 4.2 kg 6.2 kg...
-
Page 7: Installation
< 1.3 > Installation XMP-17 Step ■ Mount the display panel with M6 screw set. ■ M6 screw x 4 pcs required ( Left & right side ). M6 screw sets are not provided. Step ■ Fix the LCD into the rack. Page 07 -- ML40V02A -- www.EclipseRackmount.com... -
Page 8: Product Specifications
< Part 2 > < 2.1 > Product Specifications Panel Size ( diagonal ) 17.1-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. ) 600:1 Color 16.7 M, 8-bit Viewing Angle ( L/R/U/D ) - Page 9 XMP-17 Environmental Operating Temperature 0 to 50°C degree Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 480 x 48 x 266 mm Specification 18.9 x 1.9 x 10.5 inch...
-
Page 10: On-Screen Display Operation ( Osd )
< 2.2 > On-Screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 11 < 2.2 > On-Screen Display Operation ( OSD ) XMP-17 Auto adjust : Automatically adjust sizes, centers and f ne tunes the video signal to eliminate waviness and distortion. Clock : Adjust the clock value Phase : Adjust the phase value H.
-
Page 12: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
< 2.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 2.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position... - Page 13 XMP-17 < 2.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080...
- Page 14 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input The SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberV iew Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays , the board provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.
-
Page 15: Part. 3 > Options
< 3.2 > Options : MCS XMP-17 ( Multi-Display Control ) The MCS solution is able to control the OSD of various CyberView LCD displays up to 64 units. The RS-232C is used for the communication between the PC and f rst display via a 15' serial cable, while the CAN bus is used for the LCD displays. - Page 16 < 3.2 > Options : Touch-Screen & Driver 17" USB Touch-Screen Specification Model e-Resistive e-Capacitive Technology 5-Wire Resistive Capacitive Touch Point Single Single Method Stylus or Finger Finger Activation Force ≤ 50g / Stylus=R0.8 ≤ 50g Durability 10 million touches 300 million touches Response Time 15 ms...
- Page 17 < 3.3 > Options : DC Power XMP-17 Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA...
-
Page 18: Mil-Type Or Lockable Connector
< 3.4 > Options : MIL-Type or Lockable Connector Input Part no. MIL Standard MIL - Type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design f exibility possible. - Page 19 The company reserves the right to modify product specif cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2013 Austin Hughes Electronics Ltd. & Eclipse Rackmount, Inc. All rights reserved. Manual ML40V02A -- www.EclipseRackmount.com...
