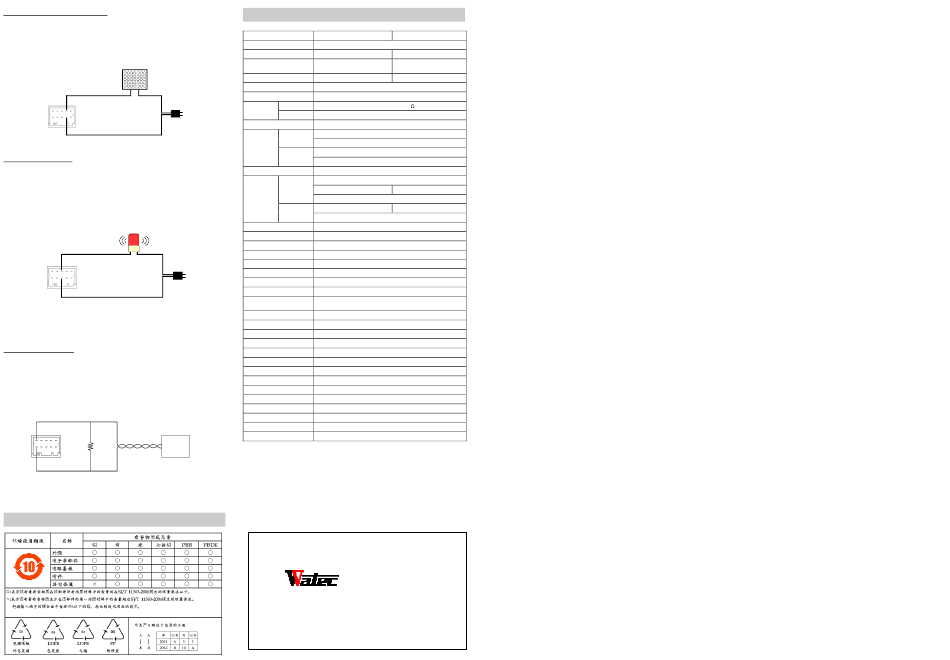

Watec WAT-233NC Operation Manual page 2

■DAY/NIGHT status output terminal
When in NIGHT mode (IR-cut filter removed), the terminals A2 and B2 are closed
circuit, therefore, the IR projector system is turned on if it is attached as the
diagram indicated below. Please make sure that the attached IR projector
system supply voltage is 16V or less and the output current is 250mA or less.
IR projector system
A2(Purple)
AC adaptor
B2(Purple/White)
■Alarm output terminal
When the motion detection function is selected, the alarm output terminals, A3
and B3, are closed circuit by detecting any movement in the monitored area. If an
alarm is attached as the diagram indicated below, the alerting system (sound,
light, etc.) turns on by the closed circuit. Please make sure that the attached
alarm supply voltage is 16V or less between the 2 terminals and the output
current 250mA or less.
Alerting system
A3(Orange)
AC adaptor
B3(Orange/White)
※When connecting to the induced load(relay, motor) or incandescent electric
lamp, take measures against surge voltage and inrushing current on the
outside circuit.
■RS485 Communication
OSD operation is possible through the use of the RS485 communication line and
a PC or Pelco-D protocol compatible DVR, Controller, etc... (refer to diagram
below).
The voltage levels between the input terminals A5(RXD[+]) and B5(RXD[-]) must
be between -7 to +12V. Please take caution to connect the input terminals with
the correct polarity. Please refer to the user's manual for the RS485 compatible
equipment for proper connection and use.
A5 (Gray)
RS485
Resistance→ compatible
120Ω equipment
B5 (Gray/White)
※The Camera does not have a termination resistor, therefore, as needed,
please terminate the connection on the cable side (Termination Resistor
120Ohms)
关于电子信息产品污染控制标识 关于电子信息产品污染控制标识 关于电子信息产品污染控制标识 关于电子信息产品污染控制标识
Specifications
Model WAT-233 (NTSC) WAT-233 (PAL)
Pick-up Element 1/3 inch 960H interline transfer CCD image sensor
Number of Total Pixels 1028(H)×508(V) 1028(H)×596(V)
Number of
976(H)×494(V) 976(H)×582(V)
Effective Pixels
Unit Cell Size 5.0μm(H)×7.4μm(V) 5.0μm(H)×6.25μm(V)
Sync. System Internal
Scanning System 2:1 Interlace
Video Composite Composite Video, 1.0 V(p-p), 75 (Unbalanced)
Output
Y/C Y: 1.0 V(p-p), C: 0.3 V(p-p) 75Ω
Resolution More than 650TVL (Center)
0.01 lx F1.2 (AGC=ON, Shutter=OFF, NR=ON, γ=0.45)
Color
(AGC=ON, Shutter=x16, NR=ON, γ=0.45)
0.0006 lx F1.2
Minimum
Illumination
(AGC=ON, Shutter=OFF, NR=ON, γ=0.45)
0.0005 lx. F1.2
Monochrome
0.00003 lx. F1.2 (AGC=ON, Shutter=x16, NR=ON, γ=0.45)
More than 50dB (AGC=2dB, γ=1.0)
S/N
x2, x4, x8, x16, x32, x64, x128, x256 (field)
Fixed 1/60, 1/100 sec. 1/50, 1/120 sec.
AE Mode
1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec.
1/60 - 1/100000 sec. 1/50 - 1/100000 sec.
EI
x16 - 1/100000 sec.
AGC HI: 2~44dB / LO: 2~32dB
MGC 2~44dB (1dB step)
Gamma Characteristics 9 steps setting (1.0/0.8/0.7/0.6/0.55/0.5/0.45/0.4/0.35)
White Balance ATW, PWB, MWB, PRESET (4 types)
Day/Night Auto (Level selectable) / Manual / External
Wide dynamic range ON (Level selectable) / OFF
Noise reduction 3DNR ON (Level selectable) / OFF
Lens-iris Video / DC
Back Light
ON / OFF
Compensation
HSBLC(Highlight BLC) ON / OFF
Digital zoom x2 - x256 (ZOOM / PAN / TILT)
Mirror Image V-FLIP / H-FLIP / HV-FLIP
White blemish correction Up to 64 pixels
Function settings/Serial port OSD (On Screen Display) / RS-485 (Pelco-D)
DC+12V±10%
Power Supply
Electric Power 1.62W (135mA)
-10 - +50℃
Operating Temperature
Operating Humidity Less than 95% RH (Without condensation)
-30 - +70℃
Storage Temperature
Storage Humidity Less than 95% RH (Without condensation)
Lens Mount CS-mount (Back focus adjustable)
Size 43.5(W)×44(H)×67(D) (mm)
Weight
Approx. 150g
• Design and specifications are subject to change without notice.
• Watec is not responsible for any inconvenience or the attendant damages
to the video and monitoring recording equipment caused by misuse, mis-
operation or improper wiring of our equipment.
• If for any reason the WAT-233 does not work properly, or if you have any
questions regarding installation or operation, please contact the distributor or
dealer from which it was purchased.
• For details, please refer to the OSD Manual and H/W Manual available at
http://www.watec.co.jp/english/SoloPages/wat-233.
Contact information
Watec Co., Ltd. Watec Co., Ltd. Watec Co., Ltd. Watec Co., Ltd.
Add.: 254-2 Nihonkoku, Daihoji, Tsuruoka- Shi,
Yamagata-Ken, 997-0017 Japan
TEL: +81-235-23-4400 FAX: +81-235-23-4409
Email: info-o@watec.co.jp
URL: http://www.watec.co.jp
1573Z00-Y2000002
