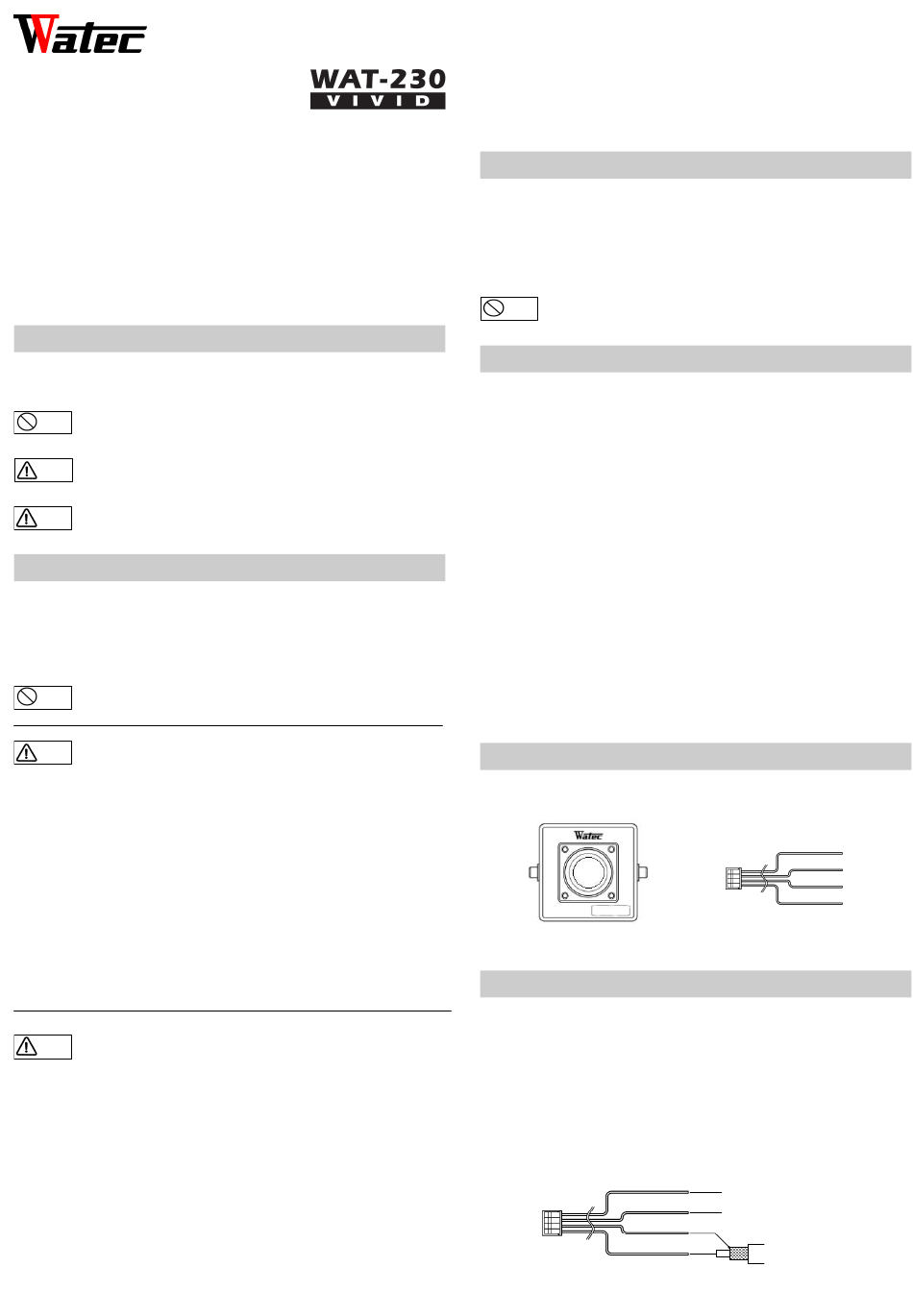

Watec WAT-230 VIVD NTSC Operation Manual

This Operation Manual covers safety, camera functions, installation and the
correct operating procedure for the WAT-230 VIVID. First, we ask you to
read this Operation Manual thoroughly, then install and operate the
WAT-230 VIVID as advised. In addition, for future reference, we also
advise safe keeping of this manual.
Please contact the distributor or dealer from which the WAT-230 VIVID was
purchased, if you do not understand the installation, operation or safety
instructions laid out in this manual. Not understanding the contents of the
Operation Manual sufficiently may cause damage to the camera.
Guide to the Safety Symbols
The meanings of the symbols used in this operation manual are:
When you do not adhere to or take notice of the "Danger" sign,
Danger it may lead to a serious accident such as death or injury
caused by fire or electric shock.
When you do not adhere to or take notice of the "Warning" sign,
War ni ng
it may cause severe damage such as a physical injury.
When you do not adhere to or take notice of the "Caution" sign,
it may incur injury and cause damage to peripheral objects in
Cauti on
the immediate surroundings.
Cautions for Safety
The WAT-230 VIVID is designed to be used safely; however, electrical
goods may lead to a physical accident caused by fire and electric shock if
not used correctly. Therefore, please keep and read the "Cautions for
safety" for protection against accidents.
• Do not disassemble and/or modify the WAT-230 VIVID.
Danger
• Do not operate the WAT-230 VIVID with wet hands.
• Use a stabilized power adaptor designed for DC+6V± ± ± ±
War ni ng
10%, with a current capacity of more than 300mA for the
WAT-230 VIVID.
The recommended voltage is DC+6V±10%
• Do not expose the WAT-230 VIVID to wetness or high
moisture conditions.
The WAT-230 VIVID is designed and approved for indoor use
only. The WAT-230 VIVID is not water-resistance or
waterproof. If the location of the camera is outdoors or in an
outdoor like environment, we recommend that you use an
outdoor camera housing
• Protect the WAT-230 VIVID from condensation.
Keep the WAT-230 VIVID dry at all times during storage and
operation.
• Should the camera not work properly, switch off the power
immediately. Then check the camera according to the
"Problems and Trouble shooting" section.
• Avoid the striking of hard objects or dropping the
Cauti on
WAT-230 VIVID.
The WAT-230 VIVID uses high quality electrical parts and
precision components.
• Do not wire the WAT-230 VIVID with any monitor using a
video/power single transmission terminal. The WAT-230
VIVID is not designed for use with this type of equipment. We
also advise you to read the operation manual of the monitor
you plan to use, before any connections are made.
• Do not install the WAT-230 VIVID in a position subject to
direct sunlight.
Sunlight shinning directly onto the WAT-230 VIVID lens can
cause damage to the CCD.
• Select a stable place for installation of the WAT-230
VIVID.
Use a support of durable strength around an installation
position on a ceiling or wall when a camera stand or tripod is
used.
Digital Color CCD Camera
Operation Manual
• Do not move the WAT-230 VIVID with the cables
connected.
i
Before moving the WAT-230 VIVID, always remove the video
cable and power cable from the rear of the camera first.
• Avoid using the WAT-230 VIVID near any strong
electromagnetic field.
Avoid emission sources of electromagnetic waves when the
WAT-230 VIVID is installed into main equipment.
About EMC
The WAT-230 VIVID is in conformity with EMC test standards carried out by
authorized organizations in Japan.
NTSC FCC Part15 class B
P A L EN61000-6-3 /EN50130-4
Do not modify the WAT-230 VIVID. A Modified camera may
Danger
not conform to EMC test standards.
Problems and Trouble Shooting
If any of the following problems occur when using the WAT-
230 VIVID,
An optimal picture cannot be obtained, after checking that all the cables
•
and connections are correctly in place
Smoke or any unusual odor emerges from the WAT-230 VIVID.
•
An object becomes embedded or a quantity of liquid seeps into the
•
camera housing
More than the recommended voltage or/and amperage has been
•
applied to the WAT-230 VIVID by mistake
Anything unusual occurring to any equipment connected to the
•
WAT-230 VIVID.
Disconnect the camera immediately according to the following
procedures:
①Switch off the main power supply to the camera.
②Remove the power and video cables connected to the WAT-230 VIVID.
③Contact the distributor or dealer from which the WAT-230 VIVID was
purchased.
Contents
Check to make sure all parts are present before use.
WAT-230 VIVID
Power Supply
Use a stabilized power adaptor designed for DC+6V±10%, with a current
capacity of more than 300mA. Use the optional DC plug if the shape or
polarity of the DC plug of the power adaptor to be used is not compatible
with the camera.
The wiring on the connector must be exact.
Be careful not to touch the other terminals while wiring. Protect the wired
portion by using insulation tape after wiring. If the above care and attention
is not adhered to, damage to the WAT-230 VIVID and power adaptor may
occur and may also cause fire.
Red: DC
Black: Common GND
Black: Common GND
Blue: Video out
Connector with cables
＋
6V
To power supply ( DC+6V)
To power supply ( GND)
To 75 Ocoax. cable
for monitor
