Watec WAT-232 Operation Manual

Day & Night Camera
WAT-232
Operation Manual
This Operation Manual covers safety, camera functions, installation and the
correct operating procedure for the WAT-232. First, we ask you to read this
Operation Manual thoroughly, then install and operate the WAT-232 as
advised. In addition, for future reference, we also advise safekeeping of this
manual.
Please contact the distributor or dealer from which the WAT-232 was
purchased, if you do not understand the installation, operation or safety
instructions laid out in this manual. Not understanding the contents of the
Operation Manual sufficiently may cause damage to the camera.
Guide to the Safety Symbols
The definitions of the symbols used in this operation manual are:
When you do not adhere to or take notice of the "Danger" sign,
Danger it may lead to a serious accident such as death or injury caused
by fire or electric shock.
When you do not adhere to or take notice of the "Warning" sign,
Warning
it may cause severe damage such as a physical injury.
When you do not adhere to or take notice of the "Caution" sign,
Caution it may incur injury and cause damage to peripheral objects in
the immediate surroundings.
Cautions for Safety
The WAT-232 is designed to be used safely; however, if not used safely, it
may lead to a physical accident caused by fire and electric shock. Therefore,
please keep and read the "Cautions for safety" for protection against
accidents.
Do not disassemble and/or modify the WAT-232.
•
Danger
Do not operate the WAT-232 with wet hands.
•
Use only the AD901-120/230 or equivalent power adaptor
•
Warning
for the WAT-232
The recommended voltage is DC+12V±10%.
Do not expose the WAT-232 to wetness or high moisture
•
conditions.
The WAT-232 is designed and approved for indoor use only.
The WAT-232 is not water-resistant or waterproof. If the
location of the camera is outdoors or in an outdoor like
environment, we recommend that you use an outdoor camera
housing.
Protect the WAT-232 from condensation.
•
Keep the WAT-232 dry at all times during storage and
operation.
Should the camera not work properly, switch off the power
•
immediately. Then check the camera according to the
"Problems and Trouble shooting" section.
Avoid the striking of hard objects or dropping the WAT-
•
Caution
232.
The WAT-232 uses high quality electrical parts and precision
components.
Do not connect any power supply directly to the video out
•
terminal of the unit.
Do not connect the WAT-232 with any monitor using a
video/power single transmission terminal. The WAT-232 is not
designed for use with this type of equipment. We also advise
you to read the operation manual of the monitor you plan to
use before any connections are made.
Do not install the WAT-232 in a position subject to direct
•
sunlight.
Sunlight shinning directly onto the WAT-232 lens can cause
damage to the CCD.
Select a stable place for installation of the WAT-232.
•
Use a support of durable strength around an installation
position on a ceiling or wall when a camera stand or tripod is
used.
Do not move the WAT-232 with the cables connected.
•
Before moving the WAT-232, always remove the video cable
and power cable from the rear of the camera first.
Avoid using the WAT-232 near any strong electromagnetic
•
field.
After installing into main equipment, if the WAT-232 is exposed
to electromagnetic waves causing the monitored image to
become distorted, we recommend the camera be shielded by
appropriate protective casing
Problems and Trouble Shooting
If any of the following problems occur when using the WAT-232,
An optimal picture cannot be obtained, after checking that all the cables
•
and connections are correctly in place
Smoke or any unusual odor emerges from the WAT-232
•
An object becomes embedded or a quantity of liquid seeps into the
•
camera housing
More than the recommended voltage or/and amperage has been applied
•
to the WAT-232 by mistake
Anything unusual occurring to any equipment connected to the WAT-232
•
Disconnect the camera immediately according to the following
procedures:
①Switch off the main power supply to the camera.
②Remove the power and video cables connected to the WAT-232.
③Contact the distributor or dealer from which the WAT-232 was
purchased.
About EMC
The WAT-232 is in conformity with EMC test standards carried out by
authorized organizations in Japan.
NTSC FCC Part15 class B
P A L EN61000-6-3/EN50130-4
Do not modify the WAT-232. A modified camera may not
Danger
conform to EMC test standards.

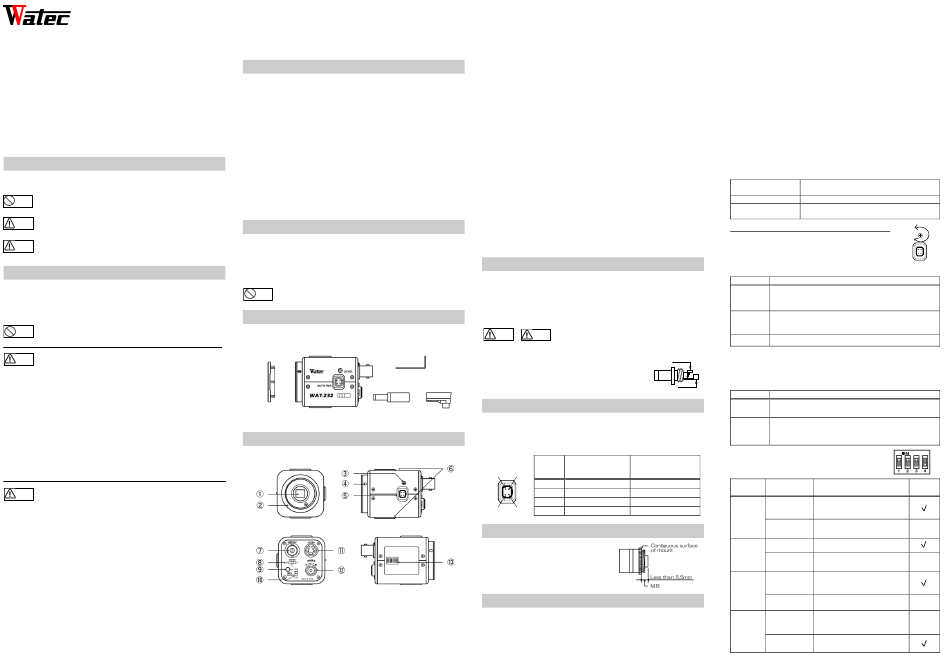

Contents
Using the contents figures below, check to make sure all parts are present
before use.
Hex. Wrench
Lens Mount Cap WAT-232 DC Plug Iris Connector
Description of Parts
①CCD FRONT FACE
・ ・ ・ ・ The light receiving face of the CCD camera
(Dirt, water or oil deposits on the CCD will cause an unclear picture on the
monitor. Attach the lens cap to protect the lens and the CCD from
contamination and damage.)
②LENS MOUNT
・ ・ ・ ・ Mount for the lens (CS-mount)
③IRIS LEVEL VOLUME
・By controlling the volume, the iris level of the DC iris lens can be adjusted.
④FINE FOCUS ADJUSTMENT SCREWS
・ ・ ・ ・ There are 3 hex. adjustment screws each placed at intervals of 120゜for
fine focusing of the lens.
⑤AUTO-IRIS SOCKET
・ ・ ・ ・ This socket is for the video/DC auto-iris lens cable connector.
(Video/DC: Auto selected by the camera)
⑥TRIPOD MOUNTING SCREW HOLES
・ ・ ・ ・ Mounting holes for stands. The size of these threads are 1/4", 20 threads,
4.5±0.2mm, which is the same as any standard camera tripod (U1/4").
⑦VIDEO OUT (BNC)
・ ・ ・ ・ The terminal for composite video signal output
⑧AE MODE CONTROL
・ ・ ・ ・ The switch for the shutter speed mode control according to the object
being monitored
⑨PUSH-LOCK WHITE BALANCE
・ ・ ・ ・ The button for manual setting of the white balance if the white balance
mode is set to P.W.B.
⑩WHITE BALANCE
・ ・ ・ ・ The switch for selecting white balance mode.
⑪Y/C OUT
・ ・ ・ ・ The terminal for Y/C signal output.
⑫POWER IN
・ ・ ・ ・ The terminal designed for connection with the DC-plug of the power
adaptor.
⑬FUNCTION SWITCHES
・ ・ ・ ・ Functional switches for setting manual-automatic transfer, shooting
mode, video level and B.L.C (Back light compensation).
Power Supply
If any other power adaptor besides the AD901-120/230 is used, please use
a stabilized power adaptor designed for DC+12V±10%, with a current
capacity of more than 250mA.
Use the optional DC plug if the shape or polarity of the DC plug of the power
adaptor to be used is not compatible with the camera (See the drawing on
the right below).
Warning Caution
The wiring of the connector must be exact.
Be careful not to touch the other terminal while wiring.
Protect the wiring portion by using insulation tape after
wiring. If the above care and attention is not adhered to,
damage to the WAT-232 and power adaptor may occur
and may also cause fire.
Auto-iris Lens
Before connecting the auto-iris lens, please make sure that the pin
configuration is correct by confirming with the following table. If the
configuration of your iris connector is different from the following, the plug
and pins will need to be rewired.
EIAJ Video EIAJ DC
Pin No. Auto-iris Lens Auto-iris Lens
②
④
Arrangement Arrangement
① Control －
Power
② Control ＋
Not used
③ Drive ＋
Iris signals
③ ① ④ Drive －
Common (GND)
Mechanical Back
Mechanical Back(M.B) is the projection
from the lens mount to the camera.
Use a lens with mechanical back that
is less than 5.5mm to the WAT-232.
Set-up and Operation
1) Ensure that the power to the WAT-232 and the peripheral equipment is
turned off before making any connections.
2) Remove the lens mount cap from the WAT-232 and attach the CS-
mount lens. Use the optional C-mount adaptor(34CMA-R) when a
C-mount lens is used.
3) Connect the iris control cable to ⑤AUTO-IRIS SOCKET on the WAT-
232 when an auto-iris lens is being used.
4) Connect ⑦VIDEO OUT on the WAT-232 with the monitor, using a
coaxial cable with 75Ω impedance, such as an RG-58/U or an RG-6/U.
If the monitor has an S-terminal, high resolution imaging is possible by
connecting with ⑪Y/C OUT.
※The ⑪Y/C OUT can be used together with the ⑦VIDEO OUT.
※Select a monitor with the same television system as the WAT-232
NTSC or PAL. A monitor with more than 500TV lines is recommended.
5) Insert the power plug of the power adaptor into ⑫POWER IN on the
back panel of the WAT-232. Confirm that the power adaptor is not
connected to the power supply before insertion of the power plug into ⑫
POWER IN.
6) Turn on the power to the WAT-232, monitor and all other allied equipment.
When a picture cannot be obtained on the monitor, or a problem occurs,
check and follow the procedure mentioned in the【Problems and Trouble
Shooting】section.
7) After following the procedure below and the picture is still out of focus,
open the iris fully and loosen ④FOCUSING ADJUSTMENT SCREWS
with the hex. wrench and move the lens forwards until a clear picture is
obtained.
Adjust the focus and iris to the best position
Manual Lens
on the lens.
Video Auto-iris Lens Adjust the focus on the lens.
Adjust the iris level on the camera, then
DC Auto-iris Lens
adjust the focus on the lens. See below.
Iris Level Adjustment (for DC auto-iris lenses only)
Adjust ③IRIS LEVEL VOLUME placed on the side
of the unit until an acceptable light level is attained.
No change will occur if a video iris lens or manual
iris lens is fitted.
8) Select the required shutter speed mode by the ⑧AE MODE CONTROL.
AE Mode Effect
Automatically selects the shutter speed in a range
EI between NTSC1/60-1/100000, PAL1/50-1/100000
according to the lighting condition.
Reduces the flickering phenomena occurring on the
FL
monitor screen caused by fluorescent or mercury lamps.
(Fixes the shutter speed to NTSC1/100, PAL1/120)
OFF Fixes the shutter speed to NTSC1/60, PAL1/50.
※In EI mode, intense light may leave a trail on the screen longitude.
This smearing is a natural phenomenon and is not due to equipment
DC+12V
failure.
9) Adjust the required white balance settings by the ⑩WHITE BALANCE
or ⑨PUSH-LOCK WHITE BALANCE.
COMMON(GND)
Mode Effect
Automatically adjusts to the changing color
ATW
temperature of the illumination.
Manually adjusted according to your requirement
PWB ⑨PUSH-LOCK WHITE BALANCE keep pressed until
the required color temperature is acquired.
10) Set the ⑬ FUNCTION SWITCHES according to
your requirements.
Switch Setting Effective Condition
When the automatic change for
1.
ON
color mode and monochrome
【Auto】
Manual-
mode is required.
Automatic
transfer
OFF When the manual setting for
switch 【Manual】 shooting mode is required.
ON
2.
When only color mode is required.
【Color】
Shooting
OFF When only monochrome mode is
mode
【Monochrome】
switch required.
When dark areas on an object
3. ON
with contrasting light and dark
【100】
Video area are monitored.
Level
OFF
When the standard video output
【75】 level is required.
When the picture of the monitored
4.
ON object is silhouetted due to strong
lighting from above or behind
BLC
When the illumination differences
OFF
for a monitored object are narrow.
CLOSED
LEVEL
OPEN
Upon
Shipment
