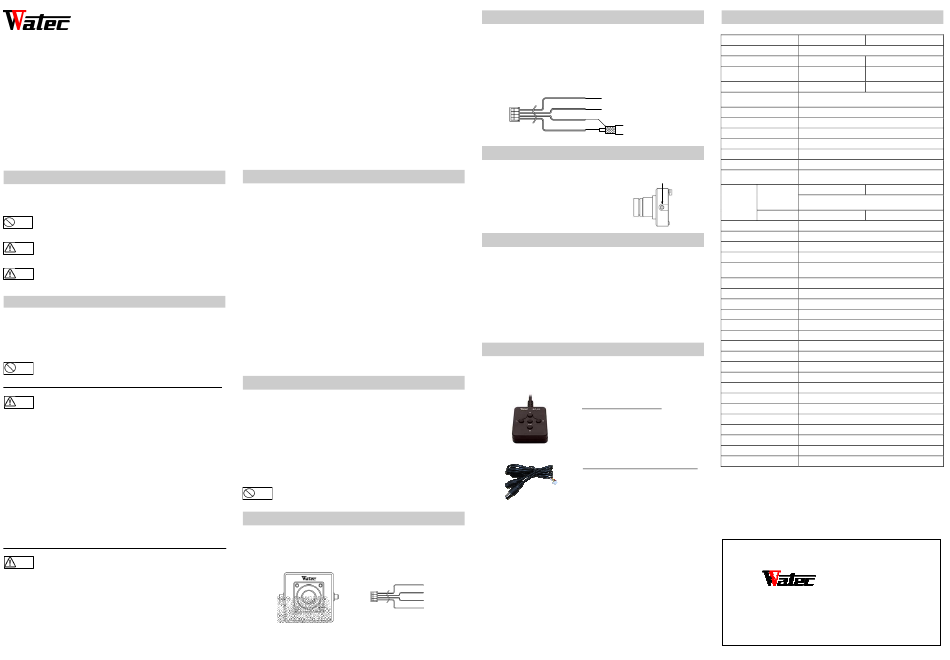

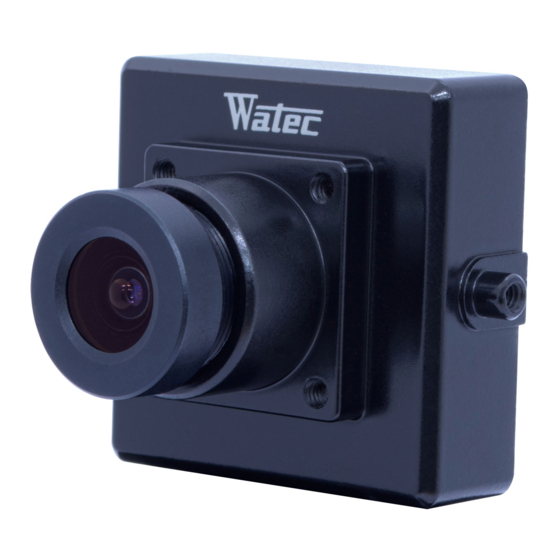

Watec WAT-230V2 Operation Manual

Color CCD Camera
WAT-230V2
Operation Manual
This Operation Manual covers safety, camera functions, installation and the
correct operating procedure for the WAT-230V2. First, we ask you to read
this Operation Manual thoroughly, then install and operate the WAT-230V2
as advised. In addition, for future reference, we also advise safekeeping of
this manual.
Please contact the distributor or dealer from which the WAT-230V2 was
purchased, if you do not understand the installation, operation or safety
instructions laid out in this manual. Not understanding the contents of the
Operation Manual sufficiently may cause damage to the camera.
Guide to the Safety Symbols
The definitions of the symbols used in this operation manual are:
When you do not adhere to or take notice of the "Danger" sign,
it may lead to a serious accident such as death or injury caused
D a n g e r
by fire or electric shock.
When you do not adhere to or take notice of the "Warning" sign,
W a r n i n g
it may cause severe damage such as a physical injury.
When you do not adhere to or take notice of the "Caution" sign,
it may incur injury and cause damage to peripheral objects in
C a u t i o n
the immediate surroundings.
Cautions for Safety
The WAT-230V2 is designed to be used safely; however, if not used safely,
it may lead to a physical accident caused by fire and electric shock.
Therefore, please keep and read the "Cautions for safety" below for
protection against accidents.
•
Do not disassemble and/or modify the WAT-230V2.
D a n g e r
•
Do not operate the WAT-230V2 with wet hands.
•
Use a stabilized power adaptor designed for DC+4.6 -
W a r n i n g
+14V, with a current capacity of more than 250mA for the
WAT-230V2.
The recommended voltage is DC+4.6 - +14V
•
Do not expose the WAT-230V2 to wetness or high
moisture conditions.
The WAT-230V2 is designed and approved for indoor use only.
The WAT-230V2 is not water-resistant or waterproof. If the
location of the camera is outdoors or in an outdoor like
environment, we recommend that you use an outdoor camera
housing.
•
Protect the WAT-230V2 from condensation.
Keep the WAT-230V2 dry at all times during storage and
operation.
•
Should the camera not work properly, switch off the power
immediately. Then check the camera according to the
"Problems and Trouble shooting" section.
•
Avoid the striking of hard objects or dropping the
C a u t i o n
WAT-230V2.
The WAT-230V2 uses high quality electrical parts and
precision components.
•
Do not connect any power supply directly to the video out
terminal of the unit.
Do not connect the WAT-230V2 with any monitor using a
video/power single transmission terminal. The WAT-230V2 is
not designed for use with this type of equipment. We also
advise you to read the operation manual of the monitor you
plan to use before any connections are made.
•
Do not install the WAT-230V2 in a position subject to
direct sunlight.
Sunlight shinning directly onto the WAT-230V2 lens can cause
damage to the CCD.
•
Select a stable place for installation of the WAT-230V2.
Use a support of durable strength around an installation
position on a ceiling or wall when a camera stand or tripod is
used.
•
Do not move the WAT-230V2 with the cables connected.
Before moving the WAT-230V2, always remove the video
cable and power cable from the rear of the camera first.
•
Avoid using the WAT-230V2 near any strong electro-
magnetic field.
After installing into main equipment, if the WAT-230V2 is
exposed to electromagnetic waves causing the monitored
image to become distorted, we recommend the camera be
shielded by appropriate protective casing.
Problems and Trouble Shooting
If any of the following problems occur when using the WAT-230V2,
•
An optimal picture cannot be obtained, after checking that all the cables
and connections are correctly in place
•
Smoke or any unusual odor emerges from the WAT-230V2
•
An object becomes embedded or a quantity of liquid seeps into the
camera housing
•
More than the recommended voltage or/and amperage has been applied
to the WAT-230V2 by mistake
•
Anything unusual occurring to any equipment connected to the
WAT-230V2
Disconnect the camera immediately according to the following procedures:
①Switch off the main power supply to the camera.
②Remove the power and video cables connected to the WAT-230V2.
③Contact the distributor or dealer from which the WAT-230V2 was
purchased.
About EMC
The WAT-230V2 is in conformity with EMC test standards carried out by
authorized organizations in Japan.
NTSC FCC Part15 class B
P A L EN61000-6-3/EN50130-4
※Please use an auxiliary power supply (eg: UPS) to this camera to comply
with EN50130-4 of EMC standards.
Do not modify the WAT-230V2. A modified camera may not
D a n g e r
conform to EMC test standards.
Contents
Using the contents figures below, check to make sure all parts are present
before use.
WAT-230V2 4P cable

Power Supply

Use a stabilized power adaptor designed for DC+4.6 - +14V, with a current
capacity of more than 250mA.
The wiring on the connector must be exact.
Be careful not to touch the other terminals while wiring. Protect the wired
portion by using insulation tape after wiring. If the above care and attention
is not adhered to, damage to the WAT-230V2 and power adaptor may occur
and may also cause fire.
Red: DC (DC+4.6 ＋ 6V ～ 1 4V)
To power supply （ (DC+4.6 DC+6V
Black: Common GND
（ ）
To power supply GND
Black: Common GND
Blue: Video out
To 75 Ocoax. cable
for monitor
Mounting
The WAT-230V2 has two bosses on both
M2 bosses with
sides featuring M2 thread and screws.
thread and screw
Use these if the camera is to be mounted
to the B001 bracket.
Set-up and Operation
①Refer to the 【Power Supply】 and the wiring must be exact.
②Join the video out cable with the video in cable of the monitor or
peripheral equipment.
③Join the power supply using the correct procedure.
④Make sure that a picture can be seen on the monitor
⑤To focus, turn the lens clockwise or counterclockwise while observing the
picture on the monitor. (Take care when focusing not to scratch or
damage the lens.)
Options
To purchase these options, please contact the distributor or dealer from
which you purchased the WAT-230V2.
Remote Controller (RC-01)
Remote control for controlling the On
Screen Display menu to change camera
settings.
Cable with BNC, Socket and connector
The cable with BNC/DC socket.
(Cable Length: 1m)

Specifications

Model WAT-230V2 (NTSC)
Pick-up Element 1/4 inch interline transfer CCD image sensor
Number of Total Pixels 1020(H)×508(V)
Number of
976(H)×494(V)
Effective Pixels
Unit Cell Size 3.75µm(H)×5.56µm(V)
Ye, Cy, Mg, and G complementary
～ ） 1 4V) Imaging system
color mosaic filters on chip
Sync. System
Scanning System
Video Output Composite video, 1.0 V(p-p), 75Ω(Unbalanced)
Resolution (H) More than 650TVL (Center)
Minimum Illumination
S/N
OSD(On Screen Display) operated
Function settings
by optional remote controller
1/60, 1/100 sec.
Fixed
1/250, 1/500, 1/1000,
AE Mode
1/2000, 1/4000, 1/10000 sec.
EI 1/60 - 1/100000 sec.
AGC
MGC
Gamma Characteristics
Video Level 0 – 255 (BRIGHTNESS)
ATW/PUSH/USER1/USER2/
White Balance
ANTI CR/MANUAL/PUSH LOCK
Noise Reduction 2DNR ON(
Back Light Compensation
Privacy Mask
Mirror Image
White Blemish Correction
Output switching
Sharpness 0 - 255(SHARPNESS)
Power Supply
Power Consumption 0.78W/155mA (DC+5V)
Operating Temperature
Operating Humidity Less than 95% RH (Without condensation)
Storage Temperature
Storage Humidity Less than 95% RH (Without condensation)
Lens mount
Standard Lenses f=3.7mm F1.8 57.0°(H)×42.3°(V)
Cable Length
Size 35.5(W)×29.5(H)×32.5(D) (mm)
Weight
• Design and specifications are subject to change without notice.
• Watec is not responsible for any inconvenience or the attendant damages
to the video and monitoring recording equipment caused by misuse, mis-
operation or improper wiring of our equipment.
• If for any reason the WAT-230V2 does not work properly, or if you have any
questions regarding installation or operation, please contact the distributor or
dealer from which it was purchased.
Contact information
Watec Co., Ltd.
Add.: 254-2 Nihonkoku, Daihoji, Tsuruoka- Shi,
Yamagata-Ken, 997-0017 Japan
TEL: +81-235-23-4400 FAX: +81-235-23-4409
Email: info-o@watec.co.jp
URL: http://www.watec.co.jp
WAT-230V2 (PAL)
1020(H)×596(V)
976(H)×582(V)
3.75µm(H)×4.69µm(V)
Internal
2:1 interlaced
0.1 lx F1.8
More than 50dB
1/50, 1/120 sec.
1/50 - 1/100000 sec.
0 - 45dB
8steps (Selectable )
γ≒0.45
Level selectable ) / OFF
OFF/BLC/HLC
8masks
OFF / ON(H-FLIP)
Max 64 dots
AUTO/COLOR/BW
DC+4.6 - +14V
-10 - +50℃
-30 - +70℃
M12 P=0.5
300mm
Approx. 35g
